Description

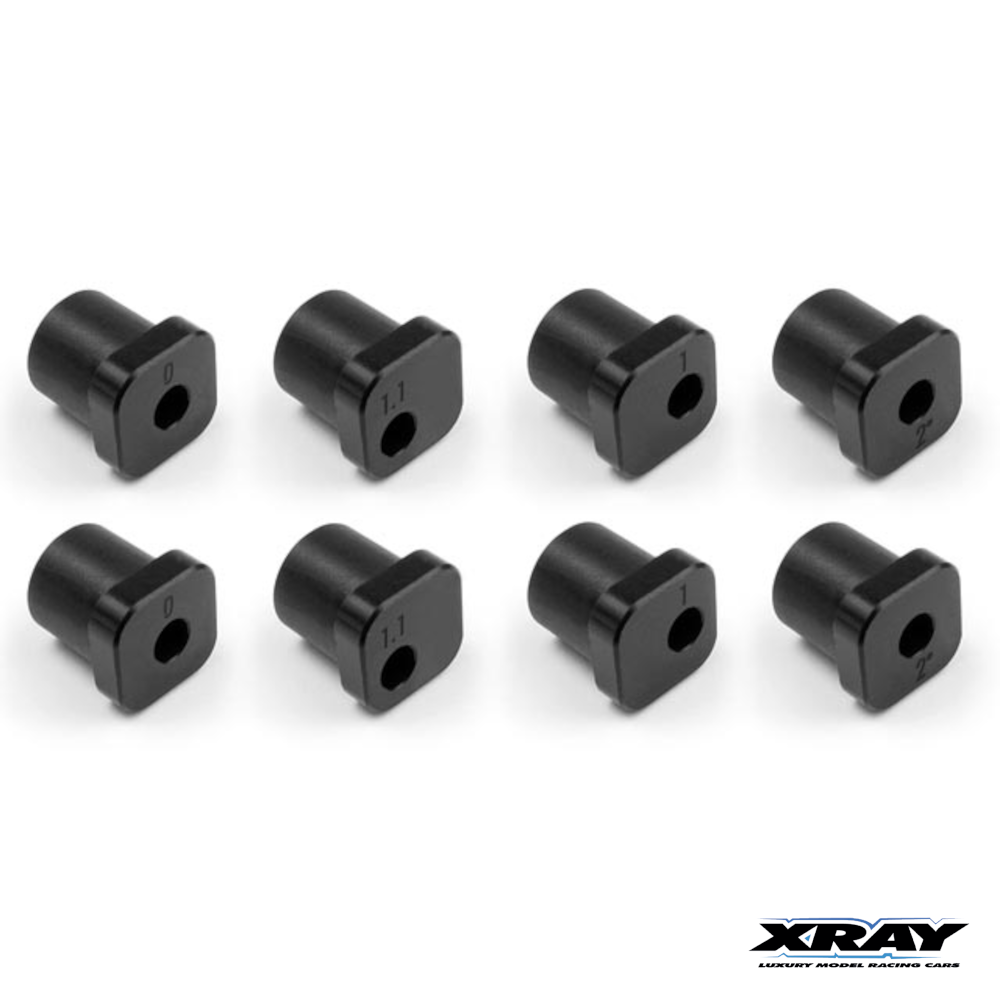

Xray Eccentric Bushing for Alu Rear Hub Carrier (Set)

#353180

Set of molded composite eccentric bushings for alu rear hub carriers #353355 and #353365. The eccentric bushings are used for rear suspension geometry adjustment. Exchanging the bushings allows 9 different geometry settings. Each bushing is marked for easy identification.

The set of bushings includes the following:
0 = no offset; hole in center of bushing
1 = hole offset 1mm from center
1.1 = hole offset 1mm vertical and 1mm horizontal from center
2 = 2° outboard toe-in bushing

Important: Always use the same bushing on left and rear alu rear hub and if you use an eccentric hole bushing (1, 1.1 and 2), left side must be opposite to the right side.

 XRAY XB8’04
 XRAY XB8’05
 XRAY XB8’05
 XRAY XB8’06
 XRAY XB8’07
 XRAY XT8’07
 XRAY XT8’08
 XRAY XT8’09
 XRAY XT8’10
 XRAY XT8’11
 XRAY XT8’12
 XRAY XT8’13
 XRAY XT8’14
 XRAY XT8’15
 XRAY XT8’16
 XRAY XT8’17
 XRAY XT8’18
