QuicRun 10BL60 G2 1:10 ESC – Brushless

Description

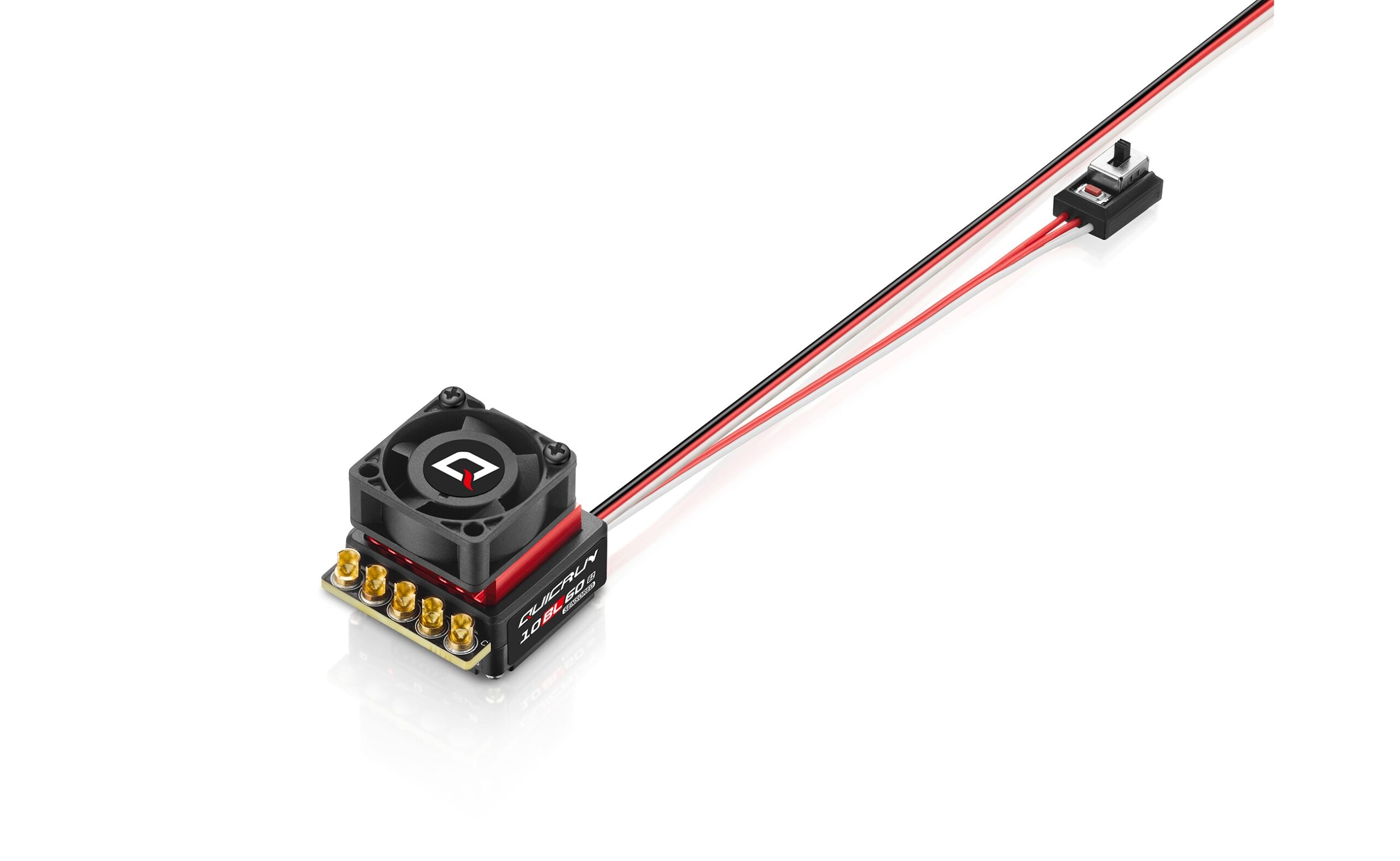

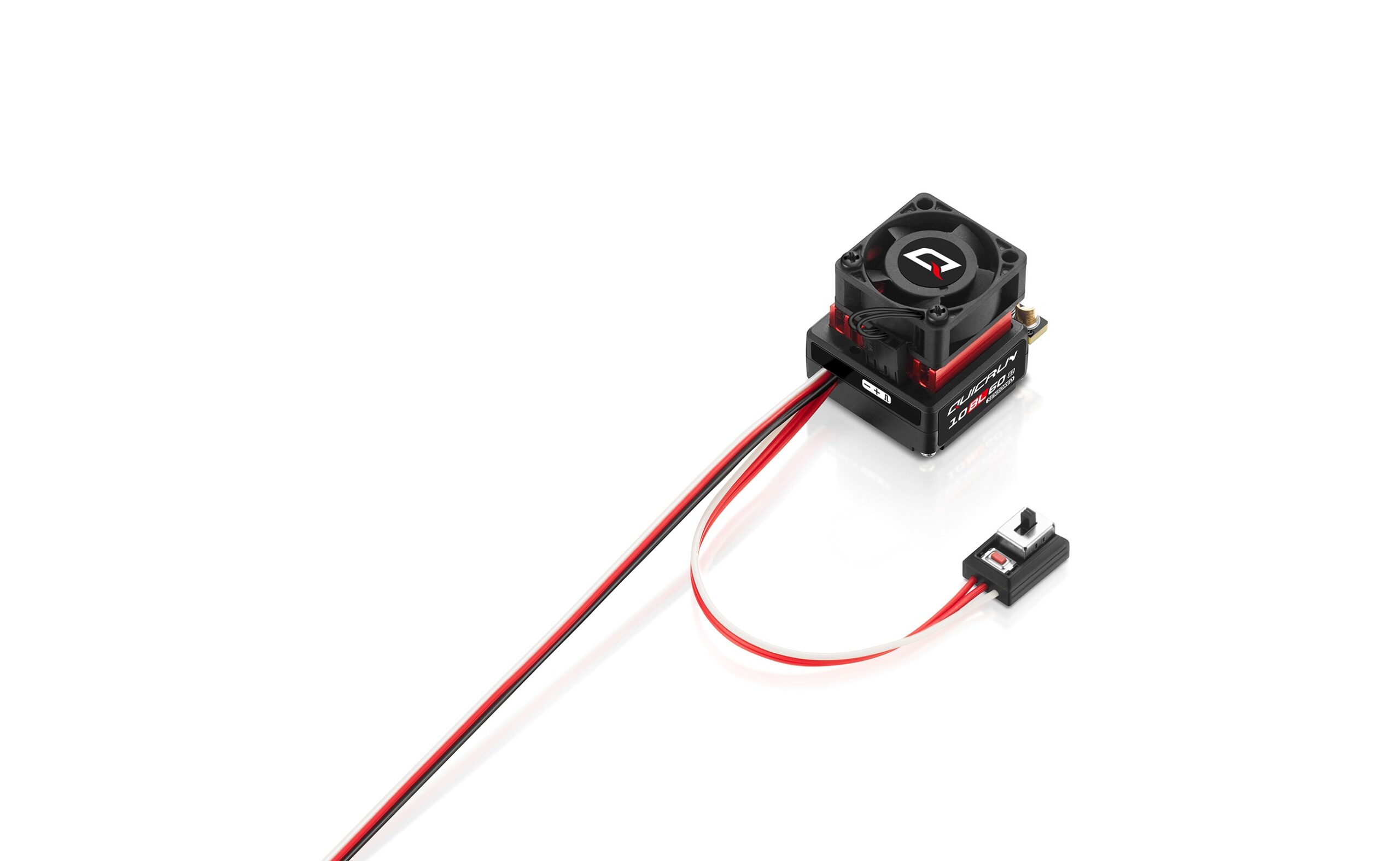

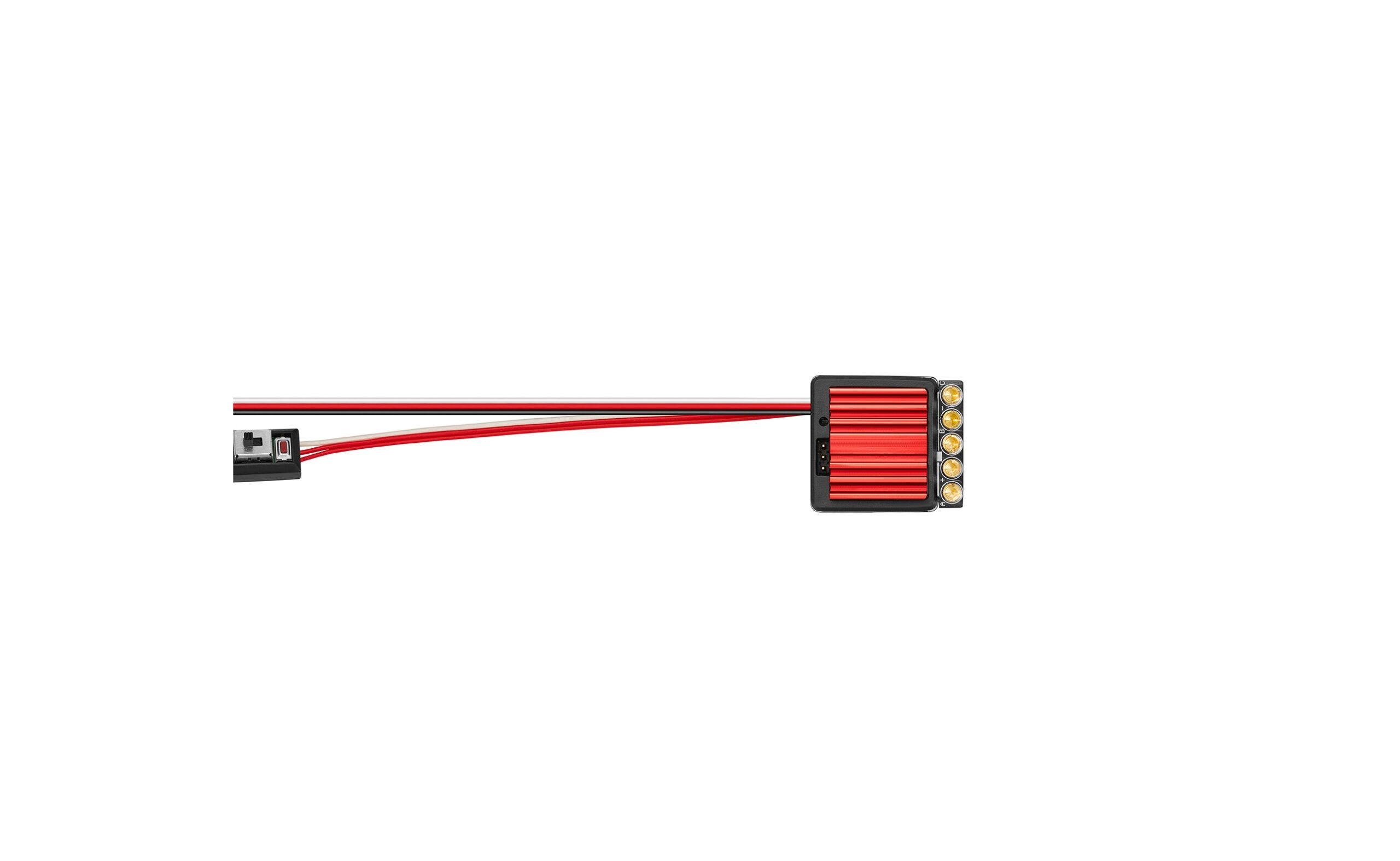

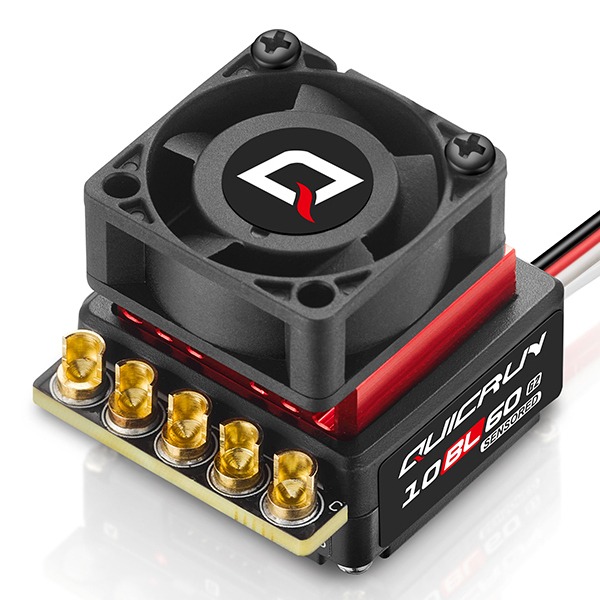

The Hobbywing QuicRun 10BL60 Sensored G2 is a reliable and user-friendly electronic speed controller designed for both beginners and intermediate RC enthusiasts. Combining excellent value for money with solid performance, it delivers smooth and precise control without the need for complicated setup or tuning.

Compared to the previous generation, the G2 version features a significantly upgraded BEC, capable of powering high-torque and high-voltage servos with ease. It also supports Boost and Turbo timing adjustments up to 24°, allowing users to unlock maximum motor performance and speed when needed.

Technical specifications:

General

• Type: Brushless ESC
• Scale: 1/10
• Sensored / Sensorless: Sensored
• Waterproof: No

Performance

• Continuous / Peak Current: 60A / 200A
• Input Voltage: 2S LiPo
• BEC: Switch-mode
• BEC Output: 6V / 7.4V @ 4A

Wires & Connectors

• Input Wires: 14AWG, 175 mm (red & black)
• Output Wires: 14AWG, 175 mm (blue, yellow, orange)
• Input Connector: None
• Output Connectors: None

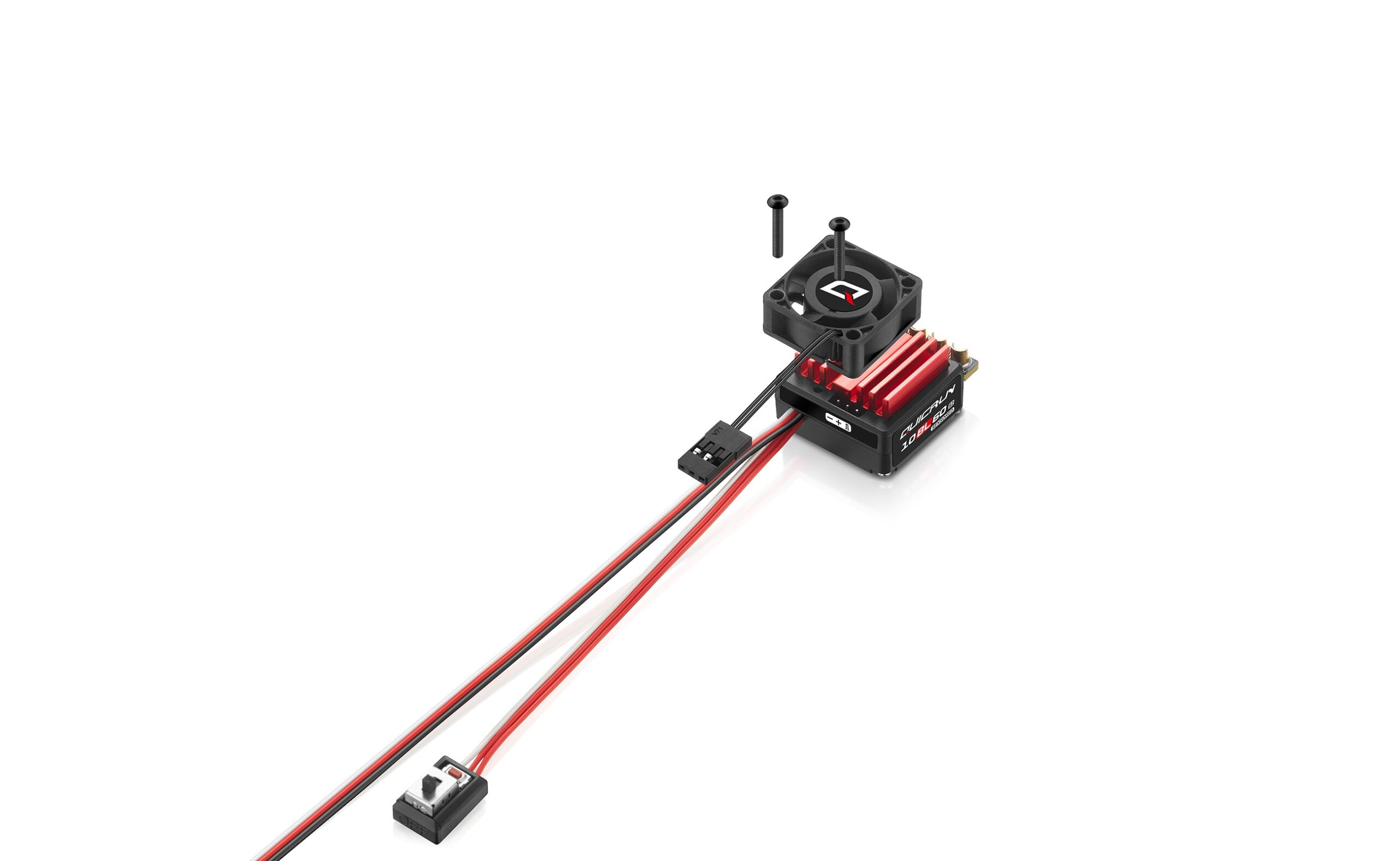

Cooling Fan

• Type: Framed fan
• Size: 25 × 25 × 10 mm
• Voltage: 6V
• Powered by: BEC

Programming

• SET button on ESC – supported
• LED Program Box – supported
• LCD G2 Program Box – supported
• LCD PRO – supported (Bluetooth not supported)
• OTA Programmer – not supported
• WiFi Module – not supported
• Program Port – shared with fan port

Data Recording

• Extreme values – not supported
• Real-time data – not supported
• Historical data – not supported

Firmware

• Firmware upgrade – not supported

Dimensions & Weight

• Size: 35.0 × 31 × 30.8 mm
• Weight: 66.5 g (including wires & connectors)

Applications

Motors:

• Sensored & sensorless brushless motors
• Recommended Motor: QuicRun 3650SD G2

Vehicles:

• 1/10 touring, buggy, drift
• 1/12 & 1/14 vehicles

The QuicRun 10BL60 Sensored G2 is built on a robust hardware platform combined with advanced software, ensuring stable performance even under high loads. Multiple protection features enhance reliability and durability for long-term use.

With flexible programming options and motor rotation adjustment support, this ESC is compatible with a wide range of RC setups. It is the perfect choice for those seeking a powerful, versatile, and easy-to-use ESC for 1/10 scale vehicles.
