QuicRun WP 16BL30 G2 1:16 ESC – brushless

Description

The Hobbywing QuicRun WP 16BL30 G2 is a compact and user-friendly electronic speed controller designed for 1/16 and 1/18 scale RC vehicles. Featuring intelligent freewheeling technology, it delivers higher efficiency, lower operating temperatures, and smoother, more stable power output.

Compared to the previous generation, the G2 version is significantly smaller, making installation easier and allowing for cleaner, more flexible wiring layouts. The upgraded BEC provides increased power and improved control, making this ESC an excellent choice for both beginners and hobbyists.

Technical Specification:

General

• Type: Brushless ESC
• Scale: 1/16 & 1/18
• Sensored / Sensorless: Sensorless (supports sensored motors in sensorless mode)
• Waterproof: Yes (IP67)

Performance

• Continuous / Peak Current: 30A / 100A
• Input Voltage: 2–3S LiPo
• BEC Output: 6V / 7.4V, 2A (up to 4A peak)

Wires & Connectors

• Input Wires: 16AWG
• Output Wires: 3-phase motor wires
• Input Connector: XT60
• Output Connectors: 3.5 mm gold bullets (female)

Programming

• SET button on ESC
• LED Program Box – supported
• LCD G2 Program Box – supported
• LCD PRO – supported
• Program Port: throttle wire + signal wire

Data Recording

• Extreme values – not supported
• Real-time data – not supported
• Historical data – not supported

Firmware

• Firmware upgrade – not supported

Dimensions & Weight

• Size: 33.4 × 26.8 × 15.1 mm
• Weight: ~38.5 g (including wires & connectors)

Applications

• Motors: Sensorless & sensored brushless motors

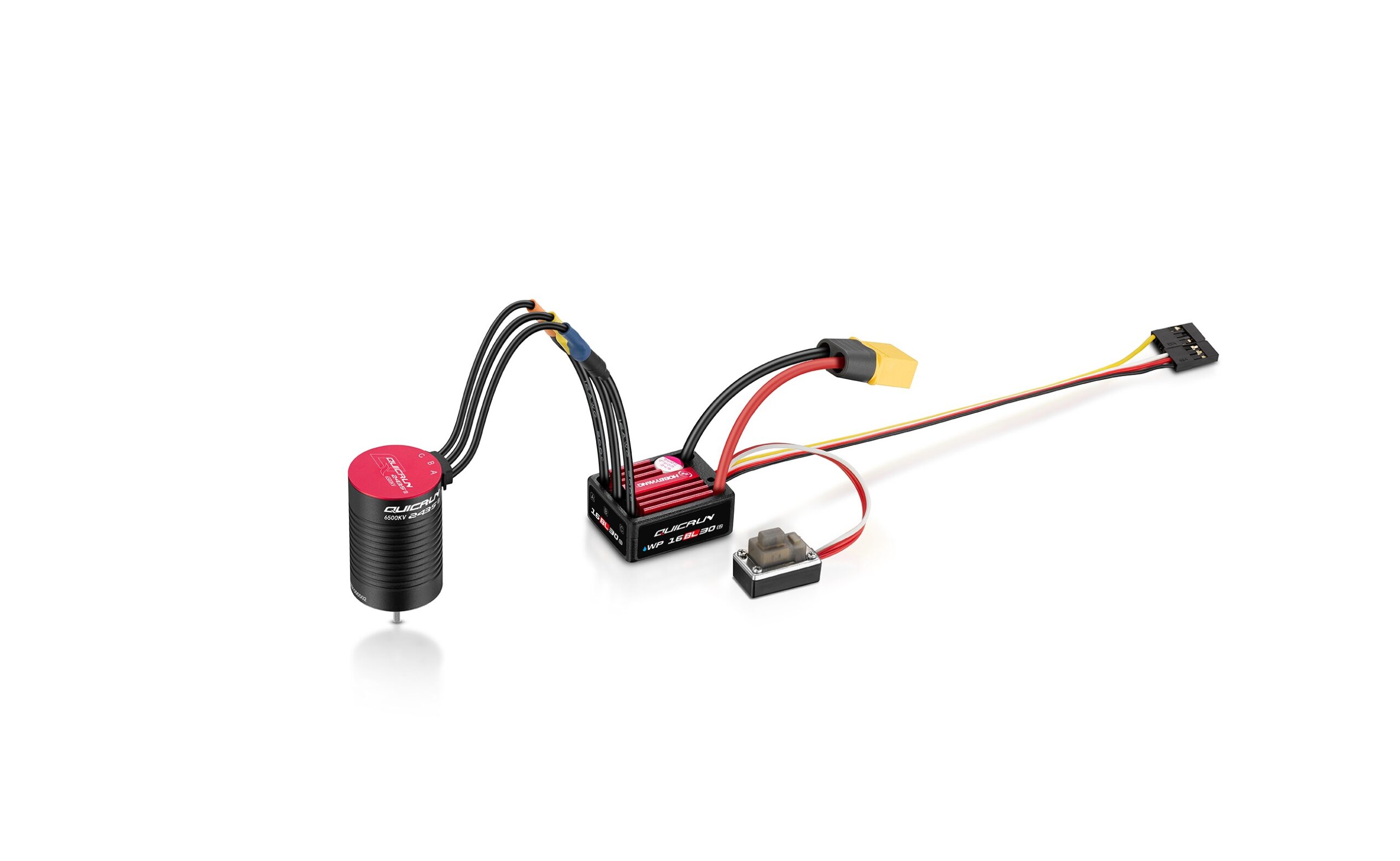

• Recommended Motors: QuicRun 2030 G2 / 2435 G3
• Vehicles:
• 1/16 & 1/18 on-road, off-road, SCT, monster truck

The QuicRun WP 16BL30 G2 combines reliability, simplicity, and excellent value for money. Its IP67-rated protection ensures dependable performance in harsh conditions such as rain, mud, and dust, while multiple programming options provide flexibility for fine-tuning.

Perfectly matched with QuicRun 2030 G2 and 2435 G3 motors, this ESC delivers smooth and responsive control. Its versatility and ease of use make it an ideal solution for those looking for a reliable and easy-to-use power system for smaller scale RC vehicles.
