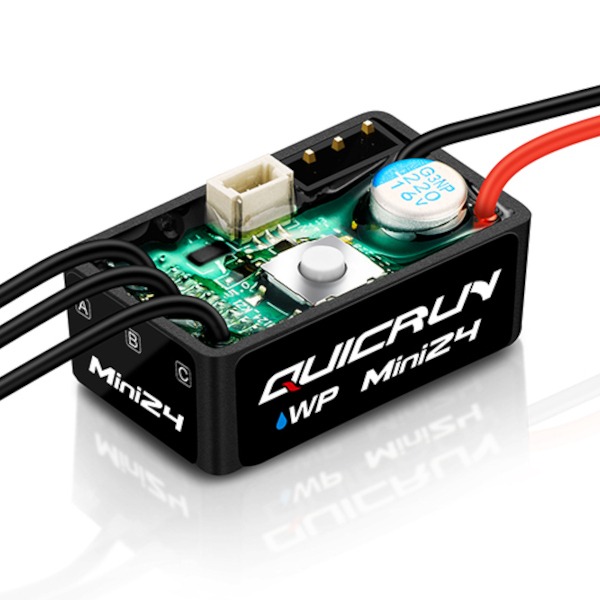

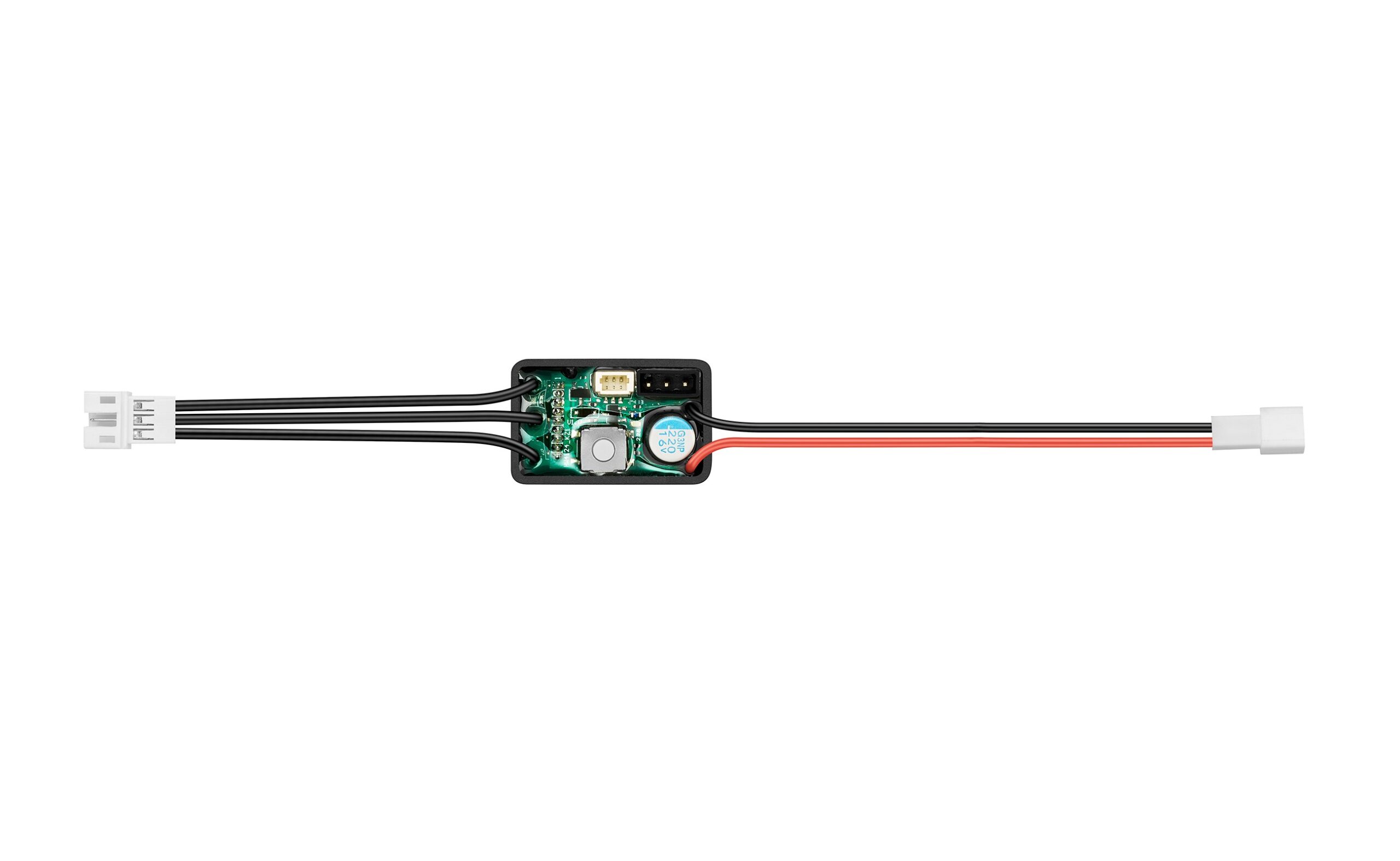

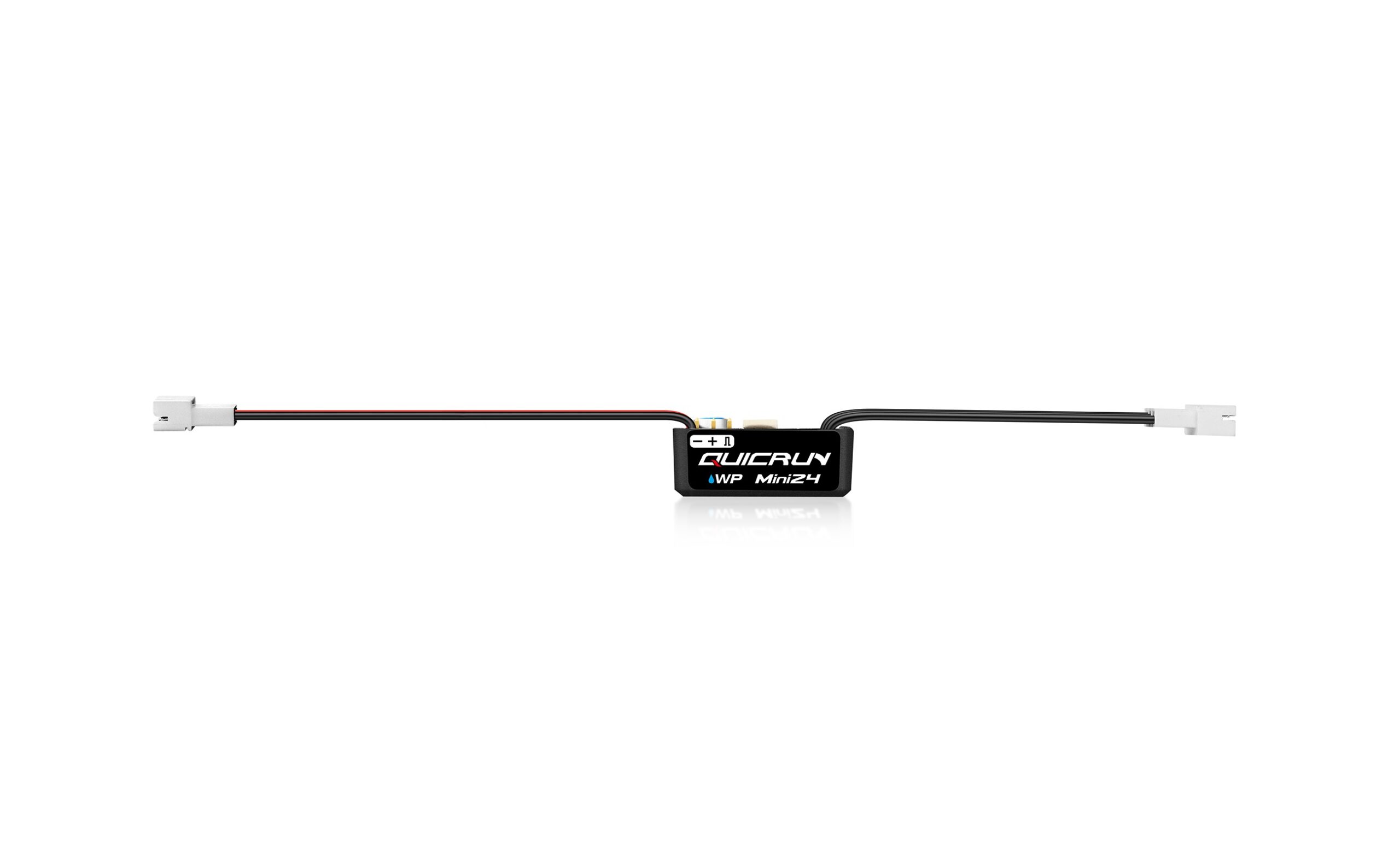

QuicRun WP Mini 24 1:24 ESC – Brushless

Description

The Hobbywing QuicRun WP Mini24 Brushless ESC is purpose-built for small-scale crawling vehicles, delivering exceptional control and ultra-smooth performance at low speeds. With its high torque output and precise throttle response, it is the perfect choice for 1/16, 1/18, and 1/24 scale crawlers.

Its compact design, waterproof construction, and smart tuning capabilities make it a reliable solution for both hobbyists and competitive drivers.

Technical Specifications:

General

• Scale: 1/24, 1/18, 1/16
• Type: ESC (Electronic Speed Controller)
• Motor Support: Brushless & Brushed
• Sensored: Sensorless
• Waterproof: Yes (IP67)

Performance

• Continuous Current: 25A
• Peak Current: 60A
• Input Voltage: 2–3S LiPo
• BEC:
  • Output Voltage: 6V / 7.4V (switchable)
  • Continuous Current: 2A
  • Type: Switch-mode

Wires & Connectors

• Input Wires: Red & Black, 22AWG, 110 mm
• Motor Wires: Black, 22AWG, 60 mm (3 pcs)
• Input Connector: PH2.0 2-pin (female)
• Output Connector: PH2.0 3-pin (female)

Programming

• SET Button on ESC: Not supported
• LED Program Box: Supported
• LCD G2 Program Box: Supported
• LCD PRO Program Box: Supported
• OTA Programming: Not supported
• Programming Port: Separate port

Data Logging

• Extreme Values: Not supported
• Real-time Data: Not supported
• Historical Data: Not supported

Firmware

• Firmware Upgrade: Not supported

Size & Weight

• Dimensions: 28 × 17.8 × 13 mm
• Weight: 13.5 g (including wires & connectors)

Compatibility

Motors:

• Sensorless brushless motors
• Brushed motors (050, 130, 180, etc.)

Compatible brushless motors:

• Hobbywing QUICRUN Outer 1621
• 1212, 1806 sensorless outrunners

Vehicles:

• 1/24, 1/18, 1/16 scale crawlers

With an IP67 protection rating, powerful built-in BEC, and real-time adjustable drag brake, the QuicRun WP Mini24 offers maximum versatility in all conditions. Easy installation, wide compatibility with both brushed and brushless motors, and support for multiple programming devices make this ESC a top-tier choice for any mini crawler setup.

If you're looking for a durable, precise, and high-performance ESC for your small-scale crawler – this is the one.
