Audi 90 Quattro Racing Tamiya TT-02 1/10 RC Auto #58744

Description

Tamiya 1/10 RC Car Kit TT-02 | Audi 90 Quattro Racing IMSA GTO 1989

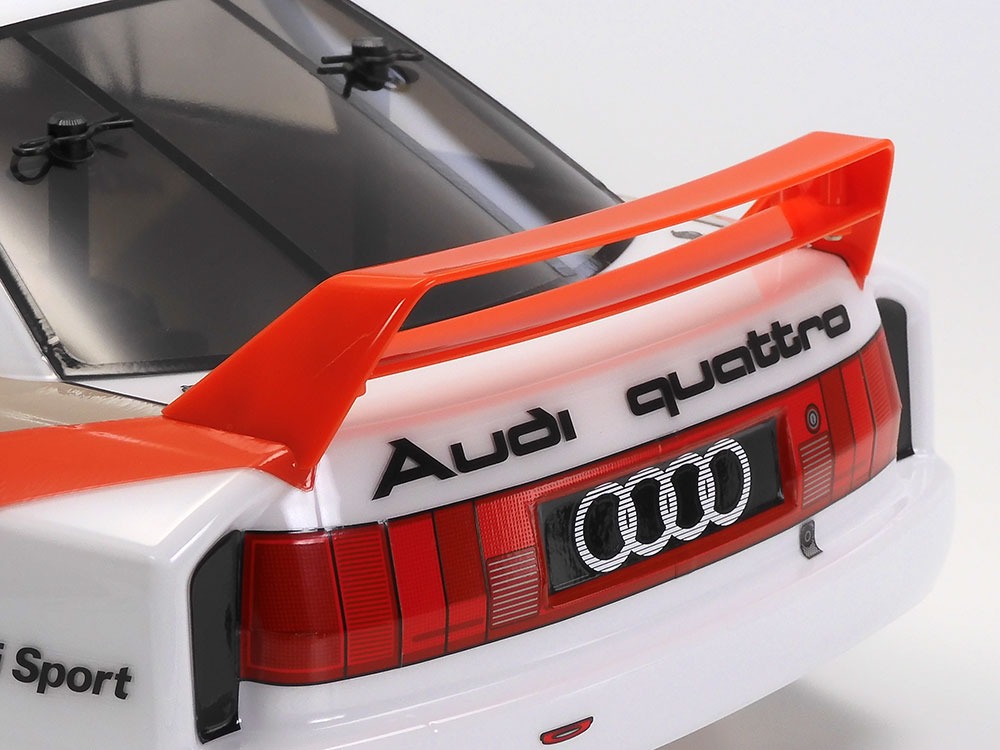

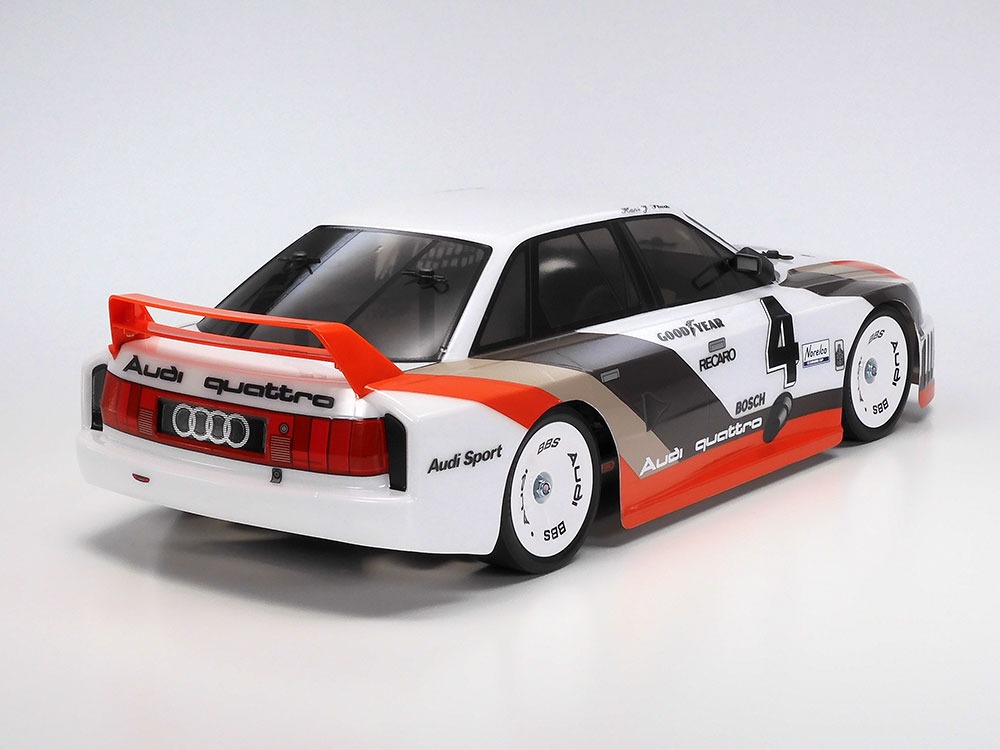

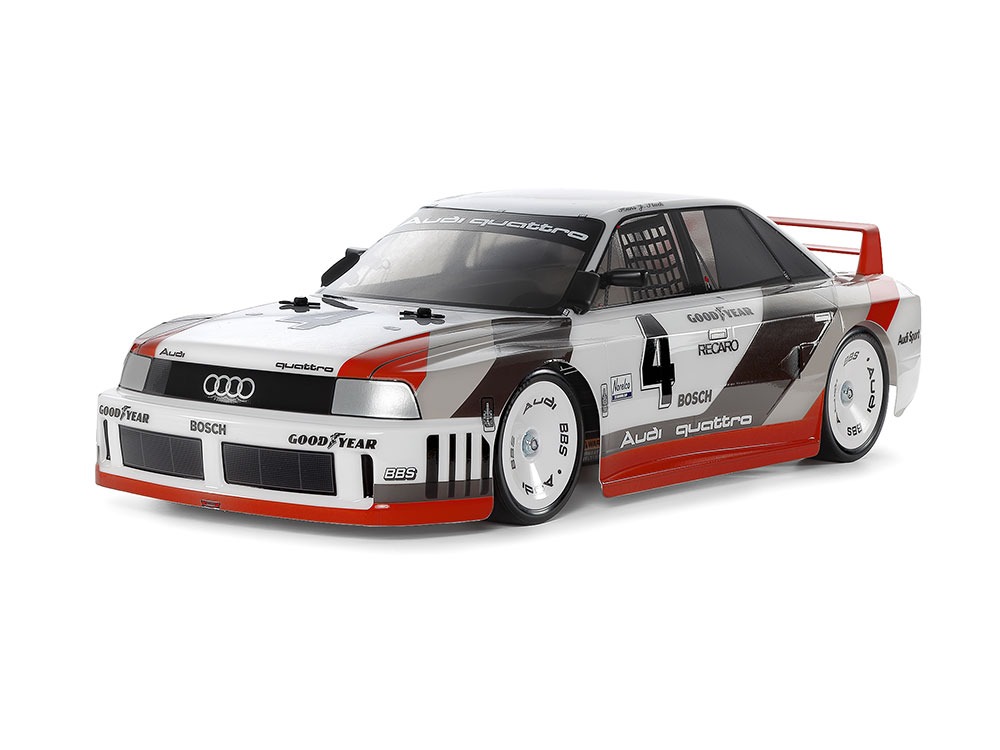

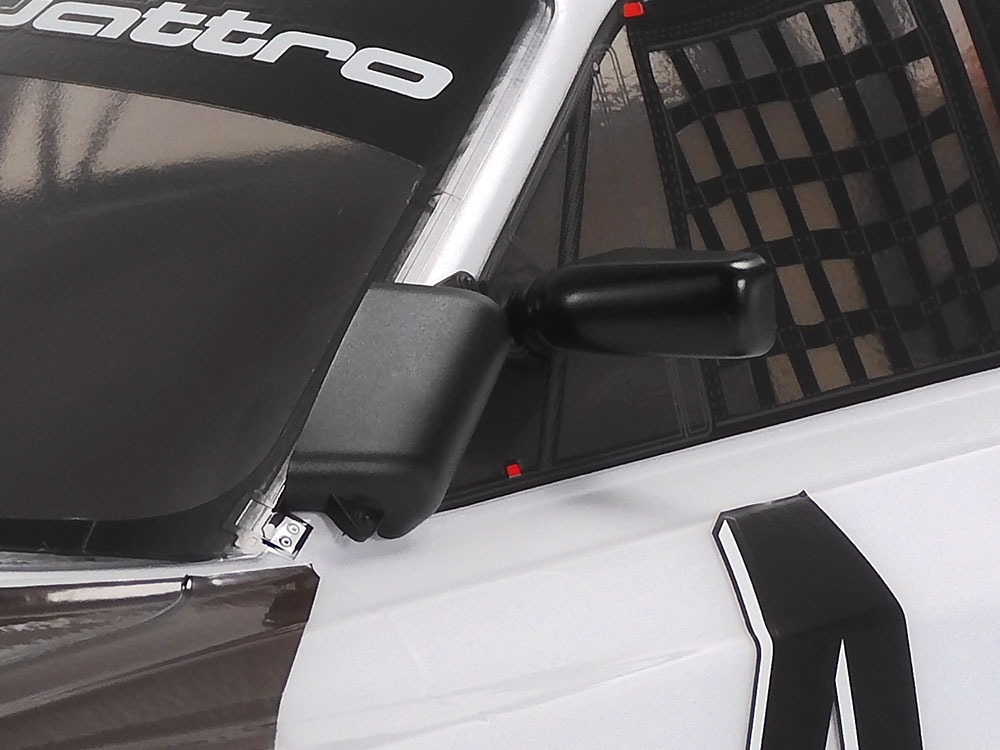

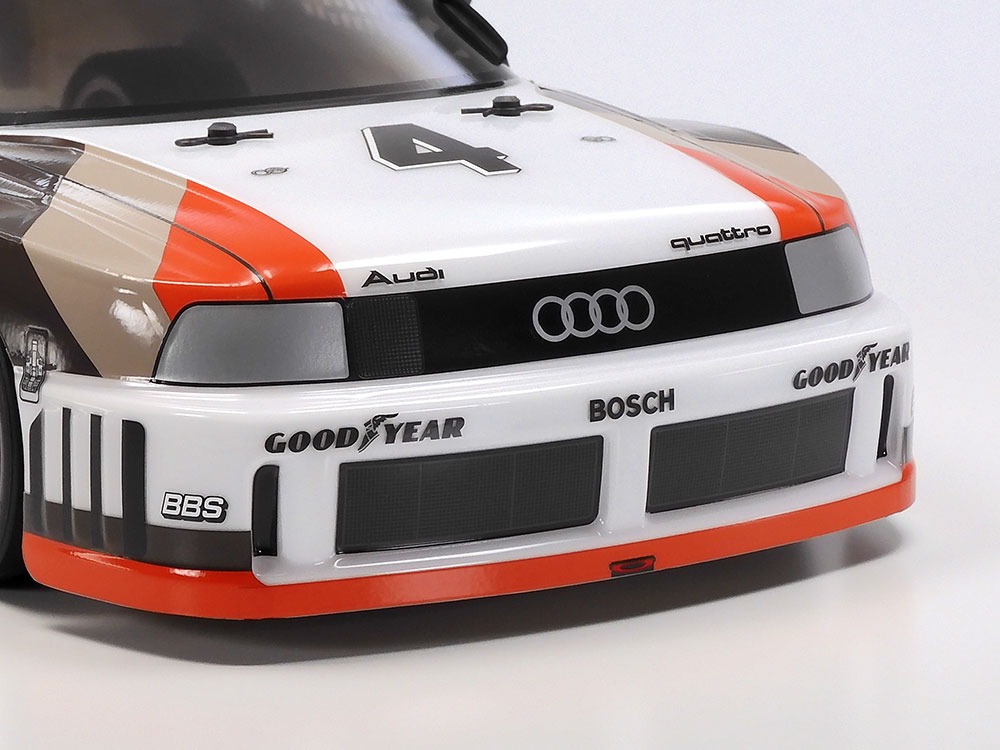

This R/C model assembly kit recreates the Audi 90 quattro Racing, a car which flourished at American races in 1989. Wider than the road car, its muscular form is recreated by a polycarbonate body, with stickers included to recreate sponsor logos, red/silver/black livery sections and more. Separately molded parts for the A pillar ducts, side mirrors and rear wing give an extra level of detail. The shaft-driven 4WD TT-02 chassis employs a 251mm wheelbase, and dedicated flat dish wheels have a +4mm offset to go with the wide body.

Tamiya TT-02 chassis:

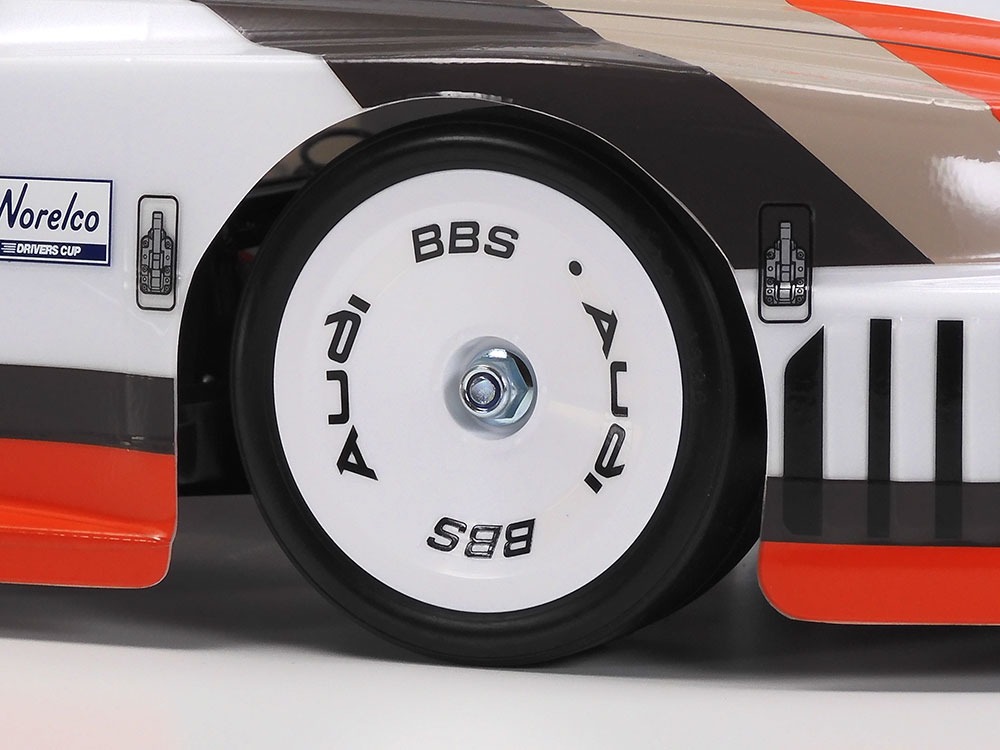

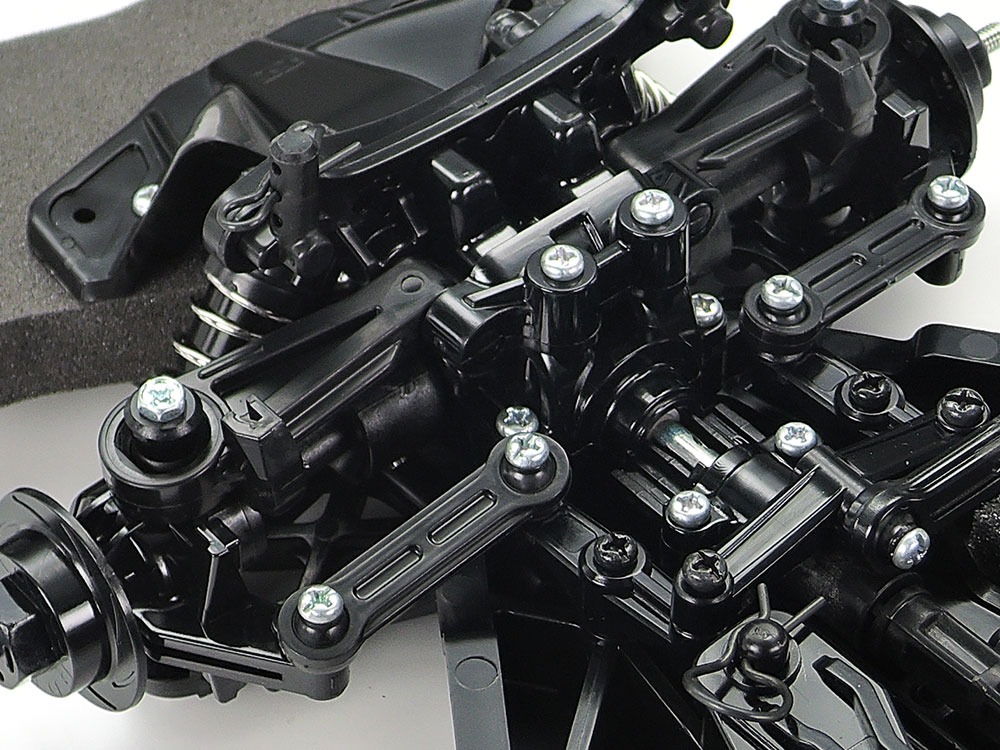

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. White dish wheels use semi-pneumatic slick tires.

The box includes:

• Tamiya TT-02 unassembled chassis
• Audi 90 Quattro polycarbonate unpainted body
• Tamiya 540 Torque-Tuned Motor
• Hobbywing 1060 ESC

To drive the model, you need:

• 2-channel control remote control
• Steering servo
• Battery for the model
• Charger suitable for the battery
• Colors suitable for painting the body

Technical specifications:

• Chassis: TT-02
• Scale: 1/10
• Length: 446mm
• Width: 192mm
• Height: 127mm
• Wheelbase: 251mm
• Wheels: 26/66mm
• Drive scheme: 4wd
• Differential: Front and rear gear diffs
• 3-piece steering rod system
• Independent suspension with double wishbones
• Transmission: 8.27:1
• Engine: 540 Torque-Tuned Motor
• Bearings: As an additional equipment, we recommend purchasing a ball bearing set Tamiya 54025

You can find spare parts for this model in the Tamiya spare parts catalog and also check out other cool Tamiya rc kits
