Audi R8 LMS 2008 Tamiya TT-02 1/10 RC Car Kit #58749

Description

Tamiya 1/10 RC Car Kit TT-02 | Audi R8 LMS 2008

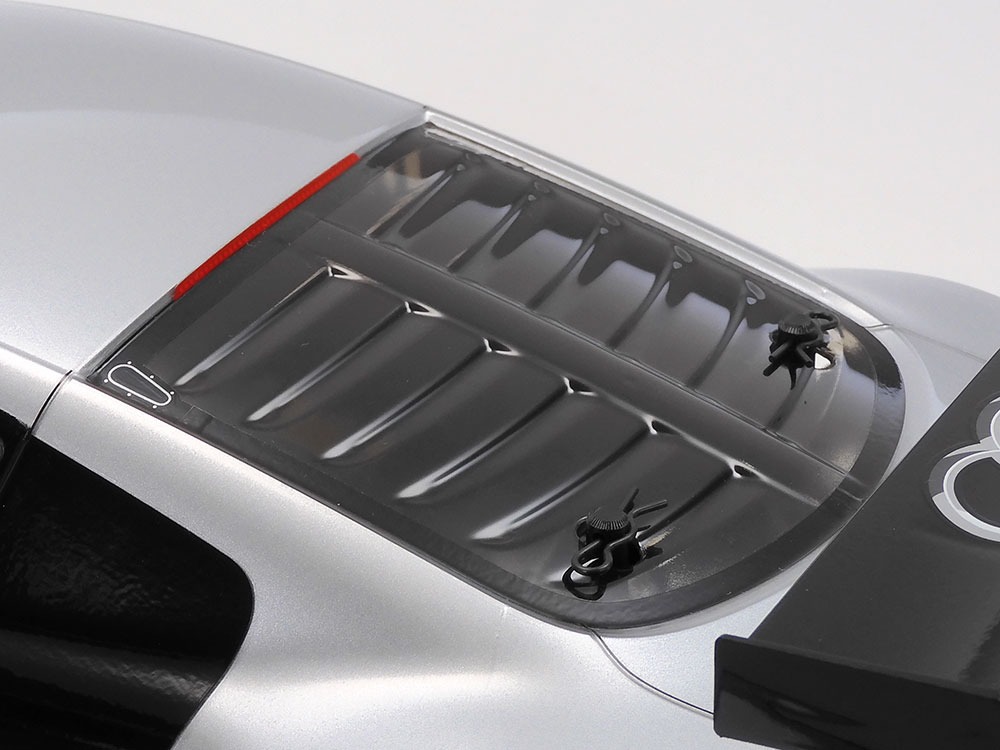

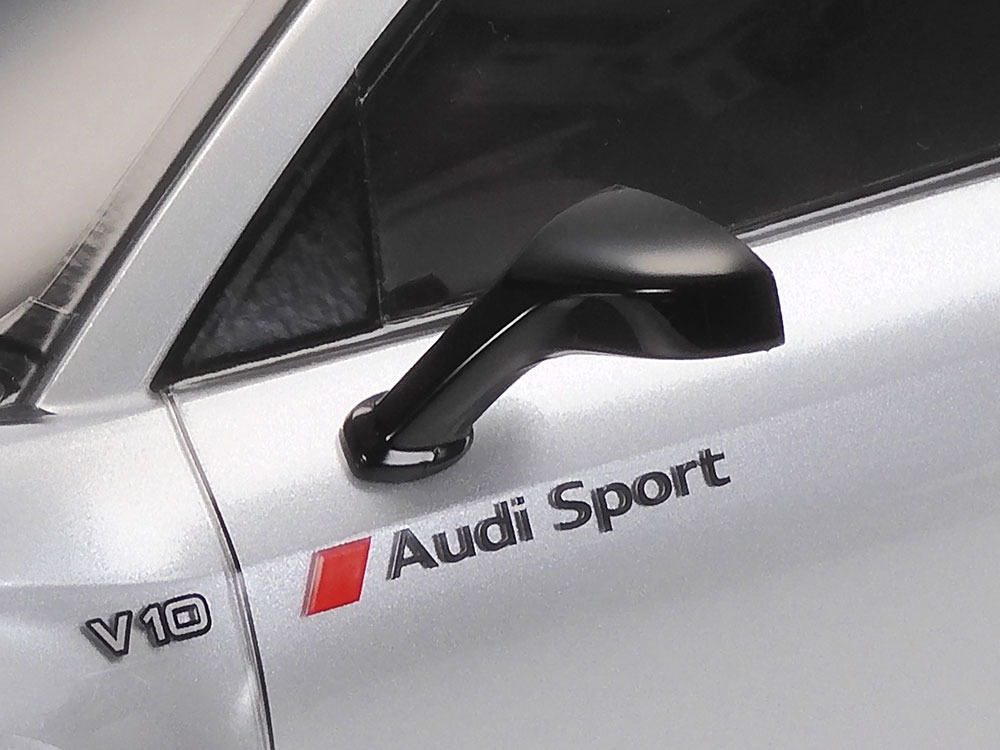

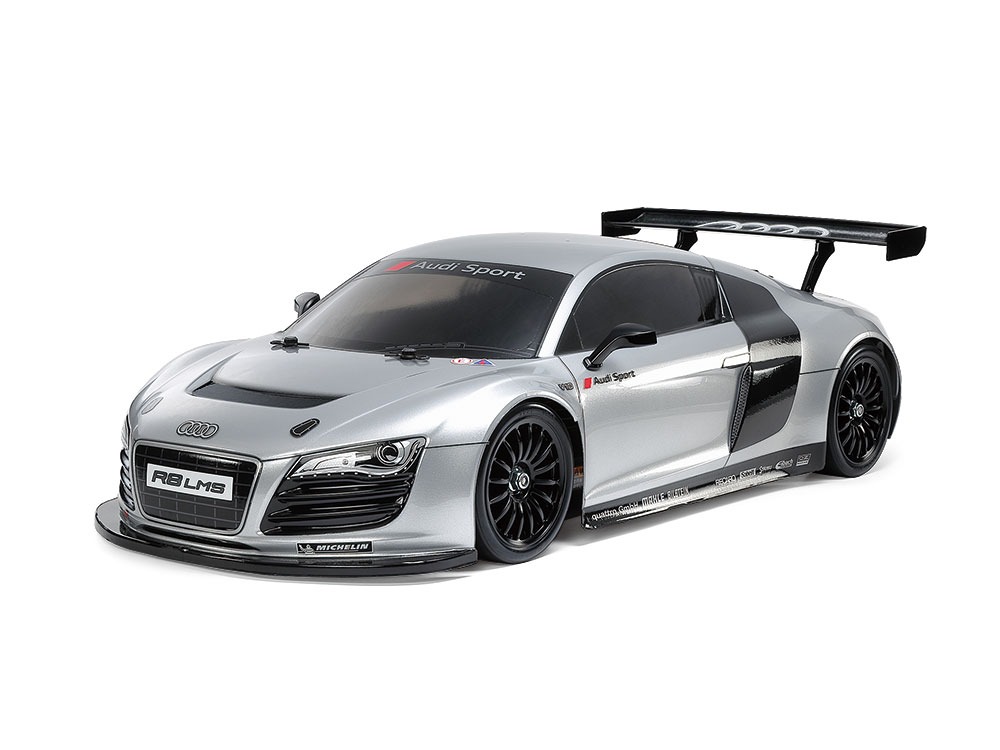

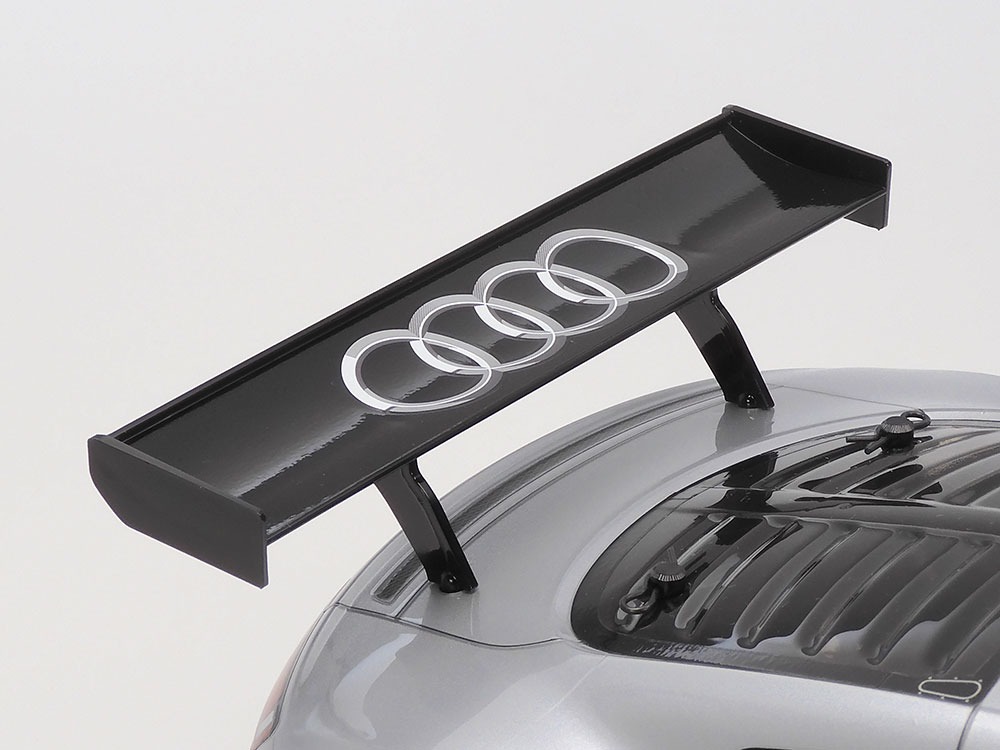

Based upon the Audi sportscar R8 and conforming to GT3 regulations, the Audi R8 LMS was announced in 2008. A 5.2-liter V10 midship engine capable of over 500hp was mounted in a lightweight aluminum space frame. Body sections were modified, and the drivetrain was changed from 4WD to a rear-wheel drive system. From 2009 onward, this car was delivered to racing teams around the world and achieved many racing successes. This R/C model assembly kit recreates that car, with a polycarbonate body and separately molded rear wing and side mirror parts. The TT-02 chassis is a trusted platform, and here is assembled with wide rear tread.

Tamiya TT-02 chassis:

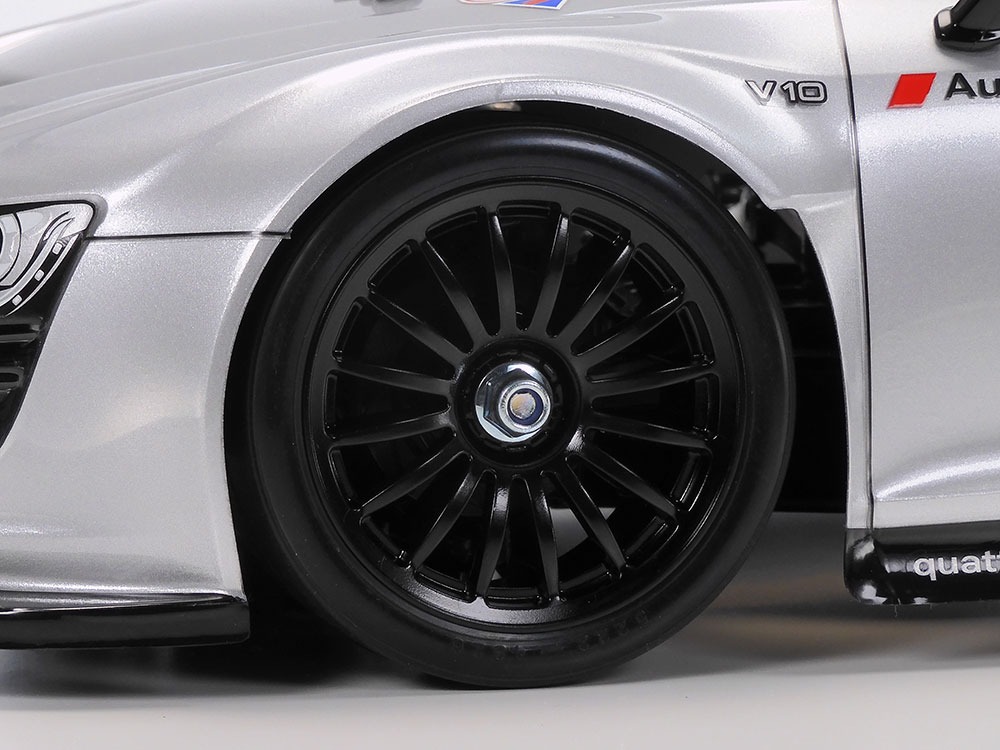

The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. White dish wheels use semi-pneumatic slick tires.

The box includes:

• Tamiya TT-02 unassembled chassis
• Audi R8 LMS polycarbonate unpainted body
• Tamiya 540 Torque-Tuned Motor
• Hobbywing 1060 ESC

To drive the model, you need:

• 2-channel control remote control
• Steering servo
• Battery for the model
• Charger suitable for the battery
• Colors suitable for painting the body

Technical specifications:

• Chassis: TT-02
• Scale: 1/10
• Length: 434mm
• Width: 194mm
• Height: 120mm
• Wheelbase: 257mm
• Wheels: 27/67mm
• Drive scheme: 4wd
• Differential: Front and rear gear diffs
• 3-piece steering rod system
• Independent suspension with double wishbones
• Transmission: 8.27:1
• Engine: 540 Torque-Tuned Motor
• Bearings: As an additional equipment, we recommend purchasing a ball bearing set Tamiya 54025

You can find spare parts for this model in the Tamiya spare parts catalog and also check out other cool Tamiya rc kits
