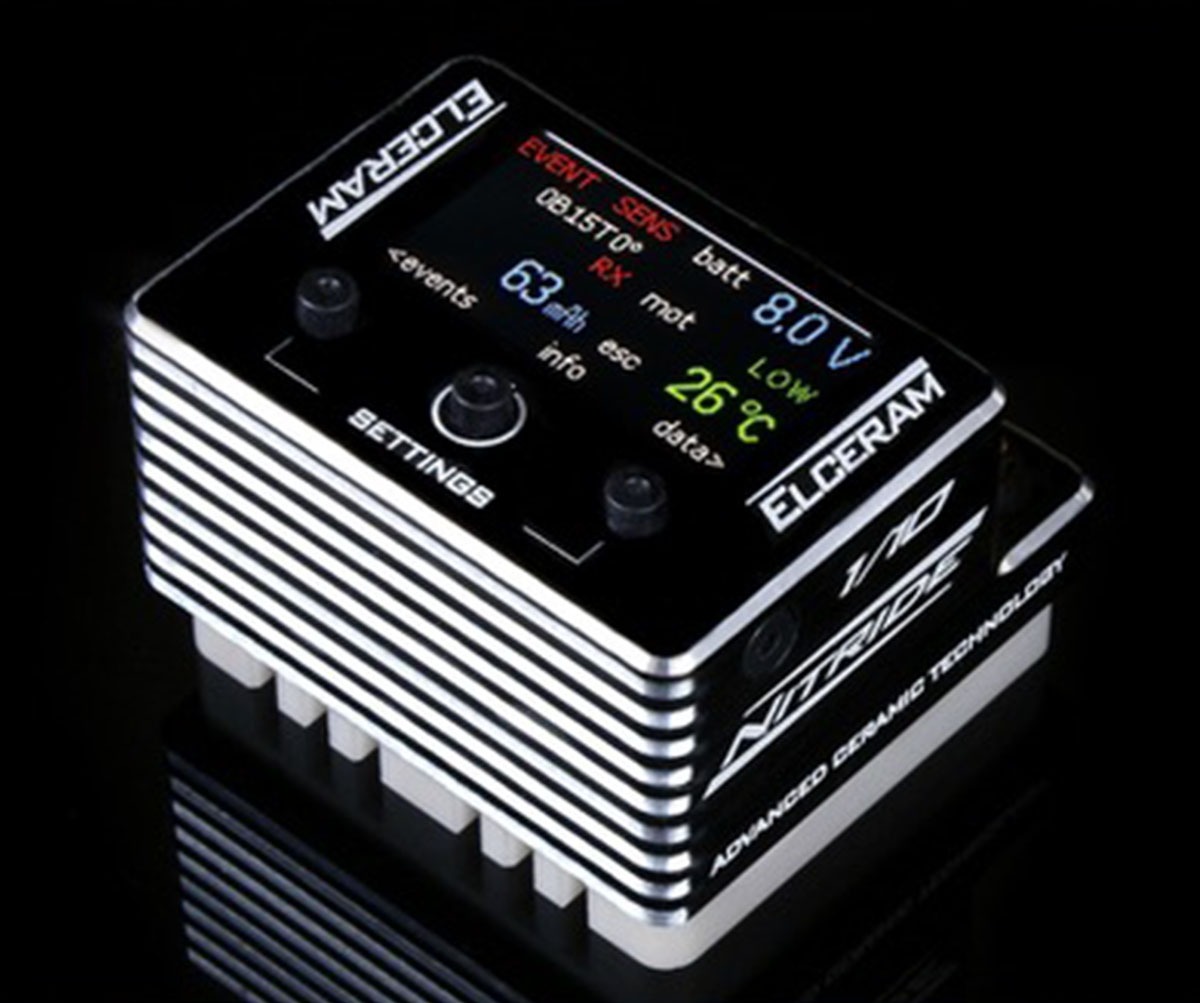

Elceram Nitride 1/10 G2 Competition Brushless ESC #ELC020

Description

NITRIDE 1/10 G2 is a new generation electronic speed controller for sensored Brushless DC motors.

Using Advanced Cooling Technology based on Aluminium Nitride Ceramic cooler, NITRIDE 1/10 G2 has excellent thermal conductivity and can be used with powerful motors from 4.5 T up.

NITRIDE 1/10 G2 provides TFT LCD color display allowing very quick and easy adjustment of all parameters,  post-race data evaluation and self-diagnostics without need of any other interface.

Building on the proven features of the first generation, NITRIDE 1/10 G2 introduces new, innovative features that take RC motor control to a whole new level.

New features:

• Reduced size
• Reverse polarity protection (except external capacitor)
• Revolutionary battery current and discharge monitoring
• Post-race data is saved after power off
• Solder caps for easy wire replacement
• Smart fan connector (if needed)
• Revolutionary motor analyzer function in ESC
• Revolutionary motor power reduction function - adapt your powerful motor to a smaller track quickly and easily!
• Revolutionary brake softening function for high-speed, low-grip braking to prevent loss of grip at the end of the straight!
• Improved button sensitivity
• Firmware update function via USB cable connected to the sensor connector
• New aluminum mounting plate instead of carbon plate

LCD Display

As you got used to by ELCERAM speedos, NITRIDE 1/10 G2 is endowed with necessary LCD color display. Thanks to this you can set all the parameters and check all data directly at your ESC, without need of any programming card or a mobile application. All you need is inside your ESC.

The use is really easy - by 3 buttons you can quickly set anything you need and one view is enough to check all parameters necessary for race. Simply. Quickly. Precisely.

Thanks to the display, you can have always overview about all the important data and events - before the race, during driving and after race. It is really quick to make a change in your settings and then you have immediate feedback, without any delay caused by connecting a control interface.

NITRIDE 1/10 G2 saves your data from your last race after turning ESC off and enables you to watch it after the next turn on. Take your time and analyze the data at your leisure, whenever you want!

Elceram Nitride G2 ESC Features:

• ESC for sensored BLDC motors from 4.5 T up.
• Developed especially for 1/10 RC cars.
• Reverse polarity protection.
• Intelligent algorithms for ESC protection.
• Fine throttle and brake adjustment for excellent feeling.
• TFT LCD color display with resolution 160 x 80 pixels, matte finish.
• Size: 36,5 (L) x 34 (W) x 24 (H) mm.
• Weight: 59 g without wires.
• Power supply: 2S LiPo.
• ESC current cont. / pulsed: 180 A / 1500 A.
• BEC: 6 - 7,4 V adjustable, current cont. / pulsed: 6 A / 12 A.
• Extreme low internal resistance based on silver conductive layer.
• Advanced Cooling Technology based on Aluminium Nitride Ceramic Cooler.
• Connector for intelligent FAN.
• Zero Timing (Blinky Mode) supported.
• EFRA, ROAR and BRCA approved.
