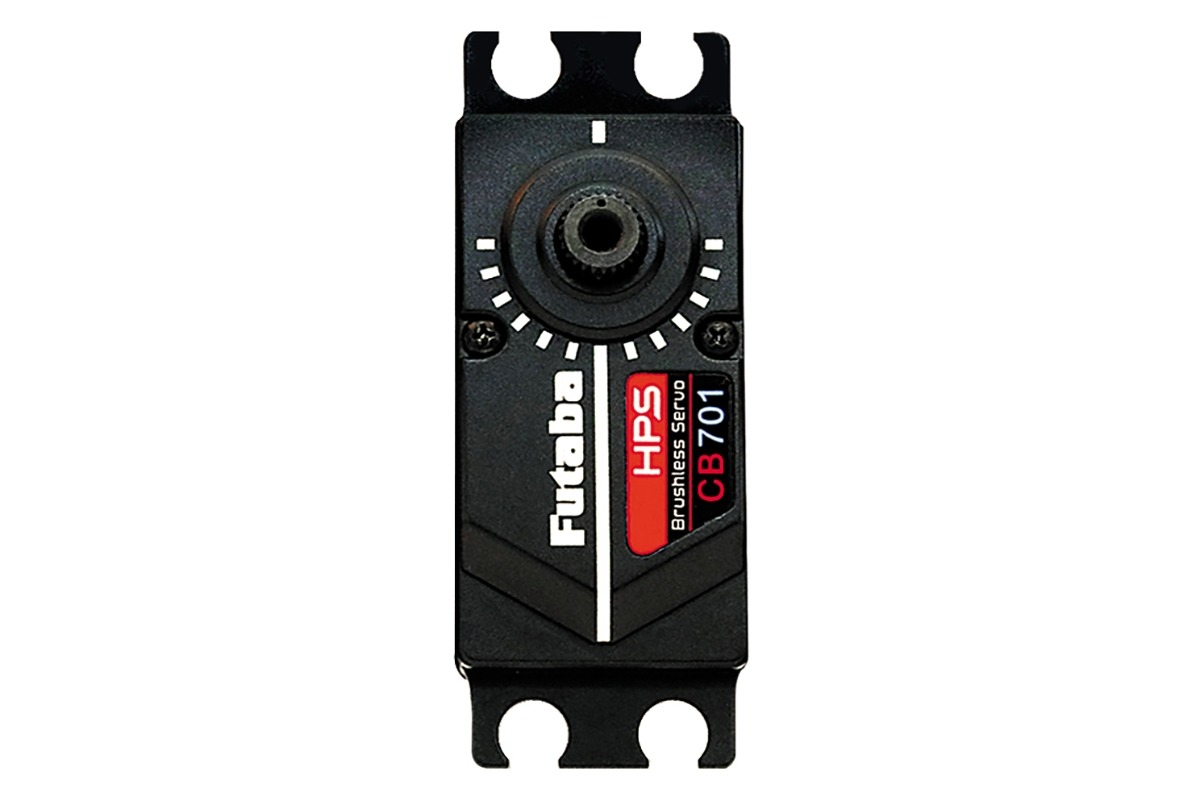

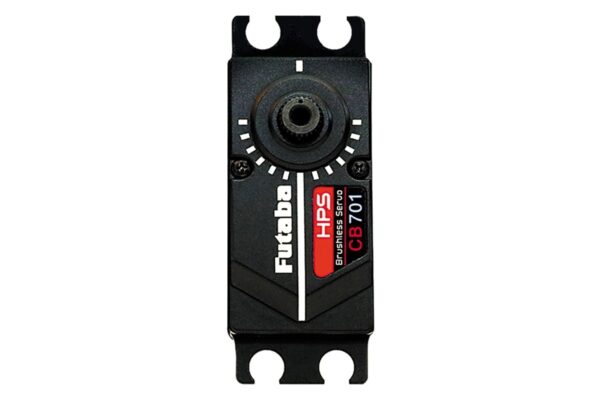

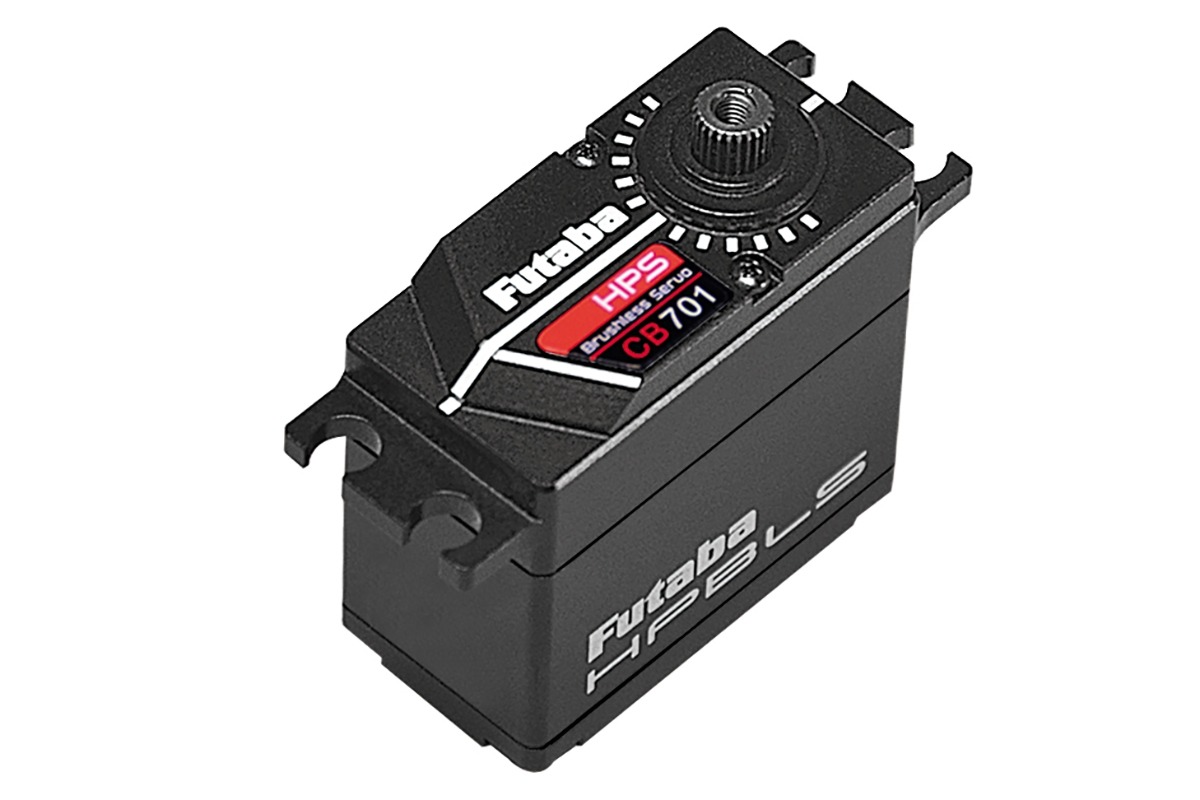

Futaba Servo HPS-CB701 HV S.Bus2 UR

Description

Futaba HPS-CB701 S.Bus2 HV Brushless Servo. This servo is a good choice for the serious racer who already uses a Futaba transmitter and receiver. By using a Futaba radio transmitter, receiver and servo together, you can take advantage of the full potential this set has to offer.

HPS-CB701 Futaba Servo Features:

• Suitable for 1/10 and 1/8 offroad and onroad models
• HV Brushless motor
• Supports SR mode with T4PM/P, T7PX/R and T10PX
• Supports UR mode with T10PX
• Programmable and compatible with S.Bus and S.Bus2 systems
• Can be connected to a computer using the separately sold CIU-2/-3 USB adapter
• Aluminum housing

Servo HPS-CB701 Specifications:

• Speed
  • 6.0V - 0.09 sec/60°
  • 7.4V - 0.075 sec/60°
• Torque
  • 6.0V - 42.0 kgf/cm
  • 7.0V - 49.0 kgf/cm
• Dimensions: 40.5 mm x 21 mm x 37.8 mm
• Weight: 75g
• Rated voltage: DC 6.0V…7.4V
• Operating voltage: DC 4.8V…8.4V
