Savöx SW-0230MG HV (8.0kg/0.13s/7.4v) Servo

Description

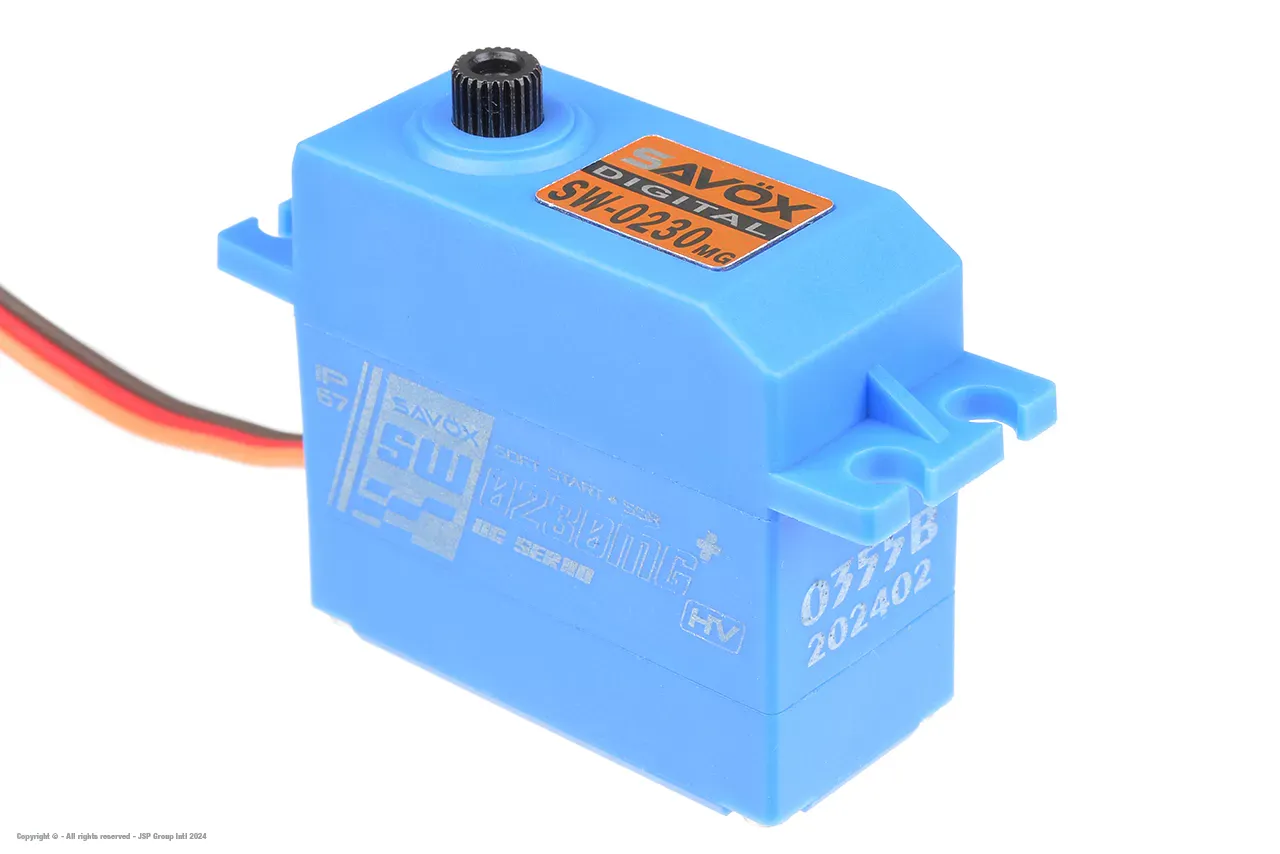

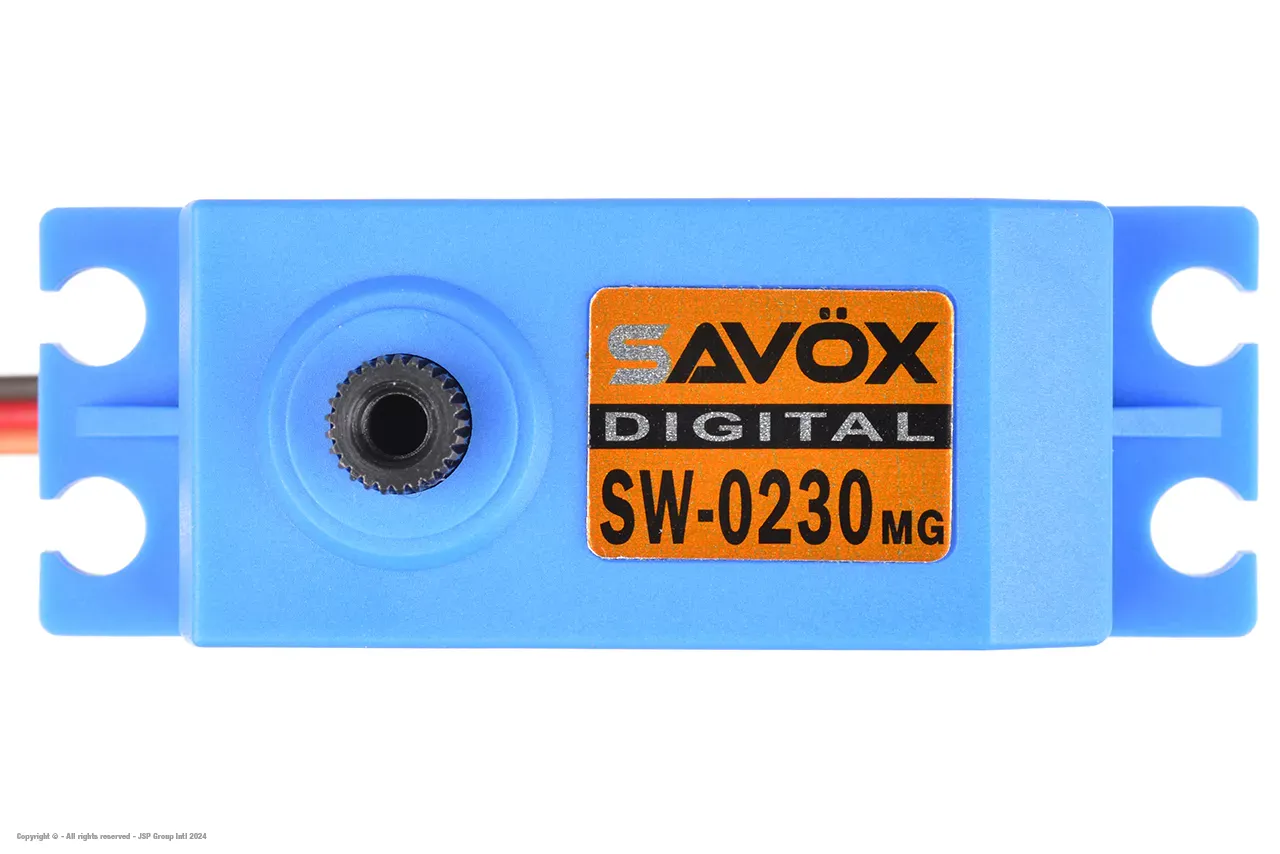

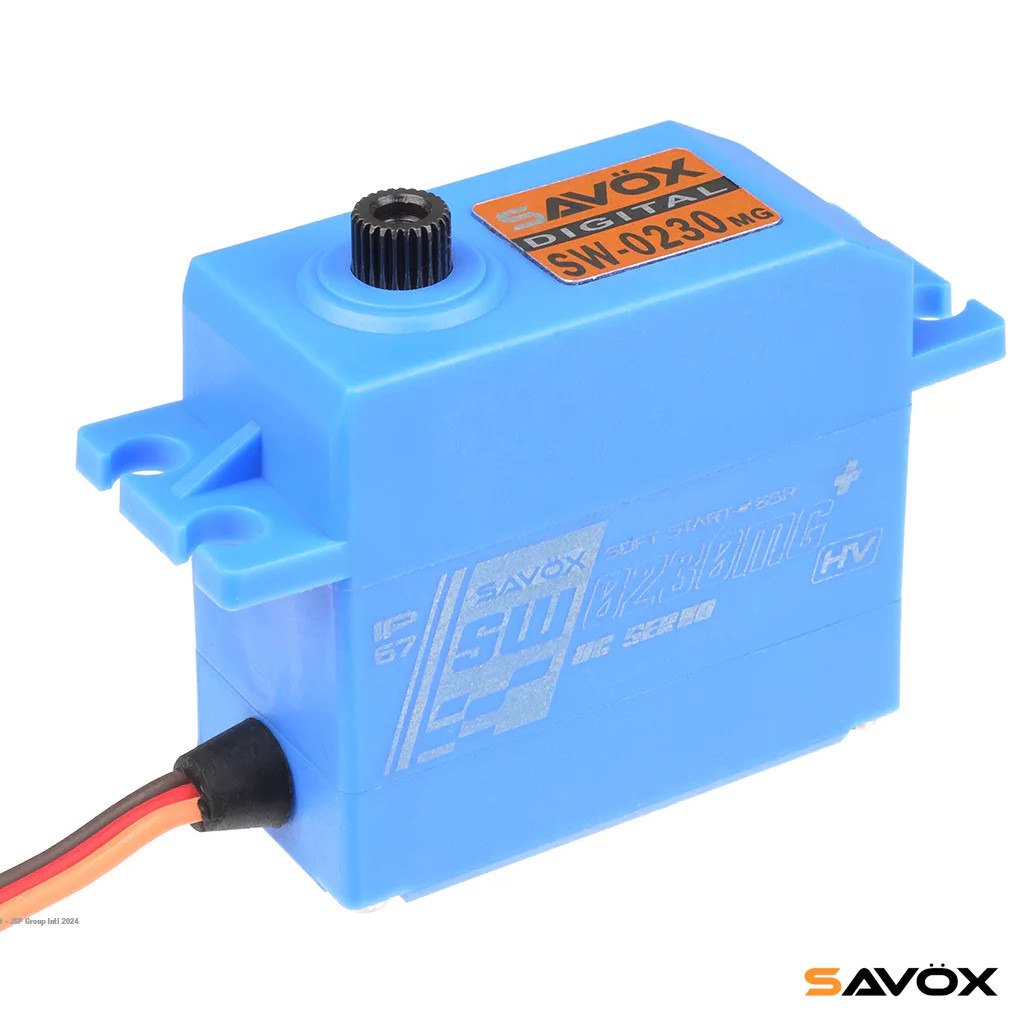

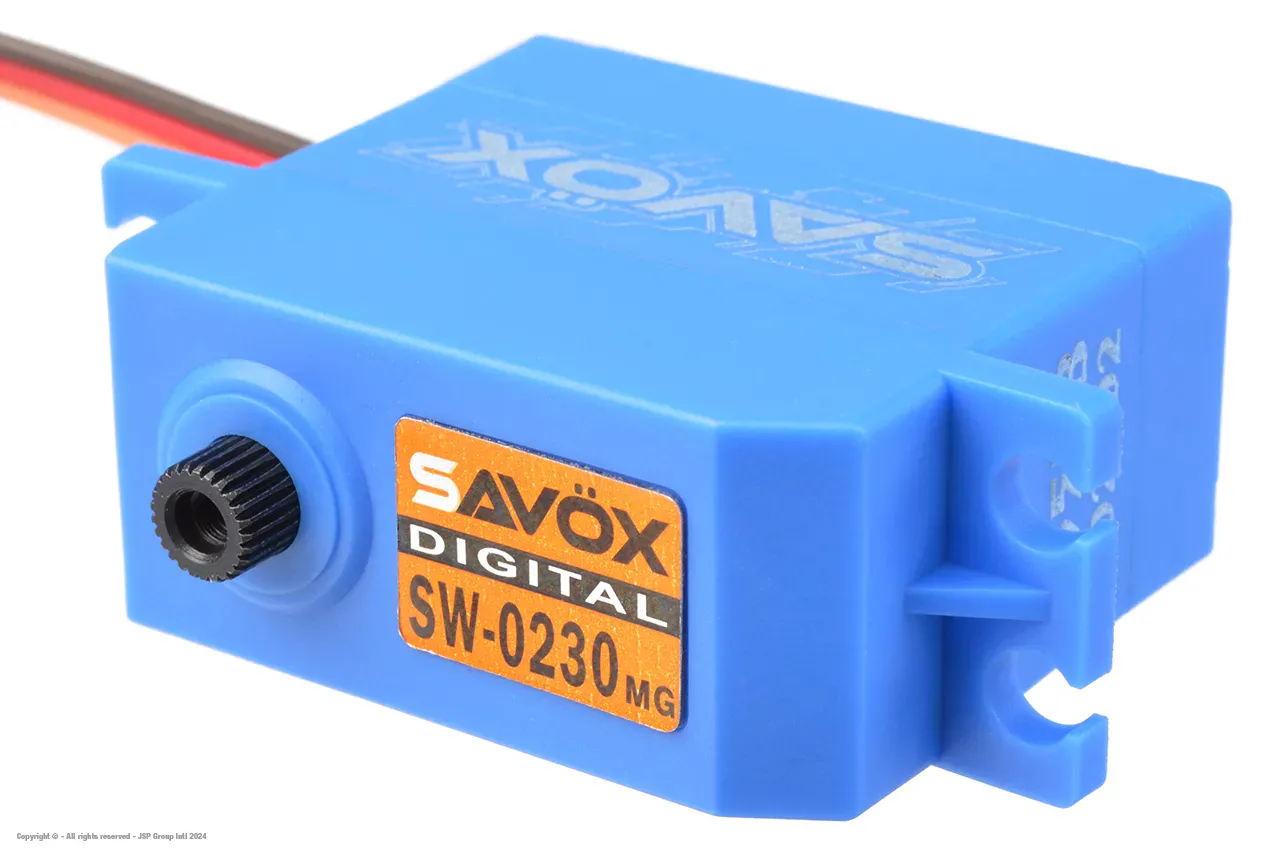

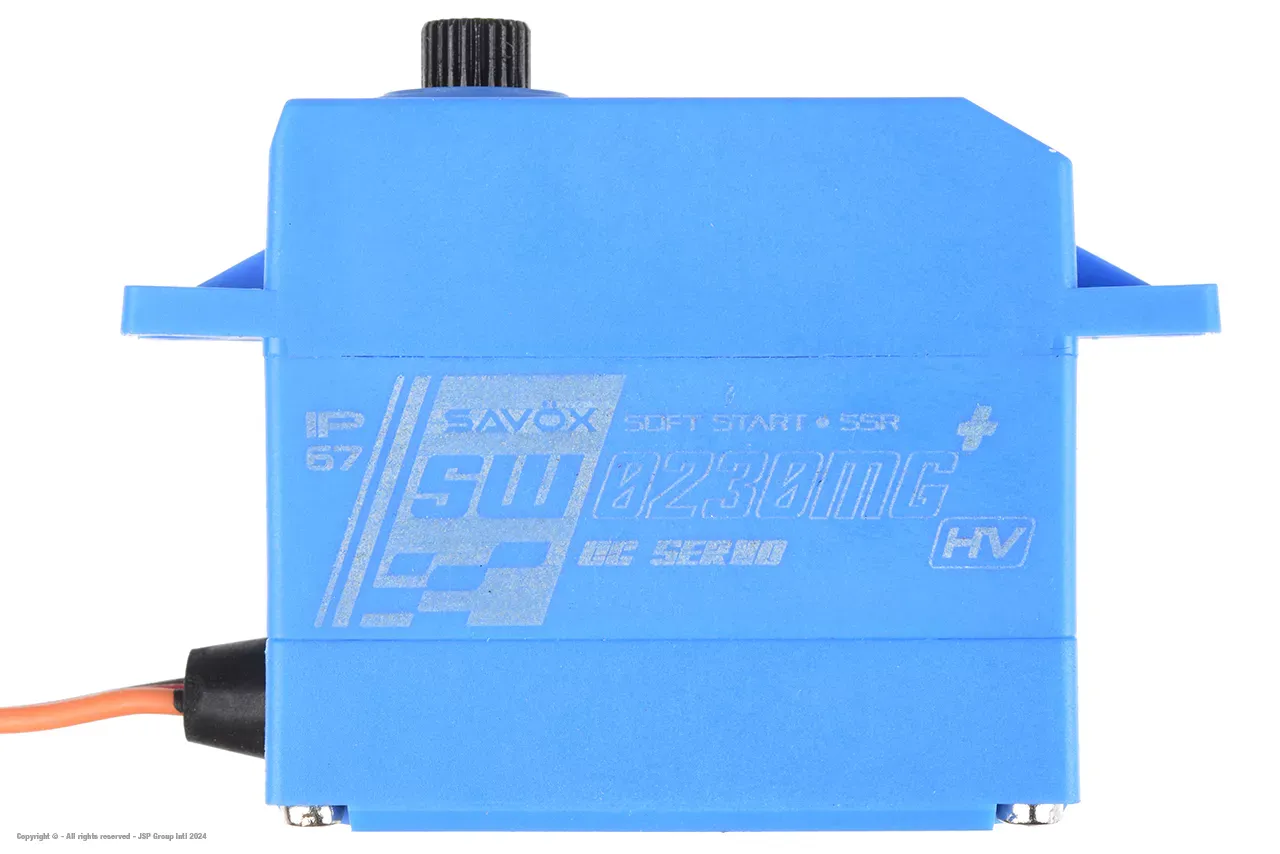

Savöx Servo SW-0230MG+ Digital High Voltage DC Motor Waterproof Metal Gear

SW-0230MG+

Description:

The SW-0230MG+ is a budget friendly waterproof digital servo capable of operating on high voltage. This is a great upgrade if your looking to drive your RC vehicle in any condition...rain, sleet, or snow.

Features:

• Strong metal gear train for added durability.
• Waterproof case design.
• Capable of HV operation.
• Ideal for cars, truck, and boats subject to water or snow.

Specifications:

• Torque @6v - 6.5kg
• Torque @7.4v - 8.0kg
• Speed @6v - 0.16 sec/60 deg
• Speed @7.4v - 0.13 sec/60 deg
• Dimensions L x W x H (mm): 41.8 x 20.2 x 38.0
• Weight: 60.0g

General Info:

• Item Nr: SW-0230MG+
• Barcode: 4710006994406
• Brand: Savöx

Servo - Specs

• Speed 60°/Sec @ 6.0V: 0,16
• Speed 60°/Sec @ 7.4V: 0,13
• Torque kg/cm @ 6.0V: 6,5
• Torque kg/cm @ 7.4V: 8
• Quiescent Current (mA): 5
• Rated Current (mA): 120
• Blocking Current (mA): 1800

Servo - Dimensions

• Servo Type: Standard Servo
• Spline Type: 25T Spline
• Length (mm): 41,8
• Width (mm): 20,2
• Height (mm): 38
• Weight (g): 60

Servo - Technology

• Technology: Digital HV
• Operating Voltage (V): 6.0V - 7.4V
• Servo Motor: DC Core Motor
• Servo Protection: Waterproof IP67
• Servo Positioning: VR Potentiometer - Direct Drive
• Servo Gears: Metal Gears
• Servo Case: Composite Case

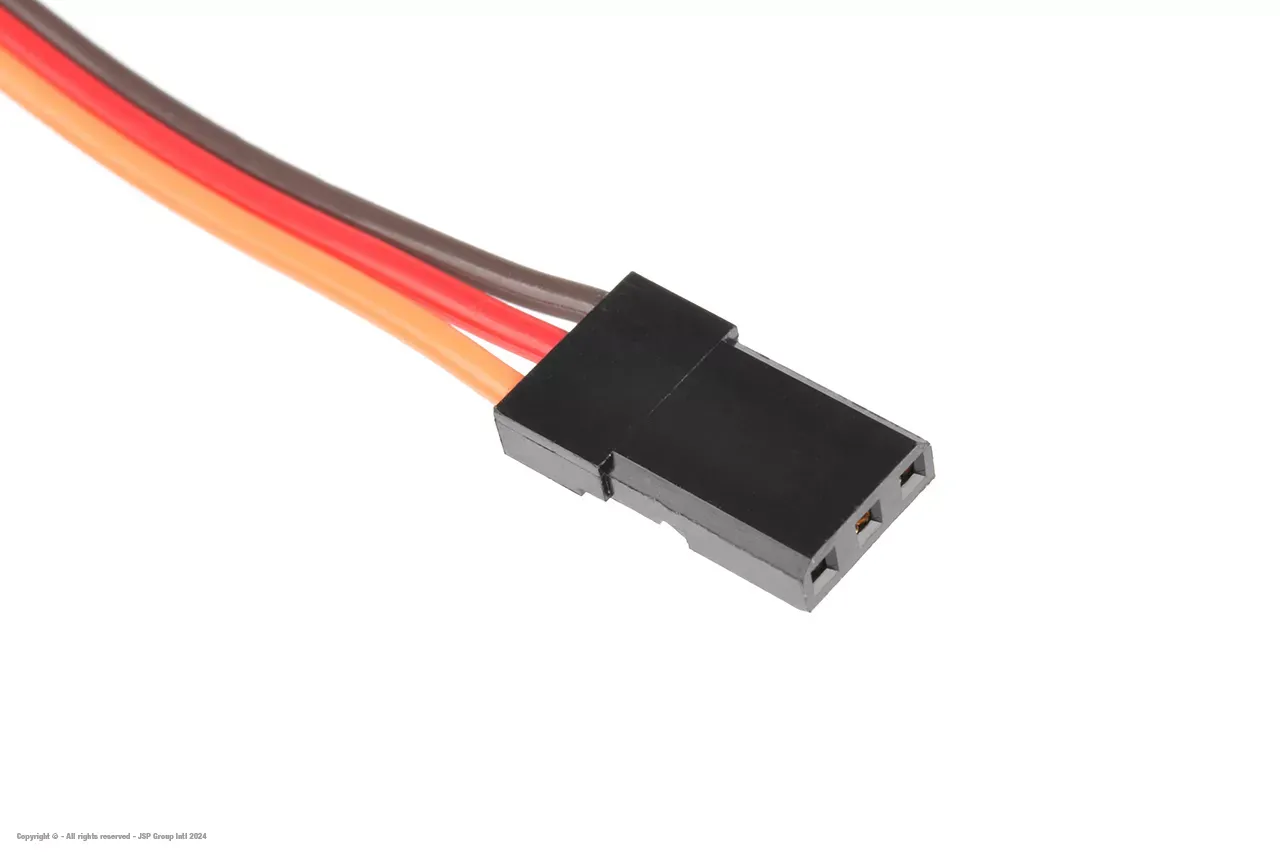

• Connector: JR Universal + Black Lead

See also the original presentation from the manufacturer:

• Savöx RC Car Servo SW-0230MG+
