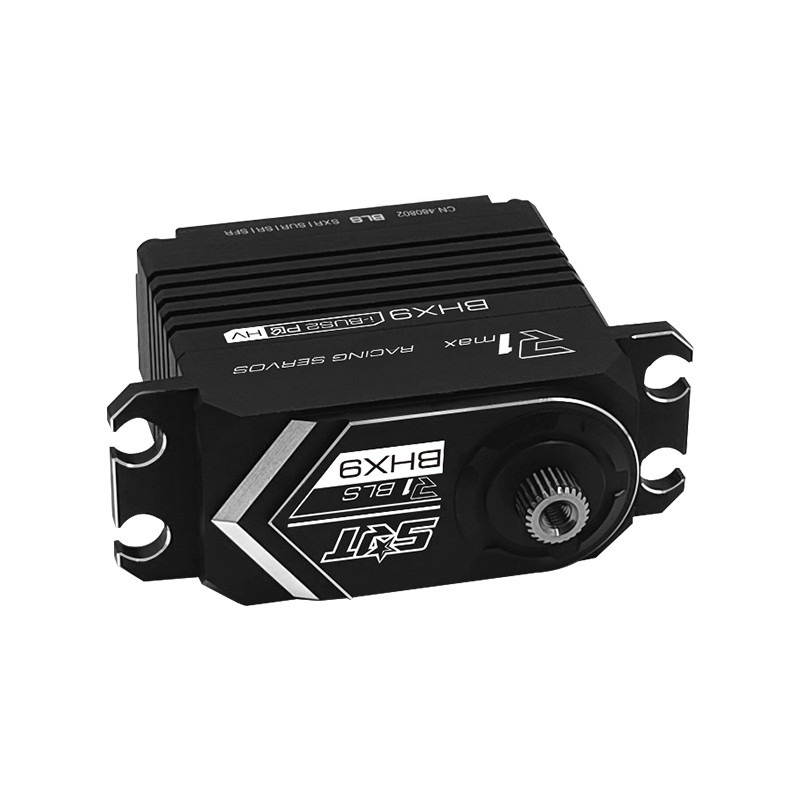

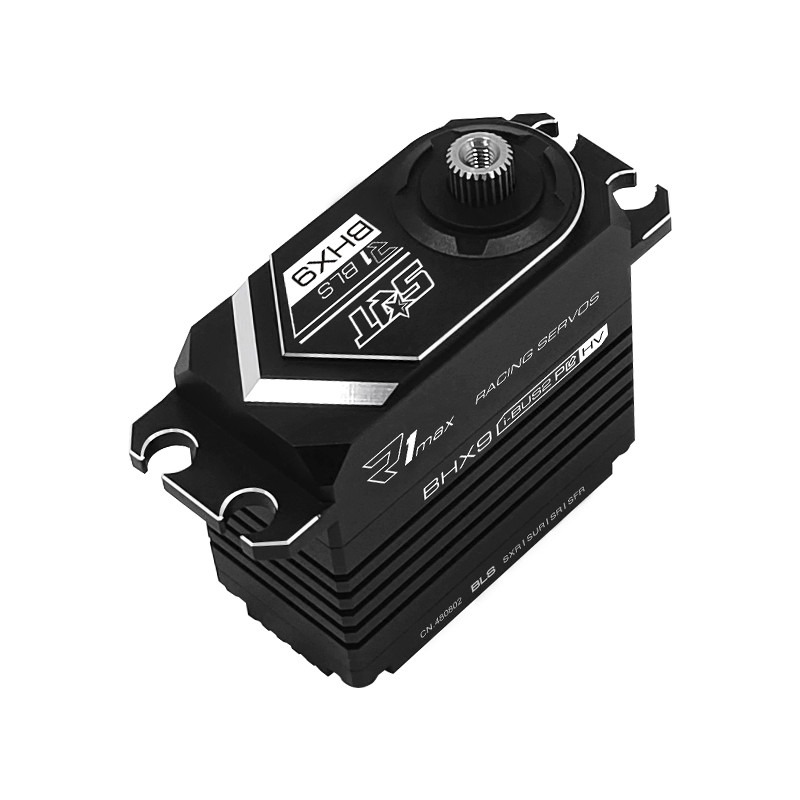

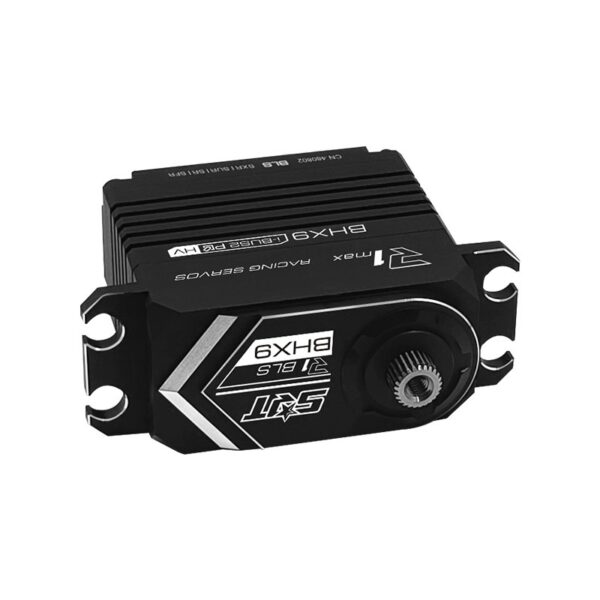

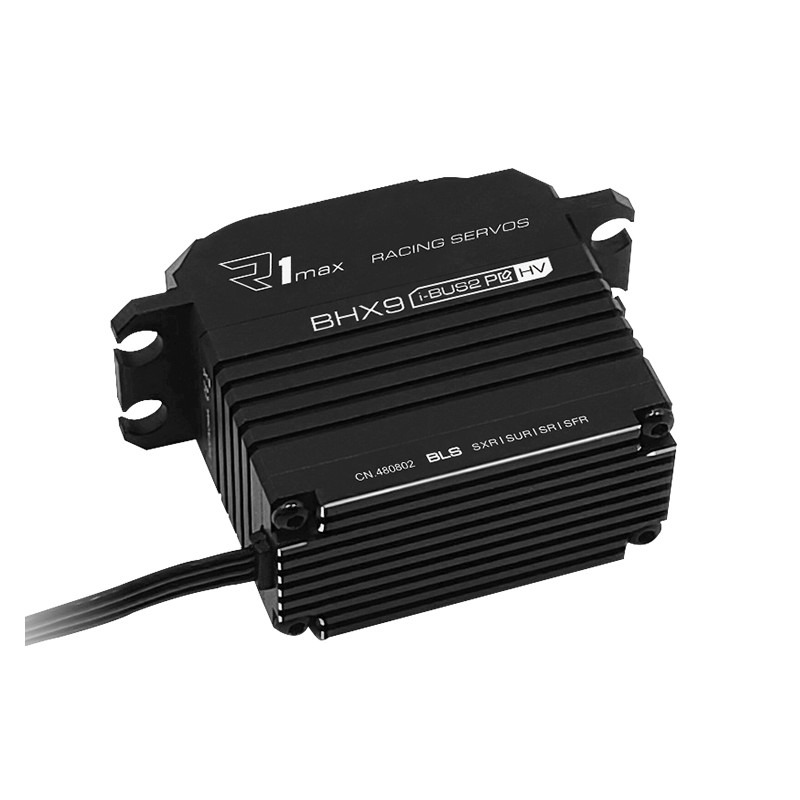

SRT BHX9 (75kg/0.1s/8.4v) HV Brushless Servo

---

Description

SRT X9 Servo is a metal body with double bearings on the drive shaft. It is especially suitable for 1/8 and 1/5 scale rc models SRT X9 servo specifications:

• Type: Digital
• Bearing: Dual
• Motor Type: Brushless
• Gear Type: Metal
• Gear Material: Steel
• control system: pulse width control
• working frequence: 1520μs / 330hz
• operating voltage: dc6.0-8.4v
• operating temperature range: -10 to + 60 degree
• operating speed (6.0v): 0.15 sec/60 degrees at no load
• operating speed (7.4v): 0.11 sec/60 degrees at no load
• operating speed (8.4v): 0.10 sec/60 degrees at no load
• stall torque (6.0v): 55.0kg.cm (763.8 oz/in)
• stall torque (7.4v): 65.0kg.cm (902.7 oz/in)
• stall torque (8.4v): 75.0kg.cm (1041.6 oz/in)
• potentiometer drive: direct drive
• dimensions: 40.0 x 20.0 x 39.2 mm /1.57 x 0.79 x 1.54 in
• servo SRT X9 weight: 82.0g (2.89 oz)
• connector wire length: jr 300 mm

---
