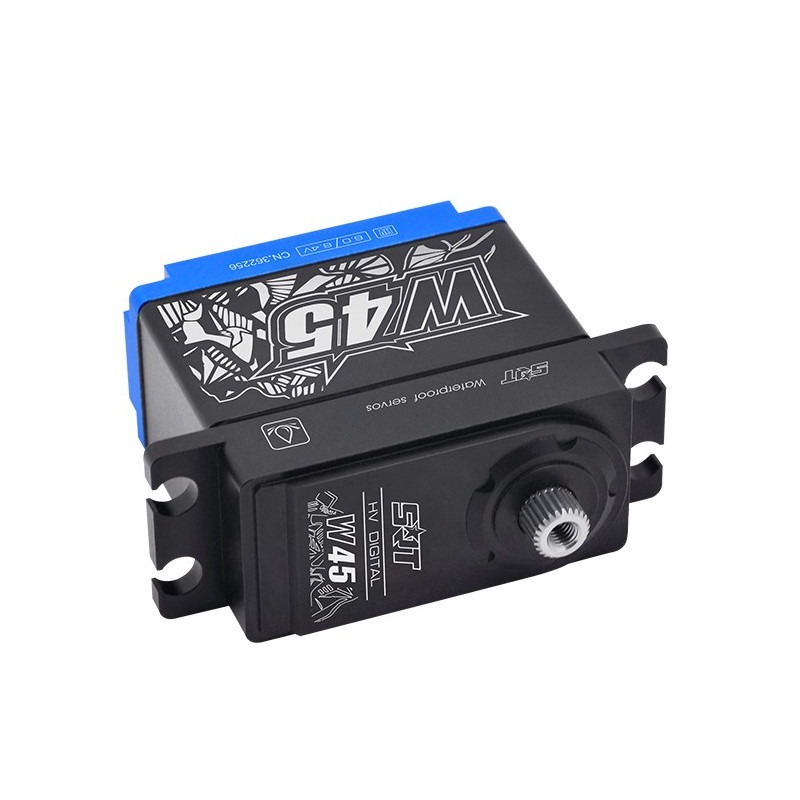

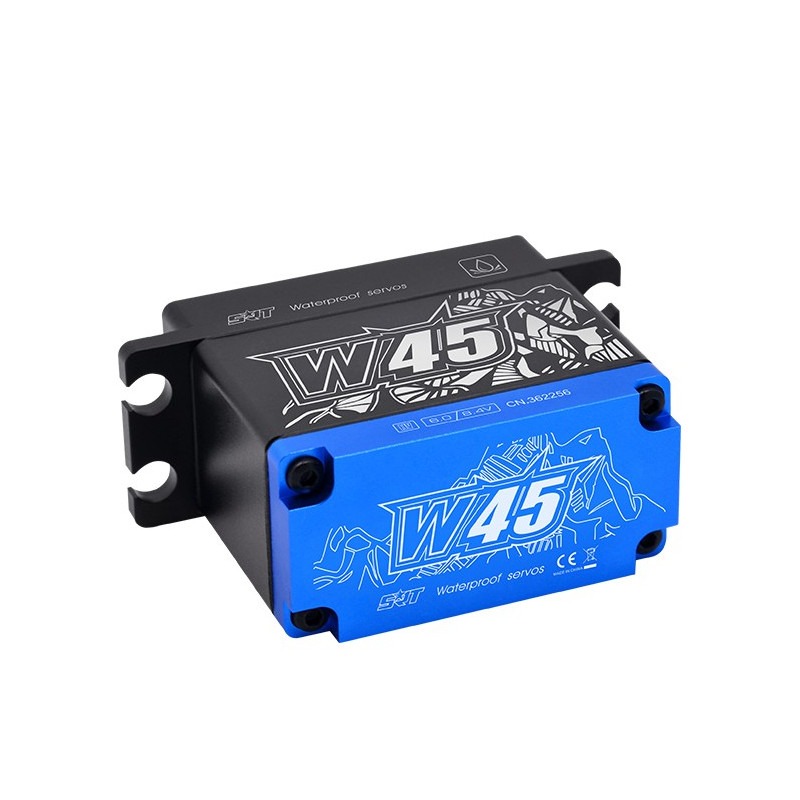

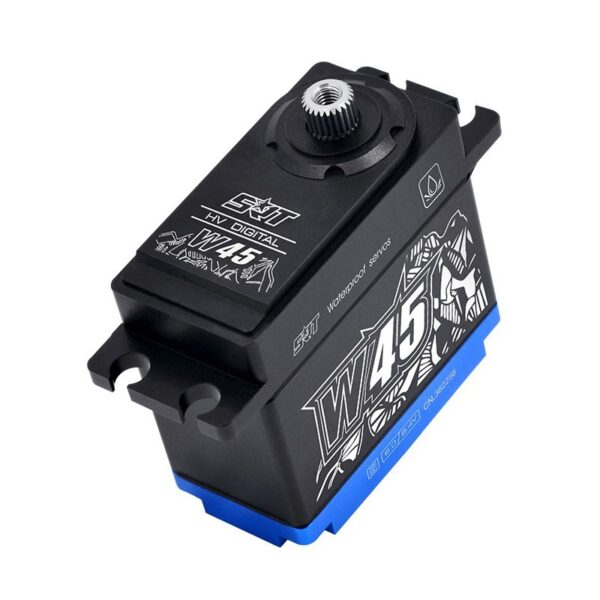

SRT W45 (45kg/0.18s/8.4v) HV Waterproof Servo

Description

The SRT Servo W45 is a standard size waterproof servo. It is especially suitable for use on crawlers and other similar conditions.

SRT W45 Servo Features:

• Type: Digital
• Bearing: Dual
• Motor Type: Coreless
• Gear Type: Metal
• Gear Material: Titanium & Steel
• Spinline: 25T
• Control system: pulse width control
• Working frequence: 1520Œºs / 330hz
• Operating voltage: dc6.0-8.4v
• Operating temperature range: -10 to + 60 degree
• Operating speed (6.0v): 0.20 sec/60 degrees at no load
• Operating speed (7.4v): 0.19 sec/60 degrees at no load
• Operating speed (8.4v): 0.18 sec/60 degrees at no load
• Stall torque (6.0v): 34.0kg.cm (472.2 oz/in)
• Stall torque (7.4v): 40.0kg.cm (555.5 oz/in)
• Stall torque (8.4v): 45.0kg.cm (624.9 oz/in)
• Potentiometer drive: direct drive
• SRT Servo Dimensions: 40.7x20.5x38.6 mm /1.60x0.81x1.52in
• Servo W45 weight: 82.5g (2.91 oz)
• Servo connector wire length: jr 360 mm

You can find servo horn suitable for this servo in the servo horns category.
