Description

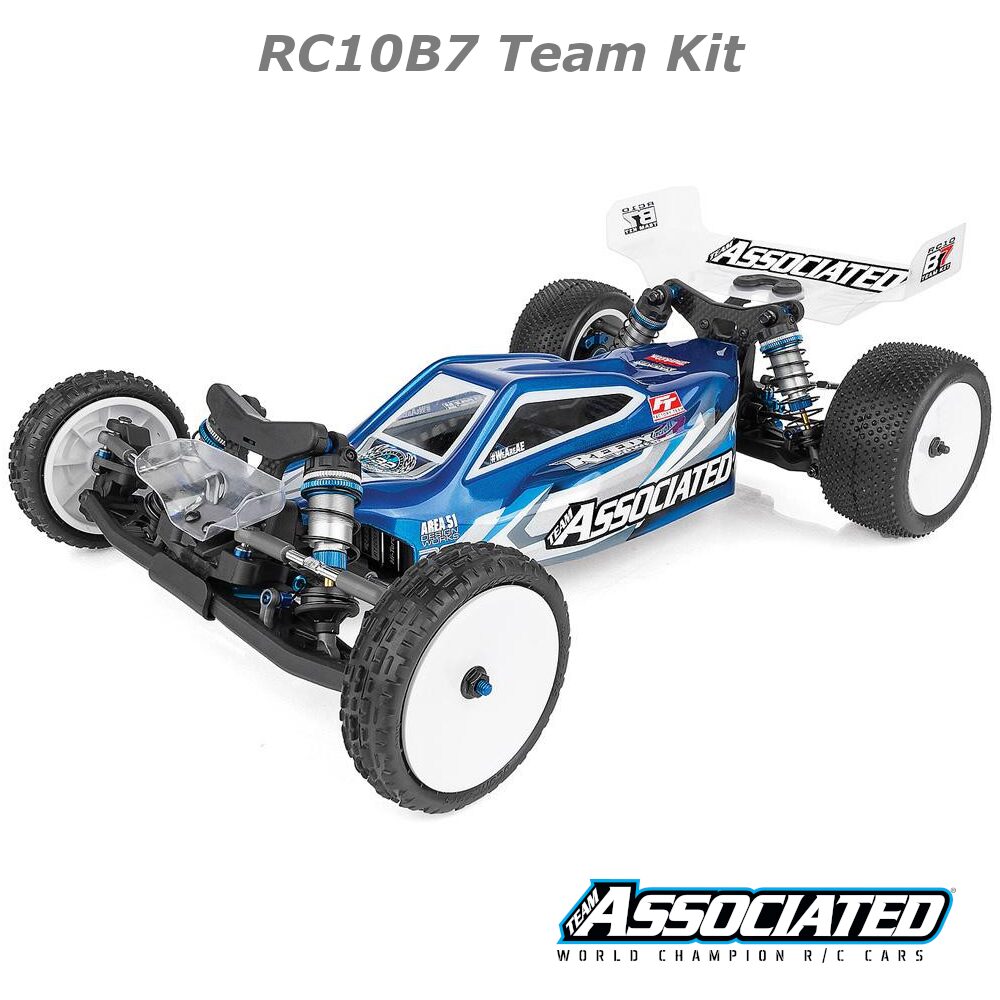

Team Associated RC10B7 Team Kit | Built for the true racer
The Team Associated RC10B7 is a next-generation 1/10 2WD off-road racing buggy based on 40 years of racing experience. Innovative suspension geometry, centered electronics layout and KPI-adjustable steering blocks provide greater grip, cornering speed and easier handling. The RC10B7 is the ideal choice for racing on carpet, AstroTurf® and high-grip clay tracks. The durable construction and fully interchangeable parts with the RC10B7D model give it the racing potential worthy of champions. This is the RC10B7 Kit, which you need to assemble yourself and add everything you need to start racing.
RC10B7 Box includes:
- Team Associated RC10B7 unassembled kit
- Transparent unpainted body
- Assembly instructions (ENG)
You will need:
- Speed controller or ESC
- 1/10 scale 540 brushless motor
- LiPo 2S Shorty Battery
- Charger suitable for LiPo battery
- Charging cables according to charger and battery
- At least 2-channel radio transmitter and receiver
- 1/10 Buggy Wheels
Detailed RC10B7 Model features:
- 5-gear laydown transmission with low profile motor mount moves weight of motor closer to the center of the car
- Long-arm suspension geometry improves grip and predictability in all conditions
- KPI adjustable steering and caster blocks allows for fine tuning steering feel. Three options are included in kit.
- Vertical front outer ballstud allows fine tuning of roll center, camber gain, and link length
- Height adjustable aluminum front bulkhead allows for further tuning of front roll center
- Standard and HRC (High Roll Center) rear hubs included
- Easy access anti-roll bars front and rear
- High volume gear differential improves consistency of differential action over a longer runs. Fits LTC internal diff gears from the RC10B74.2.
- Highly adjustable battery holder with thumb tabs allows for easy battery removal and fine tuning of weight bias
- 7075-T6 aluminum chassis with increased departure angle and optional weight plate pockets
- 6.5mm aluminum front axle increases stability and grip when using slim front wheels and low-profile tires
- HD 69mm CVA bones and differential outdrives for improved durability
- Lightweight molded servo mount
- One-piece rear wing mount improves durability
- New 7-inch rear wing and 2.5-inch front wing
- Low-profile body
- Shock tower covers front and rear
- 3.5mm turnbuckles and ballcups
Specification:
- Power Source: Electric
- Terrain: Off-Road
- Body Style: Buggy
- Scale Size: 1:10 Scale
- Assembly Level: Kit (This vehicle comes as a kit and must be fully assembled by the user. See "Required to Complete" for extra items needed.)
- Length: 390mm (15.35in)
- Width: varies
- Wheelbase: varies
- Weight: varies
- Internal Gear Ratio: 2.60:1
- Drive: 2WD
