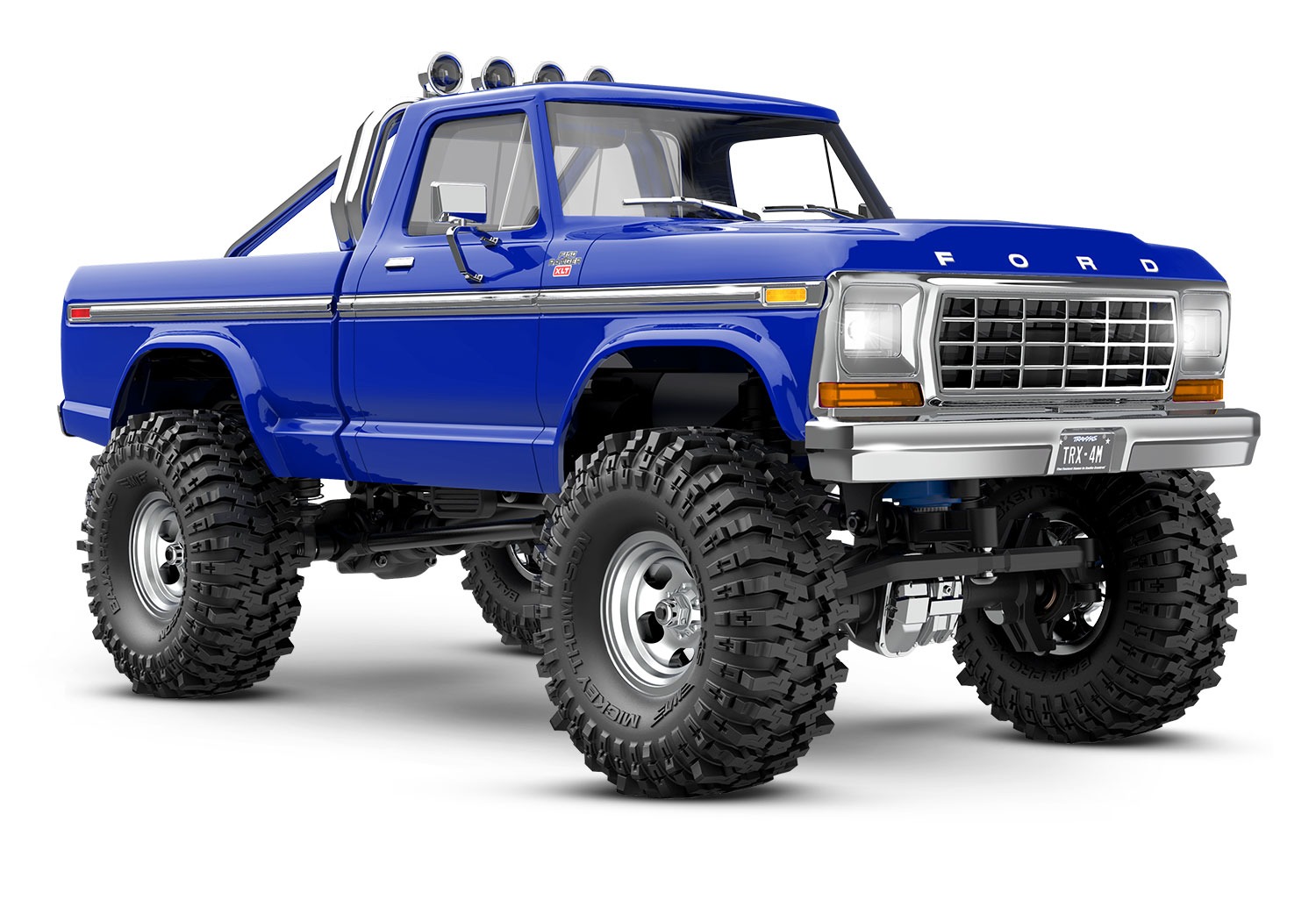

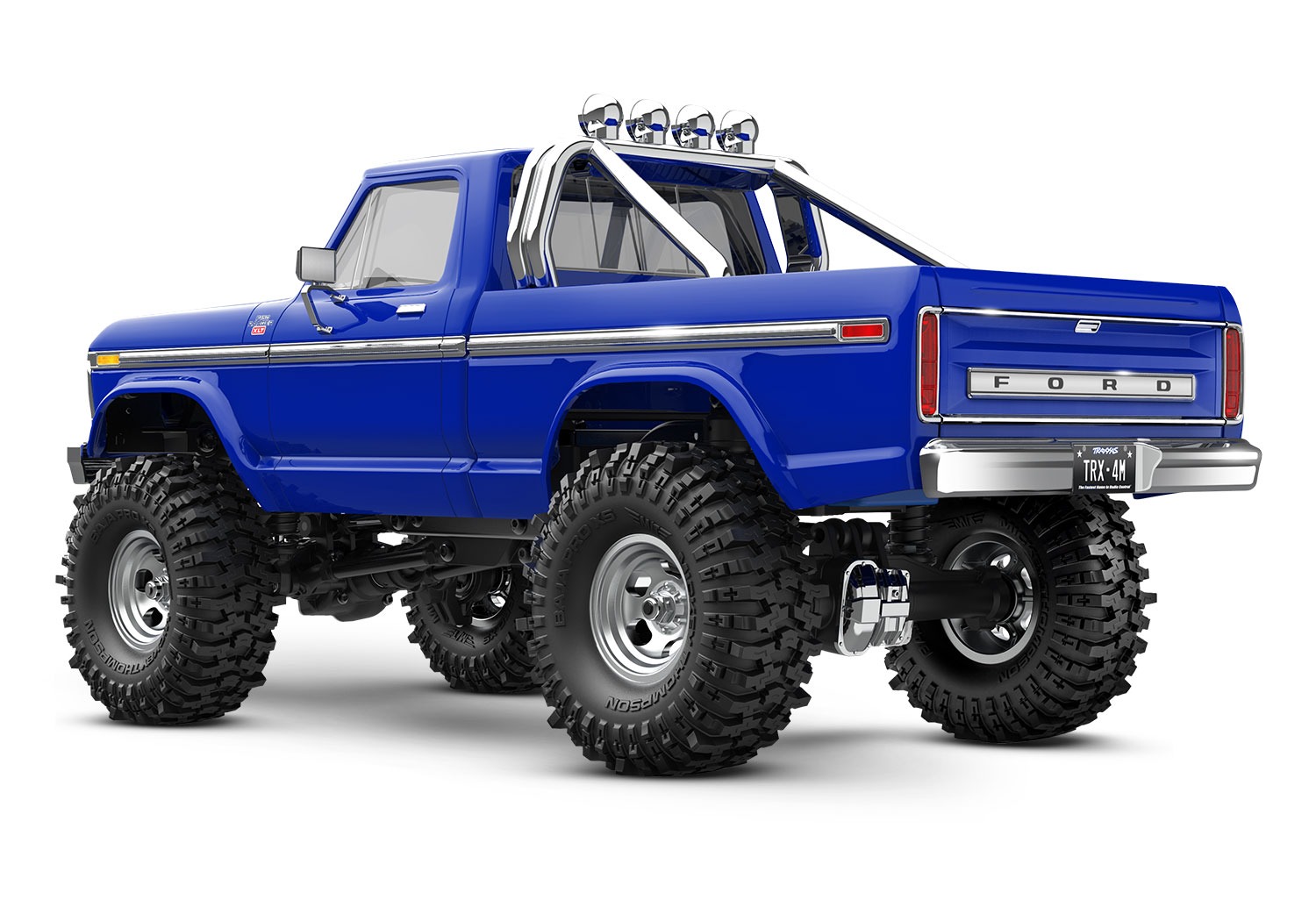

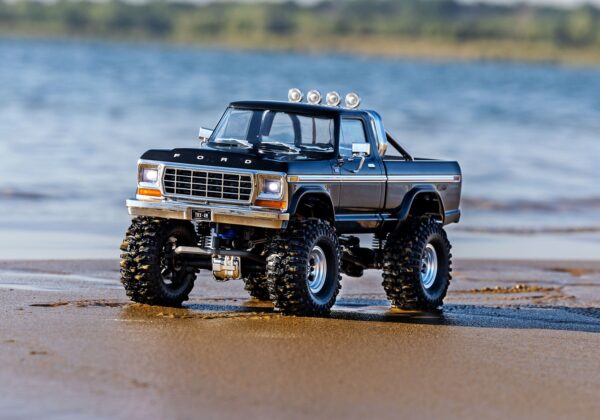

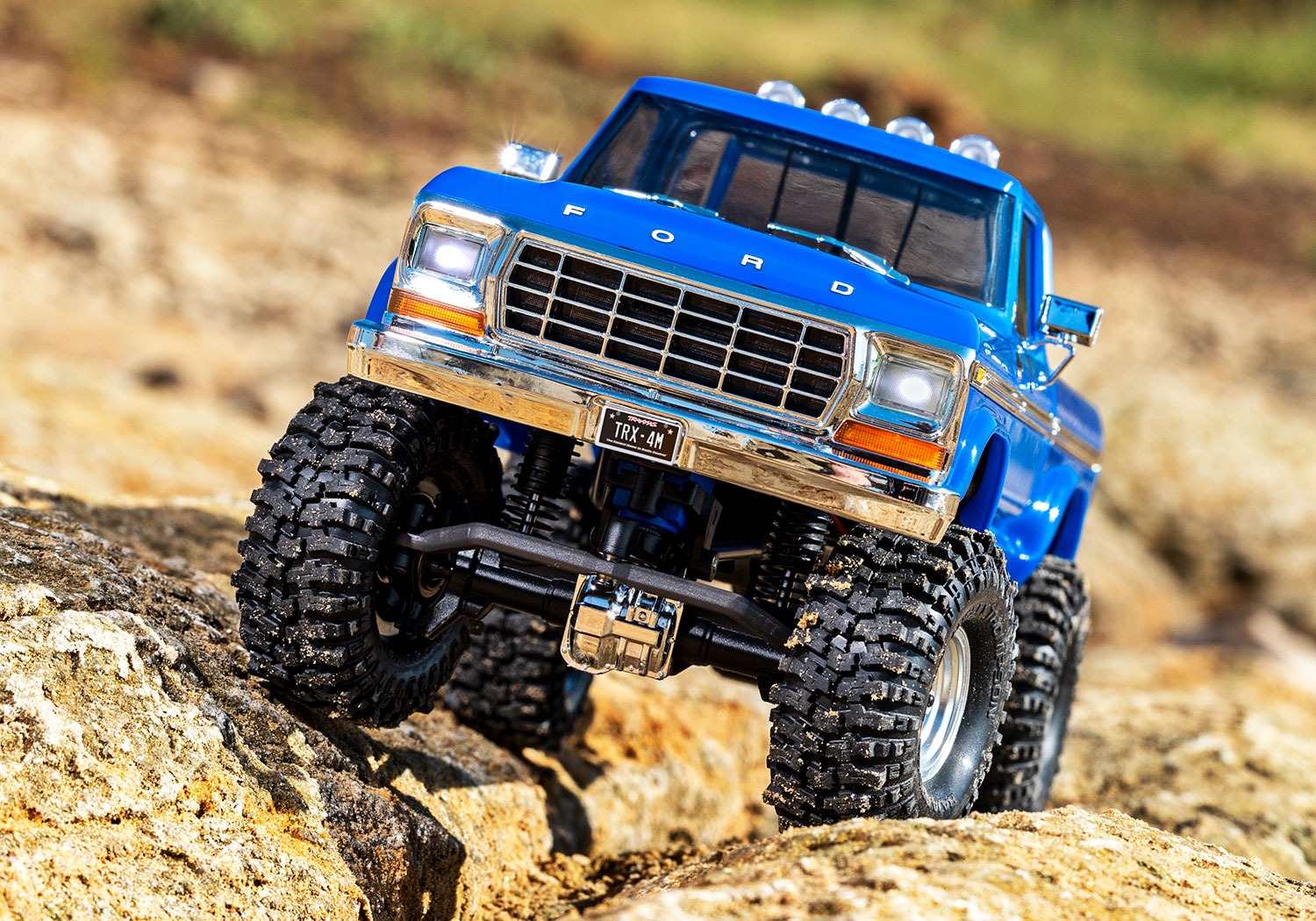

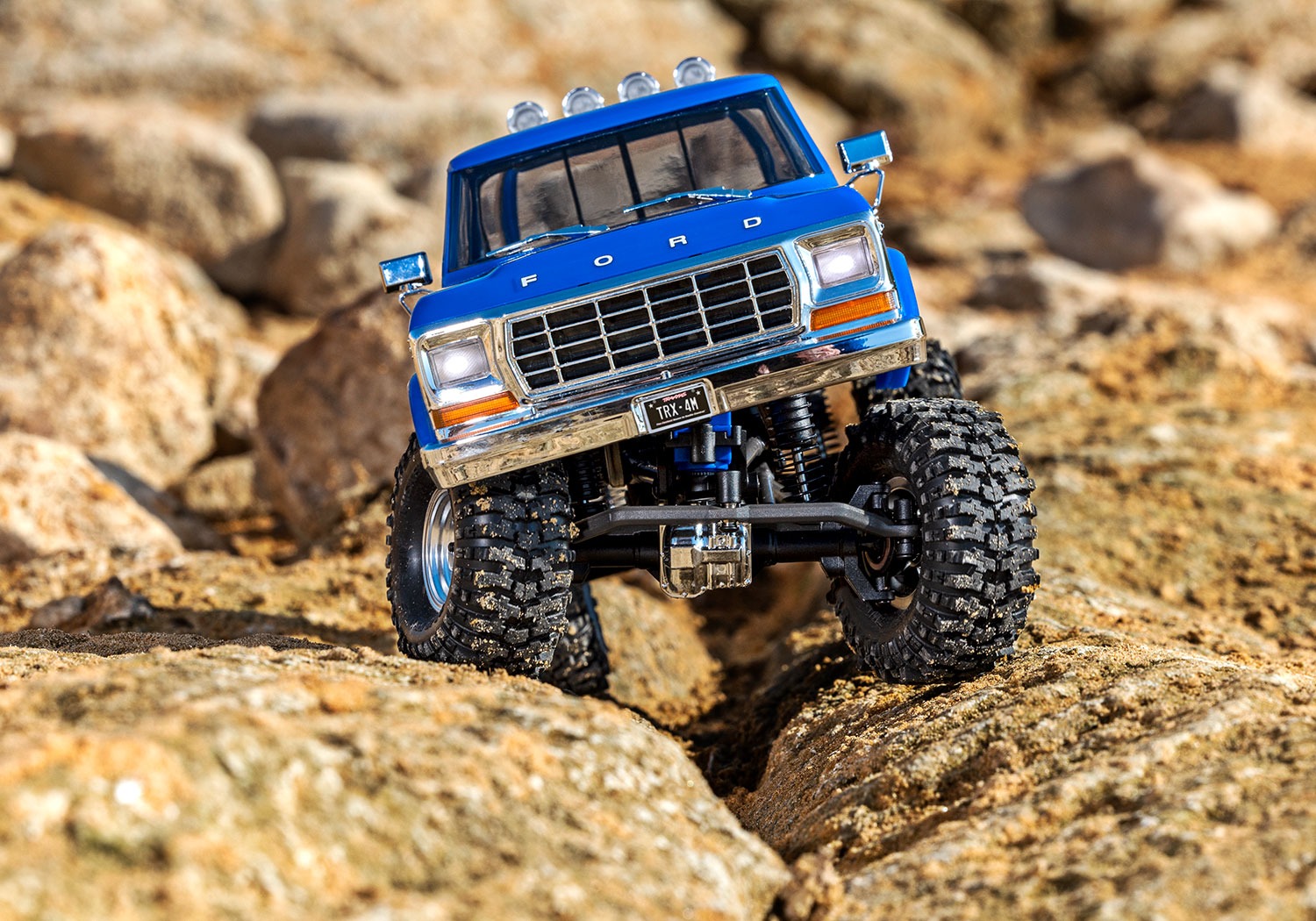

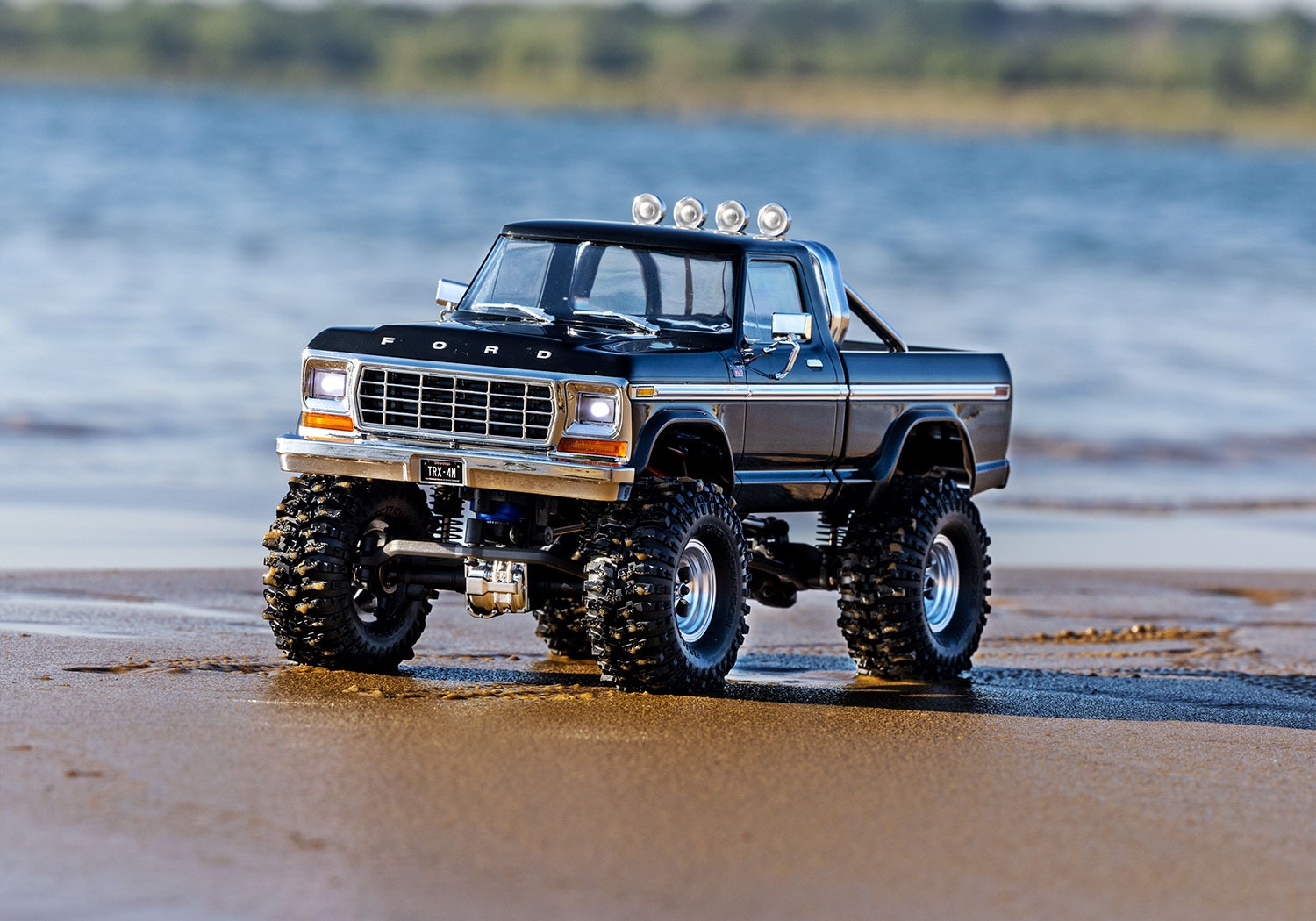

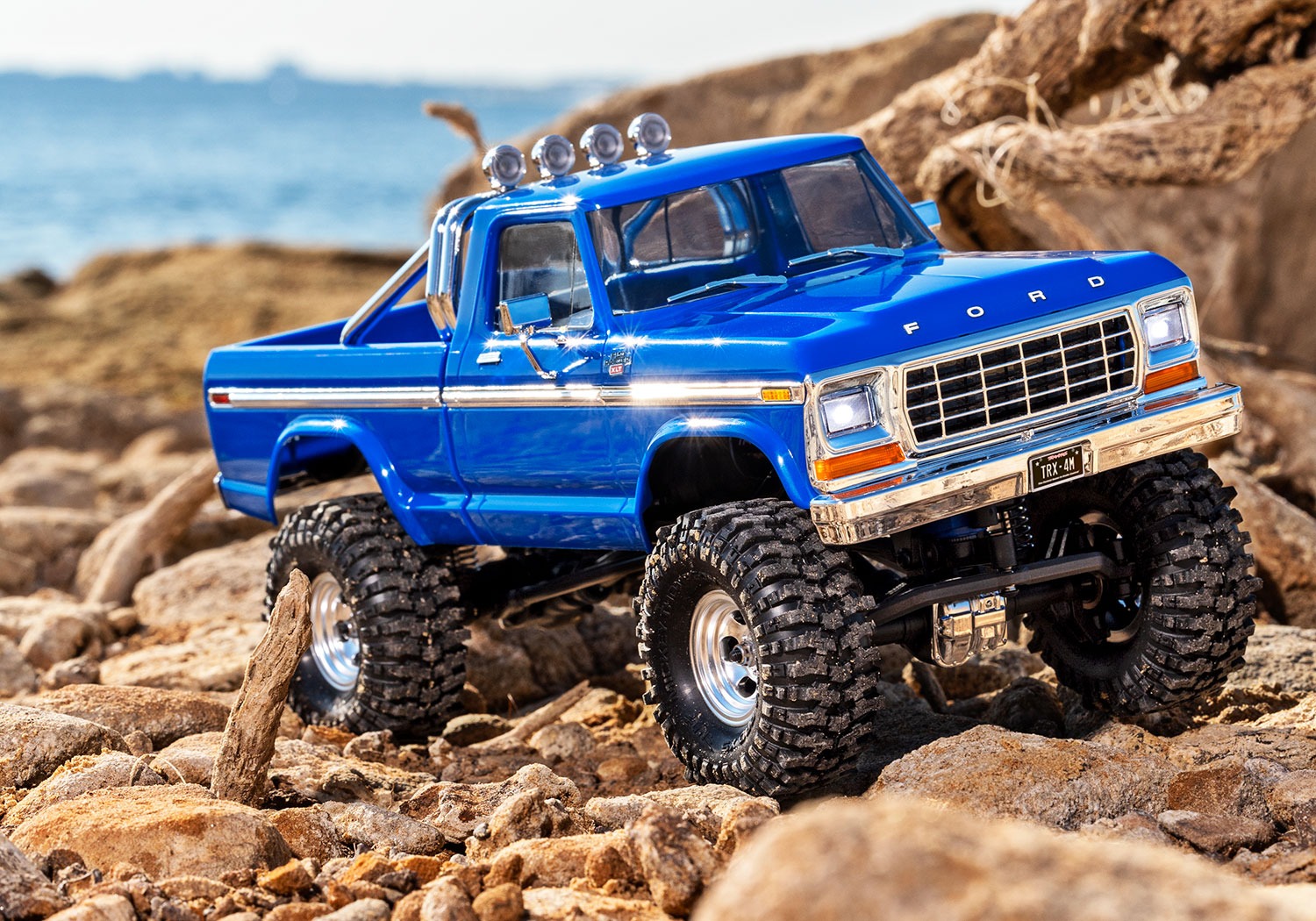

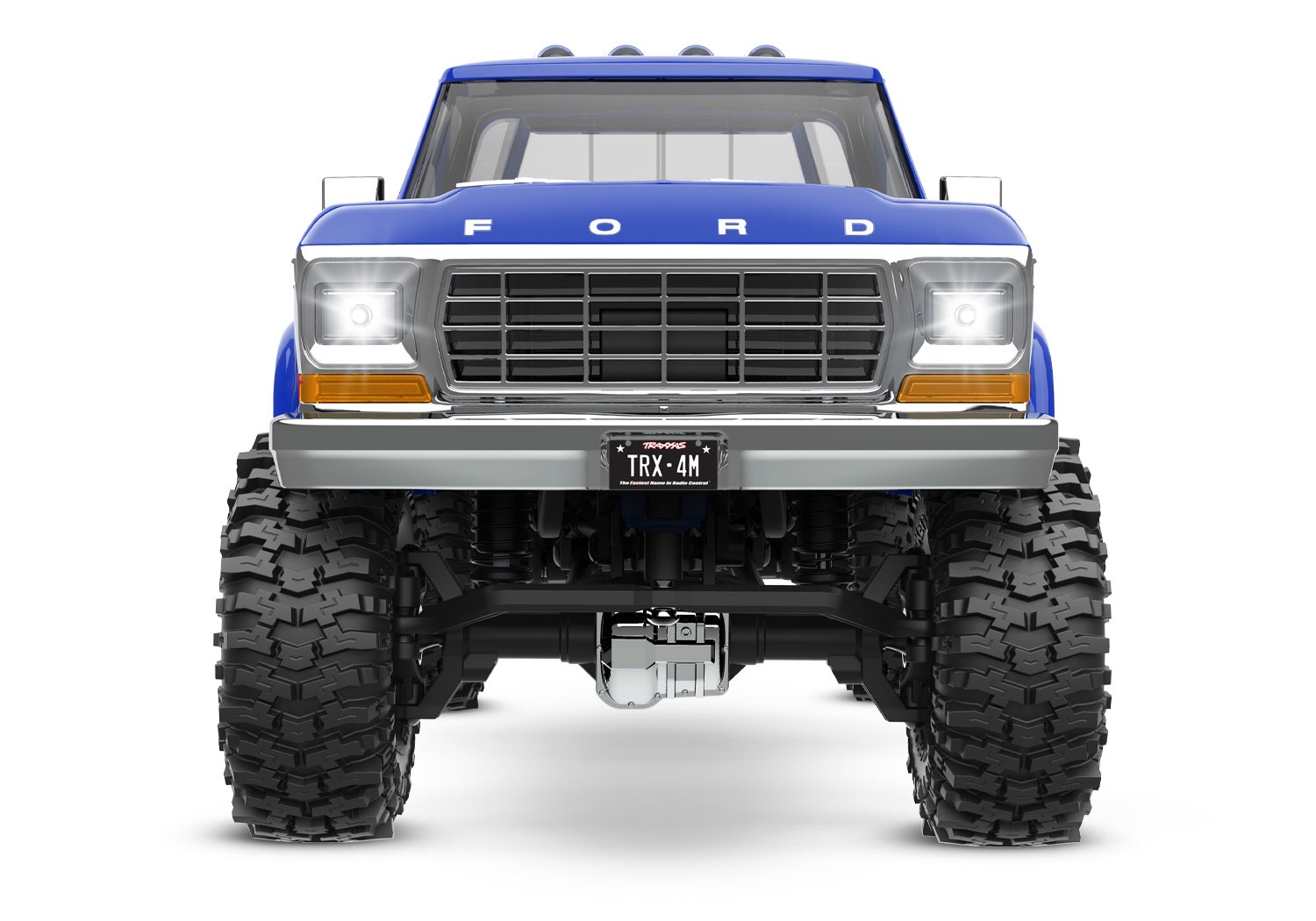

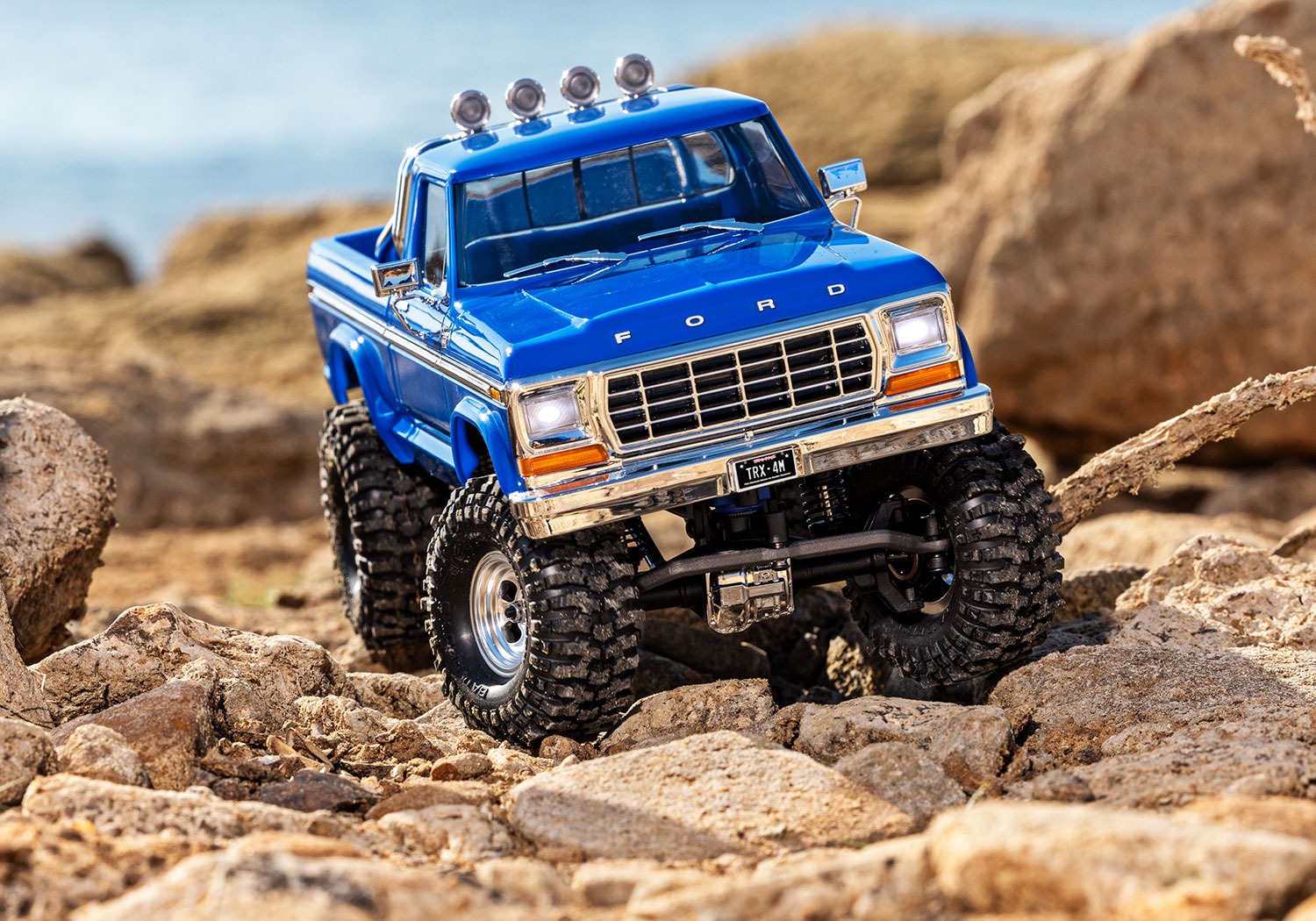

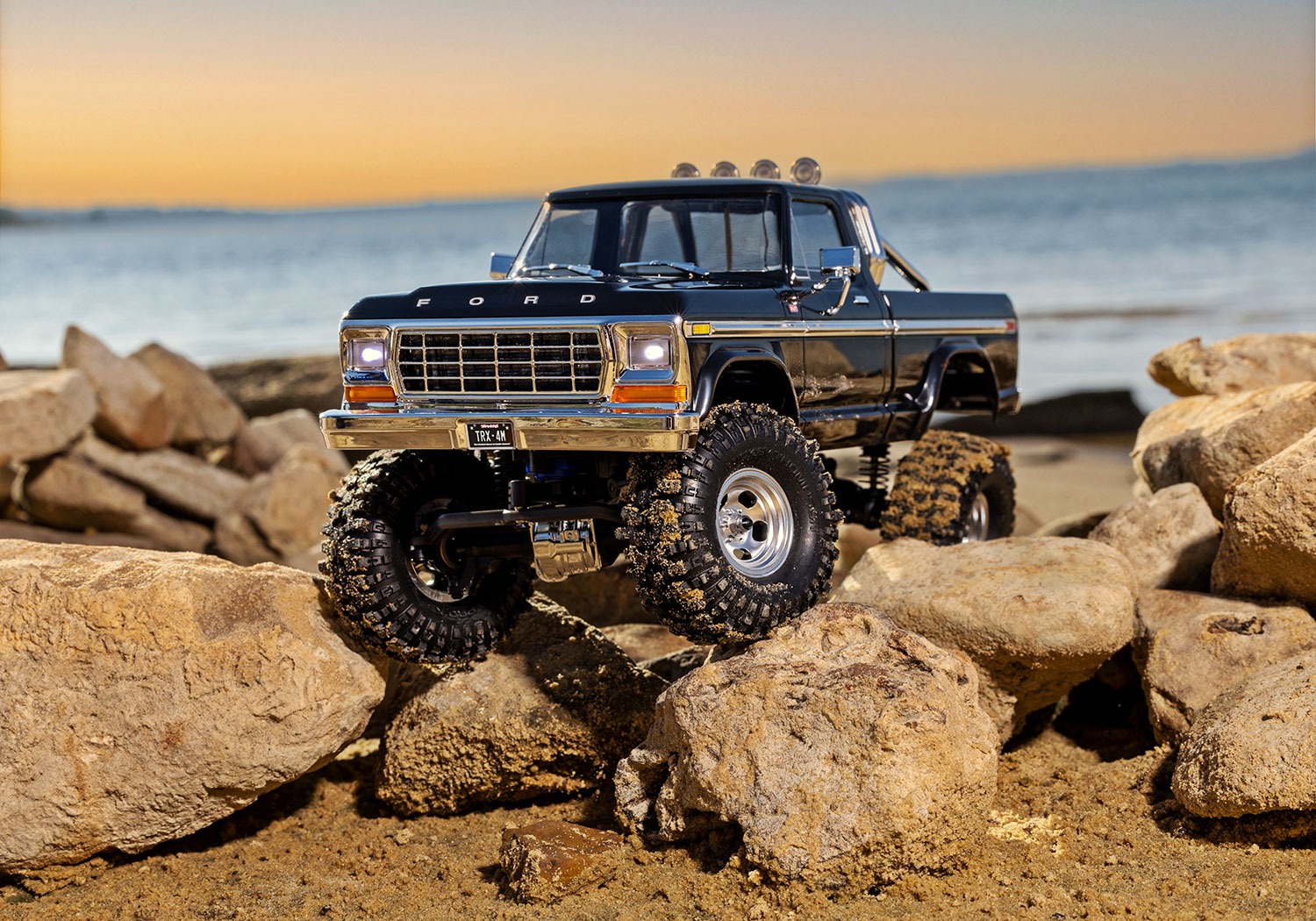

Traxxas TRX-4M Ford F-150 High Trail Edition

97044-1

High Trail Edition Performance for TRX-4M

Small-scale adventure takes a big leap in performance with TRX-4M® High Trail® Edition Ford® F-150®. High Trail Edition trucks offer over 35% more center ground clearance than a standard TRX-4M. TRX-4M F-150 rides on larger Mickey Thompson® Baja Pro™ XS tires with an extended wheelbase for even more all-terrain capability. From indoor fun to outdoor adventure, TRX-4M High Trail Edition F-150 delivers the quality and performance you expect from Traxxas.

Long Arm Lift Kit

The High Trail edition’s Factory Installed Long Arm Lift Kit and larger tires raise the center ground clearance over 35% for a dramatic lifted stance. Revised shock mounts and extended links ensure the truck maintains its carefully-tuned suspension geometry for peak performance on challenging terrain.

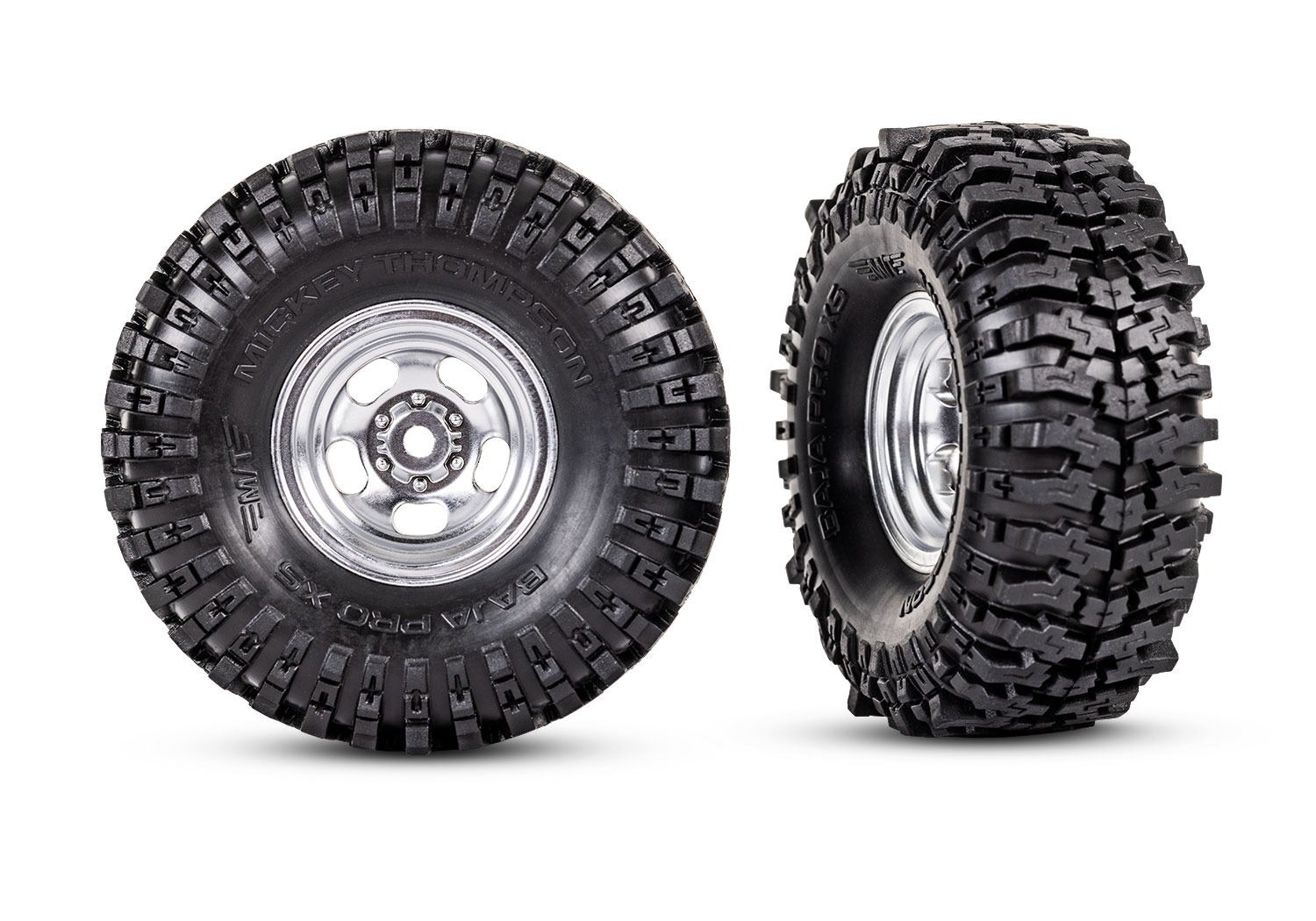

New Larger 2.4″ Tires

Larger 2.4″ Mickey Thompson® Baja Pro™ XS replicate the full size tire’s aggressive tread pattern and fill out the High Trail Edition’s wheel wells for an authentic “lifted truck” look. Sticky compound rubber gives extra “bite” for superior traction on the trail.

Extended Wheelbase

The High Trail Edition’s steel frame rails extend the wheelbase out to 162 mm to capture the pickup’s real-world proportions perfectly. A longer wheelbase also translates into greater climbing stability and a smoother, more stable ride over rough terrain.

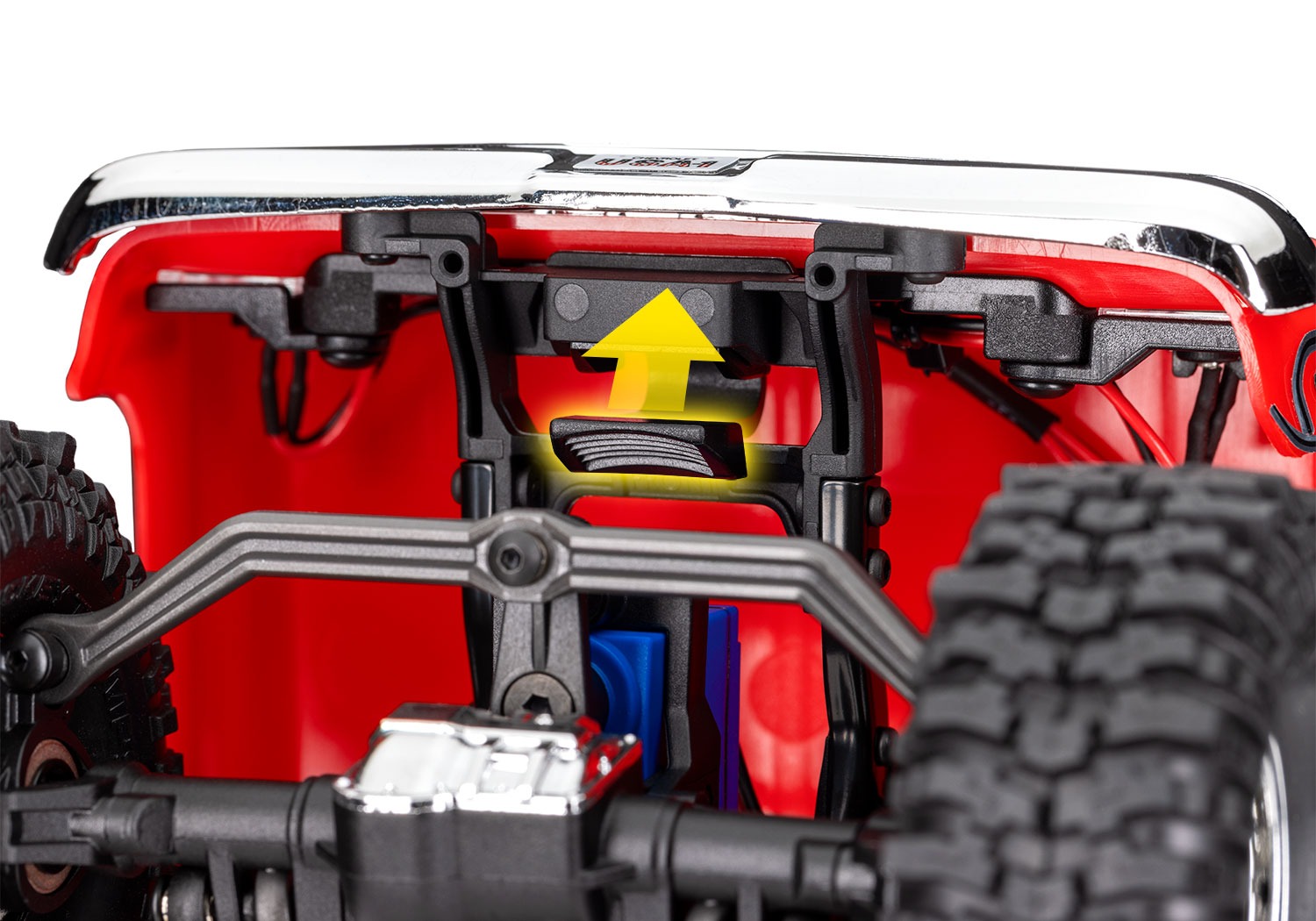

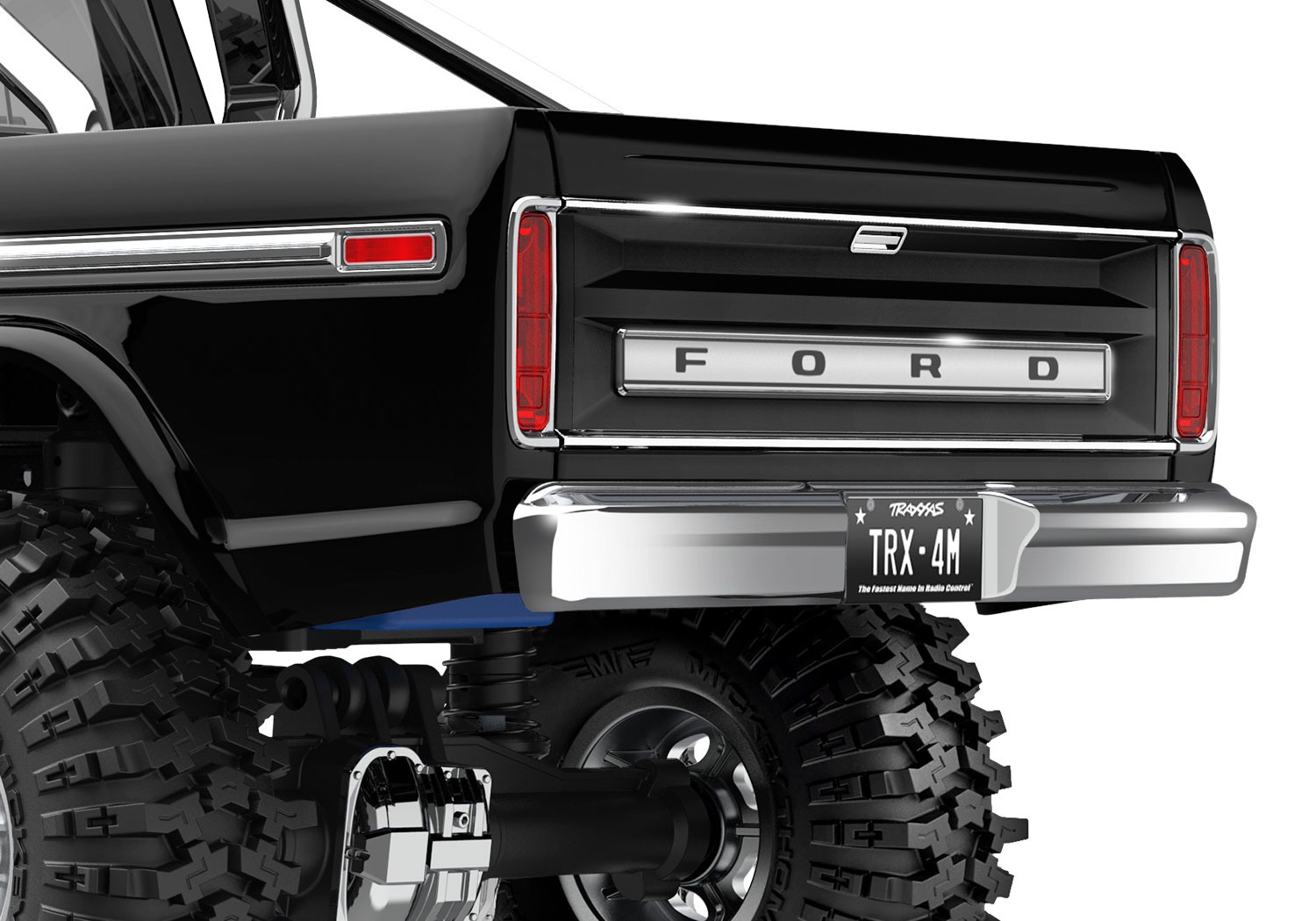

Detailed Clipless Body

The High Trail’s clipless body holds tight on the trail but releases in just seconds with a hidden latching system to preserve its clean lines. The tough ABS body featured molded-in color with highly detailed chrome trim for complete scale authenticity.

Key Features:

• Highly Detailed Licensed ABS Hard Body with Clipless Mounting
• Factory-Installed Long Arm Lift Kit
• Full-Size 2.4 GHz TQ™ Transmitter

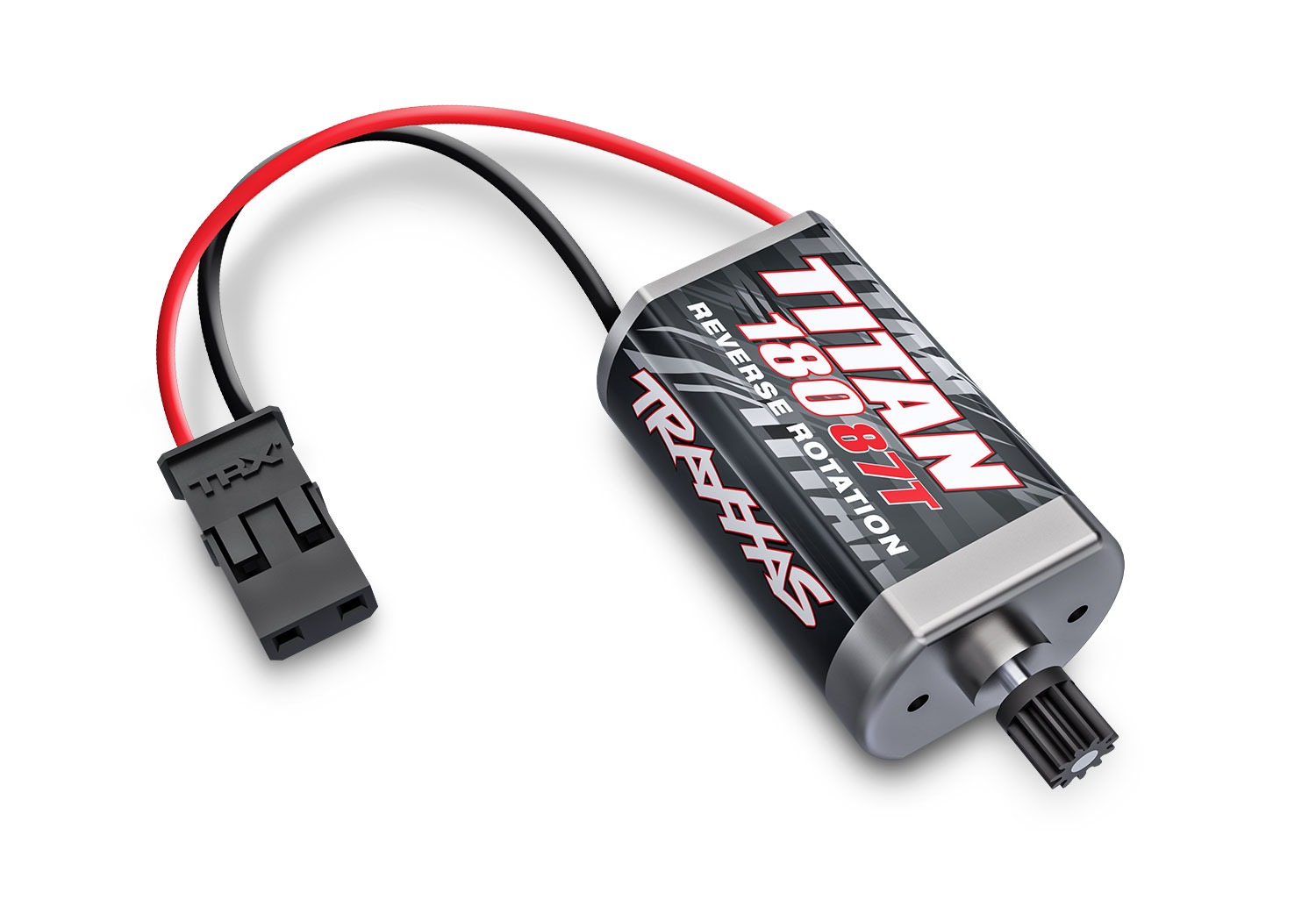

• Waterproof ECM-2.5 Control Module and 87-Turn Titan® 180 Motor
• Oil-Filled GTM Shocks

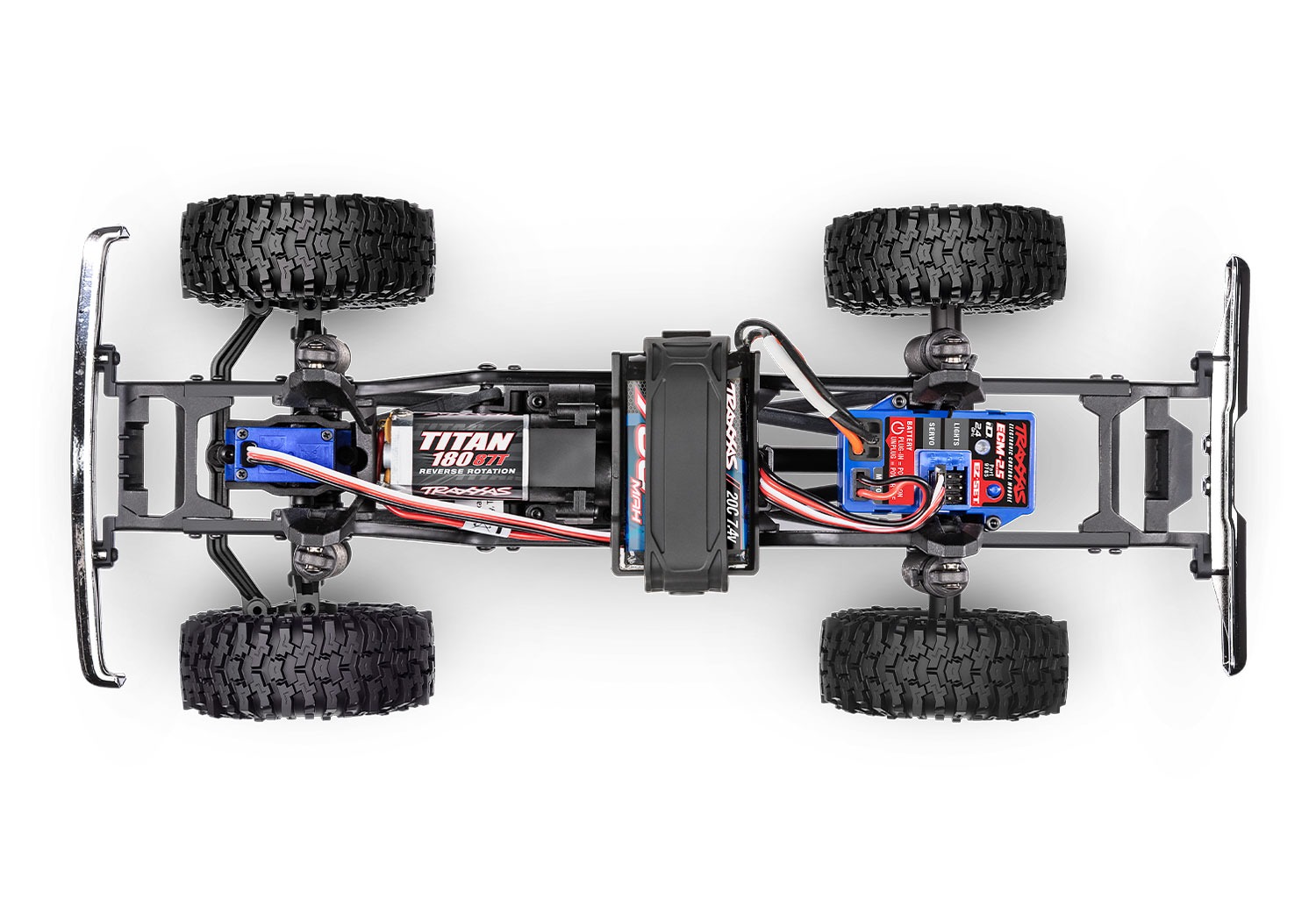

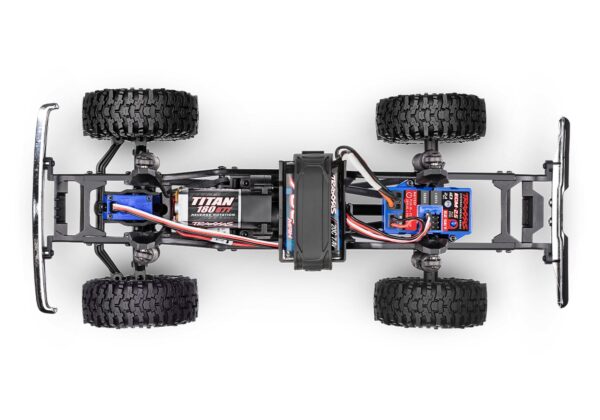

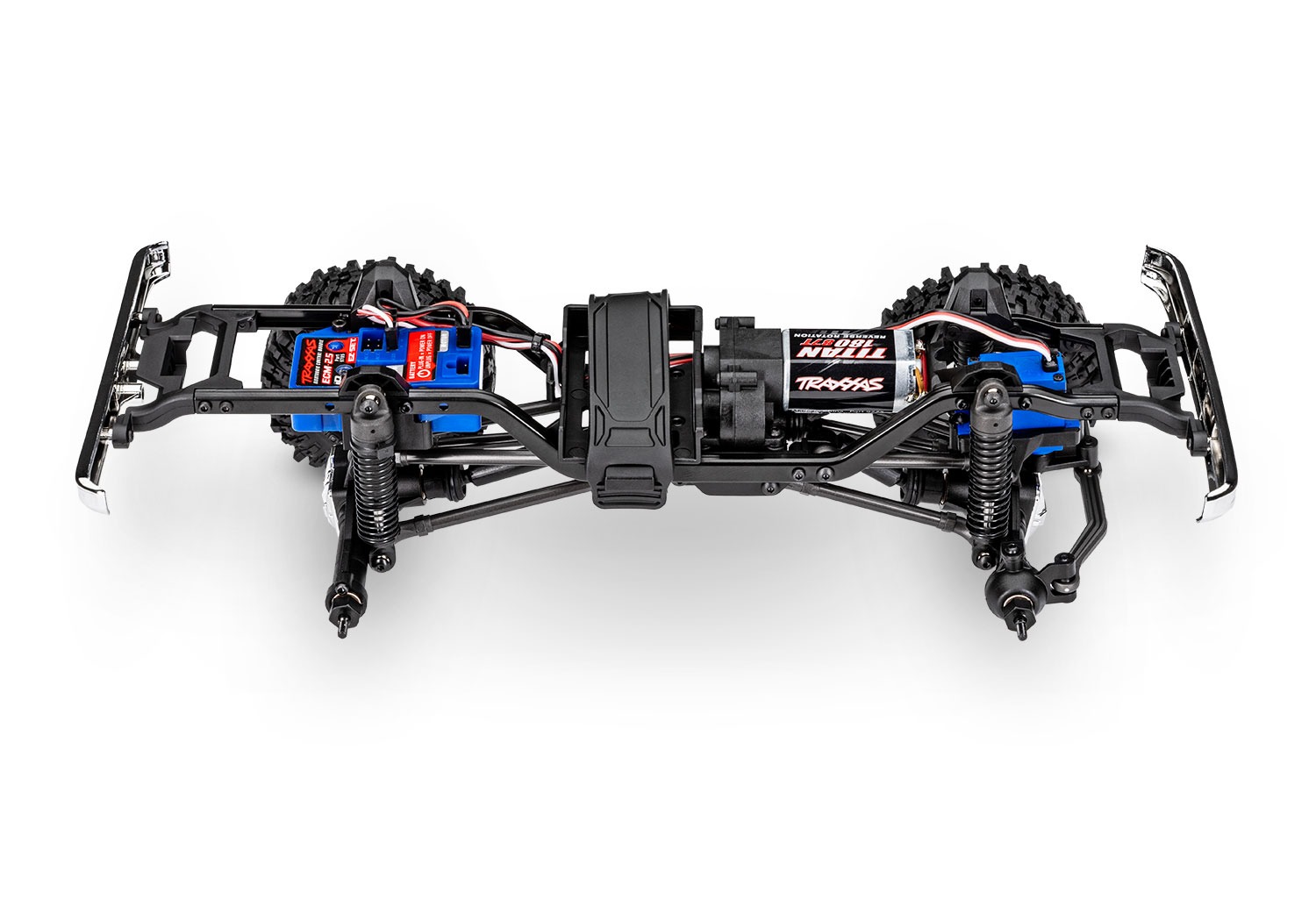

• Steel Ladder Frame with Rugged 4WD Driveline

What’s In The Box:

• TRX-4M High Trail model
• Licensed ABS hard body
• Titan® 180 87-turn motor
• ECM-2.5 Electronic Control Module
• TQ transmitter

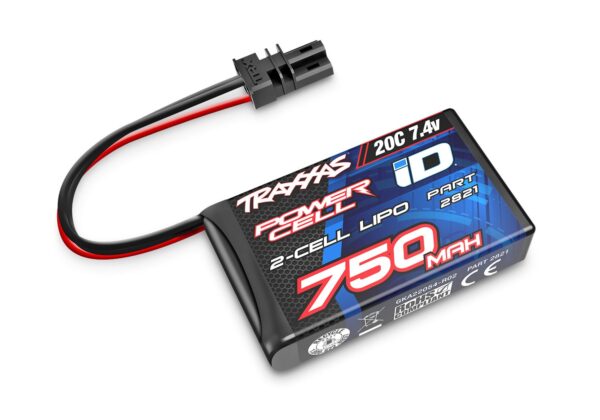

• 7.4 volt 750 mAh 2-cell LiPo battery

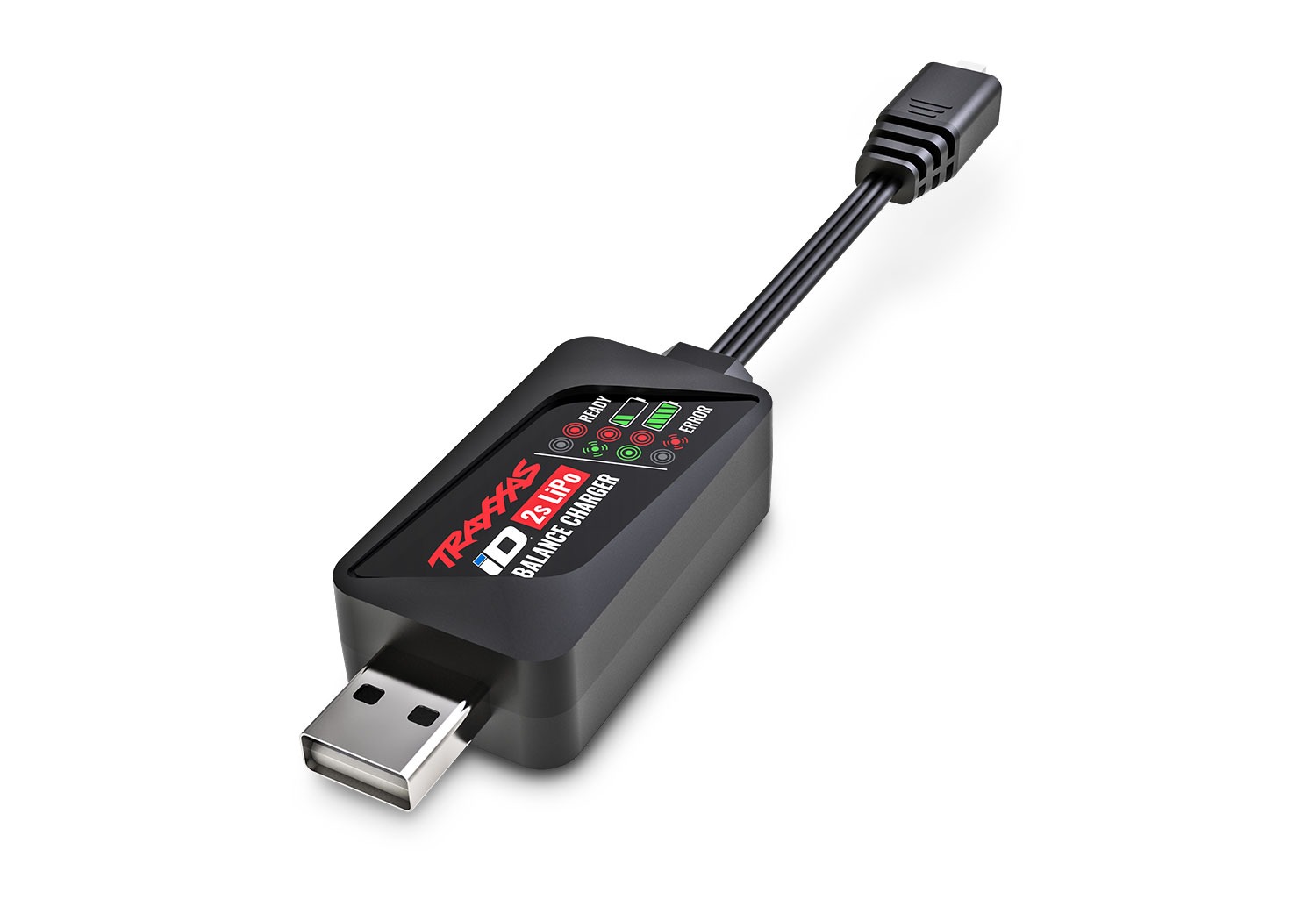

• 2-amp USB fast charger with iD®
• High quality maintenance tools

What You’ll Need:

• AA Alkaline Batteries
  Four AA alkaline batteries for the transmitter

See also the beautiful original presentation

• Traxxas TRX-4M Ford F-150 High Trail Edition

Traxxas TRX-4M Technical Specs:

• Length:    10.6 inches (269 mm)
• Front Track:    5.0 inches (127 mm)
• Rear Track:    5.0 inches (127 mm)
• Center Ground Clearance:    1.57 inches (40 mm)
• Weight (with battery):    1.03 pounds (468 g)
• Height:    5.0 inches (127 mm)
• Wheelbase:    6.38 inches (162 mm)
• Approach Angle:    62°
• Breakover Angle:    51.5°
• Departure Angle:    52°
• Shock Length (front and rear):    2.0 inches (51 mm)
• Hex Size:    7 mm

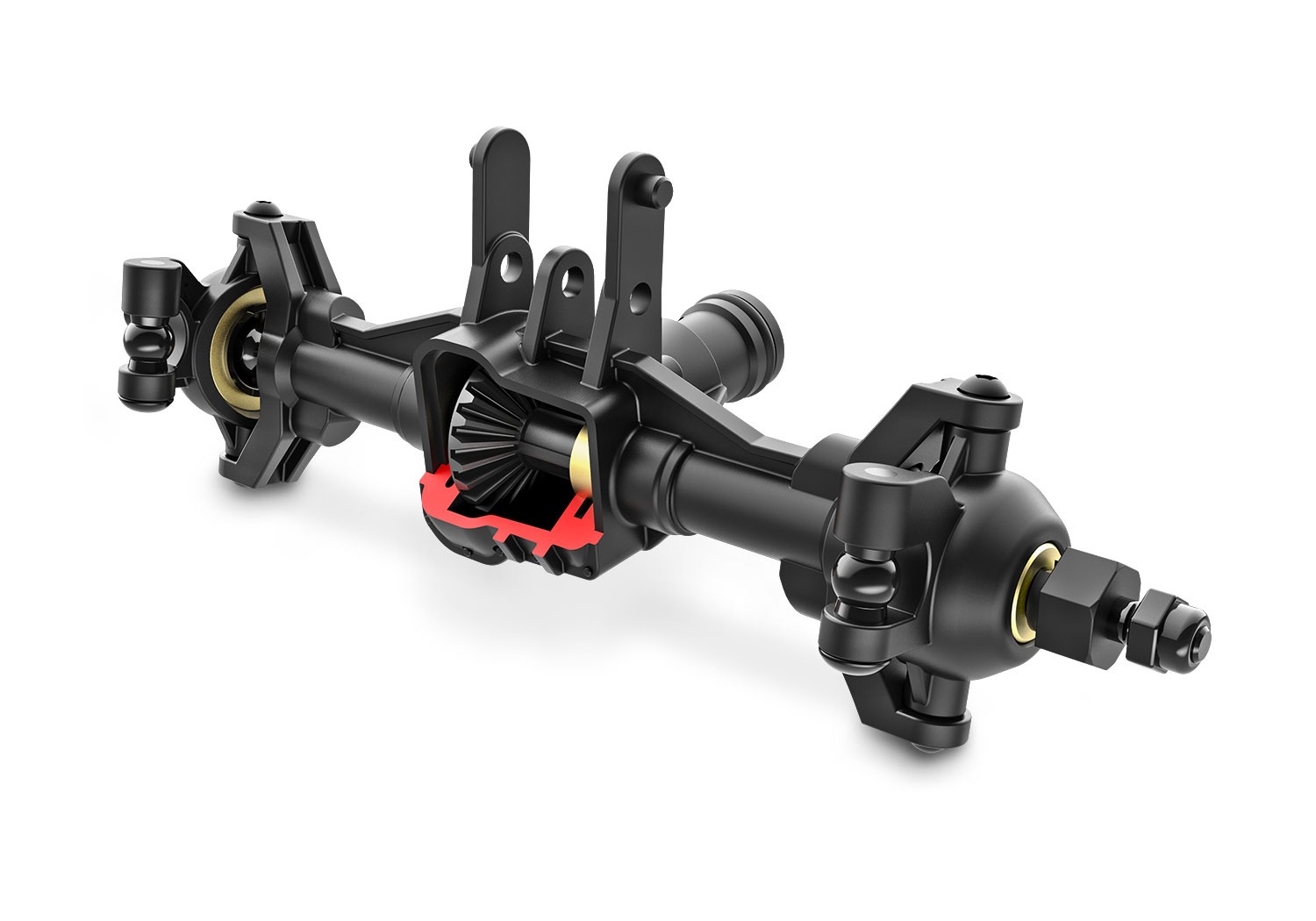

• Differential Type:    Fully locked; 2:1 axle ratio
• Wheels (front and rear):    1.0″ x 0.49″ inches (25 x 13 mm)
• Tires (front and rear):    2.4″ x 1.0″ inches (62 x 26 mm)

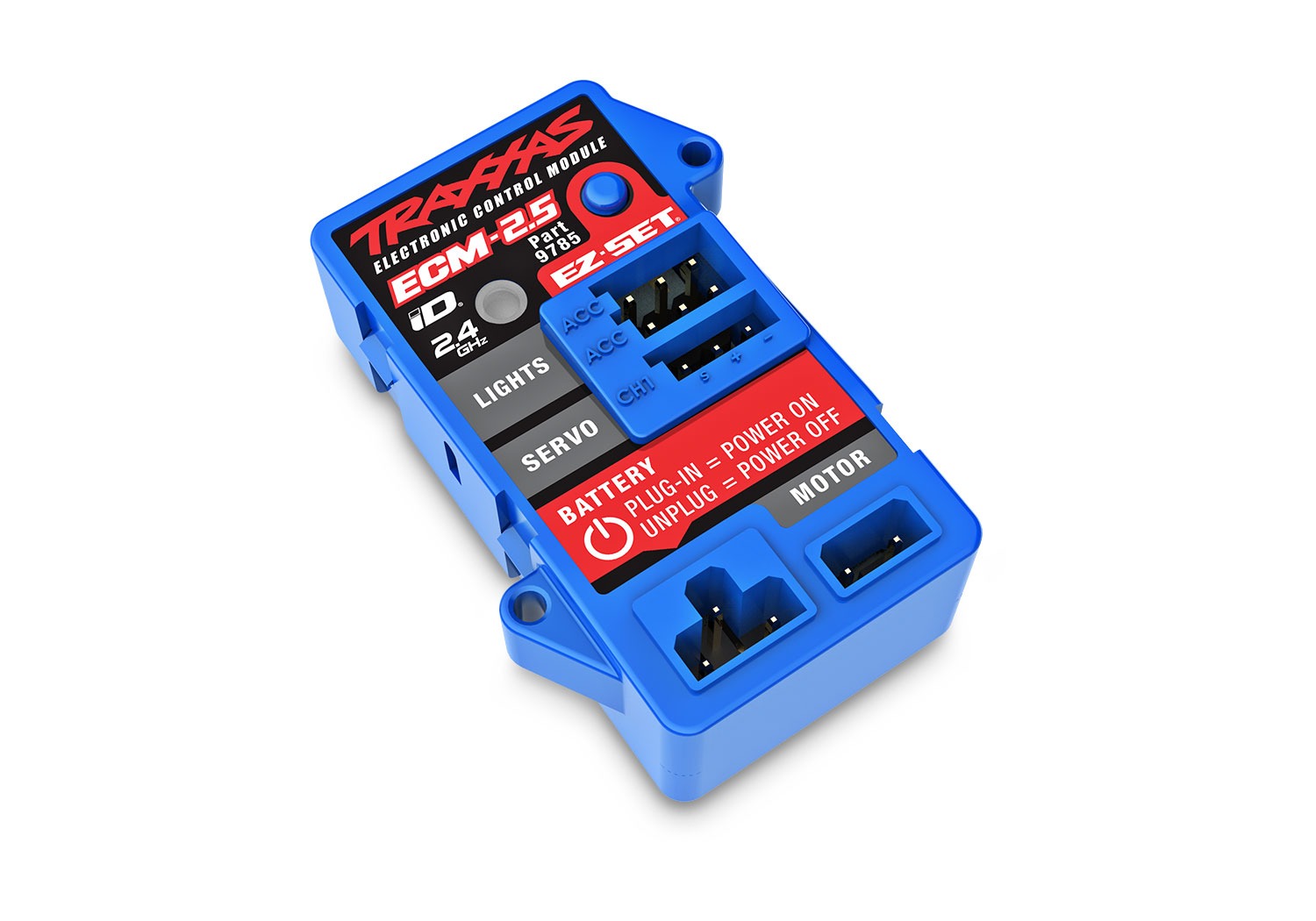

• Electronic Control Module:    ECM-2.5™
• (combo ESC, receiver, lighting control*)
• Motor (electric):    Titan® 180 87T

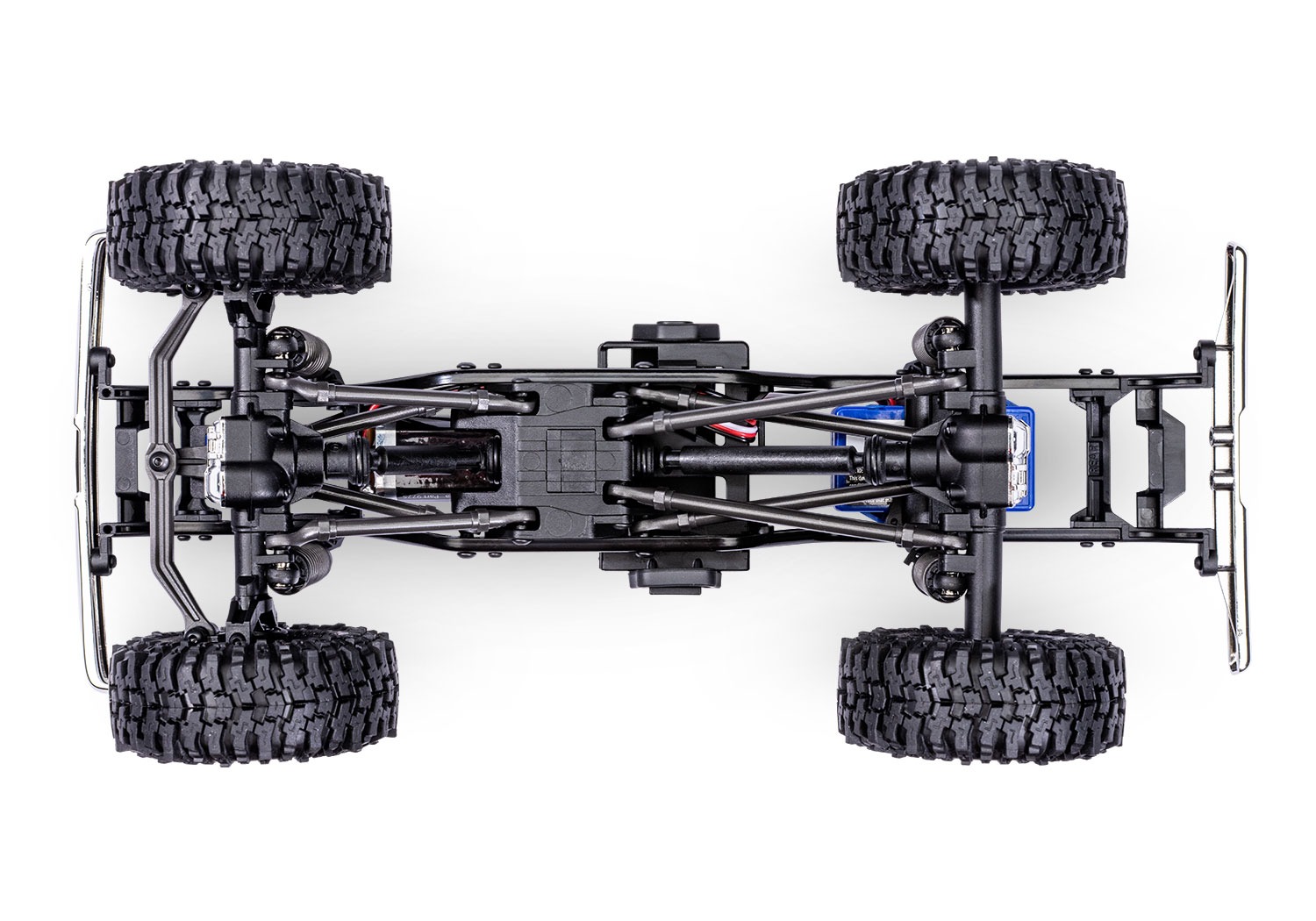

• Chassis Structure/Material:    Steel ladder frame with Nylon composite crossmembers
• Brake Type:    Electronic “Hill Hold”
• Drive System:    Shaft-driven 4WD
• Steering:    Axle-mounted servo
• Radio System:    TQ™ 2.4 GHz 2-channel transmitter

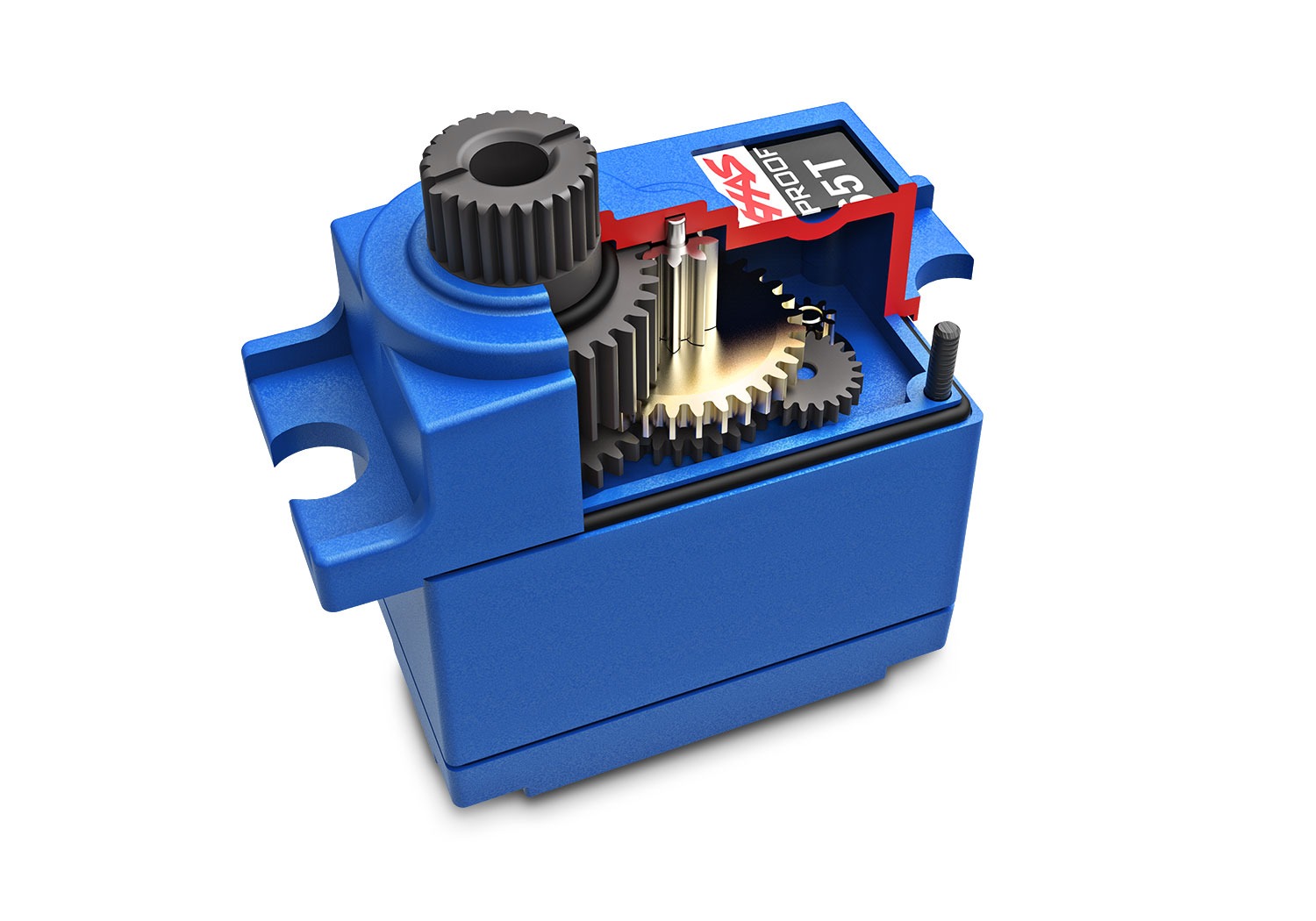

• Servo:    2065T heavy duty waterproof
• Skill Level:    1
• Battery Tray:    51 mm L X 31 mm W
