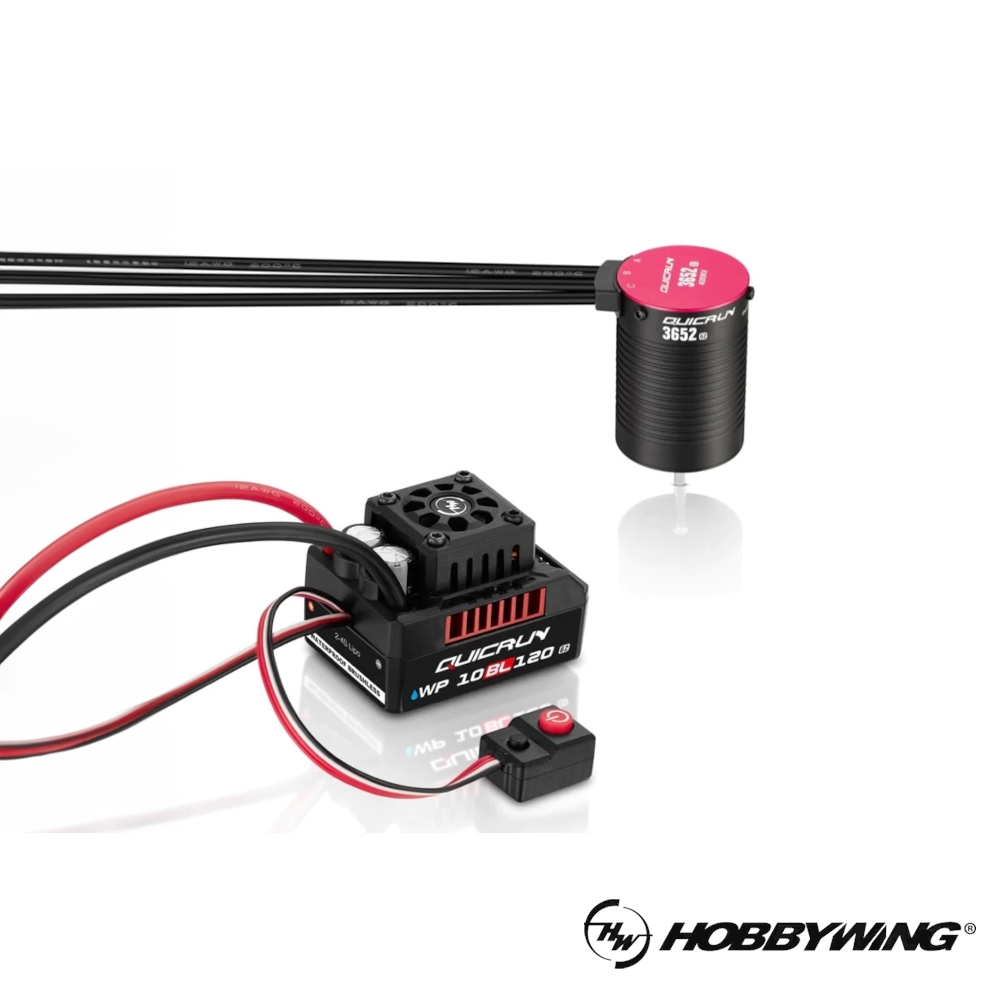

Hobbywing QuicRun WP10BL120 G2 120A ESC + 3652SL 3250kV Brushless Combo (HW38030207)

Artikelnummer: HW38030207 Marke:
  • Marke:

    Hobbywing

Nur noch 1 vorrätig

89,00 €

Auf Lager (1)
Lieferung innerhalb Estlands 2–3 Werktage, andere europäische Länder 10 Tage.

Beschreibung

The Hobbywing QuicRun WP10BL120 G2 120A ESC + 3652SL 3250kV Brushless Combo is a powerful and reliable motor system designed for 1/10 scale RC cars. Combining the QuicRun WP10BL120 G2 electronic speed controller with the 3652SL G2 3250kV brushless motor, this combo delivers strong acceleration, excellent efficiency, and smooth power delivery.

The second-generation ESC features intelligent Freewheeling technology to improve driving efficiency and reduce operating temperatures. Its efficient cooling system, IP67-rated water and dust protection, and powerful 5A BEC with selectable 6V or 7.4V output ensure reliable performance in demanding conditions.

The 4-pole 3652SL G2 3250kV brushless motor provides impressive torque and efficient power delivery. Its durable CNC-machined aluminium housing, high-quality internal components, and serviceable construction make it a dependable choice for regular RC use.

With its 3250kV rating, the motor offers an excellent balance of acceleration, torque, and controllability when paired with suitable gearing. It is particularly well suited for 1/10 scale on-road cars, buggies, and lightweight RC trucks.

This combo is an excellent upgrade for brushed power systems or a reliable choice for custom RC builds.

Technical Specifications – ENG

ESC – Hobbywing QuicRun WP10BL120 G2

  • Type: Brushless ESC (sensorless operation)
  • Continuous Current: 120A
  • Peak Current: 760A
  • Input Voltage: 2–4S LiPo
  • BEC Output Voltage: 6V / 7.4V
  • BEC Output Current: 5A
  • Waterproof Rating: IP67
  • Battery Connector: XT60
  • Motor Connectors: 4mm
  • Cooling: Integrated Fan
  • Programming: LED Program Box / LCD Program Box G2
  • Programming Port: Separate Programming Port
  • Dimensions: 52.8 × 39.8 × 38.2mm
  • Weight: 119g

Motor – Hobbywing QuicRun 3652SL G2 3250kV

  • Type: Sensorless Brushless Motor
  • KV Rating: 3250kV
  • Number of Poles: 4
  • Recommended Battery: 2–3S LiPo
  • Motor Diameter: 36mm
  • Motor Length: 52mm
  • Shaft Diameter: 3.175mm
  • Shaft Length: 15mm
  • No-load Current: 4.0A
  • Weight: Approx. 224g
  • Motor Connectors: 4mm Bullet

Package Includes:

  • Hobbywing QuicRun WP10BL120 G2 ESC
  • Hobbywing QuicRun 3652SL G2 3250kV Motor
  • User Manual
  • Stickers and Accessories

The Hobbywing QuicRun WP10BL120 G2 120A ESC + 3652SL 3250kV Brushless Combo is primarily designed for 1/10 scale RC cars, offering an excellent balance of acceleration, power, and controllability. It is a great choice for upgrading an existing brushed power system or building a new RC project.

Recommended Applications:

  • 1/10 On-road Cars – an excellent choice for fast and smooth driving on asphalt and other paved surfaces.
  • 1/10 2WD Buggy – well suited for off-road and carpet tracks, delivering strong acceleration and controllable power.
  • 1/10 2WD Stadium Truck – a good option for recreational driving and light off-road use.
  • 1/10 4WD Buggy – suitable for lightweight models with appropriate gearing and careful motor temperature monitoring.
  • 1/10 Short Course Truck – can be used in lighter models, depending on vehicle weight, gearing, and driving conditions.
  • 1/10 Monster Truck – compatibility depends on vehicle weight, tire size, and drivetrain load.

Not Recommended: Heavy 1/8 scale RC vehicles, as their increased weight and drivetrain load may cause motor overheating.

Recommended Battery: 2–3S LiPo. Appropriate gearing should be selected according to the vehicle and operating conditions.
