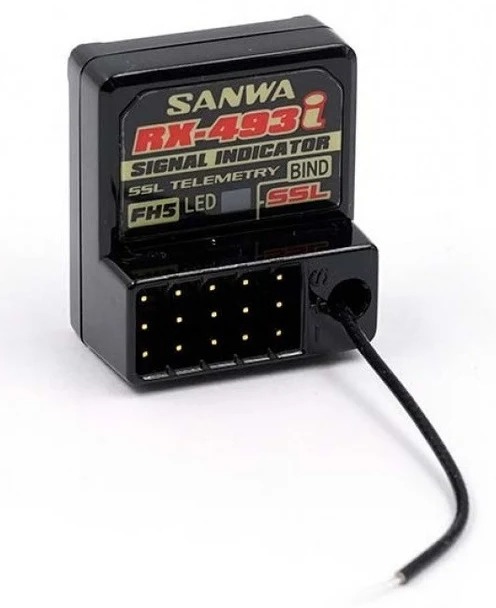

Sanwa RX-493i 4-Channel FHSS5 Receiver with Telemetry – Waterproof

The RX-493i supports both SUR (Super/Ultra Response) and SXR (Extreme Response) modes, providing the lowest possible control latency when paired with compatible Sanwa transmitters and high-speed servos.

Built-in Signal Strength Indicator Support

Compared to the standard RX-493, the RX-493i adds support for Sanwa’s Indicator Function. When used with a compatible transmitter, you can monitor signal strength in real time, making it easier to determine the optimal receiver position and identify potential reception issues caused by chassis layout or electronics placement.

When used with FHSS5 transmitters that do not support the Indicator Function, the RX-493i operates exactly like the standard RX-493 receiver.

Telemetry and SSL Compatible

The RX-493i supports Sanwa telemetry as well as SSL (Sanwa Synchronised Link), allowing compatible Sanwa ESCs, including the Super Vortex series, to be configured directly from the transmitter.

• Note: RPM and temperature sensing are only available when used with compatible Sanwa Super Vortex ESCs.

Key Features

• 2.4 GHz FHSS5 spread spectrum technology
• 4-channel receiver
• Waterproof design
• Plug-in Bind function
• Short coaxial antenna
• Signal Strength Indicator (Indicator Function) support
• SUR (Ultra Response) mode compatible
• SXR (Extreme Response) mode compatible
• Telemetry compatible
• SSL (Sanwa Synchronised Link) compatible
• Ultra-compact and lightweight construction

Specifications

• Frequency: 2.4 GHz FHSS5
• Channels: 4
• Operating voltage: 3.7–7.4 V
• Dimensions: 26.0 × 23.2 × 14.0 mm (antenna not included)
• Weight: 6.2 g
• Waterproof: Yes

Compatible Transmitters

Compatible with Sanwa FHSS5 transmitters, including:

• Sanwa M17
• Sanwa MT-5

Why Choose the Sanwa RX-493i?

The RX-493i is an excellent choice for racers looking for the fastest possible response and maximum reliability. Its compact size, waterproof construction, SUR and SXR high-speed response modes, telemetry support and the new Signal Strength Indicator function make it an ideal receiver for demanding RC racing applications. Combined with compatible Sanwa transmitters and electronics, it delivers the precision and confidence required for competitive performance.
