Description

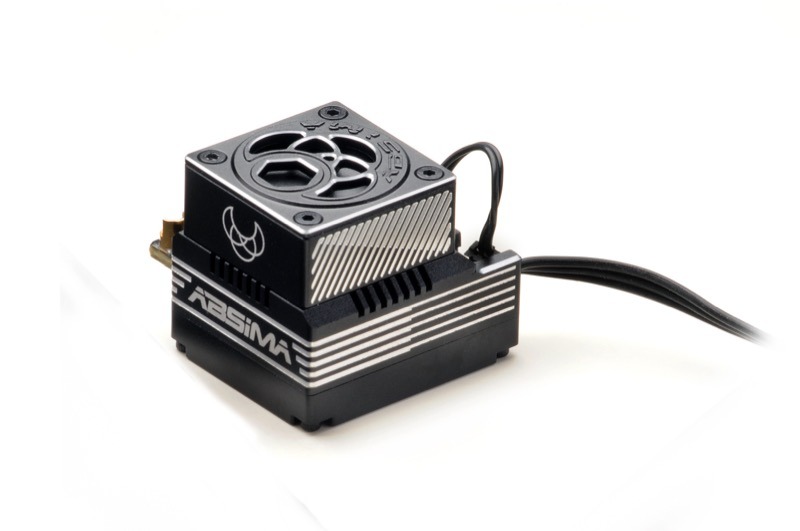

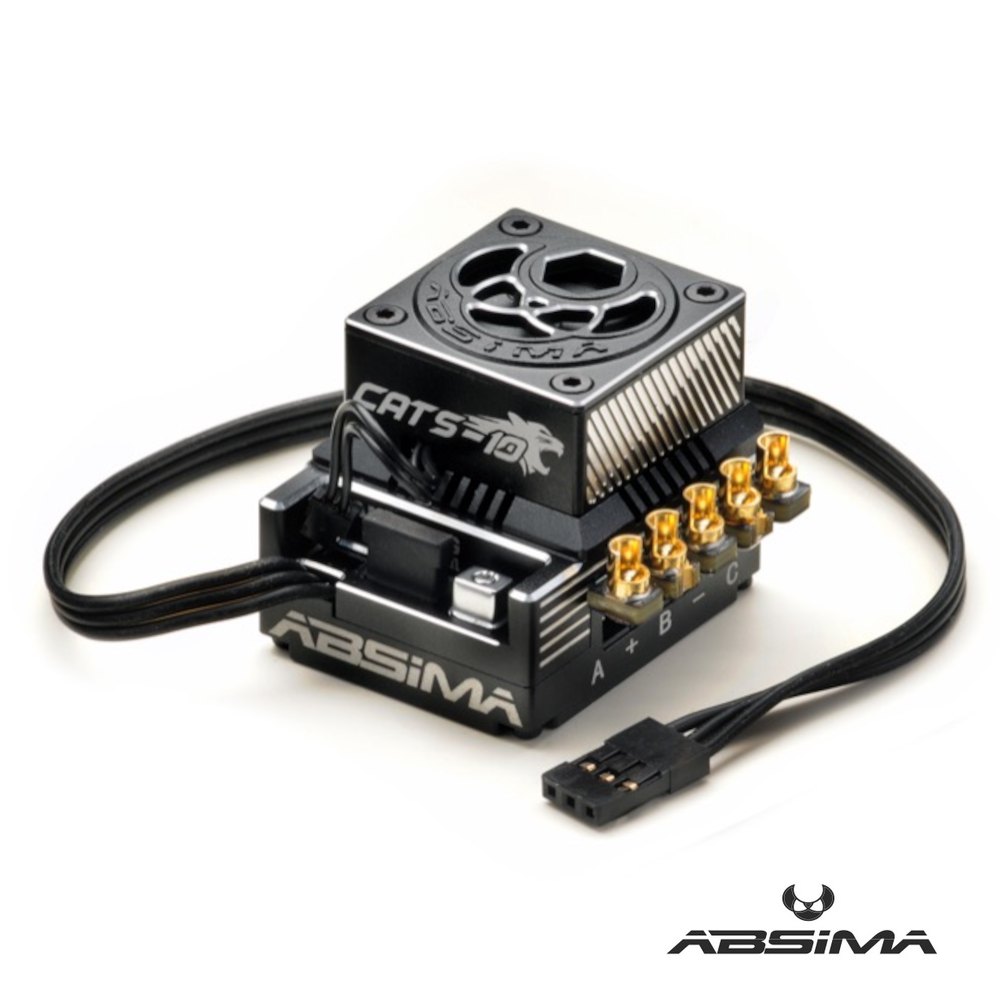

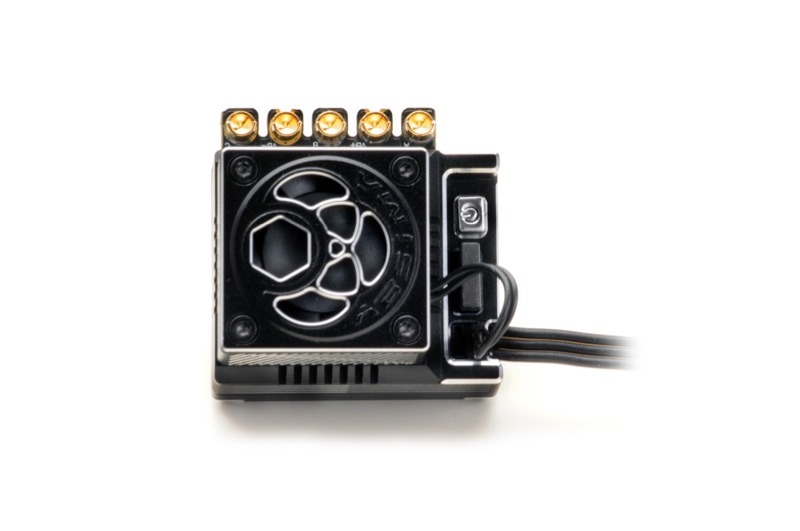

ABSIMA 1:10 Brushless Competition ESC "CATS-10" 160A

Product Code: 2110100

CATS-10

Unleash Ultimate Performance

• The CATS-10 ESC delivers high performance and reliable current transmission, ensuring your RC Car run smoothly and efficiently. This ESC features an advanced cooling system and a variety of functions, combining smart technology with user-friendly operation. Pair it with an Absima motor and battery for the best performance!

Product Core Tech:

• Super Large 48-degree Boost & Turbo Timing
  • Increased power output and optimized motot efficienncy
• Over 33 Adjustable Parameters
  • Supports various power and drive modes
• 1/10 High-End Racing ESC

More Product features:

• Built-in Super Switching Mode ESC
  • Support of 6V/7.4V adjustable BEC to adapt to various high power BEC
• Built-in Professional Reversing Shutdown
  • Only enabled in forward with brake and forward and reverse with brake modes
• Multiple Protection Functions
  • Low voltage protection, ESC and motor overheat protection

SPECIFICATION:

• Scale: 1/10
• Mode: Sensor/Sensorless
• Cont. Current: 160A
• Peak Current: 1100A
• Battery: 2S LiPo
• BEC Output: 6/7.4V
• BEC Output Current: 8A Cont./12A Peak
• Firmware Upgrade: Supported
• Size: 37.9x31.4x30mm
• Weight: 55g

Basic Information:

Compatibility

• Motor: 1/10th TC 4.5T ; 1/10th Offroad 5.5T
• 1/10 Car Type: TC; Buggy; Truggy; Etc

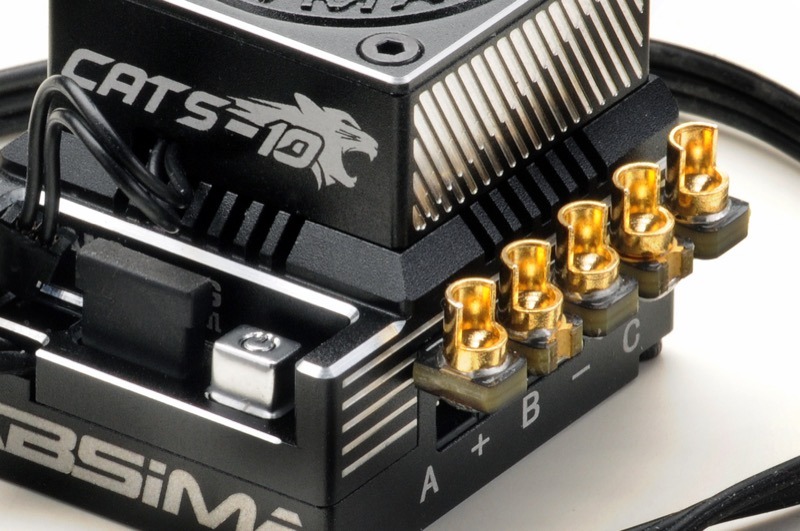

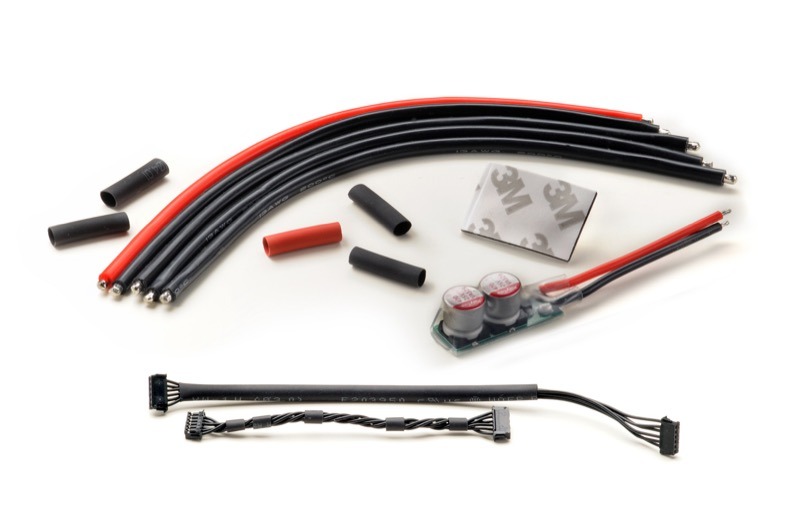

Wiring & Cooling:

• Output Wires
• Black 13AWG 180mm
• Input Wires
• Red 13AWG 180mm
• Black 13AWG 180mm

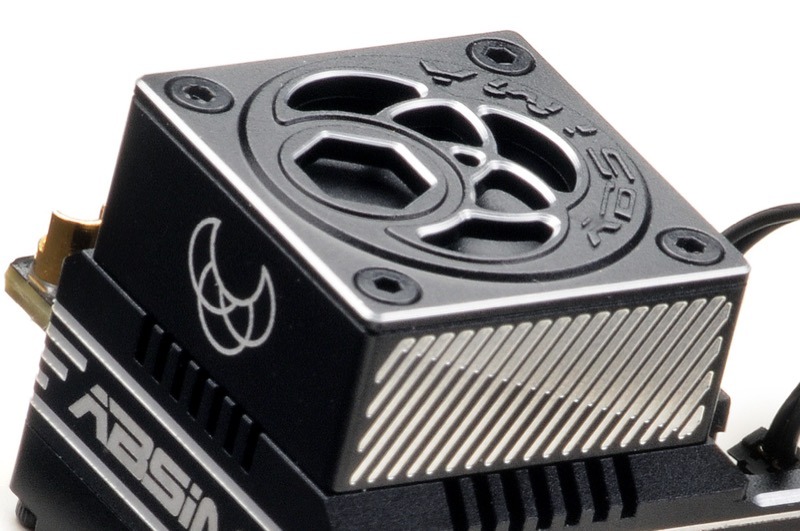

Cooling Fan:

• 25x25x10mm, 5V…8.4V BEC

ESC Programming Box Options:

• CATS Programmin Box Compatible
