Absima BL Motor 1:10 “Revenge CTM V3” 6,5T

Toote kirjeldus

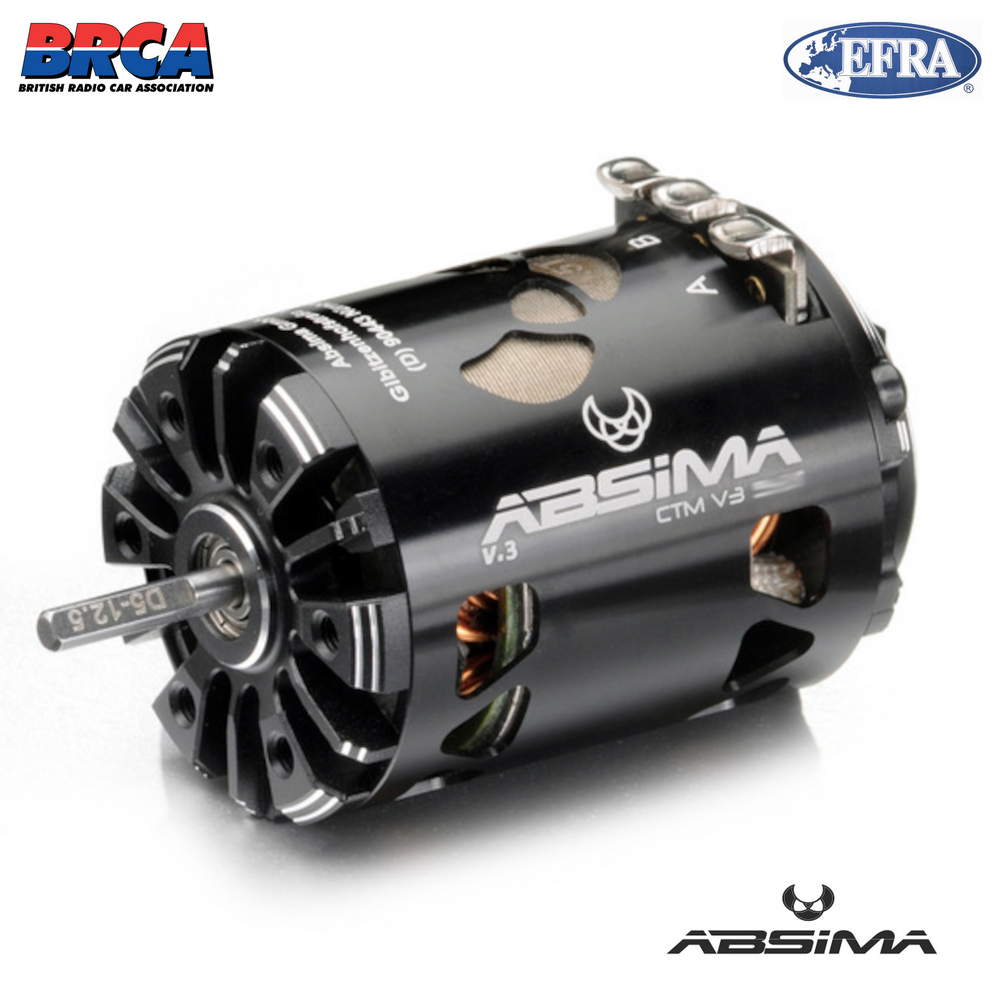

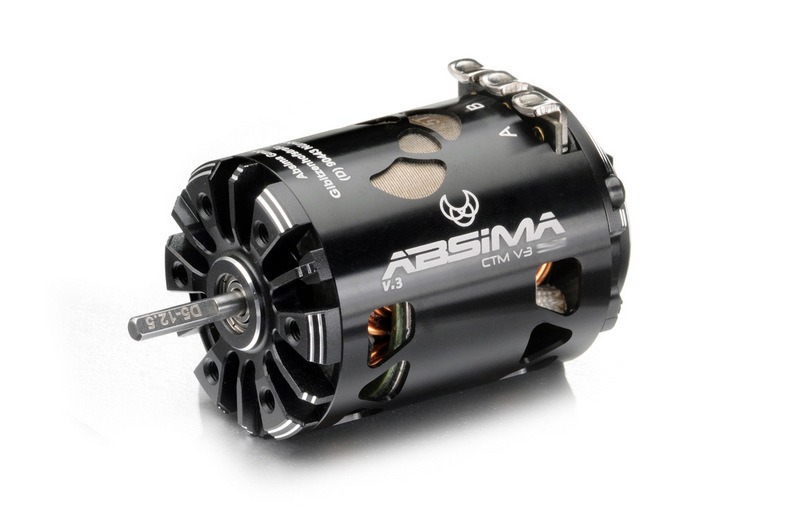

Absima BL Motor 1:10 "Revenge CTM V3" 6,5T

Product Code: 2130055

NEW DESIGN  -   LESS WEIGHT  -   OUTSTANDING POWER!

• For nearly 1 year our team has been working to create the new REVENGE CTM V3 competition brushless motors. Outside, we changed the shell design to reduce weight and for a maximize cooling and a outstanding heat dissipation.
• Inside, the motors are featuring a new unique high-torque stator to create maximum power output and RPM. Of course all motors are sensored powered (including sensor cable) with adjustable timing and come with stainless steel ball bearings.

FEATURES:

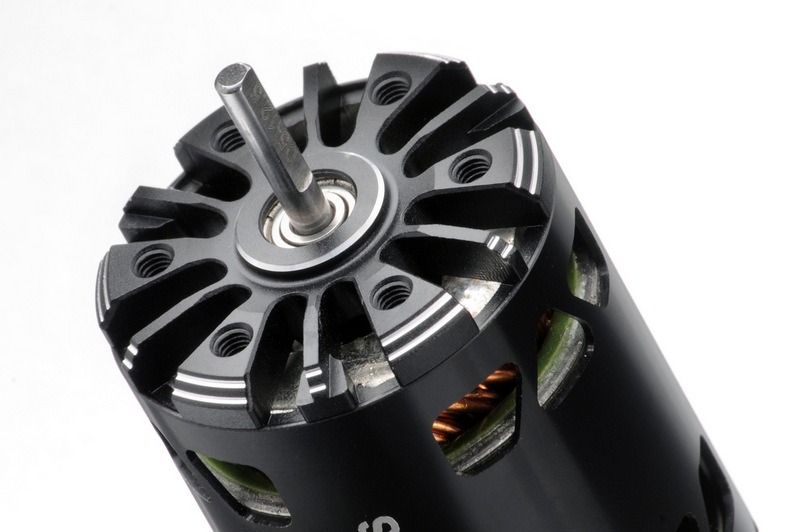

• CNC-machined lightweight can
• High-torque stator
• High strength, balanced rotor
• Optimized air cooling
• Stainless steel ball bearings

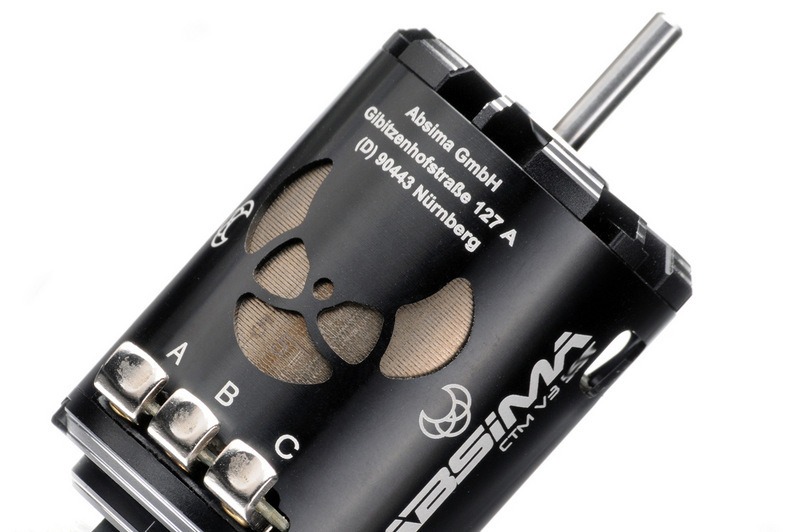

• Silver-plated solder tabs

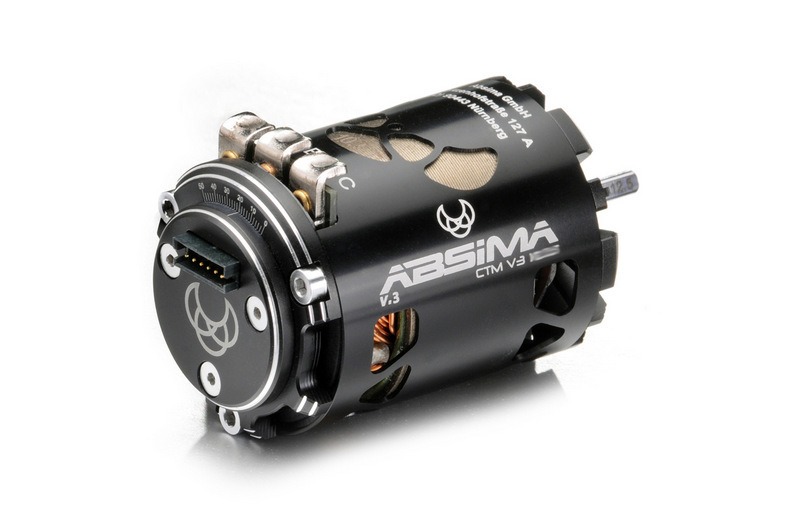

• Adjustable timing

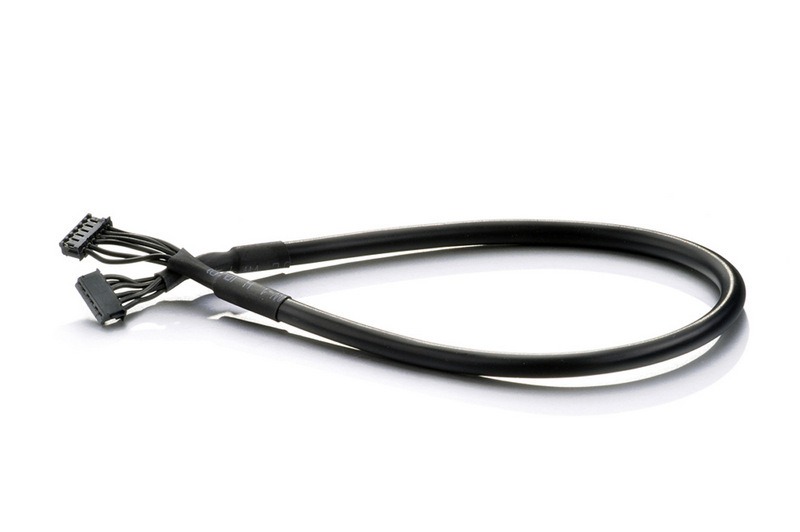

• Sensored (cable included)
• 2-Pole
• Developed for maximal performance
• ROAR aproval (pending)

TECH SPECS:

• Turns: 6.5T
• Turns/volt: 5300KV
• Power: 510W
• Current A: 62A
• Efficiency: 93%
• Voltage/Cells: 1-3S LiPo
• Ø drive shaft: 3.175 mm
• Length drive shaft: 15.2 mm
• Ø w/o solder tabs: 35,8 mm
• Length of motor can: 51.8 mm
• Weight: 165 gr

HOMOLOGATION:
