Description

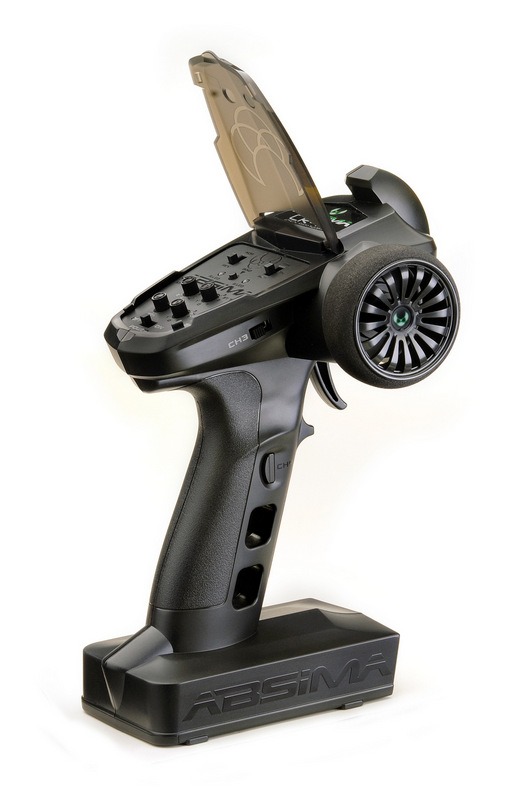

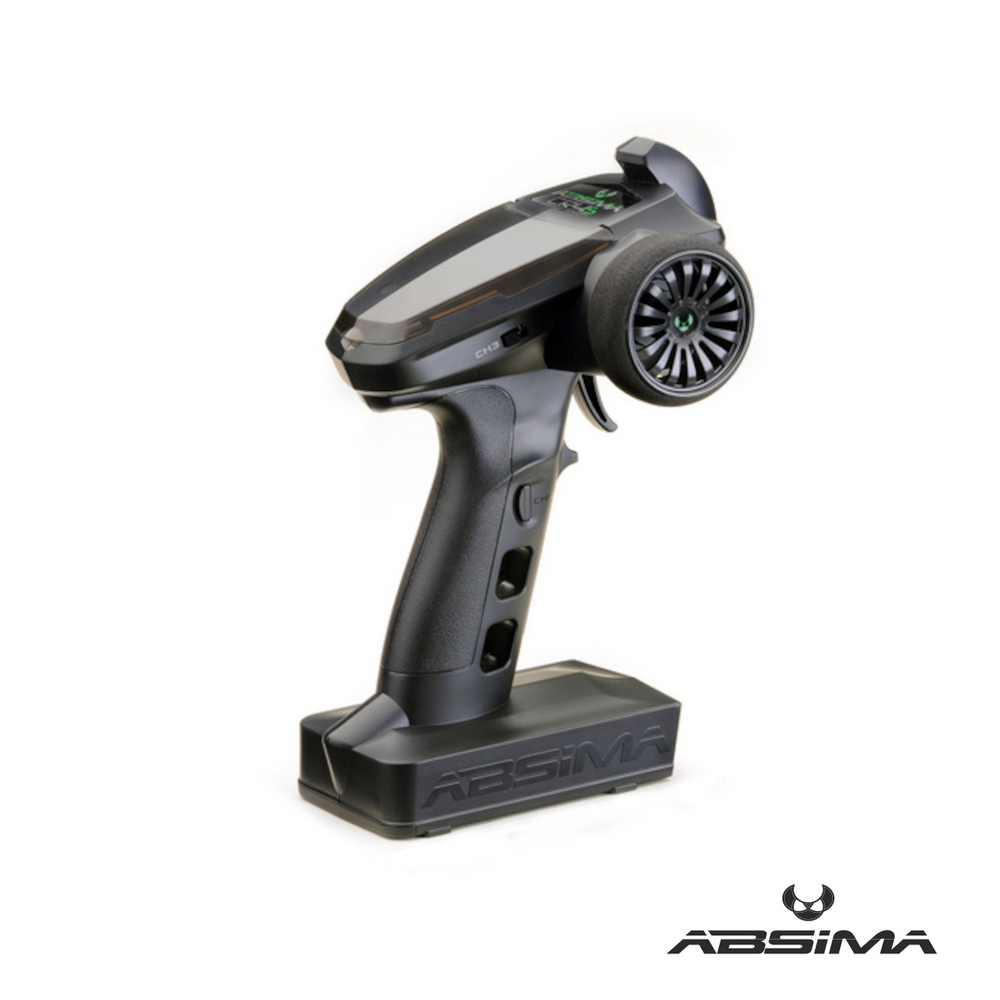

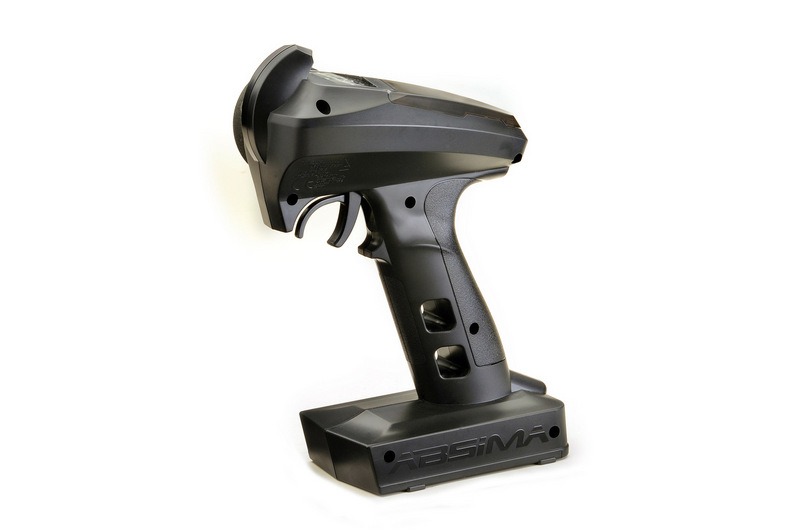

Absima 4-Channel Radio "CR4S-V2" 2.4GHz incl. Receiver

• ATTENTION: V2 version with new receivers (2020018 & 2020019) !!!
• The "CR4S-V2" is a 4-channel remote control including receiver, which uses the latest frequency hopping technology from ABSIMA.

HIGHLIGHTS:

• Lightweight and compact design, as well as comfortable and ergonomic shape. In addition, the remote control has a "beginner mode" and is therefore also suitable for pilots with less experience and also children.
• The included receiver has a very compact design with a size of 30.2*18.0*13.0mm and fits in almost every receiver box.

FEATURES:

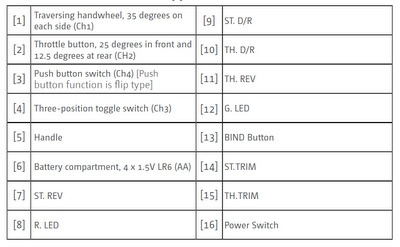

• Description of the channels (the transmitter has 4 channels which are assigned as follows):
  • CH1: Steering wheel
  • CH2: Throttle lever (Trigger)

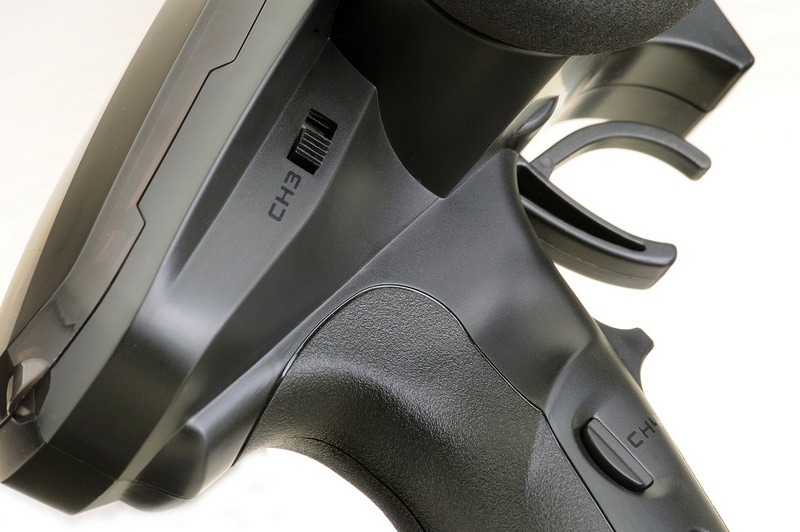

  • CH3: 3-position toggle switch

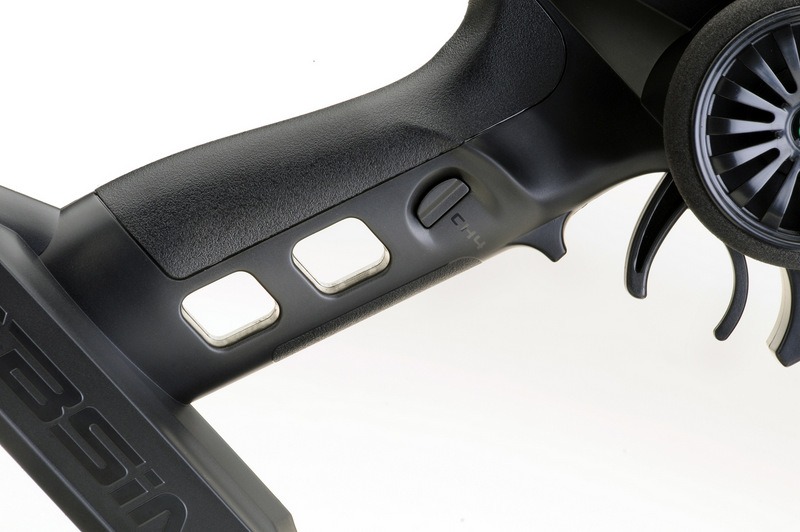

  • CH4: Push button

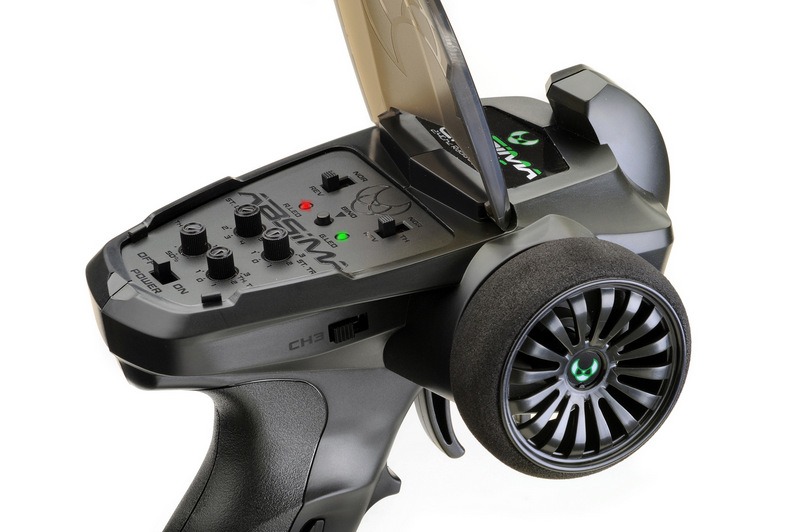

• Reverse function (REV): This function can be used to set the direction of rotation of the steering servo/motor.
• Trimming (TRIM): Adjustment of the straight run and throttle neutral position.
• Dual Rate function (D/R): The steering angle and also the motor rotation power can be increased or reduced by operating this rotary knobs.
• Failsafe function: This function determines what the receiver should pass on if the signal to the transmitter is lost (e.g. emergency braking).
• Beginner modus: This function is intended for newcomers. In this mode the motor power is automatically reduced to 50%.

SPECIFIKATION:

Radio CR4S-V2:

• Channels: 4
• Protocol: 2.4GHz
• Distance: >150m
• Battery (not included): 4*AAA 1.5 - 6V DC
• Low V Warning: <4.2V (only NiMH)
• Using LiPo TX battery possible: Yes (only LiPos with built-in low V protection)
• Charging interface: No
• Antenna type: Single antenne
• Temperatur range: -10°C - +60°C
• Dimension (L/W/H): 150*100*210 mm
• Weight: ca. 130 g

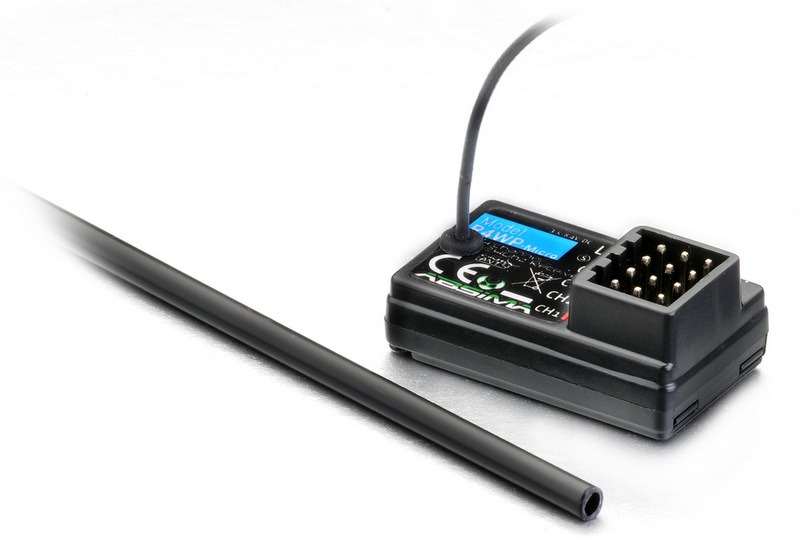

Receiver R4WP-V2 Micro (2020019):

• Channels: 4
• Antenna type: external single antenna
• Waterproof: Yes
• Power: 3.5-8.4V
• Failsafe: Yes (in connection with radio)
• Temperatur range: -10°C - +60°C
• Weight: 5 g
• Size: 30.2*18.0*13.0 mm

Scope Of Delivery:

• 1 x 4-Channel radio “CR4S-V2”
• 1 x 4-Channel receiver
• 1 x Antenna tube
• 1 x Manual (DE/ENG/FR)

OPTIONAL AVAILABLE:

• 2020018 - Receiver R4WP-V2 with built-in antenna
• 4140016 - TX LiPo Battery 2S/7.4V 1200mAh with LiPo Protect
