136,90 €
Brushless
Sensorless
100A
3S LiPo (11.1V) or 4S LiPo (14.8V)
BEC 6V
150g
Ligikaudne tarneaeg 15 päeva (järeltellimisel)
Your orders are shipped seamlessly between countries.
You have the right to return your orders within 30 days.
Your payments are secure with our private security network.

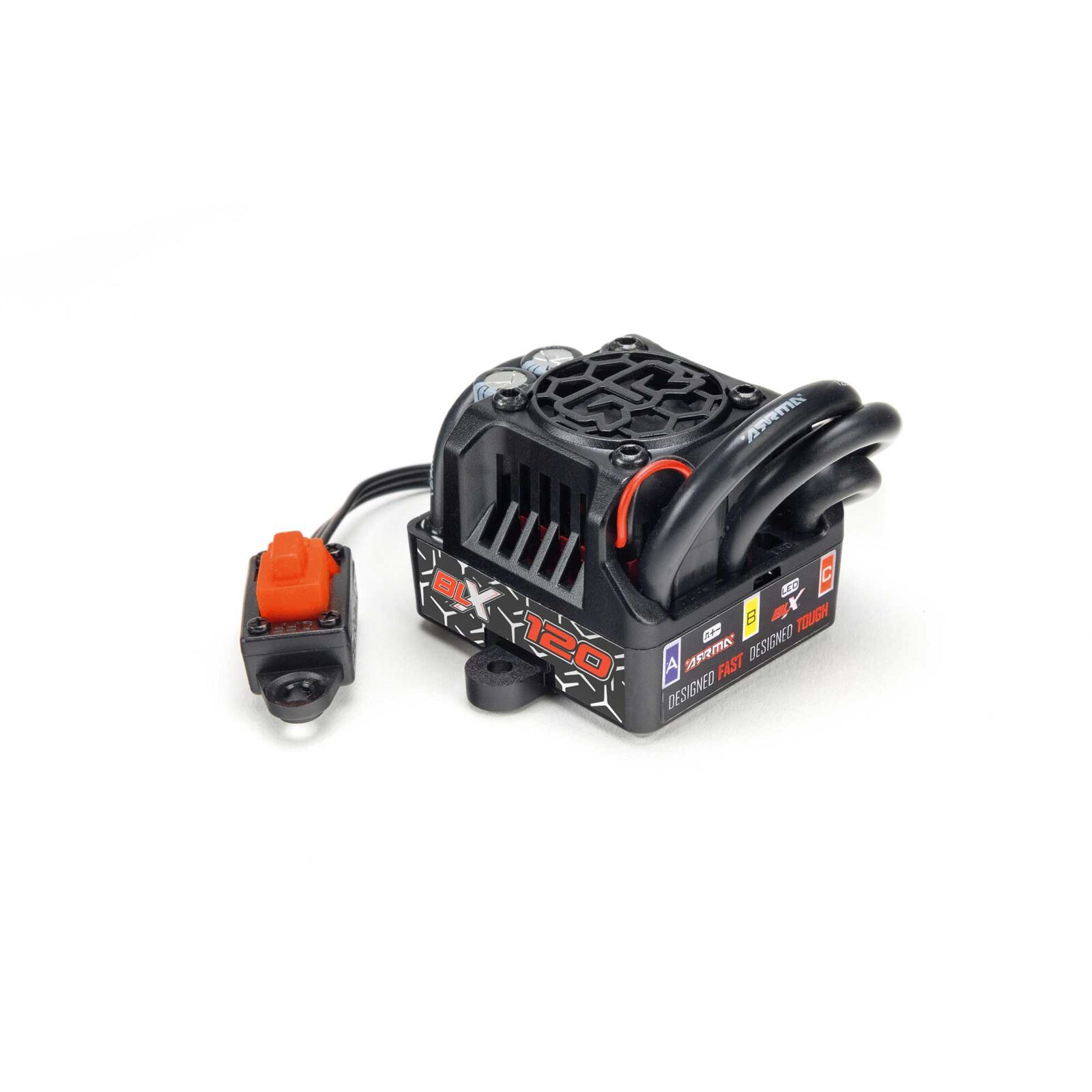

The BLX120 120A waterproof ESC provides consistent power control and is 4S LiPo ready.
1 x BLX120 Brushless 4S ESC
1 x Loop Connector
Fitted with super-reliable EC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX120 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.
The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.
SPECIFICATION
| Battery usage | 3S LiPo (11.1V) or 4S LiPo (14.8V) |
| Low Voltage Cut-Off (LVC) | 3.4V per cell |
| Thermal Protection Temperature | 125°C / 257°F |
| Over-Voltage Protection | Over 17.2V |
| BEC Voltage | 6V |
| BEC Current | 3A |
| ESC Length | 43mm / 1.69″ |
| ESC Height | 34mm / 1.34″ |
| ESC Width | 54.5mm / 2.15″ (Including hold-down tabs) |
| ESC Weight | 150g / 5.3 oz |
| Receiver Wire Length | 170mm / 6.70″ |
| Battery Wire Length | 225mm / 8.86″ |
| Motor Wire Length (Including Connector) | 200mm / 7.87″ |
| Switch Length | 21mm / 0.83″ |
| Switch Width | 13.3mm / 0.52″ |
| Switch Height | 16mm / 0.63″ |
| Motor Bullet Connector Size | 4mm / 0.16″ |
| Wire Specifications | 12AWG |
| ESC Battery Connector Type | 2xEC5 |
| Bränd |
|---|
