Hobbywing XeRun 8.5T V10 G3 Harjadeta Mootor

Toote kirjeldus

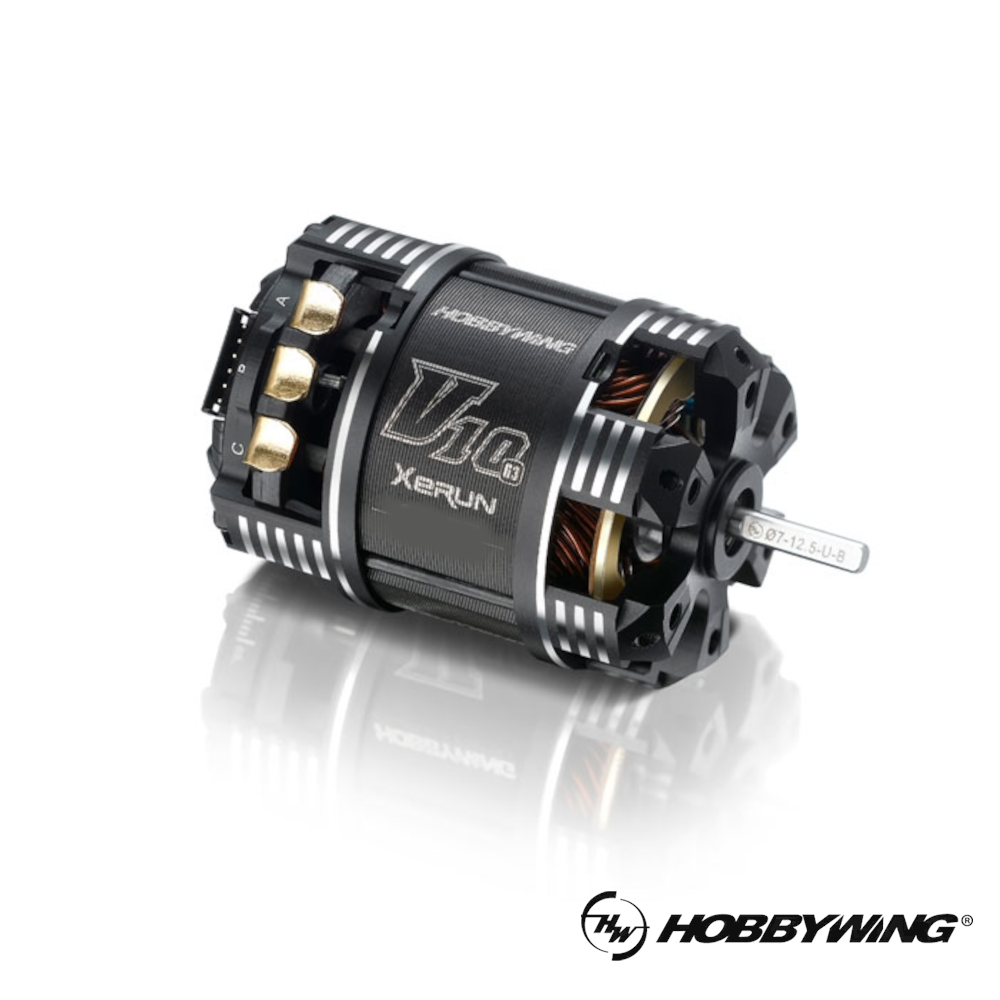

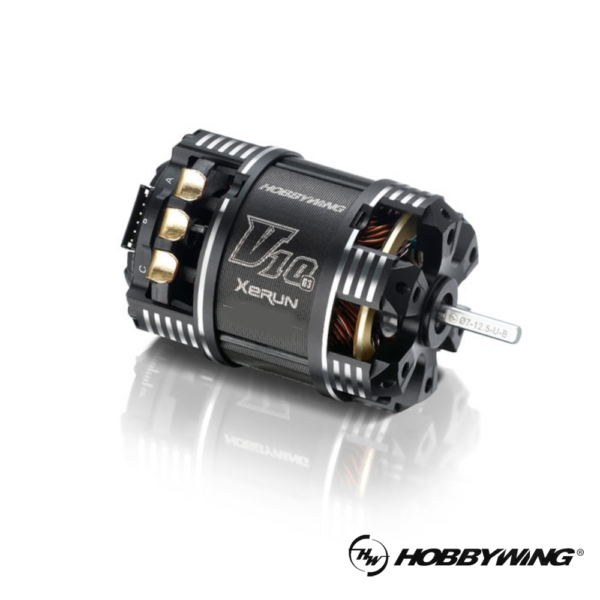

Hobbywing XeRun V10 G3-8.5T Sensoriga Harjadeta Mootor 1/10 skaalas võistlusmudelitele #30401111

RPM Significantly Improved (for Stock Spec)

• The G3 Stock Spec motor has its torque and KV rating improved by 4% and 16%
  respectively, compared with the V10 G2 Stock Spec motor. The high torque & RPM
  definitely will make this unit a “secret weapon” for the Stock class racing.

First-rate Linearity

• The built-in high precision Hall sensor combined with the high precision
  and balanced rotor will guarantee remarkable linearity of the motor.

Super Lightweight

• The G3 Modified & Stock motors only weigh 161g and 132g
  respectively; the weights are reduced by about 11% & 21%
  when comparing with the V10 G2 motor. With the light weights,
  drivers can easily adjust the balance of their vehicles.

Asymmetric Bearings

• By comparison (with the V10 G2 motor), for improving
  the load-carrying capacity, the size of the front
  bearing of the G3 motor is increased by 26% ; while
  for lower resistance, the size of the rear bearing is
  reduced by 6%. The asymmetric bearings design will
  make the motor running more stable and smooth.

Great Heat Dissipation

• The special shell design which makes the stator core (/laminations) expose to
  the air will maximize cooling, the big holes(*) on the front & rear end plates will
  guarantee outstanding heat dissipation of the motor.
• (*Note: the 5.5T~8.5T motors are mainly adopted by off-road vehicles,
  so the tactory detault end plates for those motors are the ones with small holes.)

Stepless Adjustable Mechanical Timing

• The mechanical timing can be adjusted finely and smoothly; the skid-proof lines
  at the rear end of the motor will guarantee stability of the timing after adjustment.

Re-buildable Structure

• The detachable structure design for regular cleaning & maintenance will
  effectively prolong the service life of the motor and retain its efficiency.

Two Different End Plates

• The end plates with big holes adopted by the 3.5T~5.0T & 10.5T~21.5T motors will
  guarantee excellent heat dissipation of the motor for on-road applications.
  The end plates with small holes used by the 5.5T~8.5T motors will effectively prevent sand
  or dirt from getting inside and damaging the motor for off-road applications.
  Users can purchase and mount the end plates with big or small holes as per actual needs.

High-quality Components

• The use of high-performance stator core (/laminations),
  heat(200℃)-resistant pure copper wire, heat(200℃)-resistant
  rotor with strong structure, international top brand high-precision
  and high strength bearings, and copper solder tabs with super current
  endurance will guarantee excellent performance and great
  durability.

Type:

• Scale: 1/10
• Brushed/Brushless: BL
• Sensored/Sensorless: SD
• Pole Count: 2

Relevant Parameters:

• KV Rating: 3970
• LiPo Cells: 2S
• No-load Current(A): 2.8A
• Max. Power Output(W): 298W
• Amp at the Max. Power Output (A): 84A

Size & Weight:

• O.D.(mm): 35.9
• Length (mm): 51.2
• Shaft Diameter (mm): 3.17
• Shaft Length (mm): 13.3
• Weight (g): 163
• Front Bearing: D9xD4xT4
• Rear Bearing: D8xD3xT4

Other Parameters:

• Stock Rotor: 5-12.5
• Timing: 20-50 Degrees(Adjustable)
• Applications:
  • 1/10^th Drift
  • 2WD Off-road Racing
