Description

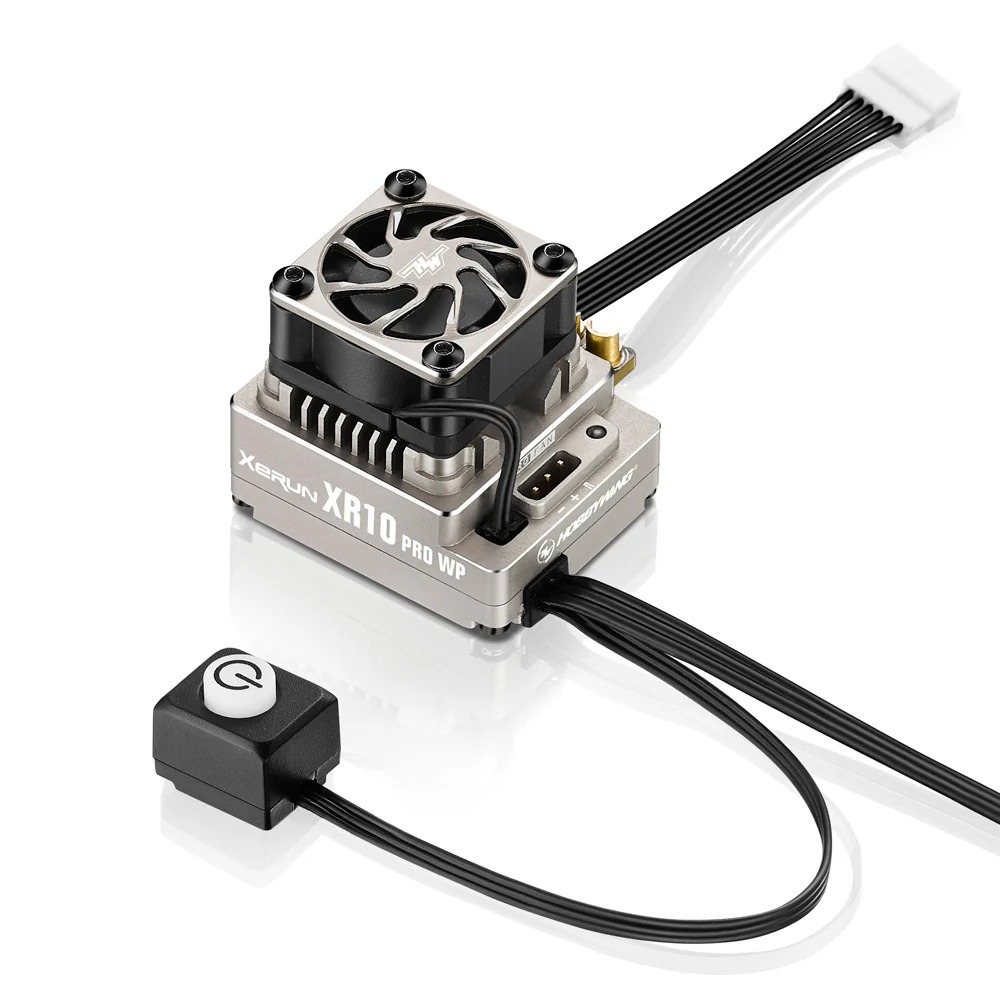

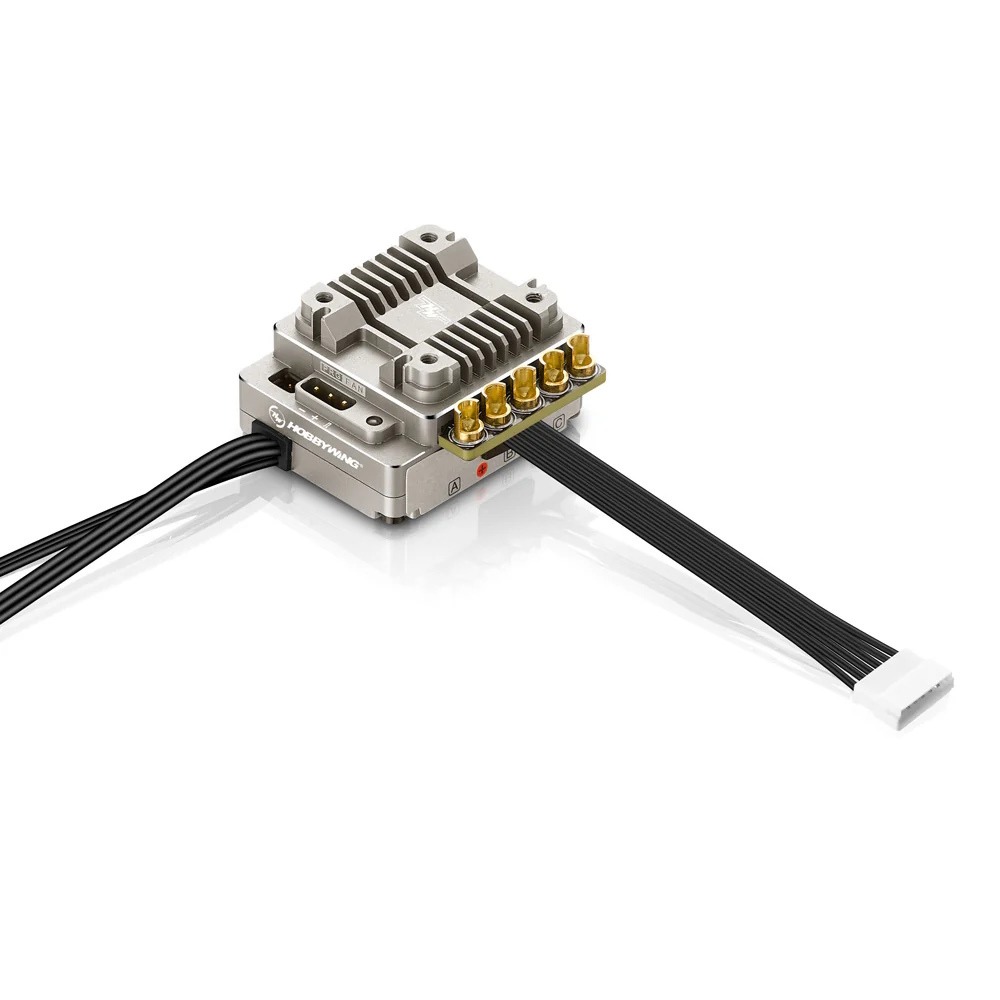

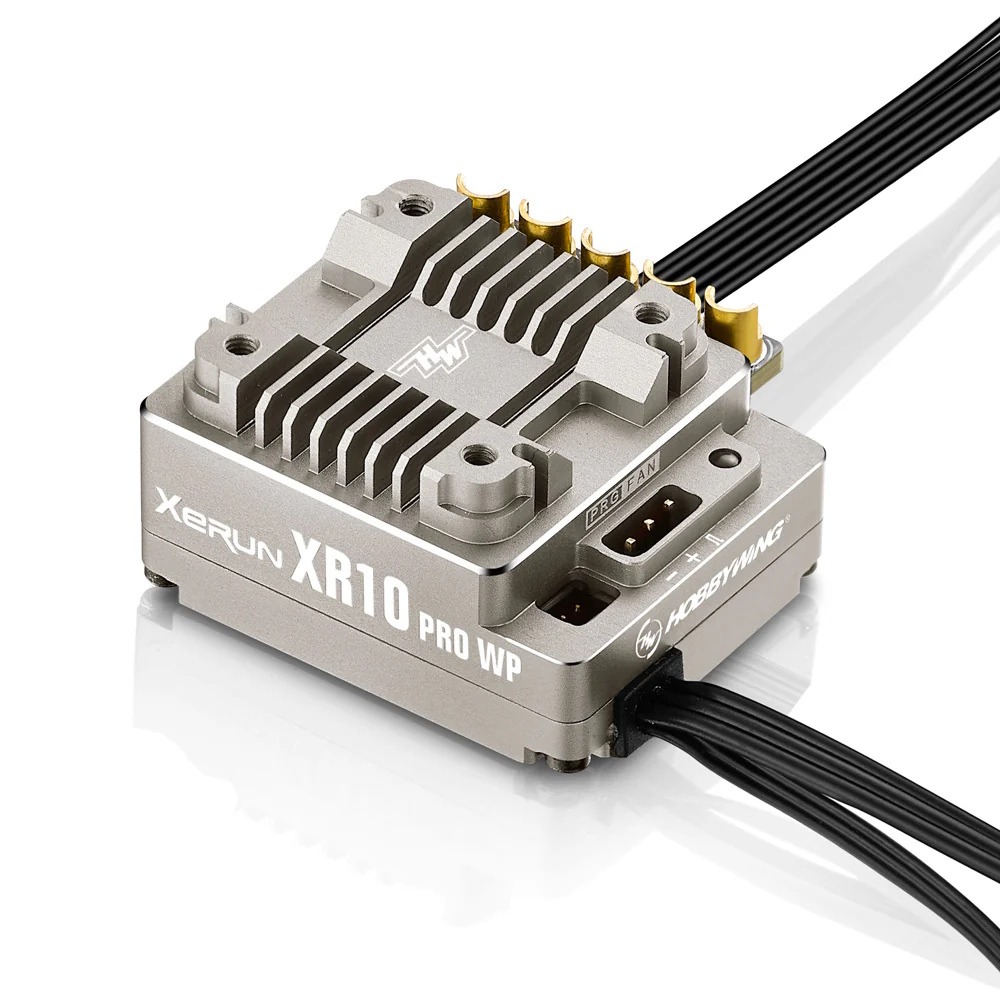

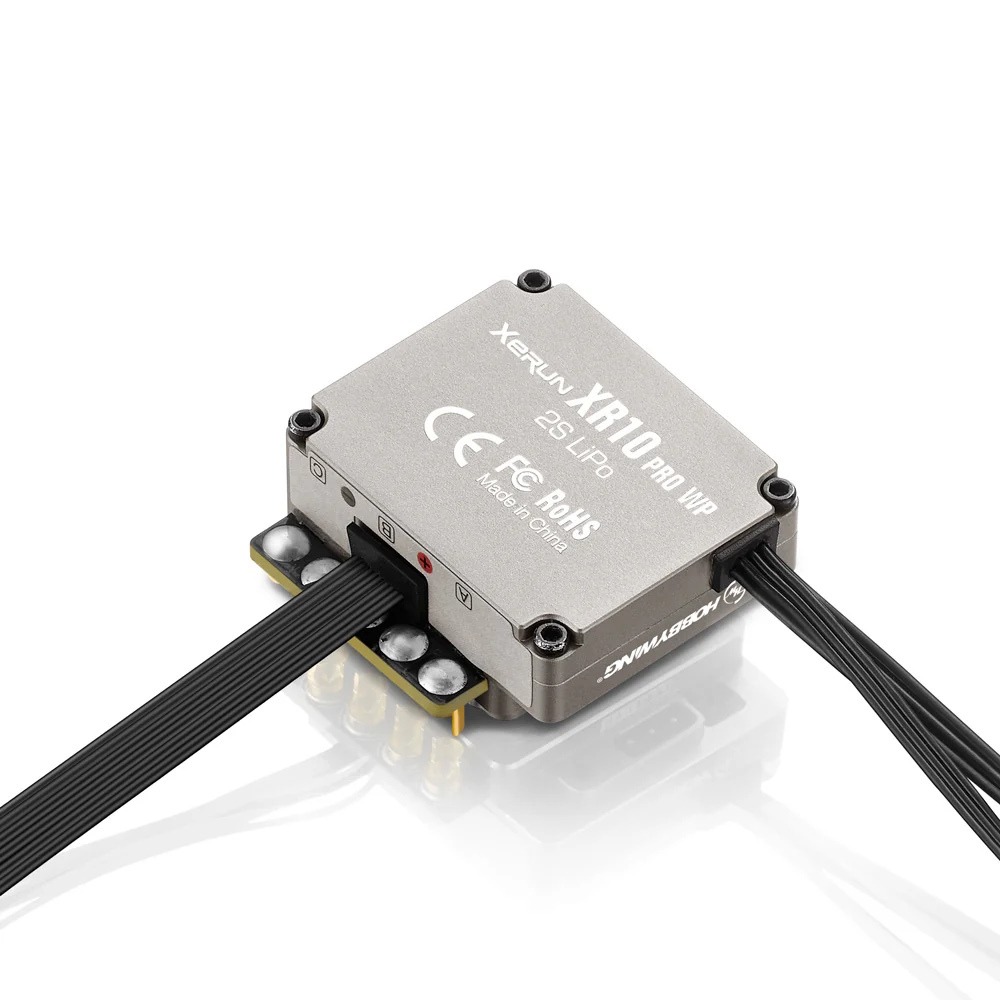

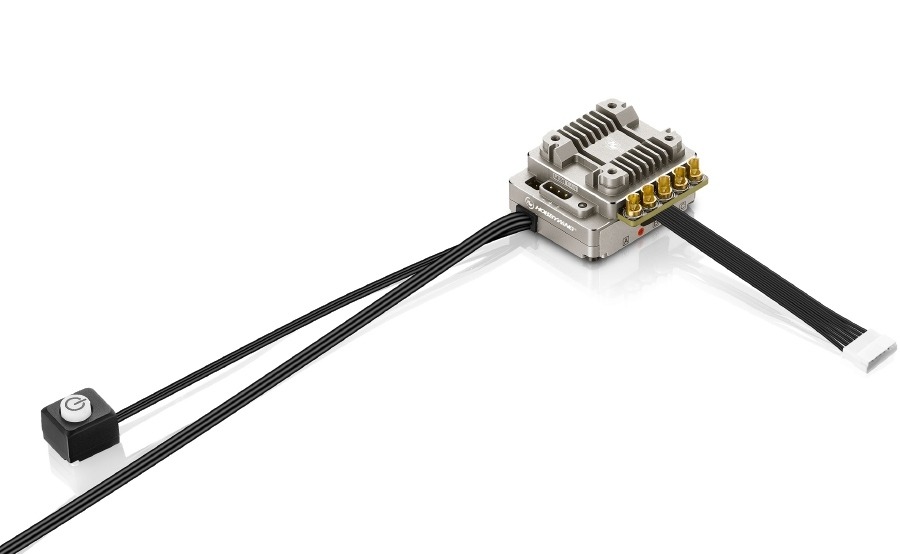

High End Waterproof Electronic Speed Controller

The XR10 Pro WP simply cuts a fine and cool figure in all 1/10 competitions. Equipped with a 32-bit M4 microprocessor and various safety functions, the risk of damage to the vehicle’s equipment is minimized. In addition, the unique frameless fan design generates a high airflow to the side of the fan and thus always keeps the controller pleasantly cool. The copper heat sink on the power board reinforces this effect even more. So the fight against overheating is announced.

Stay cool and enjoy the ride with the new softening function, which, depending on Your personal setting, makes the driving experience perfectly adaptable to the driver. And when things get wilder, drivers of the XR10 Pro WP can benefit from the maximized braking power, which is now an impressive 150%. With this ESC, You can’t really go wrong.

IP67 protection,
all-weather operation
The new XR10 Pro-WP is able to easily handle conditions,
from rain, dust, and sand with a proven waterproof and
dust-proof design that is exceeds IP67 industrial standards.
Note
Do not submerge. Damage may occur when submerged.

Built-in reverse polarity
The ESC has built in reverse voltage protection.
This ensures the ESC will be protected from
accidental cross connection of the battery.

Features:

• 10 selectable profiles for all 1/10 RC car races
• Internal long-life switch as well as the option to connect an external switch
• Variable frequency control of the PWM and braking frequencies
• Softening function for milder or wilder driving control and better driving efficiency
• Various protective functions against
• Polarity reversal
• Overheating
• Undervoltage shutdown
• Loss of signal
• Data logging of temperature, speed and much more.
• Firmware upgrades possible

Technical Specifications:

• Type: Brushless, Sensored
• Current (cont./peak) 160A / 1200A
• Input Voltage: 2S Lipo / 4-6 cells NiMH
• BEC: 5V – 7.4V @ 5A (in 0.1V steps)
• Motor Types: 3650 Brushless Motors with 2S LiPo/6S NiMH:

ESC Programing via
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Supported
Program Port: Separate Program Port

Applications
Motors Sensored brushless motors / Sensorless brushless motors
Vehicles: 1/10th Touring car & Buggy racing, 1/10th Drift,F1,Rally
KV Rating/T Count: Touring Car: ≥4.5T Buggy: ≥5.5T
