Savöx SB-2262SG HV BL Digital servo (0.065s/32kg/8.4V)

Tootekood: SB2262SG Bränd:
  • Bränd:

    Savöx

Mõõt: Low Profile
Nuut: 25T
Pinge: 6.0…8.4V
Mootor: Harjadeta
Hammasrattad: Teras
Korpus: Alumiinium
Pistik: JR universaal

3 laos

130,90

Laos (3)
Delivery within Estonia 2-3 working days, other European countries 10 days.

Description

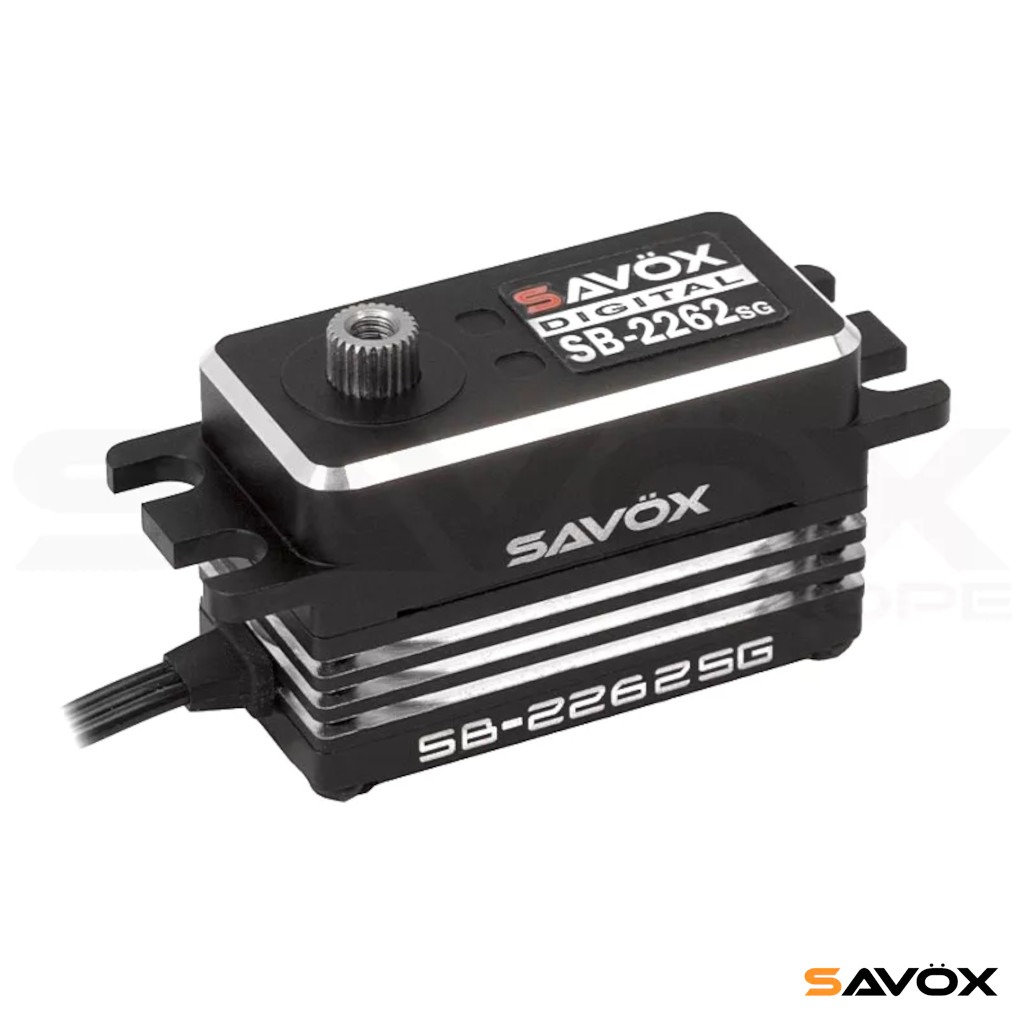

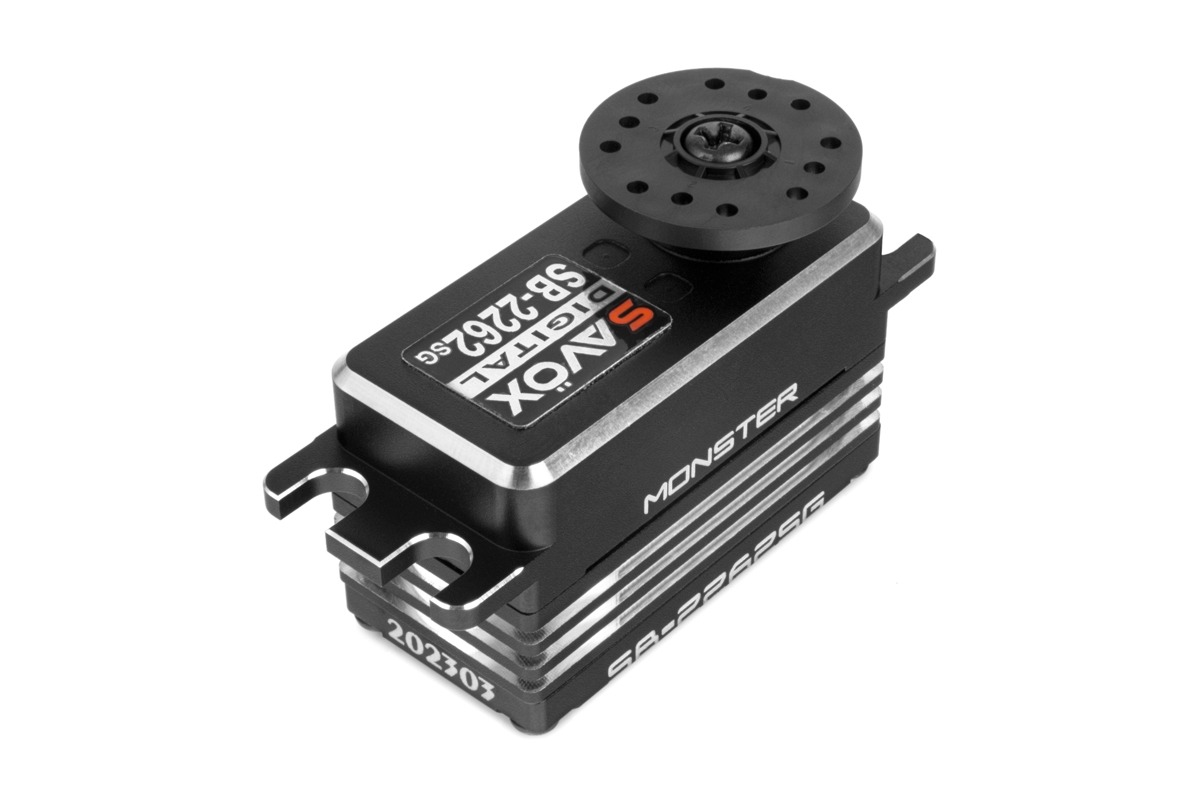

Savöx - Servo - SB-2262SG - Digital - High Voltage - Brushless Motor - Steel Gears

Product code: SB-2262SG

The powerful "Monster" performance series servos from Savox utilize an all aluminum case, and unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

  • Full Aluminum Case
  • 2 Precision Ball Bearings
  • Metal Gears
  • Torque @ 6.0v - 18kg
  • Speed @ 6.0v - 0.10 sec / 60deg

Specifications:

  • Torque @ 7.4v - 25kg
  • Speed @ 7.4v - 0.08 sec / 60deg
  • Torque @ 8.4v - 32kg
  • Speed @ 8.4v - 0.065 sec / 60deg

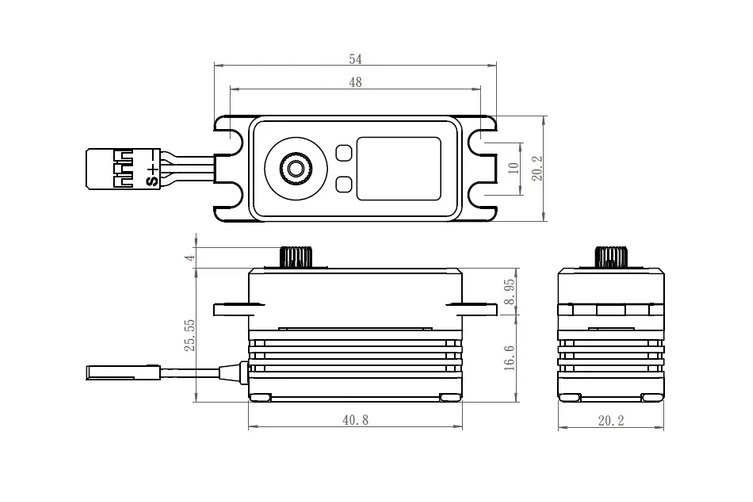

  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.75
  • Weight: 62g

General Info:

  • Item Nr: SB-2262SG
  • Barcode: 4710006993812
  • Brand: Savöx

Servo - Specs:

  • Speed 60°/Sec @ 6.0V: 0,1
  • Speed 60°/Sec @ 7.4V: 0,08
  • Speed 60°/Sec @ 8.4V: 0,07
  • Torque kg/cm @ 6.0V: 18
  • Torque kg/cm @ 7.4V: 25
  • Torque kg/cm @ 8.4V: 32
  • Quiescent Current (mA): 5
  • Rated Current (mA): 220
  • Blocking Current (mA): 6300

Servo - Dimensions:

  • Servo Type: Low Profile Servo
  • Spline Type: 25T Spline
  • Length (mm): 40,8
  • Width (mm): 20,2
  • Height (mm): 25,75
  • Weight (g): 62

Servo - Technology:

  • Technology: Digital HV
  • Operating Voltage (V): 6.0V - 8.4V
  • Servo Motor: Brushless Motor
  • Servo Protection: Water - Dust Resistant
  • Servo Positioning: VR Potentiometer - Direct Drive
  • Servo Gears: Steel Gears
  • Servo Case: Aluminium Case
  • Connector: JR Universal + Black Lead

Servo - SB-2262SG - Digital - High Voltage - Brushless Motor - Steel Gears
