Description

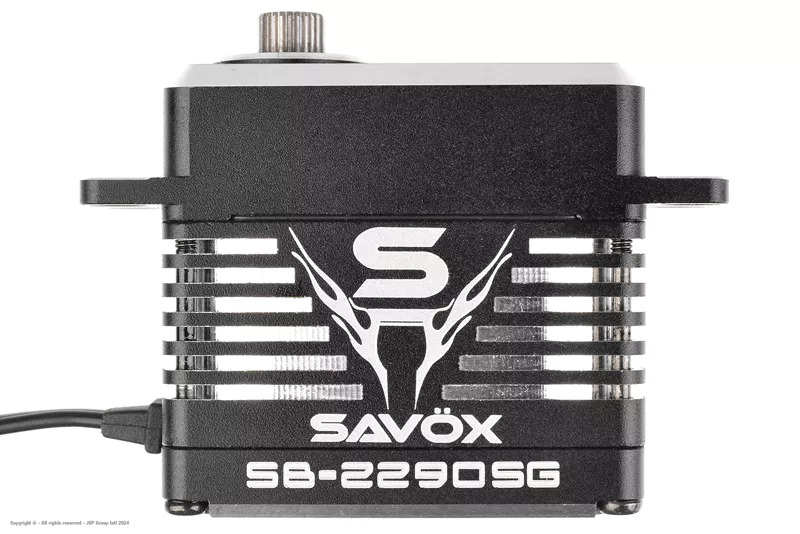

Servo - SB-2290SG - Digital - High Voltage - Brushless Motor - Steel Gear

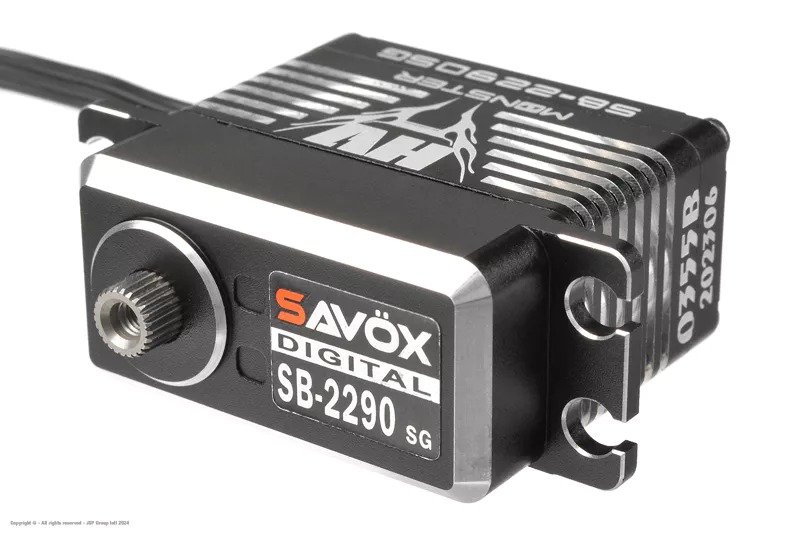

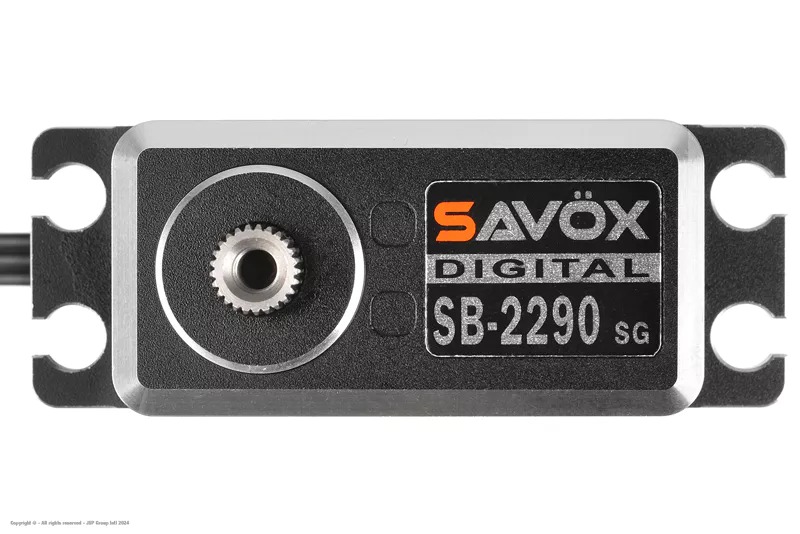

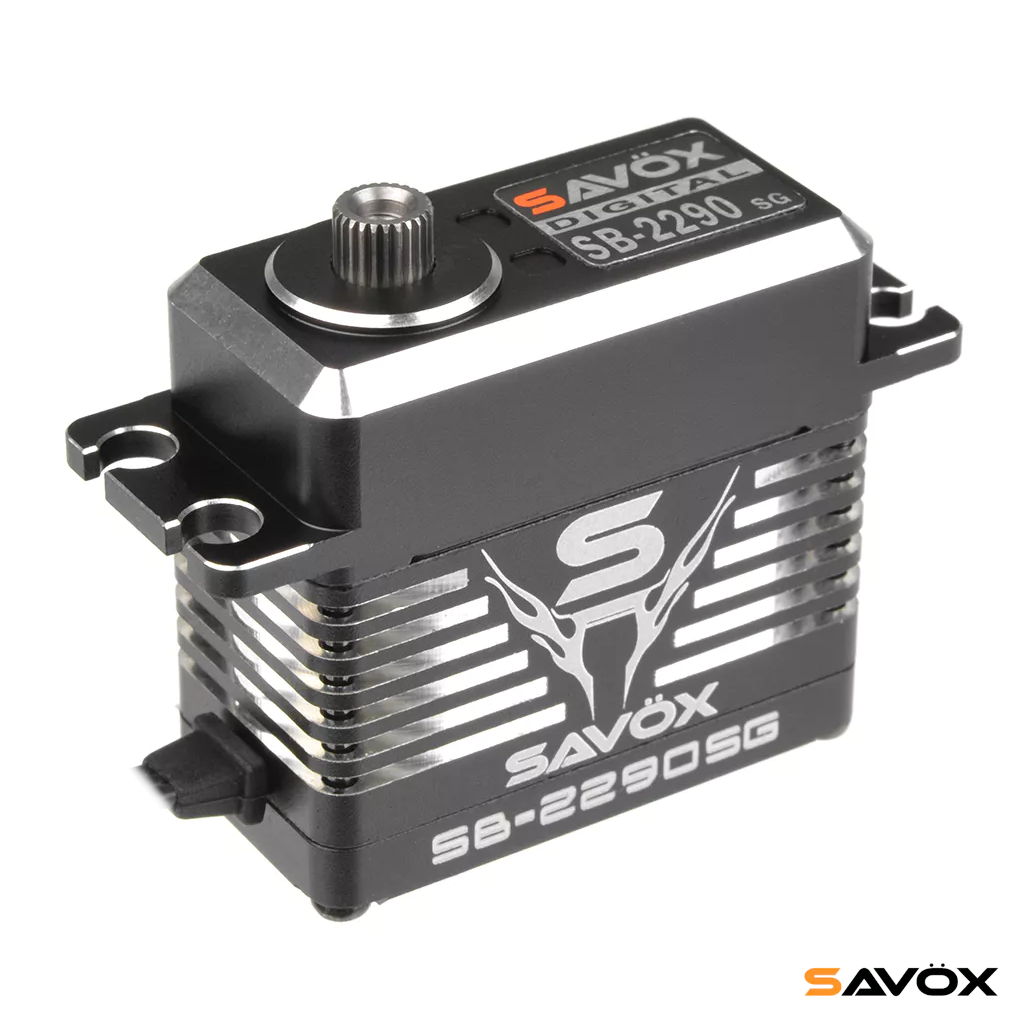

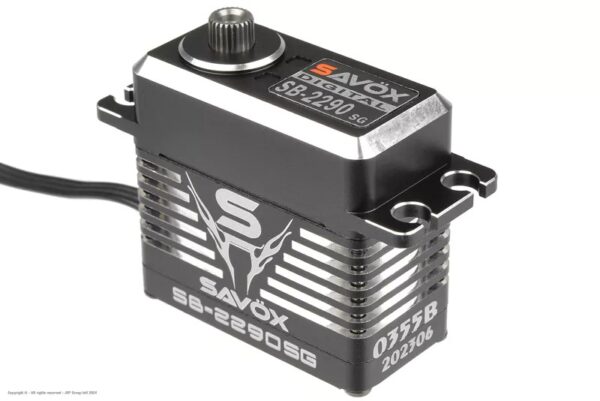

Savöx SB-2290SG

• The powerful "Monster" performance series from Savöx utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears

Specifications:

• Torque @ 6v - 45.0kg-cm
• Torque @ 7.4v - 55.0kg-cm
• Torque @ 8.4v - 70.0kg-cm
• Speed @ 6v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Speed @ 8.4v - 0.11 sec/60 deg
• Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
• Weight: 81g

General Info:

• Item Nr: SB-2290SG
• Brand: Savöx

Servo - Specs:

• Speed 60°/Sec @ 6.0V: 0,16
• Speed 60°/Sec @ 7.4V: 0,13
• Speed 60°/Sec @ 8.4V: 0,11
• Torque kg/cm @ 6.0V: 45
• Torque kg/cm @ 7.4V: 55
• Torque kg/cm @ 8.4V: 70
• Quiescent Current (mA): 5
• Rated Current (mA): 220
• Blocking Current (mA): 10500

Servo - Dimensions:

• Servo Type: Standard Servo
• Spline Type: 25T Spline
• Length (mm): 40,3
• Width (mm): 20,2
• Height (mm): 38,7
• Weight (g): 81

Servo - Technology:

• Technology: Digital HV
• Operating Voltage (V): 6.0V - 8.4V
• Servo Motor: Brushless Motor
• Servo Protection: Water - Dust Resistant
• Servo Positioning: VR Potentiometer - Direct Drive
• Servo Gears: Steel Gears
• Servo Case: Aluminium Case

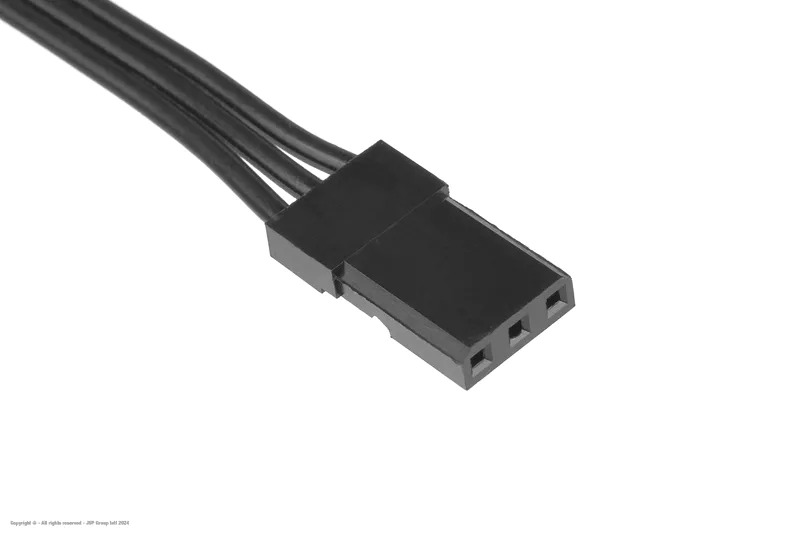

• Connector: JR Universal + Black Lead
