Description

Savöx - Servo - SW-2290SG - Digital - High Voltage - Brushless Motor - Waterproof - Steel Gear

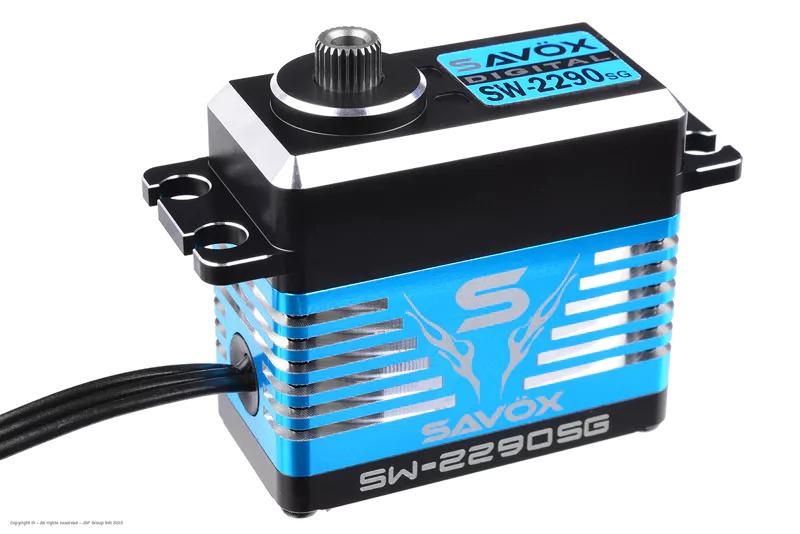

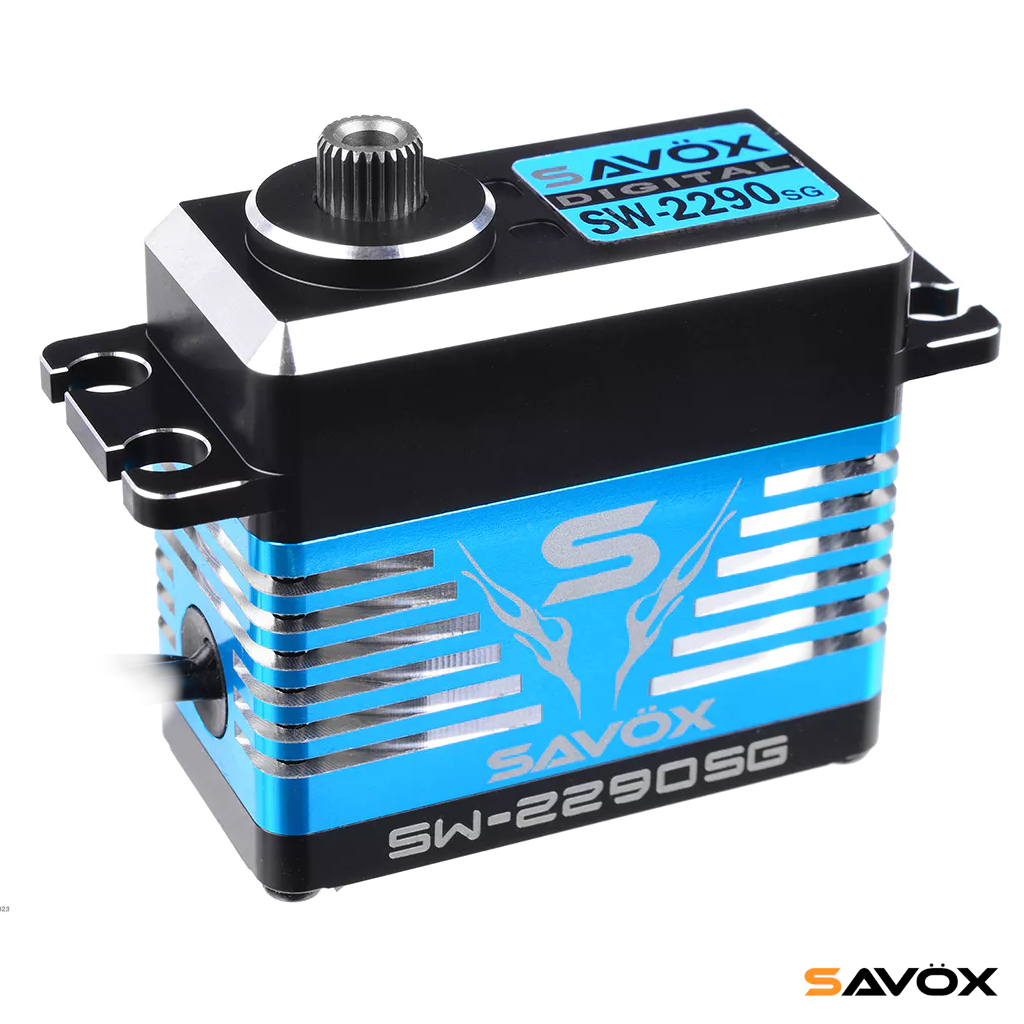

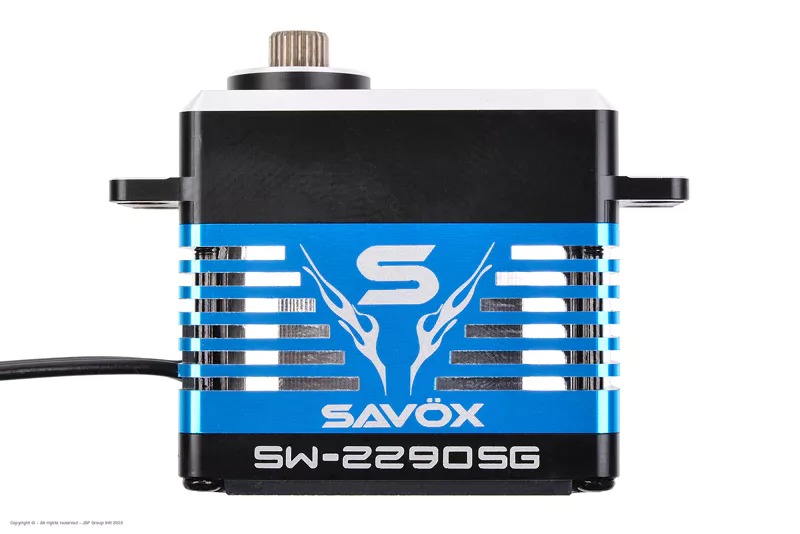

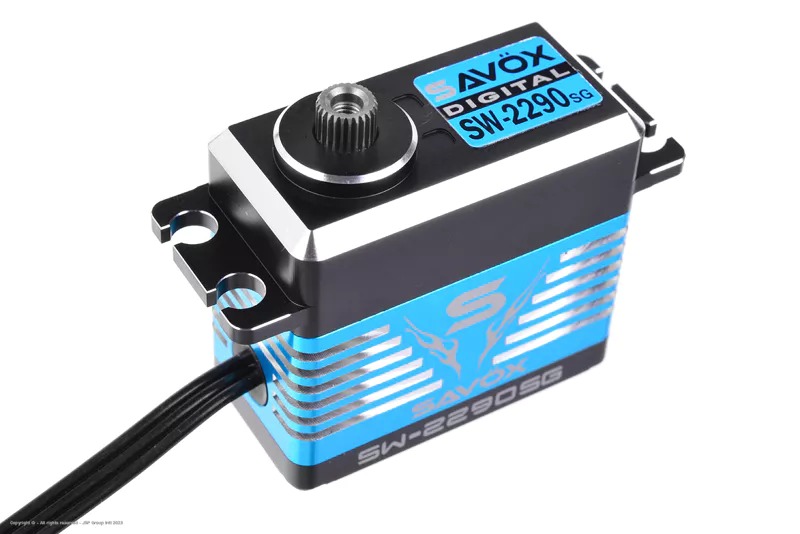

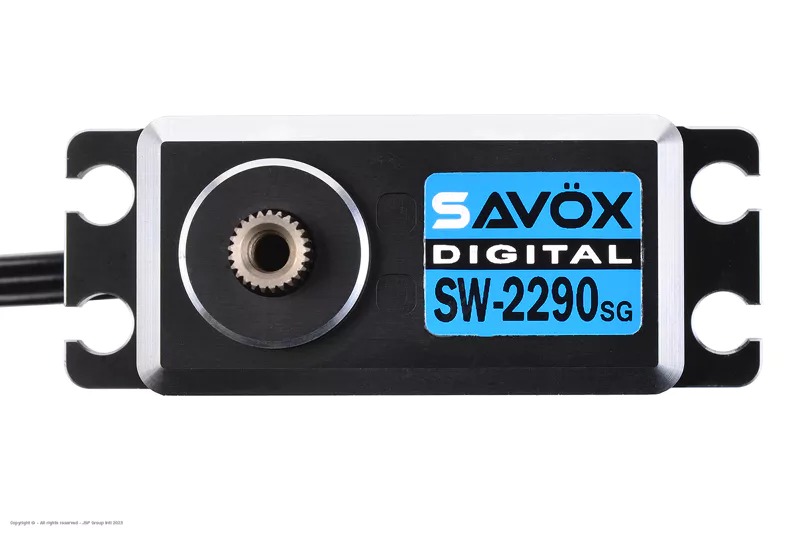

Savöx SW-2290SG

• The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:

• Waterproof (IP67)
• Full Aluminum Case
• 3 Precision Ball Bearings.
• Unique steel gears

Specifications:

• Torque @ 6v - 45.0kg
• Torque @ 7.4v - 55.0kg
• Torque @ 8.4v - 70.0kg
• Speed @ 6v - 0.16 sec/60 deg
• Speed @ 7.4v - 0.13 sec/60 deg
• Speed @ 8.4v - 0.11 sec/60 deg
• Dimensions L x W x H (mm): 41 x 21.0 x 39.9
• Weight: 81g

General Info:

• Item Nr: Savöx SW-2290SG
• Barcode: 4710006993867
• Brand: Savöx

Servo - Specs

• Speed 60°/Sec @ 6.0V: 0,16
• Speed 60°/Sec @ 7.4V: 0,13
• Speed 60°/Sec @ 8.4V: 0,11
• Torque kg/cm @ 6.0V: 45
• Torque kg/cm @ 7.4V: 55
• Torque kg/cm @ 8.4V: 70
• Quiescent Current (mA): 5
• Rated Current (mA): 220
• Blocking Current (mA): 9200

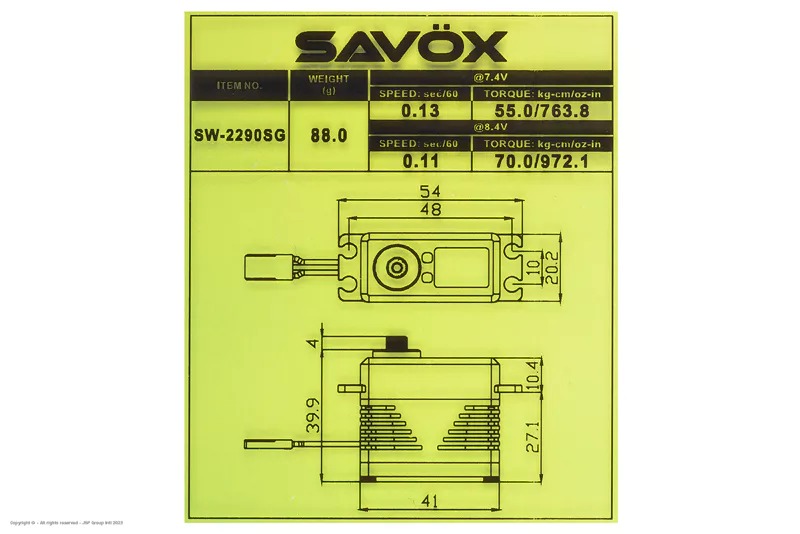

Servo - Dimensions

• Servo Type: Standard Servo
• Spline Type: 25T Spline
• Length (mm): 41
• Width (mm): 21
• Height (mm): 39,9
• Weight (g): 81

Servo - Technology

• Technology: Digital HV
• Operating Voltage (V): 6.0V - 8.4V
• Servo Motor: Brushless Motor
• Servo Protection: Waterproof IP67
• Servo Positioning: VR Potentiometer - Direct Drive
• Servo Gears: Steel Gears
• Servo Case: Aluminium Case
• Connector: JR Universal + Black Lead
