SkyRC D260 Dual Channel Charger

Tootekood: SK-100157 Bränd:
  • Bränd:

    SkyRC

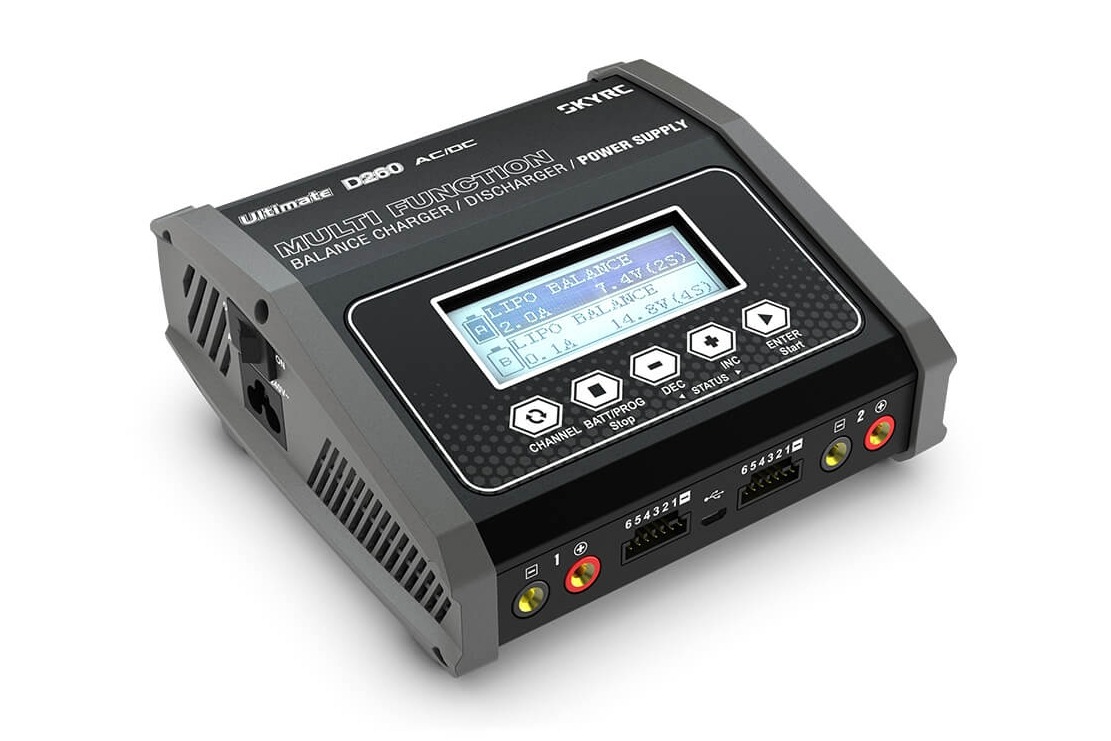

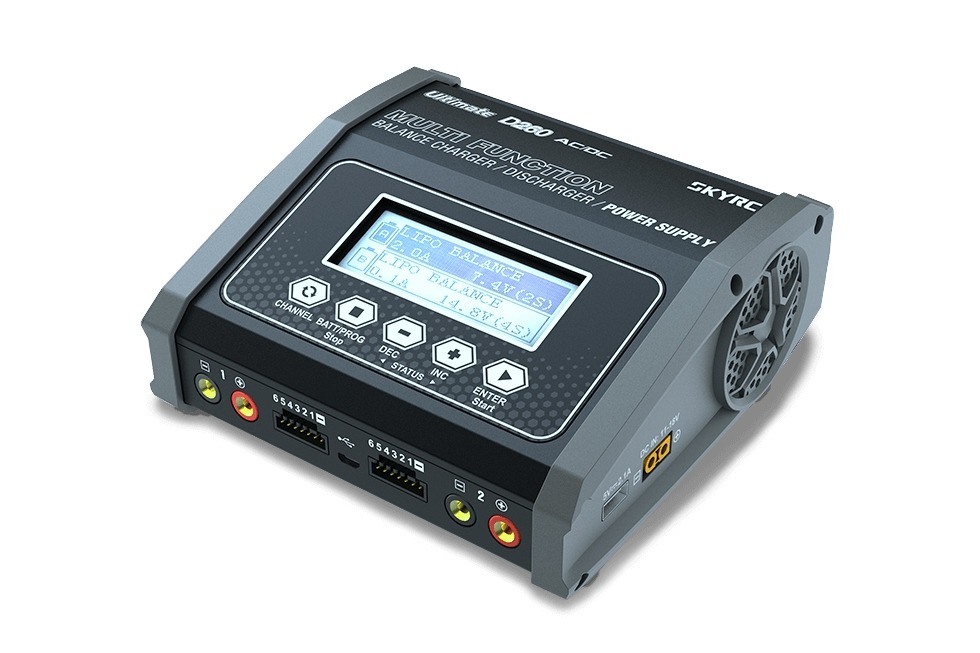

SkyRC D260 is a dual channel AC/DC charger, which features an intuitive interface, and its button design makes it incredibly easy to operate. With two independent circuits and the ability to charge batteries up to 6S at maximum 14A per channel, D260 is a smart choice for RC hobbyists.

1 laos

149,90

Laos (1)
Delivery within Estonia 2-3 working days, other European countries 10 days.

Description

Specifications:

  • DC Input Voltage : 11-18V AC
  • Input Voltage: 100-240V
  • Display Type: 128x64 LCD Display
  • Backlight: Cool White Case
  • Material: Metal & Plastic
  • Controls: Five Buttons Case
  • Size: 160x150x71mm
  • Weight: 896g
  • DC Power Supply Output: 130W Per Channel
  • PC Communications: USB Port for Firmware Upgrade
  • External Port:
    • 2-6S Balance Socket-XH
    • Micro USB Port for Firmware Upgrade
    • Battery Socket
    • AC/DC Input
    • DC Output
    • 5V-2.1A USB Output.
  • Delta Peak Detection for NiMH/NiCd: 3-15mV/cell / Default: 4mV/cell
  • Charge Voltage:
    • NiMH/NiCd: Delta peak detection
    • LiPo: 4.18-4.25V/cell
    • LiIon: 4.08-4.2V/cell
    • LiFe: 3.58-3.7V/cell
    • LiHV: 4.25-4.35V/cell
  • Balance Current: 500mA/cell
  • Reading Voltage Range: 0.1-26.1V
  • Battery Types/Cells:
    • LiPo/LiIon/LiFe/LiHV: 1-6cells
    • NiMH/NiCd: 1-15cells
    • Pb: 2-20V
  • Battery Capacity Range:
    • NiMH/NiCd: 100-50000mAh
    • LiPo/LiIon/LiFe/LiHV: 100-50000mAh
    • Pb: 100-50000mAh
  • Charge Current: (0.1A-14.0A) x2
  • Safety Timer: 1-720minutes / OFF
  • Charge Wattage: 130Wx2
  • Discharge Current: (0.1A-2.0A) x2
  • Discharge Cut-off Voltage:
    • NiMH/NiCd: 0.1-1.1V/cell
    • LiPo: 3.0-3.3V/cell
    • LiIon: 2.9-3.2V/cell
    • LiFe: 2.6-2.9V/cell
    • LiHV: 3.1-3.4V/cell
    • Pb: 1.8-2.0V/cell
  • Discharge Wattage: 10Wx2
  • Balance Cells: 2-6 cells
  • Memory: 10x2 Different Charge/Discharge Profiles
  • Charge Method:
    • CC/CV for Lithium Types and Lead (Pb) Batteries
    • Delta-peak Sensitivity for NiMH/NiCd.

In The Box:

  • SKYRC D260 Charger
  • Charging Cable X 2
  • Power Cord
  • Instruction Manual
