SRT Servo DL3017 (17kg/0.15s/6.0v)

Toote kirjeldus

Peamised omadused:

• Ideaalne 1/10 onroad ja 1/8 offroad hobi mudelite jaoks, samuti sobib ka suurte lennukite ja reaktiivlennukite jaoks
• Uskumatu efektiivsus ja madal energiatarve
• 2 Œºsekundiline surnud tsoon

Tehnilised andmed:

• Type: Digital
• Bearing: Dual
• Motor Type: DC

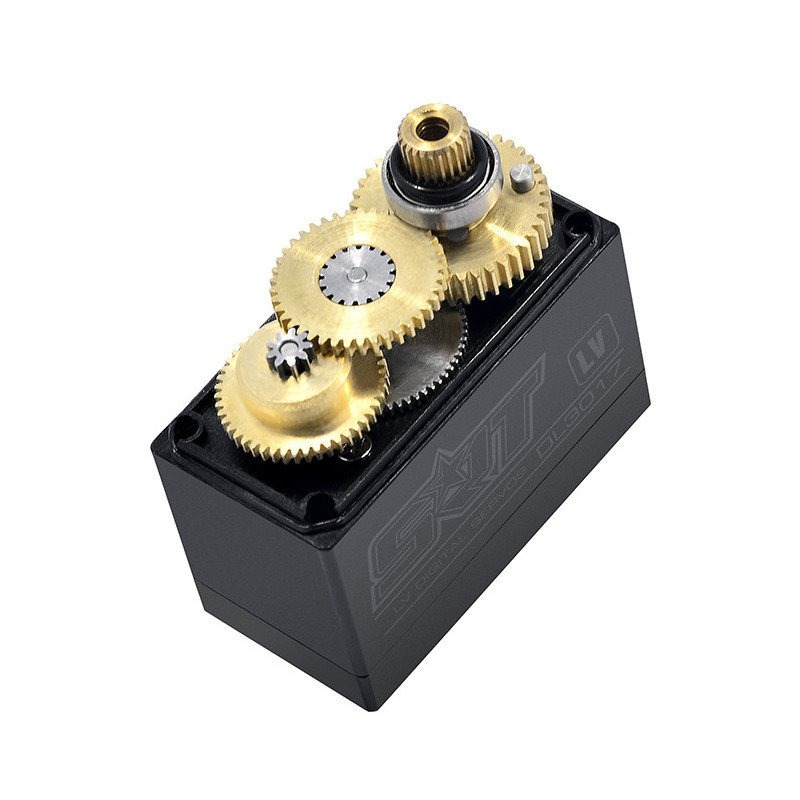

• Gear Type: Metal
• Gear Material: Titanium & Copper
• control system: pulse width control
• working frequency: 1520Œºs / 330hz
• operating voltage: dc4.8-6.0v
• operating temperature range: -10 to + 60 degree
• operating speed (4.8v): 0.17 sec/60 degrees at no load
• operating speed (6.0v): 0.15 sec/60 degrees at no load
• stall torque (4.8v): 15.5kg.cm (215.3 oz/in)
• stall torque (6.0v): 17.0kg.cm (236.1 oz/in)
• potentiometer drive: direct drive

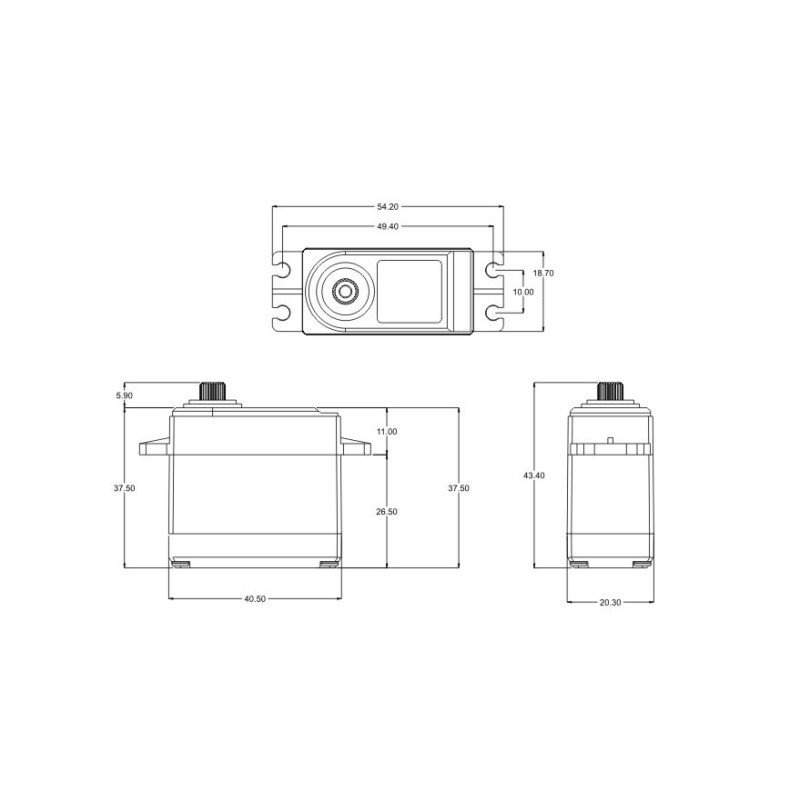

• dimensions: 40.7x20.5x39.5 mm /1.6x0.8x1.55 in
• weight: 63.0g (2.22 oz)
• connector wire length: jr 250 mm

Sobib kasutamiseks:

• 1:10 on-road
• 1:10 off-road
• 1:8 on-road
• 1:8 off-road
• Suured lennukid
• Paadid
• Robotid
