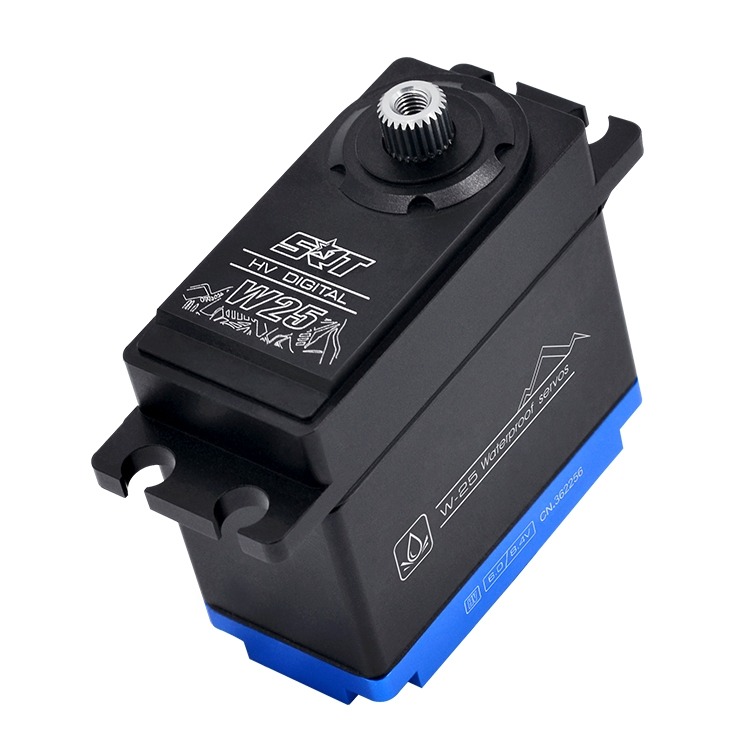

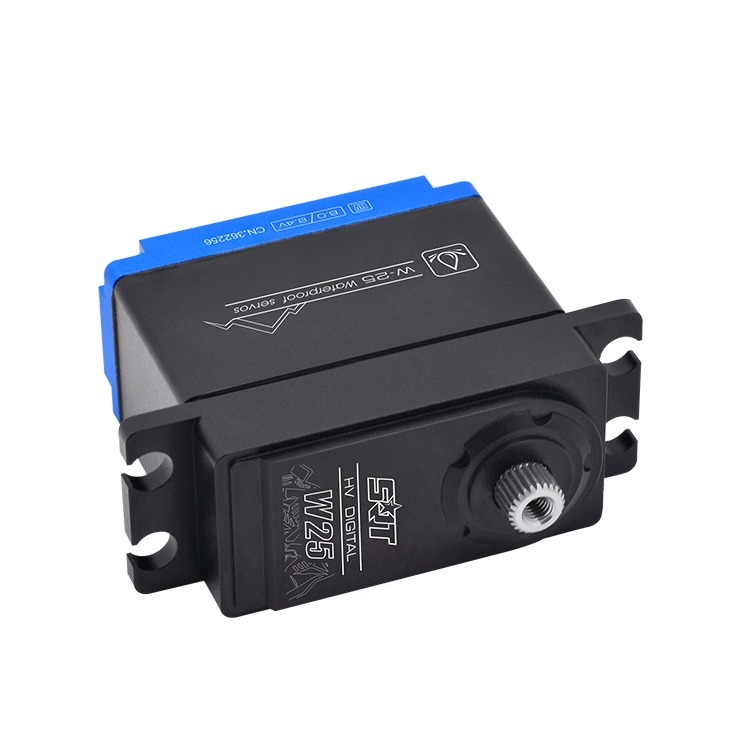

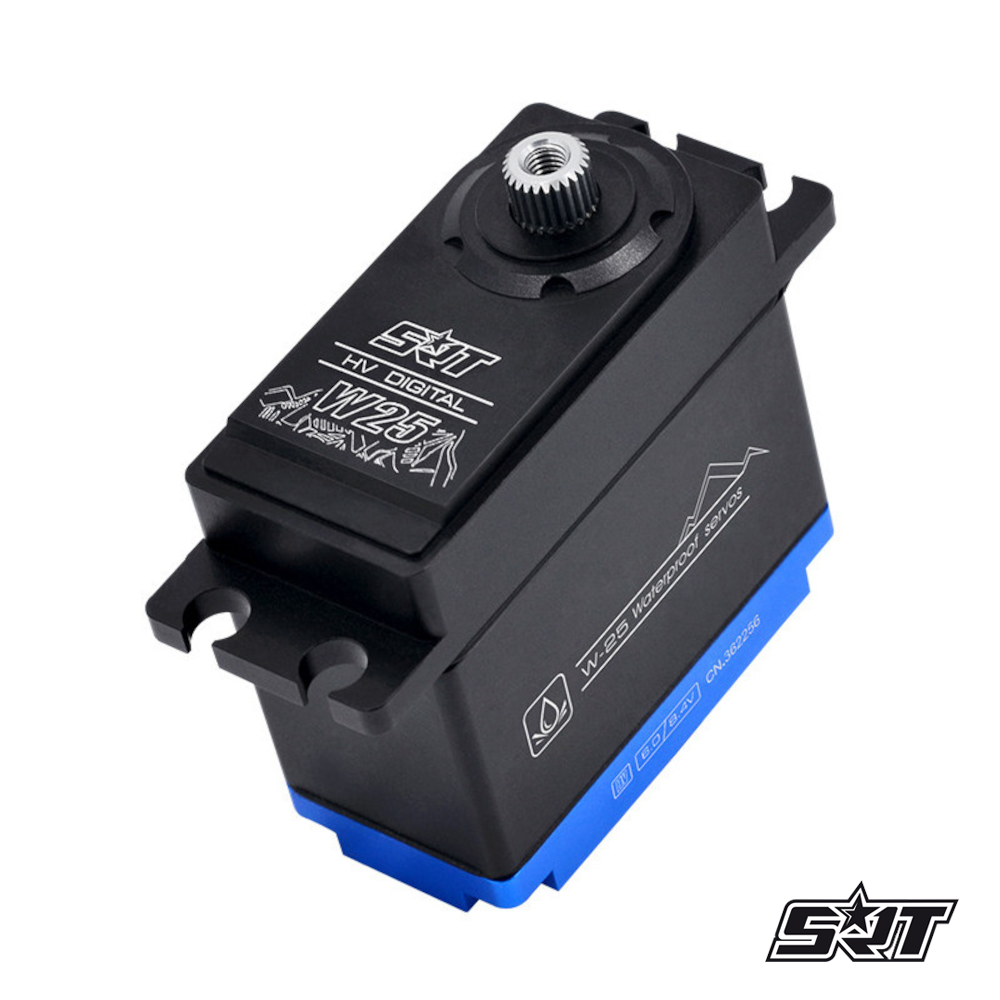

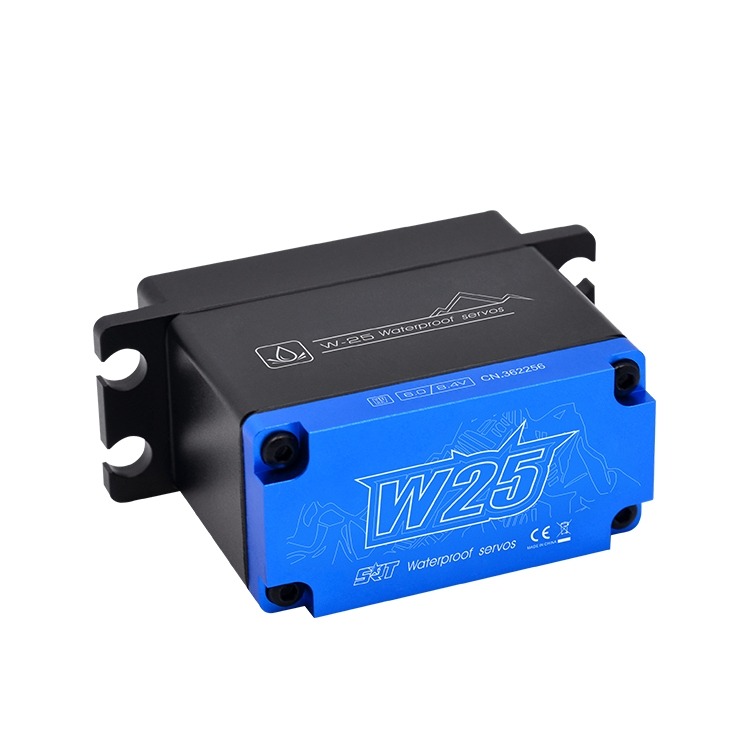

SRT W25 Servo (0.14s/25.0kg/7.4V) Veekindel

Name: SRT W25 Servo (0.14s/25.0kg/7.4V) Veekindel
Brand: SRT
SKU: SRT-W25
Availability: InStock

Tootekood: SRT-W25 Bränd: SRT

Code: SRT-W25
Operation Voltage: DC 6.0…7.4V
Operation Speed (6V): 0.16 sec
Torque (6V): 23.0 kg/cm
Dimensions: 40.7 x 20.5 x 38.6 mm
Weight: 72.0g

1 laos

Toote kirjeldus

Features:

Specifications:

Type	Digital
Bearing	Dual
Motor Type	DC
Gear Type	Metal
Gear Material	Copper & Aluminum
Control System	Pulse width control
Working Frequence	1520μs / 330hz
Operating Voltage	DC 6.0-7.4V
Operating Temperature Range	-10 to + 60 degree
Operating Speed	(6.0V): 0.16 sec/60 degrees at no load (7.4V): 0.14 sec/60 degrees at no load
Stall Torque	(6.0V): 23.0kg.cm (319.4 oz/in) (7.4V): 25.0kg.cm (347.2 oz/in)
Potentiometer Drive	Direct drive
Dimensions	40.7 x 20.5 x 38.6 mm
Weight	72.0g
Connector Wire Length	JR 360 mm
