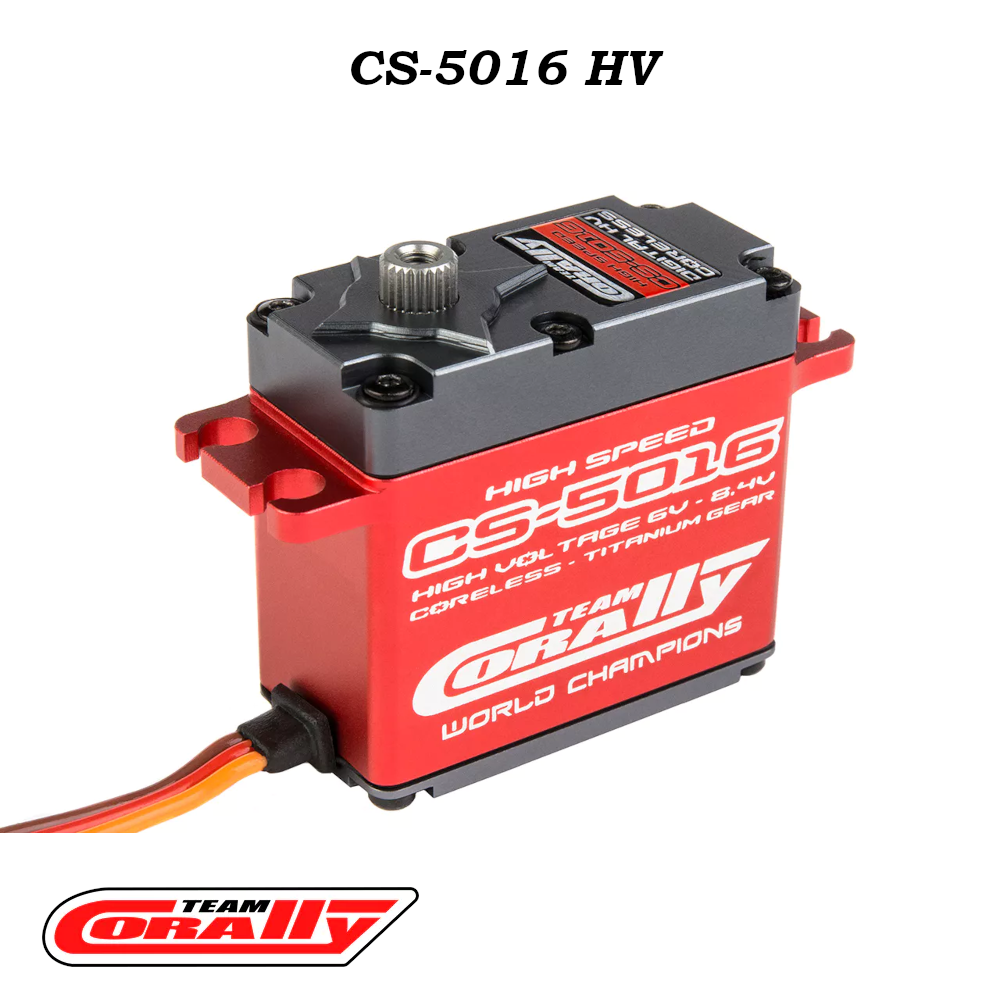

Team Corally CS-5016 HV Servo (16.5kg/0.05s/8.4v)

Toote kirjeldus

Team Corally HV Servo CS-5016 - 16.5kg - 0.05s - 8.4V

You are looking for some powerful control
We developped these servos with the racer in mind, ultimate digital power, precision and reliable.
Check out these awesome features

Features:
• Full CNC machined alloy case
• High Voltage 6.0 - 8.4V
• Titanium gears
• Ball Raced
• Coreless motor
• Ultra high speed and torque
• Rubber sealed

Tech Specs:
• Voltage range 6.0 - 8.4V
• Speed @ 6.0V 0.07 sec/60°
• Speed @ 7.4V 0.06 sec/60°
• Speed @ 8.4V 0.05 sec/60°
• Torque @ 6.0V 11.8 kg/cm
• Torque @ 7.4V 14.4 kg/cm
• Torque @ 8.4V 16.5 kg/cm
• Dimensions (mm) 40.5x20.5x36
• Weight 72g

General Info
Item Nr    C-52000
Barcode    8 718 057 150 556 €
Brand    Team Corally

Servo - Specs
Speed 60°/Sec @ 6.0V    0,07
Speed 60°/Sec @ 7.4V    0,06
Speed 60°/Sec @ 8.4V    0,05
Torque kg/cm @ 6.0V    11,8
Torque kg/cm @ 7.4V    14,4
Torque kg/cm @ 8.4V    16,5


Servo - Dimensions
Spline Type    25T Spline
Servo Type    Standard Servo
Length (mm)    40
Width (mm)    20
Height (mm)    37
Weight (g)    72


Servo - Technology
Technology    Digital HV
Operating Voltage (V)    6.0V - 8.4V
Servo Protection    Water - Dust Resistant
Servo Motor    Coreless Motor
Servo Positioning    VR Potentiometer - Direct Drive
Servo Gears    Titanium Gears
Servo Case    Aluminium Case
Connector    JR Universal + Colored Lead
