Kyosho Mini-Z RWD MR-04 Porsche 962 C Coupe LH No.7 LM 1987 Readyset – 32363TQ

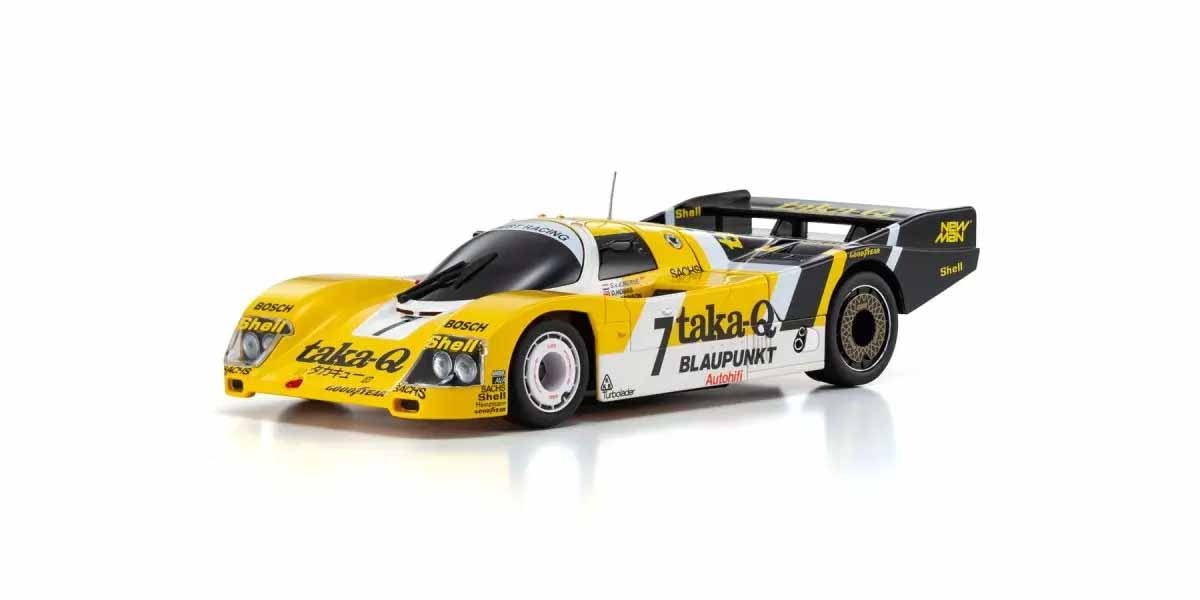

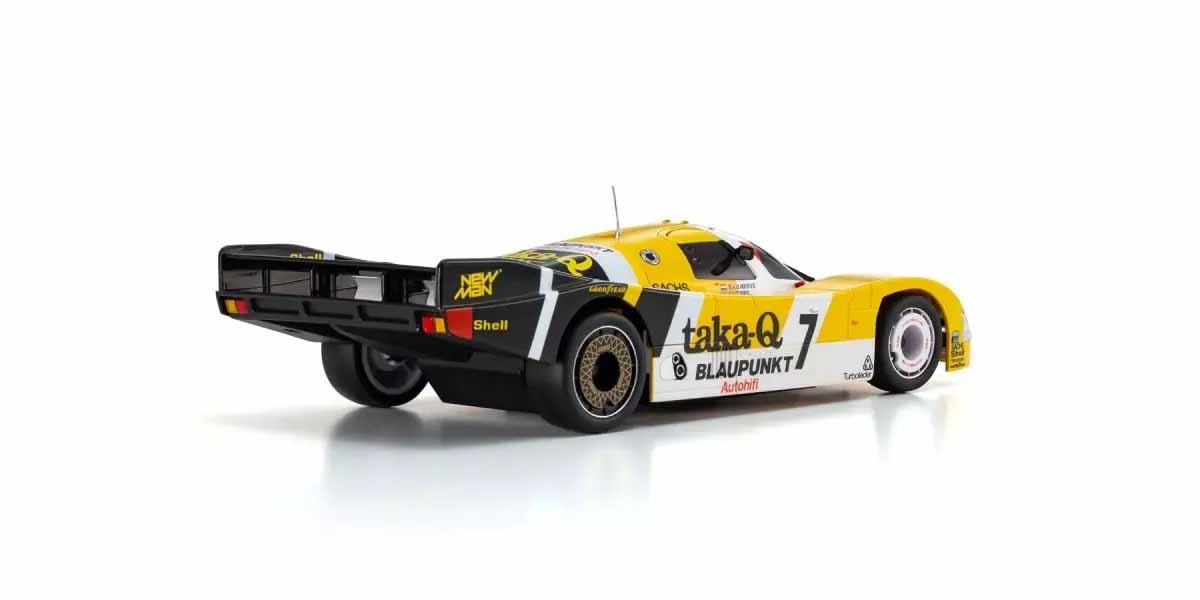

The highly detailed factory-finished body recreates the Porsche 962 C Coupe LH No.7 from the 1987 Le Mans era. The 962 C became one of the most successful sports prototypes of its generation, while the distinctive long-tail LH bodywork was developed to maximise aerodynamic efficiency on the long straights of circuits such as Le Mans.

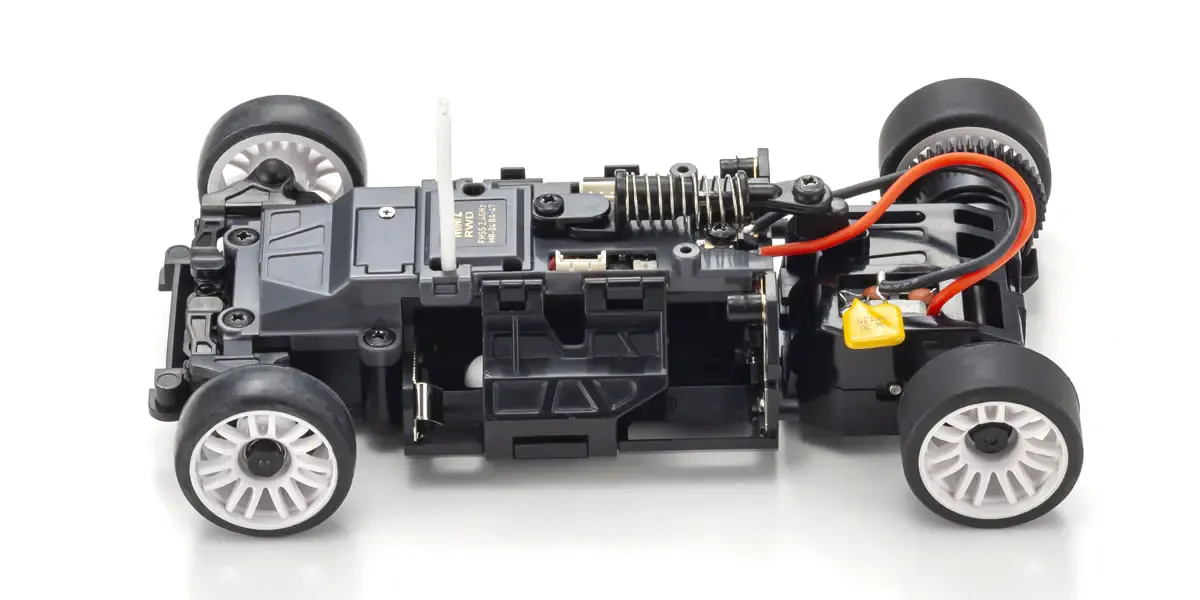

Under the body is Kyosho’s MR-04W-LM rear-wheel-drive chassis with a long 102 mm wheelbase. Compared with the previous MR-03 generation, the MR-04 positions the batteries lower in the chassis to reduce the centre of gravity, improving both cornering stability and straight-line handling.

Revised front knuckles reduce scrub and provide sharper, more linear steering response. The front suspension dynamically adjusts camber throughout its movement to help maintain optimum tyre contact through corners, while revised caster geometry further improves steering response.

At the rear, a T-bar suspension system works together with a coil spring damper to absorb small surface irregularities and maintain stable handling. The standard damper can also be upgraded with optional Mini-Z performance parts.

A geared differential provides smooth cornering, while full ball bearings throughout the drivetrain help minimise rotational resistance. Power comes from a user-friendly 130-class brushed motor, delivering manageable hobby-grade performance for both newcomers and experienced Mini-Z drivers.

The chassis is compatible with the optional MZW711 gyro unit, which adds electronic steering assistance for improved stability. Gyro sensitivity can be adjusted directly on the chassis according to the track and driver’s preference.

The included Syncro KT-531P 2.4GHz transmitter features steering and throttle trim, steering dual rate and Training Mode. Training Mode reduces vehicle speed, making the Mini-Z easier to control while learning.

Please note that the Porsche 962 C Coupe LH No.7 body is not compatible with the MZW429R LED light unit.

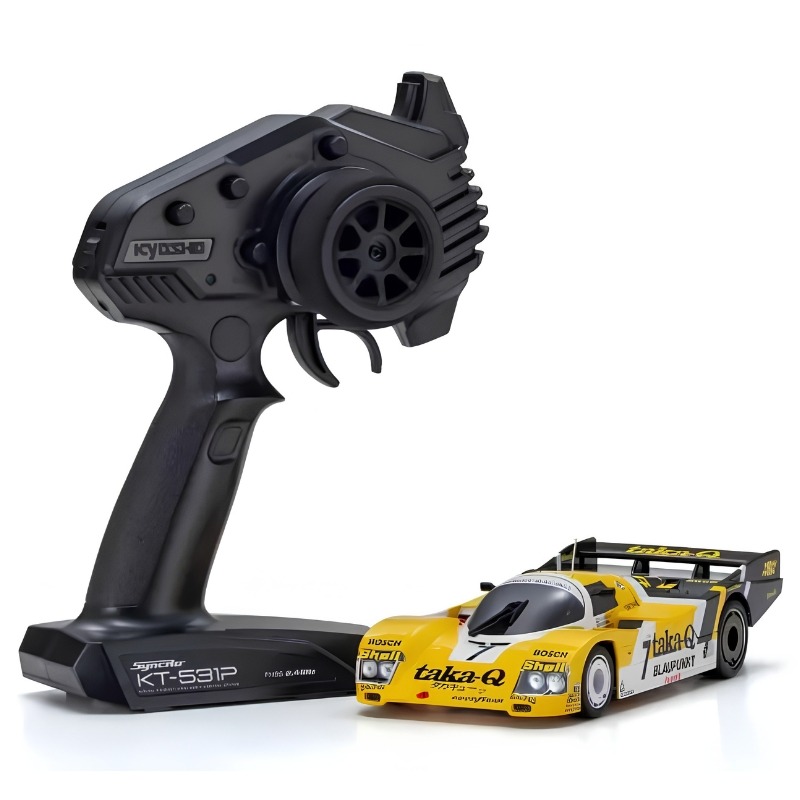

This Readyset includes the factory-assembled MR-04 chassis, fully painted and marked Porsche 962 C Coupe LH No.7 LM 1987 body and Syncro KT-531P transmitter. Simply add the required AAA batteries to start driving.

Explore the complete Kyosho Mini-Z range for RWD, AWD, Buggy and 4×4 models, or browse our Kyosho Mini-Z spare parts for maintenance, repairs and upgrades.

Key Features

• Kyosho Mini-Z RWD Readyset
• Porsche 962 C Coupe LH No.7 LM 1987 body
• Authentic Group C endurance racing design
• Long-tail LH body style
• MR-04W-LM rear-wheel-drive chassis
• Long 102 mm wheelbase
• Lower centre of gravity
• Revised steering geometry
• Dynamic camber front suspension
• T-bar rear suspension
• Coil spring rear damper
• Geared differential
• Full ball-bearing drivetrain
• 130-class brushed motor
• Compatible with optional MZW711 gyro unit
• Adjustable gyro sensitivity
• Syncro KT-531P 2.4GHz transmitter
• Training Mode for reduced speed
• MZW429R LED light unit is not compatible

Technical Data

• Product code: 32363TQ
• JAN/EAN: 4548565505548
• Chassis: MR-04W-LM
• Drive: Rear-wheel drive (RWD)
• Motor: 130-class brushed
• Length: 178.0 mm
• Width: 78.0 mm
• Height: 40.0 mm
• Weight: 130 g
• Wheelbase: 102.0 mm (3L)
• Front tread: 66.5 mm
• Rear tread: 65.0 mm
• Front wheel offset: Narrow +2.5 mm
• Rear wheel offset: Wide +1.0 mm
• Radio system: Syncro KT-531P 2.4GHz

Included

• Factory-assembled MR-04W-LM chassis
• Factory-finished Porsche 962 C Coupe LH No.7 LM 1987 body
• Syncro KT-531P 2.4GHz transmitter
• Front tread adjustment parts
• 6T, 7T, 8T and 9T pinion gears
• Spare wheel nuts
• Wheel wrench
• Pinion gear tool
• Tyres and wheels

Required to Run

• 4 × AAA alkaline batteries or NiMH rechargeable batteries for the car
• 4 × AAA alkaline batteries or NiMH rechargeable batteries for the transmitter
