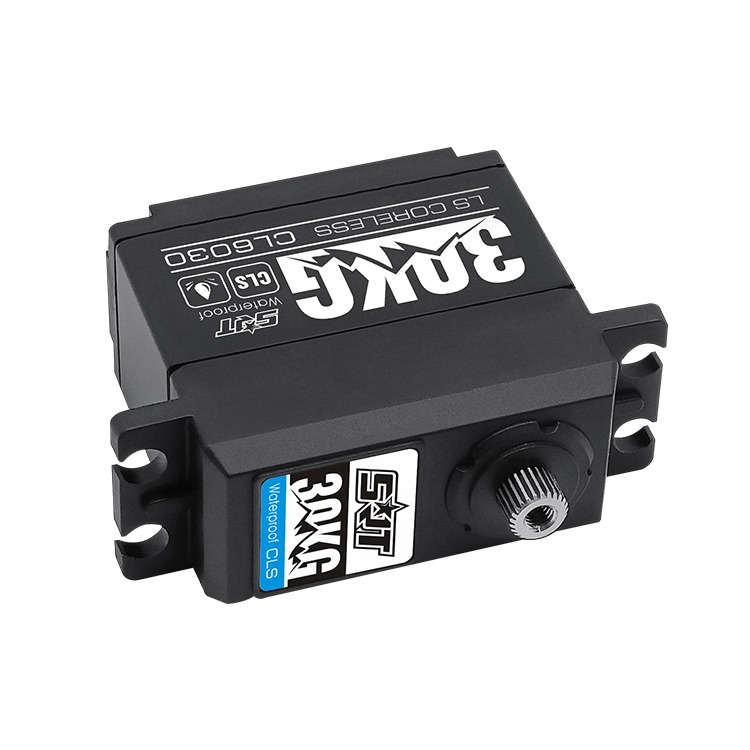

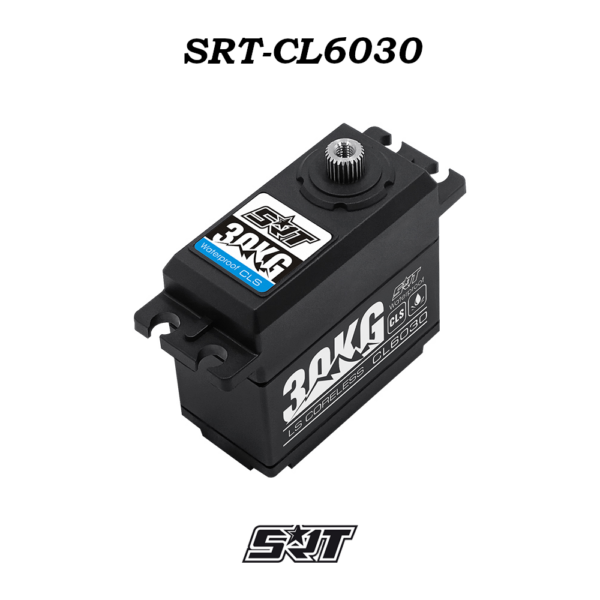

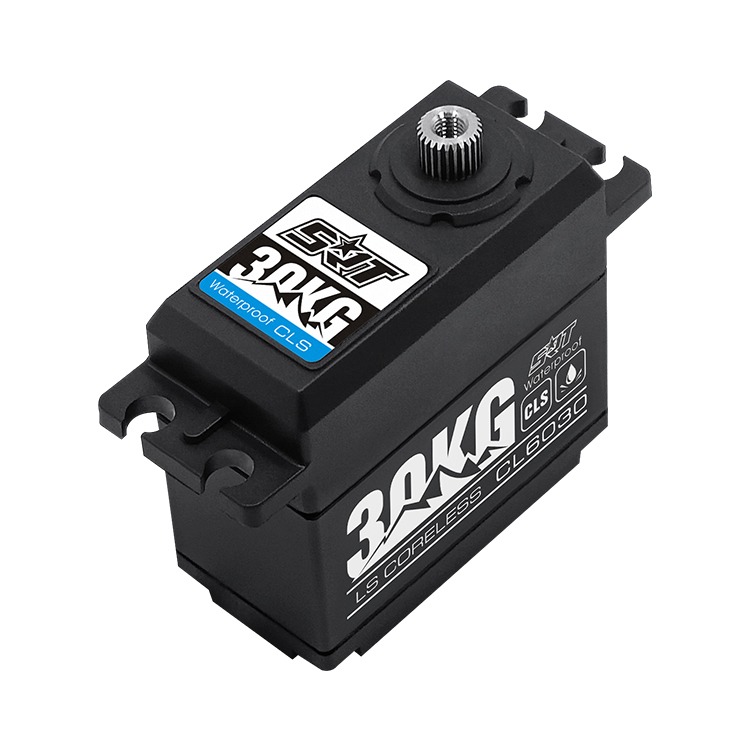

SRT CL6030 (0.11s/30kg/7.4v) Waterproof Servo

Tootekood: SRT-CL6030 Bränd:
  • Bränd:

    SRT

2 laos

45,90

Laos (2)
Delivery within Estonia 2-3 working days, other European countries 10 days.

Description

KEY FEATURES:

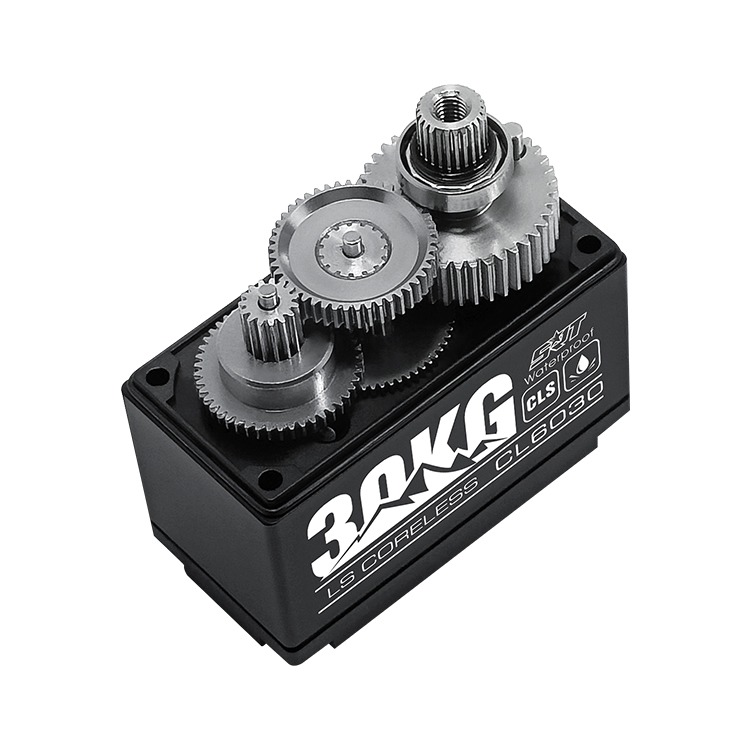

  • Titanium & Steel gears for precision and durability
  • Intermediate aluminum case
  • NMB dual main bearings
  • Superior waterproof
  • 25T output shaft
  • 1-Year Limited Warranty

PRODUCT SPECIFICATIONS:

  • Type: Digital
  • Bearing: Dual
  • Motor Type: Coreless
  • Gear Type: Metal
  • Gear Material: Titanium & Steel
  • control system: pulse width control
  • working frequence: 1520μs / 330hz
  • operating voltage: dc4.8-7.4v
  • operating temperature range: -10 to + 60 degree
  • operating speed (4.8v): 0.13 sec/60 degrees at no load
  • operating speed (6.0v): 0.12 sec/60 degrees at no load
  • operating speed (7.4v): 0.11 sec/60 degrees at no load
  • stall torque (4.8v): 19.0kg.cm (263.9 oz/in)
  • stall torque (6.0v): 25.0kg.cm (347.2 oz/in)
  • stall torque (7.4v): 30.0kg.cm (416.6 oz/in)
  • potentiometer drive: direct drive
  • dimensions: 41.3x20.5x38.3 mm /1.63x0.8x1.51 in
  • weight: 69.0g (2.43 oz)
  • connector wire length: jr 300 mm

SRT SERVO OVERVIEW:

  • The latest generation of SRT  servos provides you with the performance you need for any scale vehicle Air PlaneBoatRobot application. are standard size servos for High-Voltage applications up to 8.4V, feature all metal case construction for the ultimate performance.
  • All of SRT servos  are available to be customized for easy installation by OEM order.

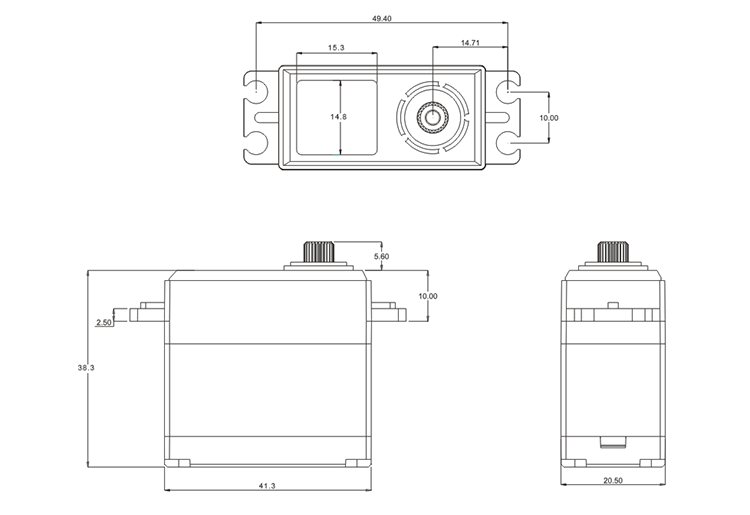

CL6030 尺寸.png
