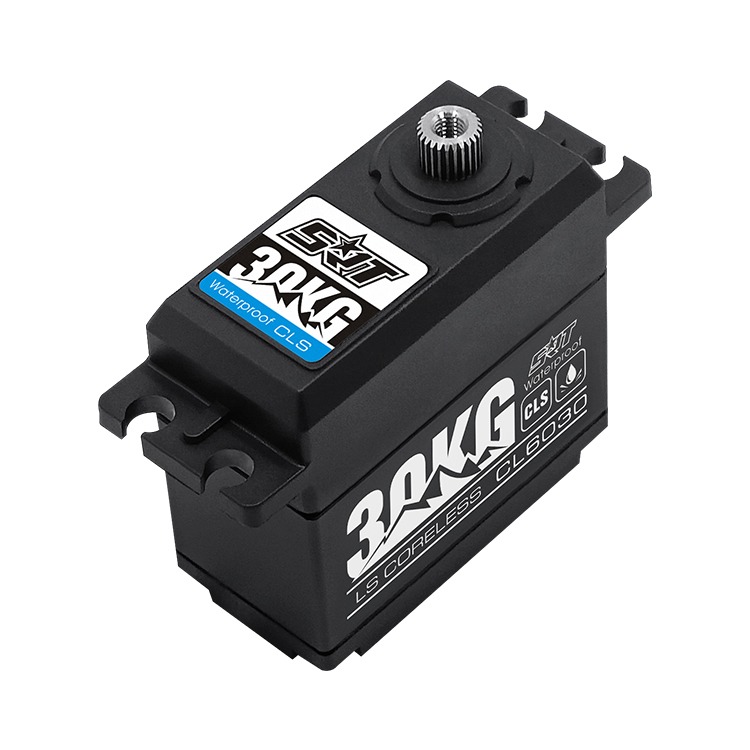

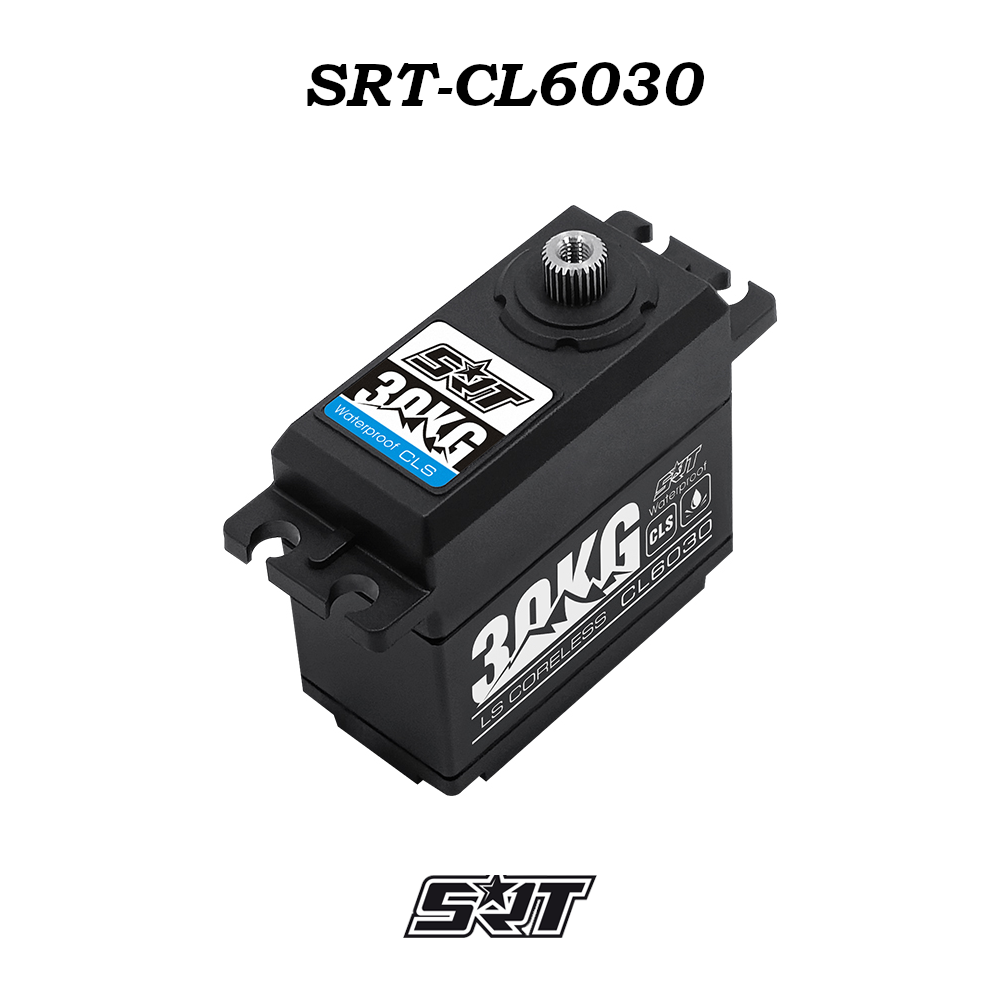

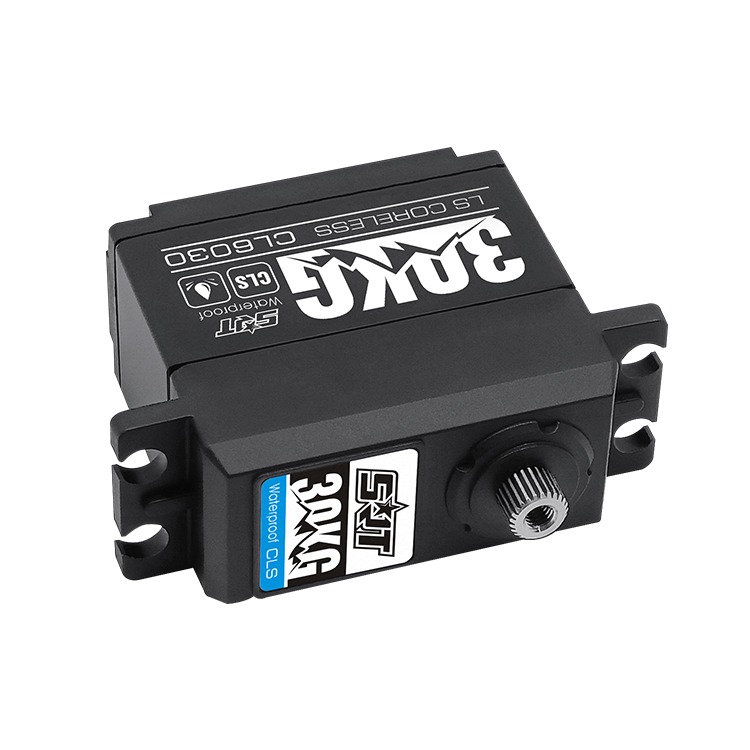

SRT CL6030 (0.11s/30kg/7.4v) Waterproof servo

The servo features a smooth and efficient coreless motor combined with a titanium and steel gear train for excellent durability and precise steering control. An aluminum center case section improves rigidity and heat dissipation, while premium NMB ball bearings ensure smooth and reliable operation under load.

At 7.4V, the CL6030 delivers up to 30 kg-cm of torque, providing ample steering power for crawlers and off-road vehicles equipped with larger tires.

Key Features

• Waterproof digital servo
• Smooth and efficient coreless motor

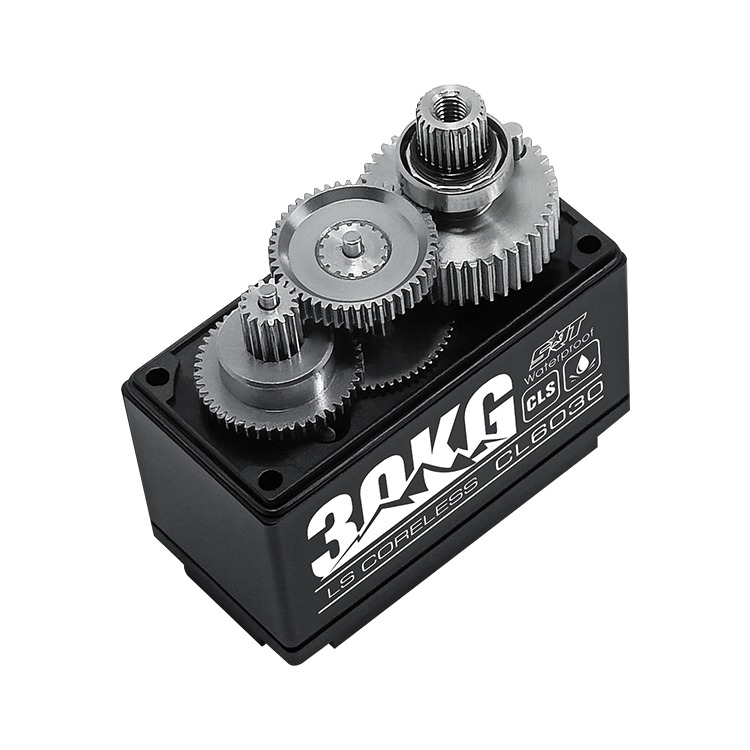

• Titanium and steel gear train
• Aluminum center case for improved cooling
• Premium NMB ball bearings
• Durable semi-metal construction
• 25T output spline
• Ideal for crawler and off-road applications

Specifications

• Servo Type: Digital Servo
• Motor Type: Coreless
• Gear Material: Titanium & Steel
• Case Type: Semi-Metal
• Bearings: Dual NMB Ball Bearings
• Waterproof: Yes
• Output Spline: 25T
• Operating Voltage: 4.8–7.4V
• Control System: Pulse Width Control
• Working Frequency: 1520μs / 330Hz
• Speed @ 4.8V: 0.13 sec / 60°
• Speed @ 6.0V: 0.12 sec / 60°
• Speed @ 7.4V: 0.11 sec / 60°
• Torque @ 4.8V: 19.0 kg-cm
• Torque @ 6.0V: 25.0 kg-cm
• Torque @ 7.4V: 30.0 kg-cm

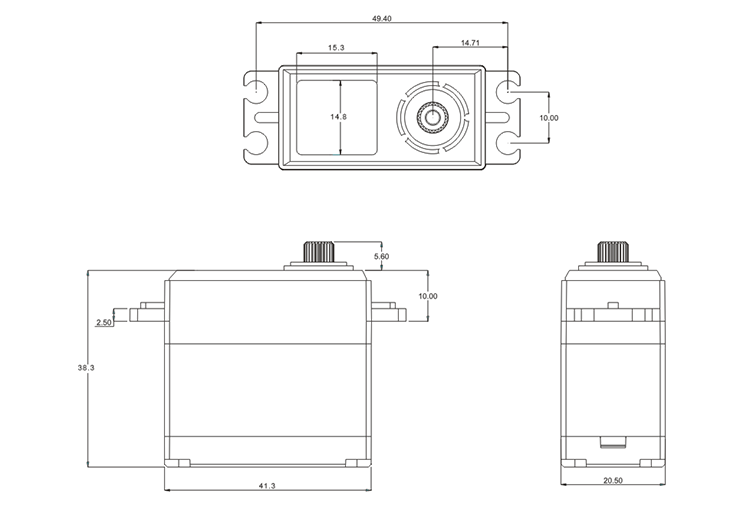

• Dimensions: 41.3 × 20.5 × 38.3 mm
• Weight: 69 g
• Wire Length: 300 mm
• Operating Temperature: -10°C to +60°C

Recommended Applications

• 1/10 Crawlers
• Trail Trucks
• Scale Crawlers
• Rock Crawlers
• Off-Road Vehicles
• Wet and muddy driving conditions
