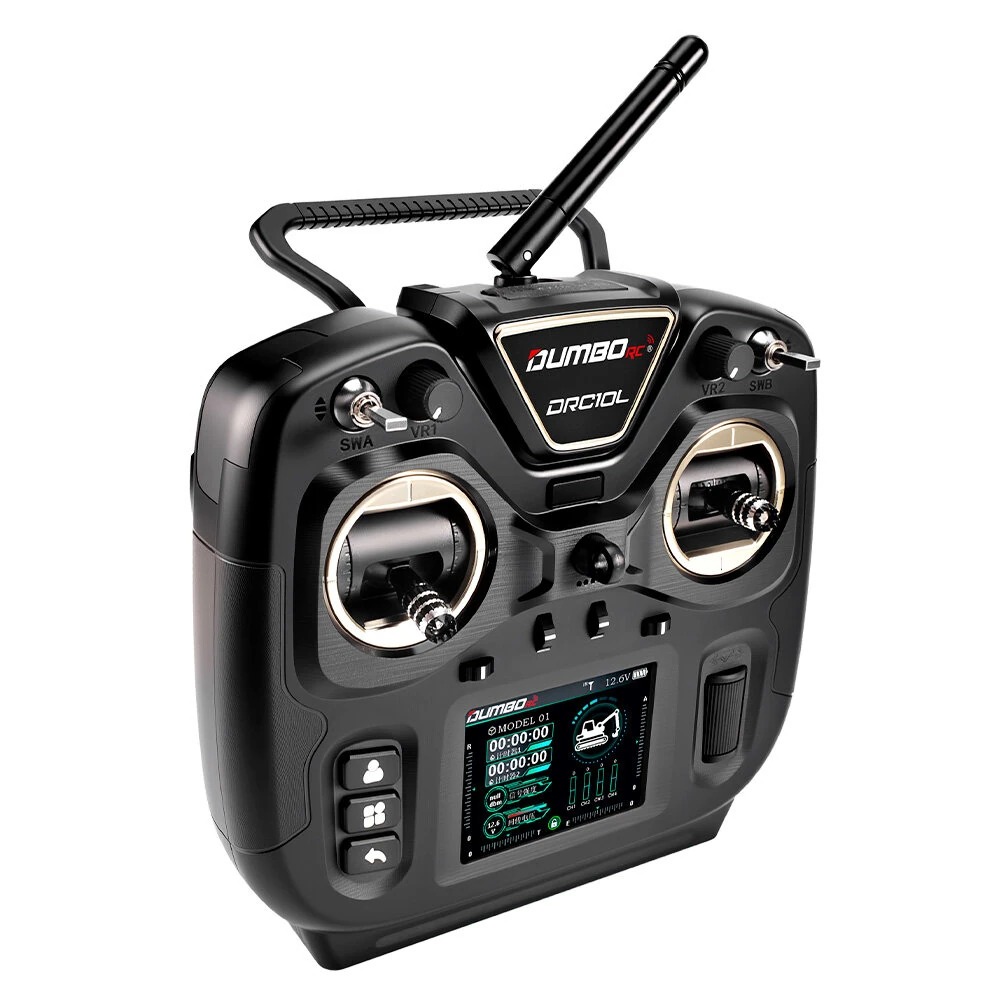

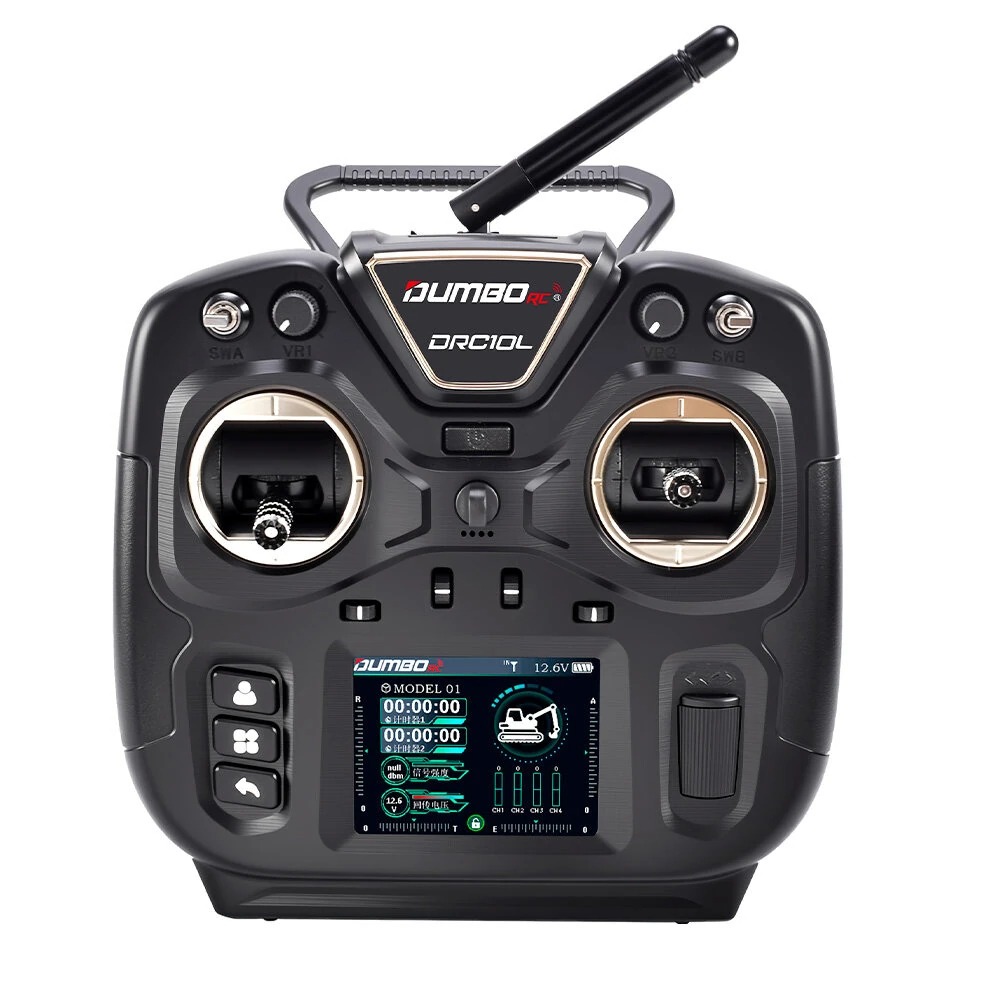

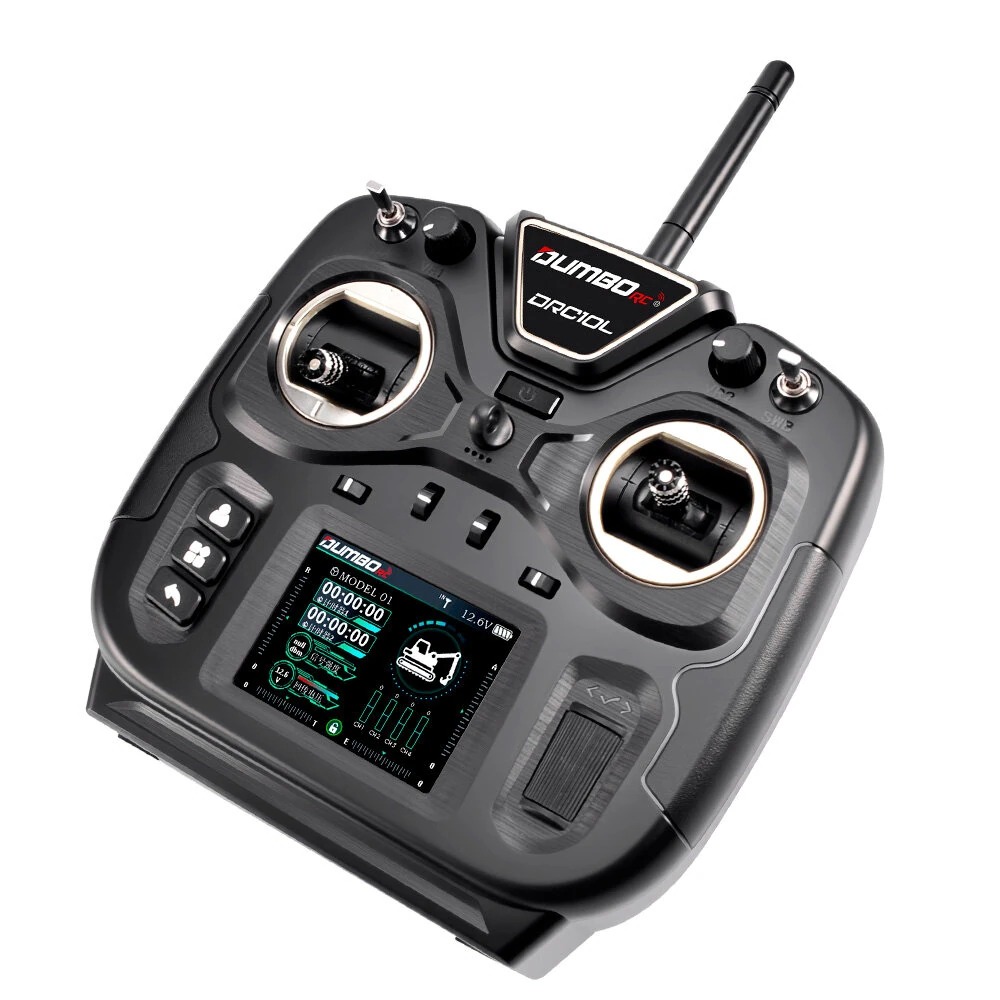

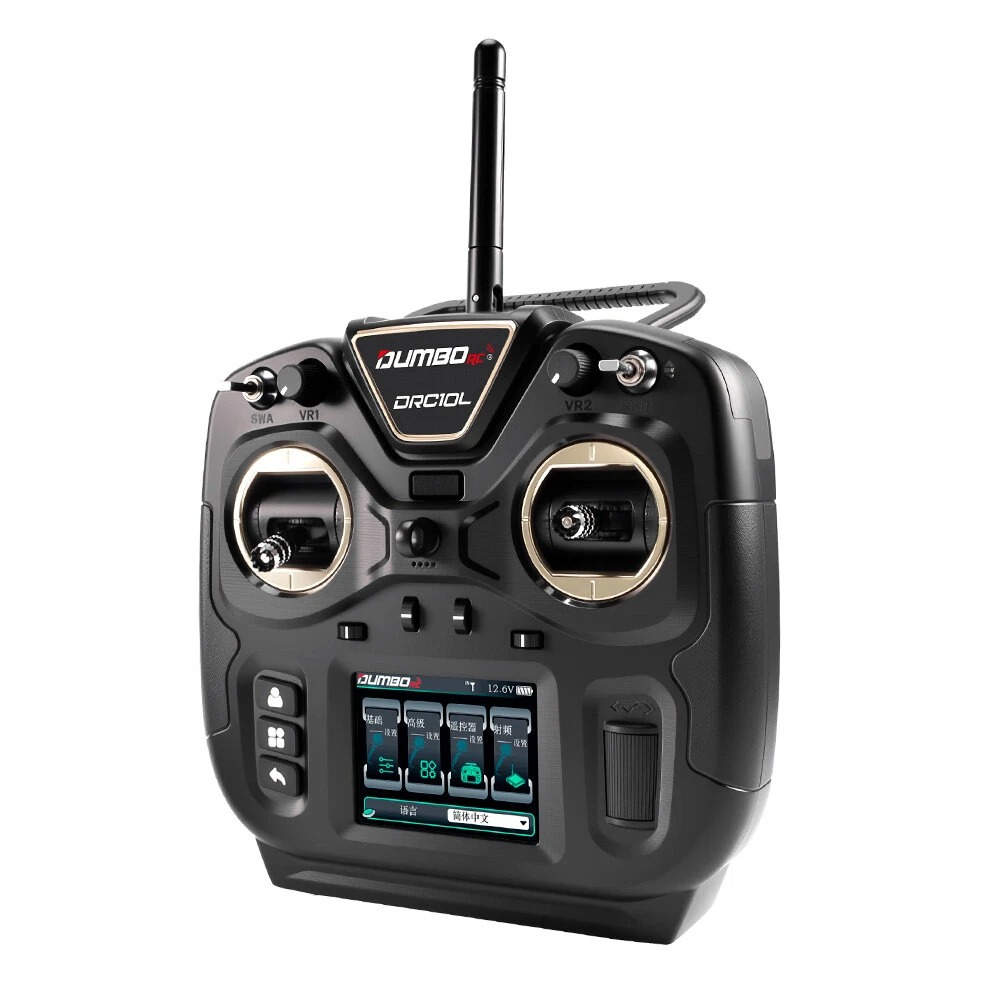

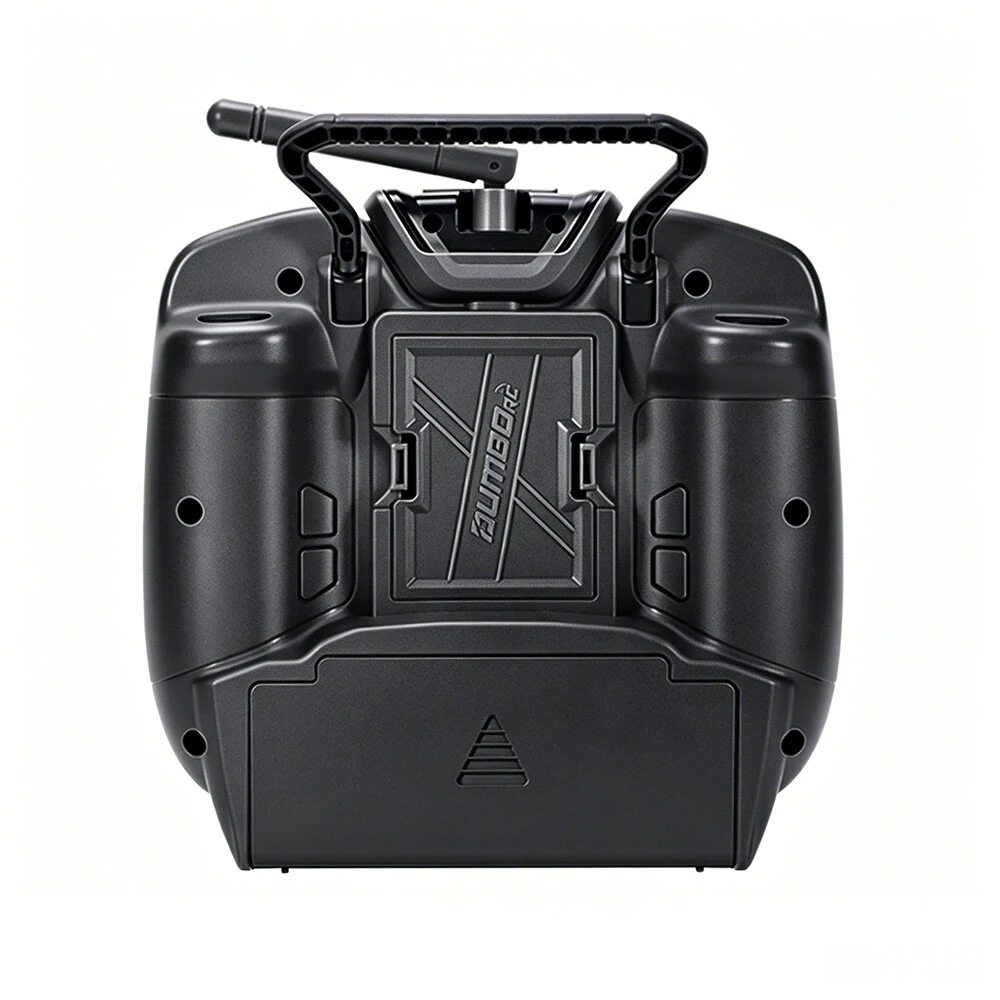

DumboRC DRC10L 10CH 2.4GHz RC Transmitter + P10F Receiver

The DRC10L features a clear 2.8-inch colour display with 320 × 240 resolution and 2048-step channel resolution for precise and smooth control. Individual channel endpoints can be adjusted from 0–120%, while Sub-Trim adjustment from –100 to +100 makes it possible to accurately set servo centre positions. With memory for up to 20 different models, one transmitter can be used with multiple RC vehicles without having to configure the radio again each time.

The 2.4GHz FHSS frequency-hopping radio system provides a stable connection. According to the manufacturer specifications, the operating range can reach up to 2000 metres under ideal, unobstructed and interference-free conditions. Actual operating range will depend on the environment, installation and radio interference.

The DRC10L is particularly well suited to scale and functional RC models where a conventional 4–6 channel radio system does not provide enough controls. The included DumboRC P10F 10-channel receiver provides PWM and PPM outputs for connecting servos and additional model functions.

Key Features

• 10 fully proportional channels
• Channels 5–10 programmable
• 2.4GHz FHSS radio system
• 2048-step channel resolution
• PWM output range: 875–2125 µs
• Endpoint adjustment: 0–120%
• Sub-Trim adjustment: –100 to +100
• 2.8″ colour display
• 320 × 240 display resolution
• Memory for up to 20 models
• Up to 2000m range under ideal conditions
• Simulator function support
• Trainer function support
• Ideal for crawlers, trucks, tanks, boats and multifunction RC models
• P10F 10-channel PWM/PPM receiver included

Technical Specifications

• Channels: 10 fully proportional
• Frequency: 2.4GHz ISM
• Frequency range: 2400–2483.5MHz
• Radio system: FHSS, 67-channel pseudo-random frequency hopping
• Modulation: GFSK
• Signal output: PWM / SBUS / PPM / CRSF
• Channel resolution: 2048
• Resolution/Jitter: 0.25µs
• PWM output range: 875–2125µs
• PWM frame: 15ms/frame
• Endpoint adjustment: 0–120%
• Sub-Trim: –100 to +100
• Display: 2.8″ colour display
• Display resolution: 320 × 240
• Model memory: 20 models
• Transmitter operating voltage: 5–15V
• Power supply: 8 × AA batteries, 2S–3S LiPo or compatible 18650 Li-ion battery
• Operating range: up to 2000m under ideal, unobstructed conditions
• Transmitter dimensions: 175 × 215 × 70mm
• Transmitter weight: approx. 425g

P10F Receiver

• Channels: 10
• Frequency: 2.4GHz ISM
• Frequency range: 2400–2483.5MHz
• Outputs: PWM + PPM
• Operating voltage: 5–10V
• Antenna length: 205mm
• Dimensions: 40 × 28 × 13.5mm
• Weight: approx. 9.5g

Package Includes

• DumboRC DRC10L 10CH transmitter
• DumboRC P10F 10CH receiver
• Conversion/modification accessories
• User manual
