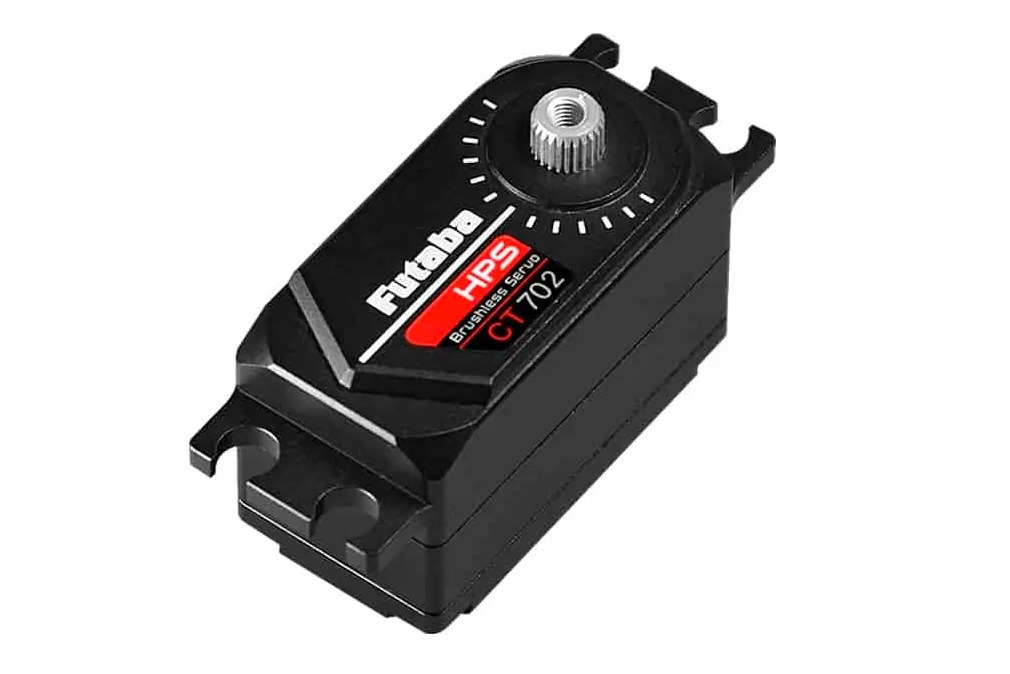

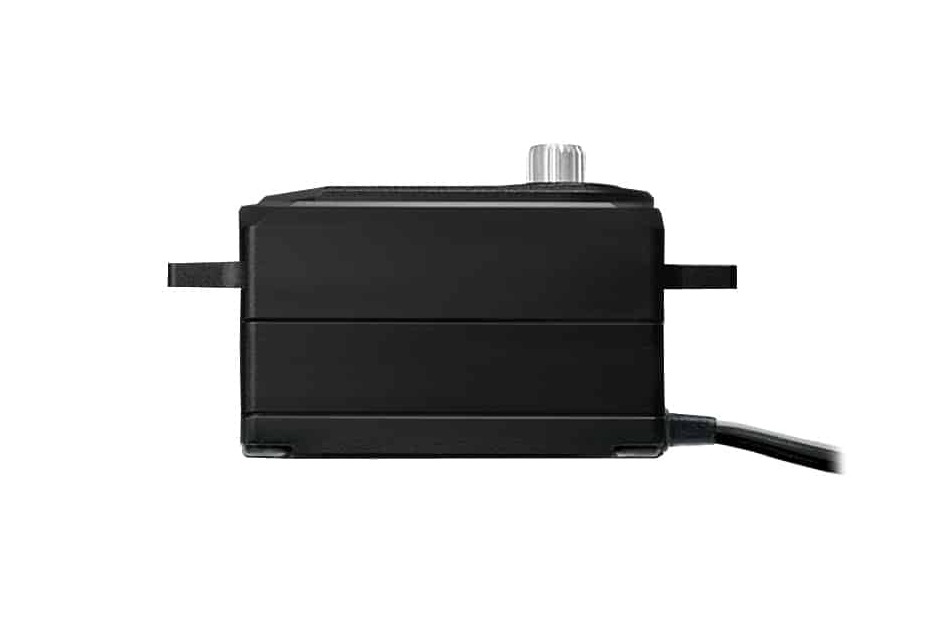

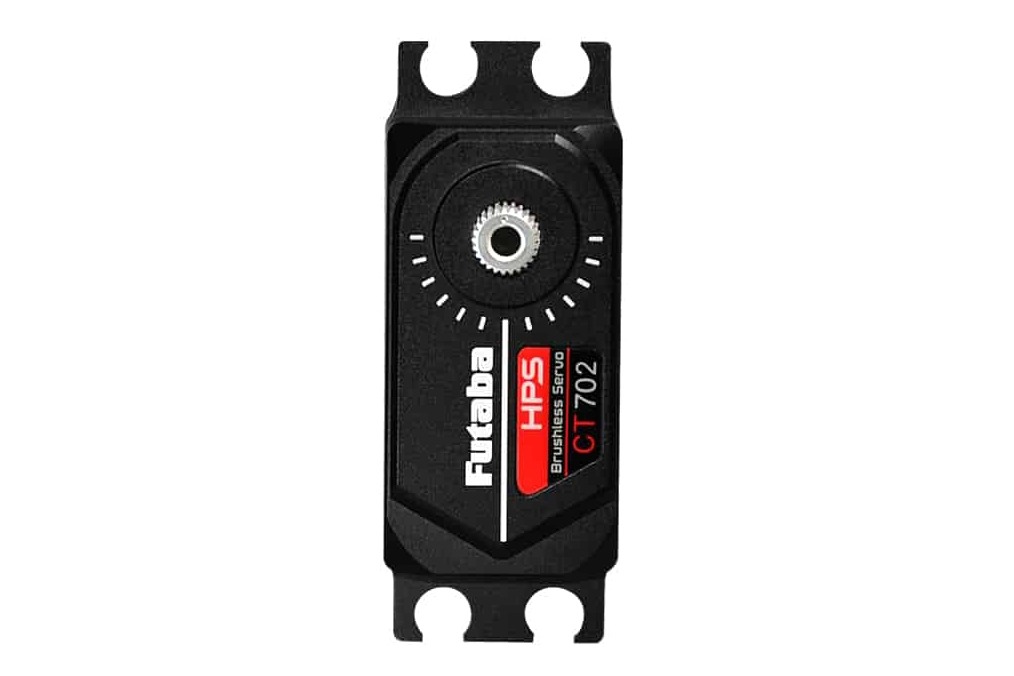

Futaba HPS-CT702 Low Profile Brushless HV Servo – 30kg / 0.07s

At 7.4 V, the HPS-CT702 delivers an impressive 0.07 sec / 60° speed and 30.0 kgf·cm of torque. At 6.0 V, it provides 0.08 sec / 60° and 23.0 kgf·cm. These specifications make it an excellent choice for competitive 1:10 touring cars, 2WD and 4WD buggies, and other high-performance RC cars that require fast and accurate steering response.

The HPS-CT702 uses a powerful HPS brushless motor together with a metal gear train and a high-strength metal final gear. Its aluminium upper, middle and lower case sections provide excellent rigidity while also helping to dissipate heat during demanding race conditions.

The servo supports Futaba S.BUS and S.BUS2 programming as well as the high-speed SR (Super Response) and UR (Ultra Response) modes. When paired with a compatible Futaba radio system, servo parameters can be adjusted to suit the car, track conditions and driver’s preferred steering feel.

Key Features

• Low-profile competition servo for 1:10 RC cars
• Futaba HPS brushless motor
• High-voltage HV servo
• Up to 30.0 kgf·cm torque
• Speed up to 0.07 sec / 60°
• Supports Futaba UR and SR Mode
• S.BUS / S.BUS2 programmable
• Metal gear train
• High-strength metal final gear
• Aluminium upper, middle and lower case
• Ideal for touring cars, buggies and other high-performance competition RC cars

Specifications

• Speed at 7.4 V: 0.07 sec / 60°
• Speed at 6.0 V: 0.08 sec / 60°
• Torque at 7.4 V: 30.0 kgf·cm
• Torque at 6.0 V: 23.0 kgf·cm
• Rated voltage: 6.0–7.4 V
• Operating voltage: 4.8–8.4 V
• Motor: HPS brushless
• Dimensions: 40.5 × 21.0 × 26.2 mm
• Weight: 53 g
• Communication: S.BUS / S.BUS2
• Response modes: UR / SR
• Case: Aluminium
• Gears: Metal

The Futaba HPS-CT702 is an excellent choice for serious racers looking for a powerful, extremely fast and highly adjustable low-profile steering servo, particularly when used with Futaba radio systems capable of taking advantage of the UR and SR response modes.

Brand: Futaba
Code: 05102726-3
EAN: 4513886038044
