Description

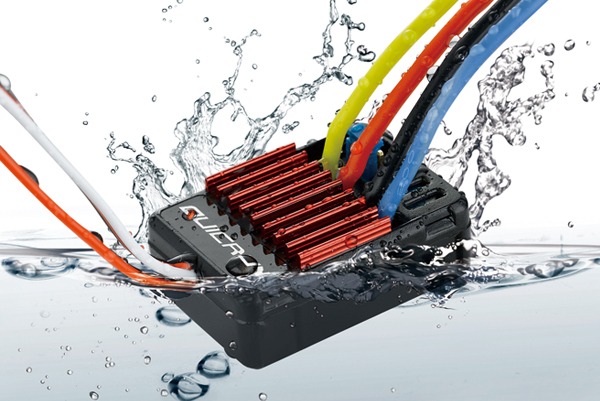

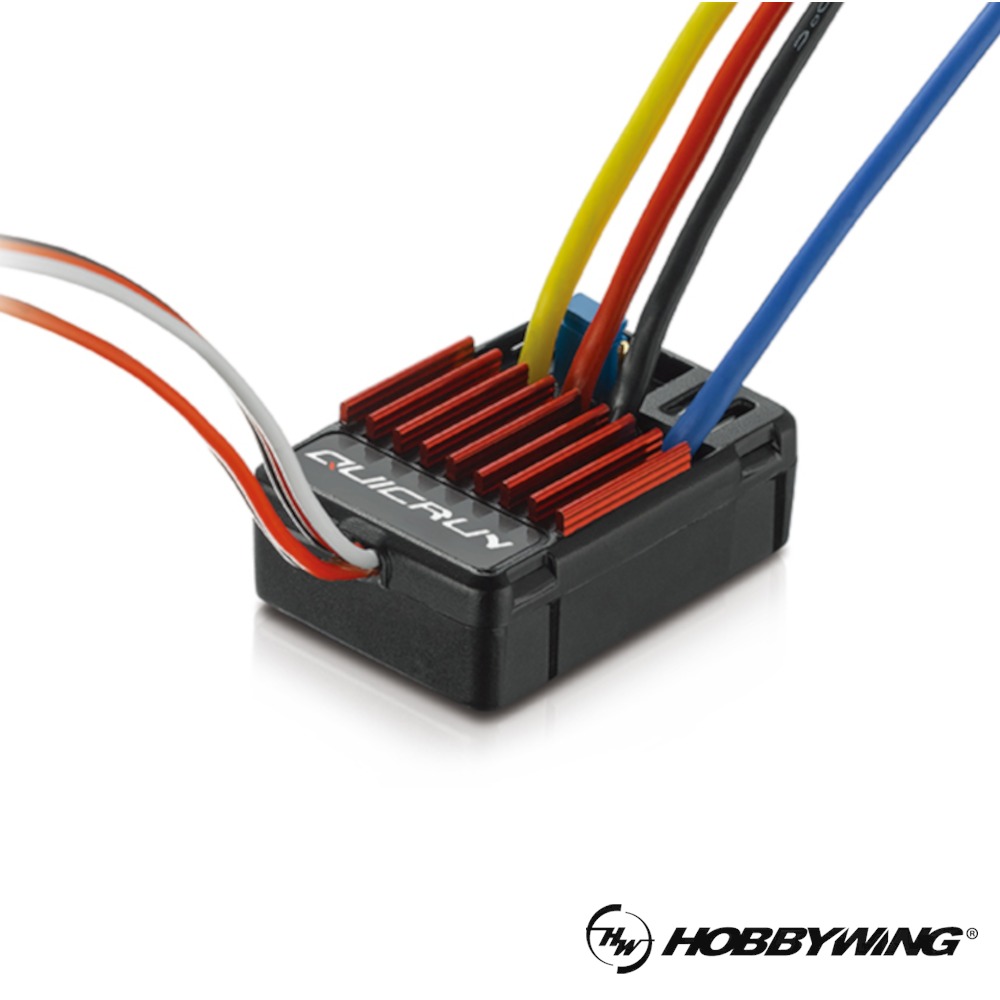

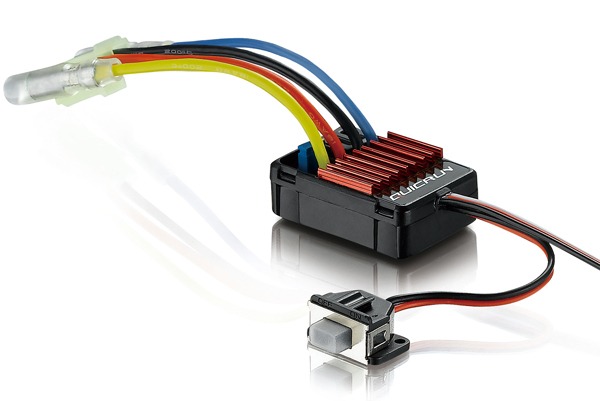

QuicRun WP 1625 Brushed

Product Number: 30120000

Type:

• Scale: 1/16th,1/18th
• Brushed/Brushless: Brushed
• Waterproof: WP

Specifications:

• Cont./Peak Current: 25A/100A
• Input: 2-3S LiPo/6-9 Cells NiMH
• BEC Output: Linear Mode:6V/1A

Wires & Connectors:

• Input Wires: Red-18AWG-75mm*1/Black-18AWG-75mm*1
• Output Wires: Blue-18AWG-75mm*1/Yellow-18AWG-75mm*1
• Input Connectors: Small-sized TAMIYA Connector
• Output Connecotors: 4.0 Bullet Connectors (Female)

ESC Programing via:

• SET Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Not Supported
• WiFi Module: Not Supported
• OTA Programmer: Not Supported

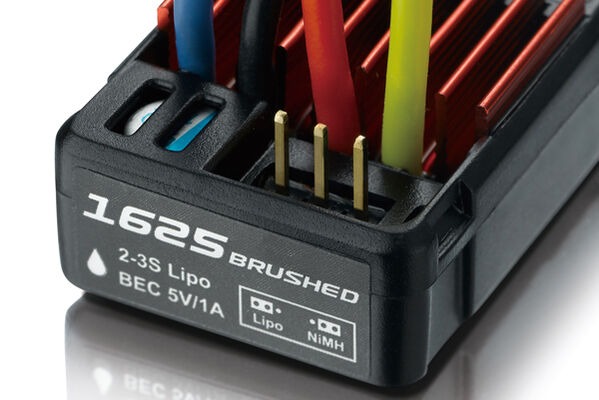

• Program Port: Jumper Cap

Fan:

• Size: No
• Voltage Range: No
• Powered by: No

Firmware:

• Firmware Upgrade: Not Supported

Size & Weight:

• Size: 34.0×24.0x14.0mm
• Weight: 24g

Applications:

• Motors: Brushed Motors
• Vehicles: 1/16th, 1/18th Touring Cars/Buggies/Monster Trucks

KV Rating/T Count:

• 2S LiPo: RPM≤30000
• 3S LiPo: RPM≤20000
• (280/370/380 Size Motors)
