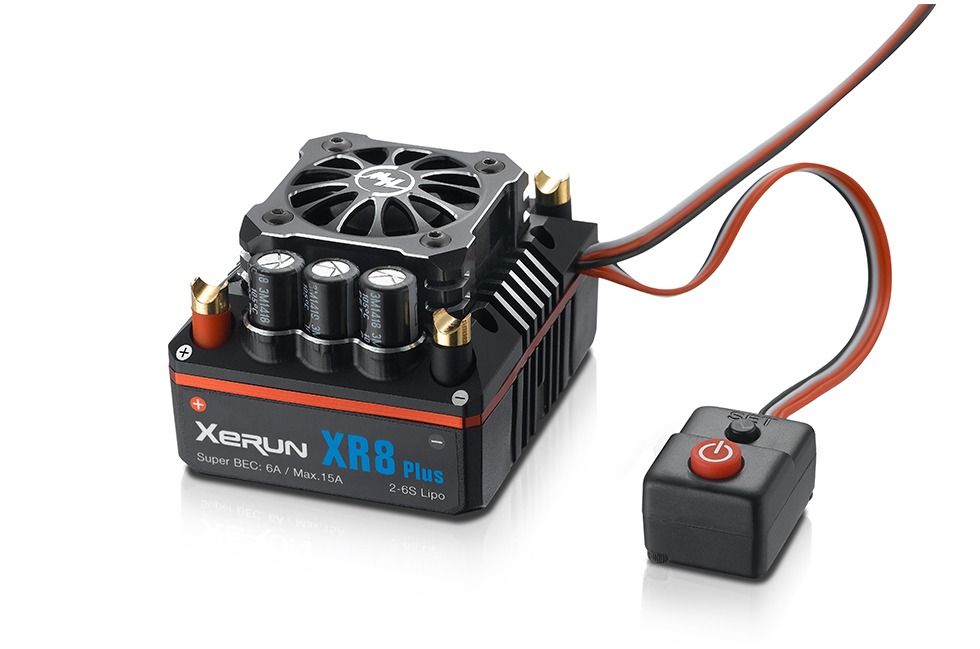

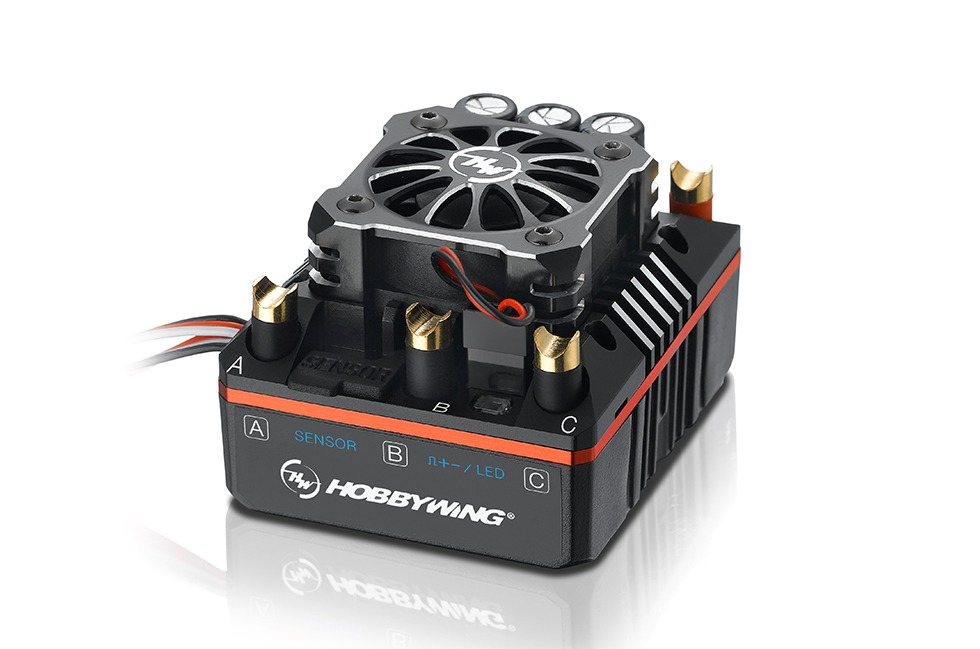

XeRun XR8 Plus 150A Sensored Brushless ESC 1:8 Cars

The ESC features Hobbywing’s patented cooling technology, rapidly transferring internal heat through proprietary copper heat conductors into the CNC-machined aluminum heatsink housing. A shock-resistant cooling fan mount further improves durability during heavy jumps and rough racing conditions, ensuring stable operation under extreme loads.

The XR8 Plus was one of the world’s first 1/8 ESCs to integrate a high-voltage BEC capable of delivering up to 15A peak output with selectable 6V or 7.4V voltage. This allows racers to power modern high-voltage servos directly without requiring an external receiver battery.

An advanced “Coasting” function simulates the inertia and free-rolling feel of a full-scale vehicle, significantly improving driving characteristics in high-powered setups by reducing abrupt electromagnetic drag when off throttle.

The XR8 Plus also supports dynamic timing technology, OTA programming, WiFi programming modules, and extensive tuning capabilities for professional-level racers.

Key Features

• Professional 1/8 sensored brushless ESC
• Supports 2–6S LiPo batteries
• Advanced dynamic timing technology
• High-voltage built-in BEC up to 15A peak
• Adjustable BEC output 6V / 7.4V
• Patented CNC aluminum cooling system
• Shock-resistant cooling fan mounting
• Smooth coasting function for realistic driving feel
• Advanced electronic switch rated for 50,000+ cycles
• Multiple real-time overload protections
• OTA and WiFi programming support
• Ideal for 1/8 buggy, truck, and touring cars

Technical Specifications

• Model: Hobbywing XeRun XR8 Plus
• Product Number: 30113300
• Scale: 1/8 and 1/10
• Type: Sensored Brushless ESC
• Continuous Current: 150A
• Peak Current: 950A
• Input:
  • 2–6S LiPo
  • 6–18 Cell NiMH
• BEC Output:
  • 6V / 7.4V
  • 6A switch-mode
• Fan Size: 30×30×10 mm
• Fan Voltage: 5–7.4V
• Input Wires: 10AWG
• Output Wires: 12AWG
• Dimensions: 58.7 × 48.0 × 36.9 mm
• Weight: 127 g
• Motor Compatibility:
  • 4S LiPo: up to 3000KV
  • 6S LiPo: up to 2400KV
  • 40XX motor series
• Applications:
  • 1/8 Buggy
  • 1/8 Truck
  • 1/8 Touring Car

What’s Included

• Hobbywing XeRun XR8 Plus ESC
• Cooling fan
• Instruction manual

Needed To Complete

• Compatible brushless motor
• 2–6S LiPo battery
• Suitable charger
• Radio system and receiver
• OTA or WiFi programming module (optional)
