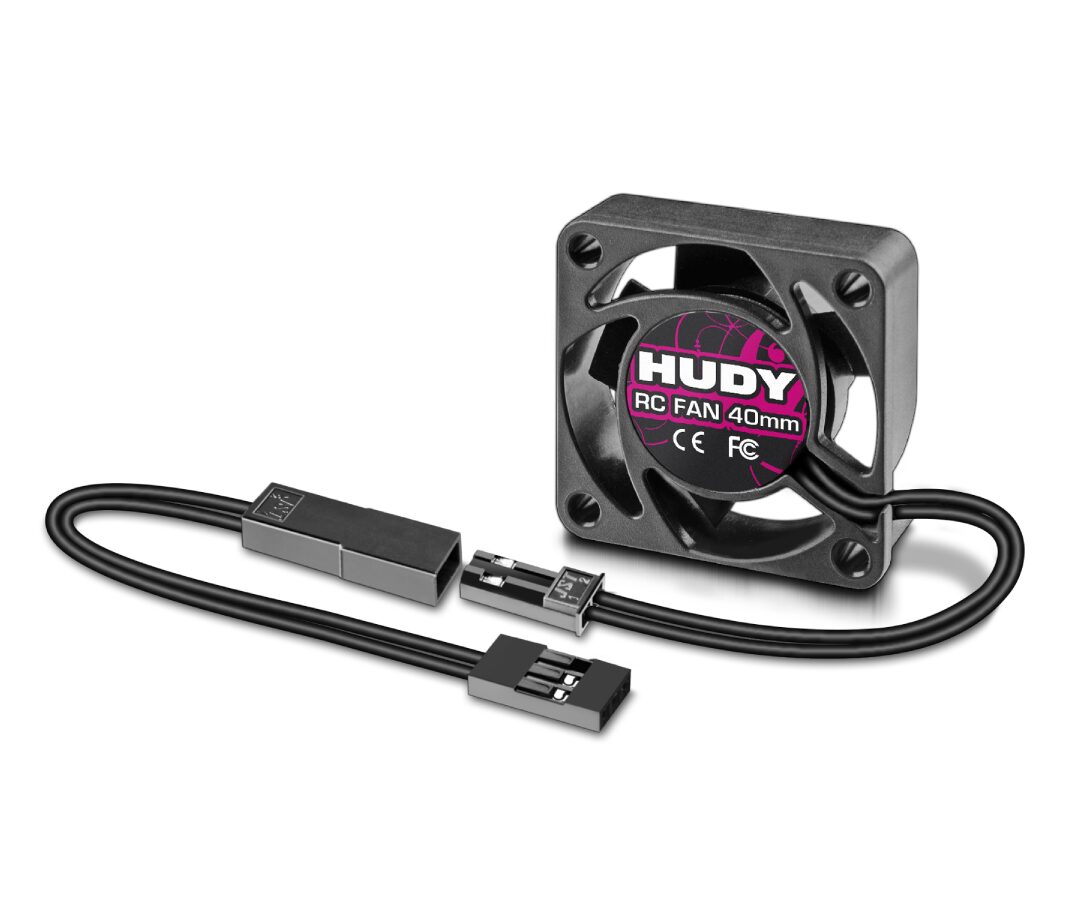

Hudy Brushless RC Fan 40mm with Internal Soldering Tabs

Its brushless design combined with high-quality bearings ensures long service life, quiet operation, and exceptional reliability. The fan features internal soldering tabs and comes with a 200 mm cable for easy installation in a wide variety of RC vehicles.

Operating between 6.0V and 8.4V, the HUDY 40mm fan reaches speeds of up to 15,000 RPM for powerful and consistent cooling performance. Due to the larger fan size, HUDY recommends mounting the fan using four screws or double-sided tape on a separate graphite plate to prevent damage from vibration or impacts.

Main Features

• Large 40 mm fan for efficient cooling
• Reliable brushless design
• High-quality bearing-supported construction
• Internal soldering tabs
• Includes 200 mm cable
• Ideal for RC ESC and motor cooling
• Operating voltage range: 6.0V–8.4V
• Up to 15,000 RPM fan speed
• Extremely reliable operation
• Professional HUDY quality

Technical Specifications

• Size: 40x40x10 mm
• Weight: 20 g
• Operating Voltage: 6.0V – 8.4V
• Current Draw: 0.2A
• Speed: 14,000 – 15,000 RPM
• Design: Brushless
• Bearings: Yes
• Cable Length: 200 mm

Important Notice

• Positive (+) wire is identified with white stripes
• The fan does not include polarity protection
• Incorrect polarity connection may damage the fan
• Avoid overheating the solder tabs during installation
• Due to the larger fan size, mounting with 4 screws or using a graphite plate with double-sided tape is recommended
