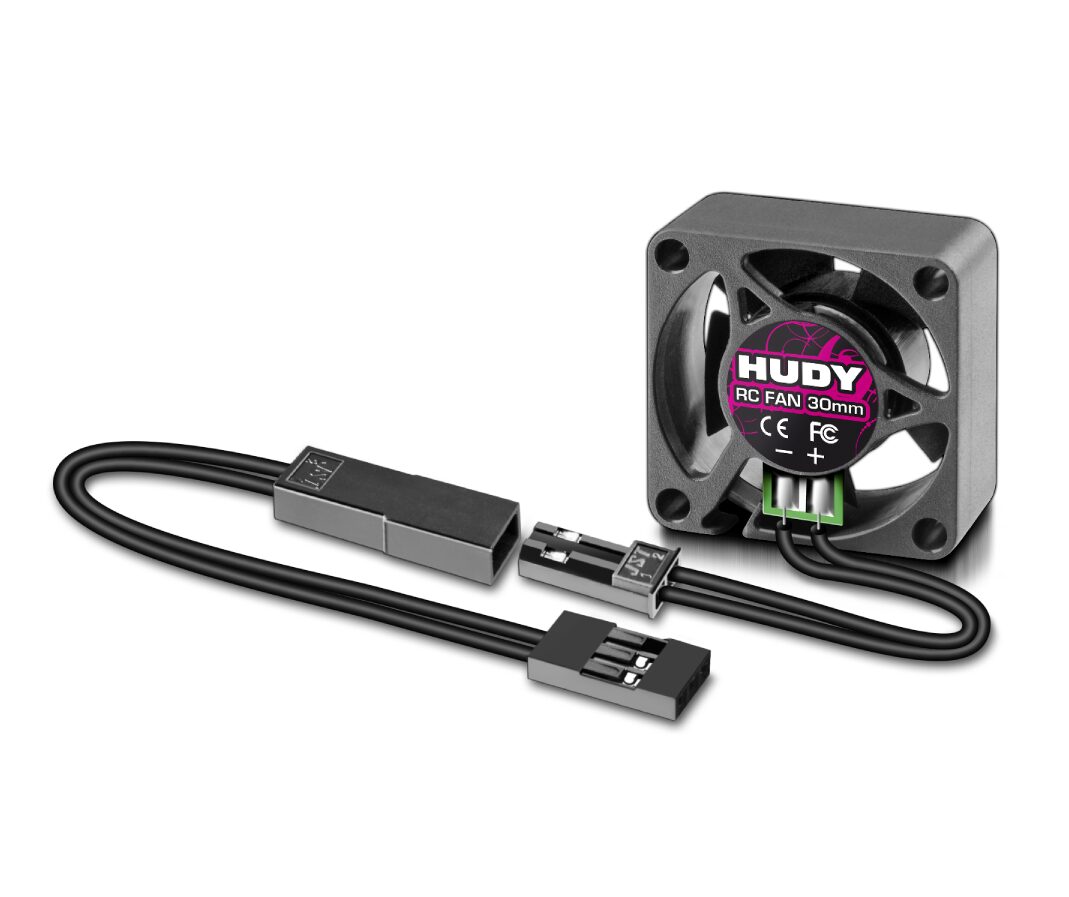

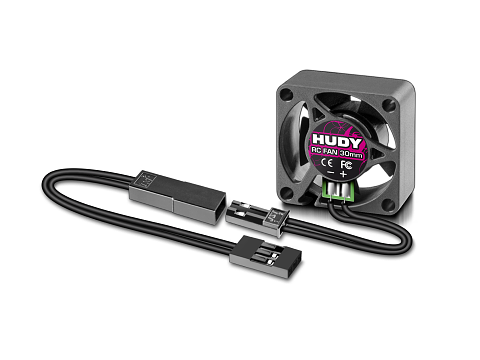

HUDY Brushless RC Fan 30mm with External Soldering Tabs

Perfect for cooling ESCs, motors, and other RC electronics, the HUDY fan is ideal for both competition and hobby-grade RC vehicles. The external solder tabs allow quick and easy wire replacement, while the included 200 mm cable simplifies installation in a wide variety of models. Newer production batches feature a fixed short cable with an additional extension wire for improved durability and reliability.

Operating between 6.0V and 8.4V, the fan reaches speeds of up to 24,000 RPM while maintaining a compact 30x30x10mm footprint.

Main Features

• Reliable brushless design
• Designed for RC electronics cooling
• Bearing-equipped construction
• External solder tabs for easy wire replacement
• Includes 200 mm cable
• High-speed operation: 22,000–24,000 RPM
• Compact 30x30x10 mm size
• Lightweight construction
• Operating voltage range: 6.0V–8.4V
• Ideal for ESC, motor, and electronics cooling

Technical Specifications

• Size: 30x30x10 mm
• Weight: 11 g
• Operating Voltage: 6.0V – 8.4V
• Current Draw: 0.2A
• Speed: 22,000 – 24,000 RPM
• Cable Length: 200 mm
• Design: Brushless
• Bearings: Yes
• Application: RC electronics cooling

Important Notice

• Positive (+) wire is marked with white stripes
• The fan does not include polarity protection
• Incorrect polarity connection may damage the fan
• Avoid overheating the solder tabs during installation or wire replacement
