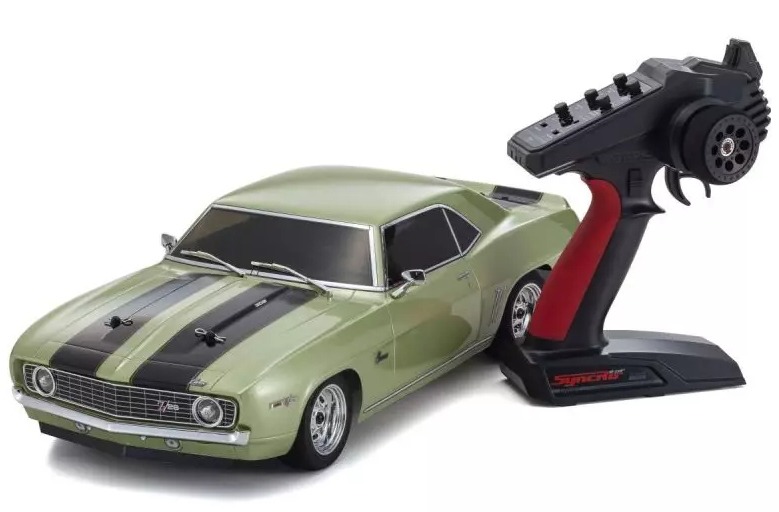

Kyosho Chevrolet Camaro Z/28 1969 Frost Green – Fazer Mk2 FZ02 – 1:10 4WD RTR RC Car

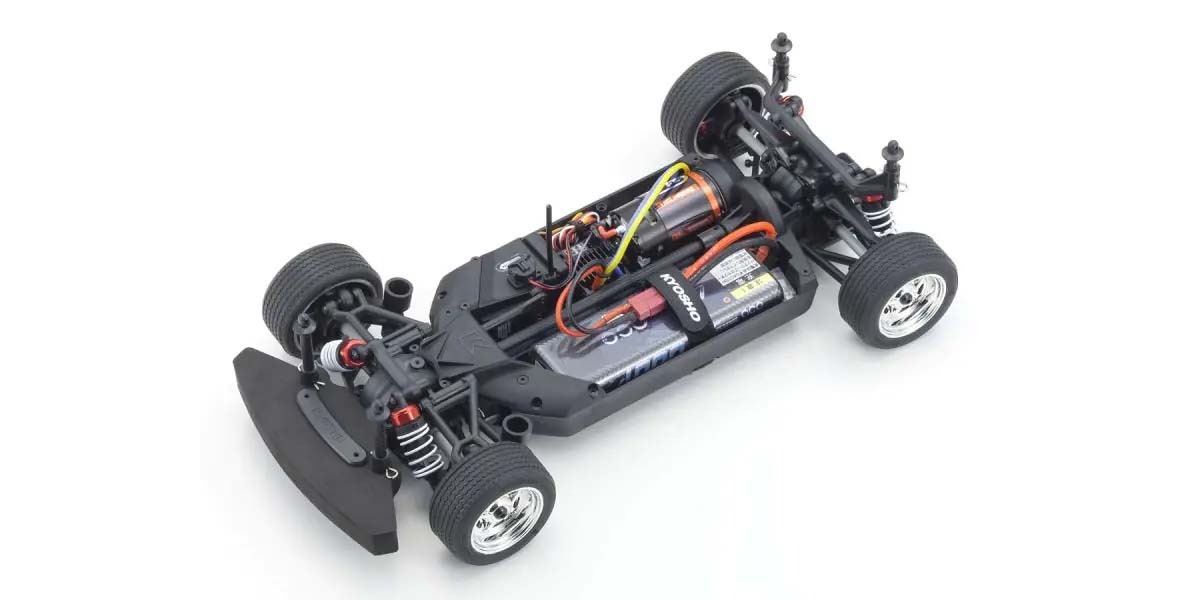

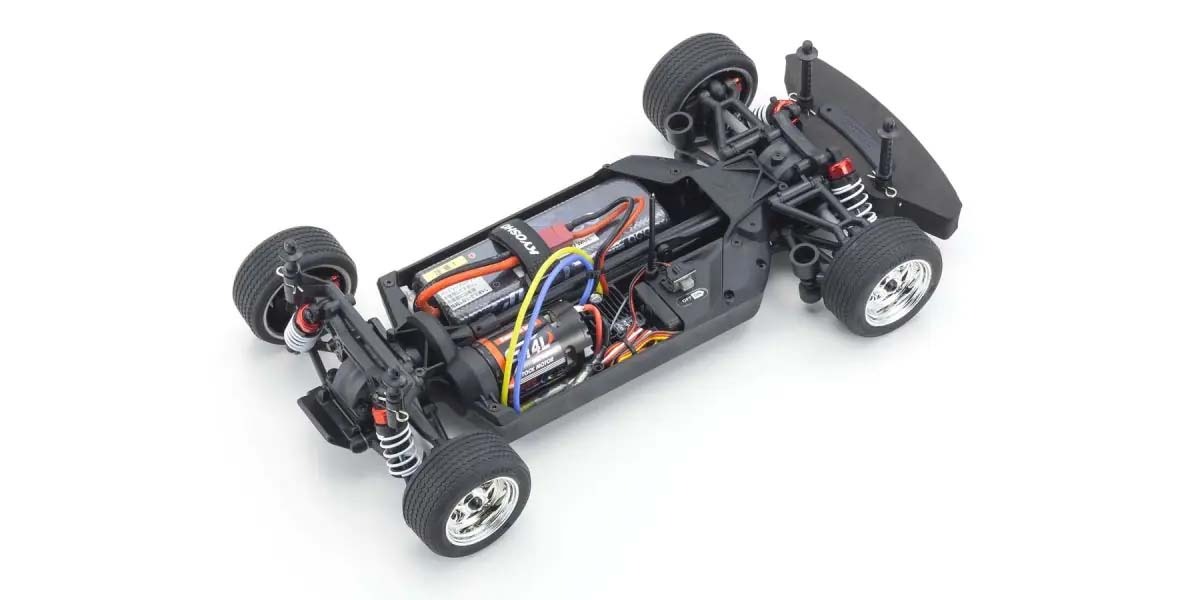

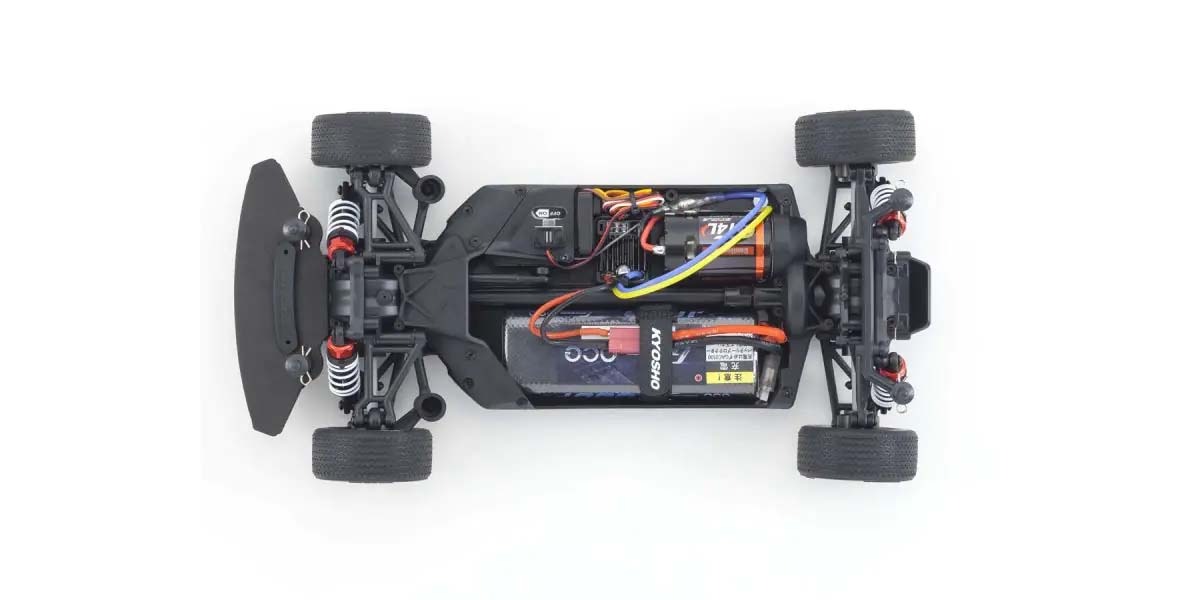

The Fazer Mk2 FZ02 chassis is designed for enjoyable and dependable on-road driving. Its low center of gravity, symmetrical chassis layout, shaft-driven full-time 4WD system and oil-filled shocks provide stable and predictable handling. Sealed front and rear gear differentials and a full ball-bearing drivetrain help keep the car running smoothly and efficiently.

Power comes from a Kyosho G14L 550-size brushed motor controlled by a waterproof 60A electronic speed controller. The ESC supports 2S LiPo batteries and uses a Deans / T-Plug battery connector. A waterproof KS202W steering servo and Syncro KT-231P+ 2.4 GHz radio system are also factory installed.

The FZ02 chassis has also been designed with easy maintenance and setup in mind. The motor mount features fixed positions for 29T–37T pinion gears, eliminating the need to manually adjust gear mesh when changing pinion size. The standard drivetrain uses a 68T spur gear and 32T pinion.

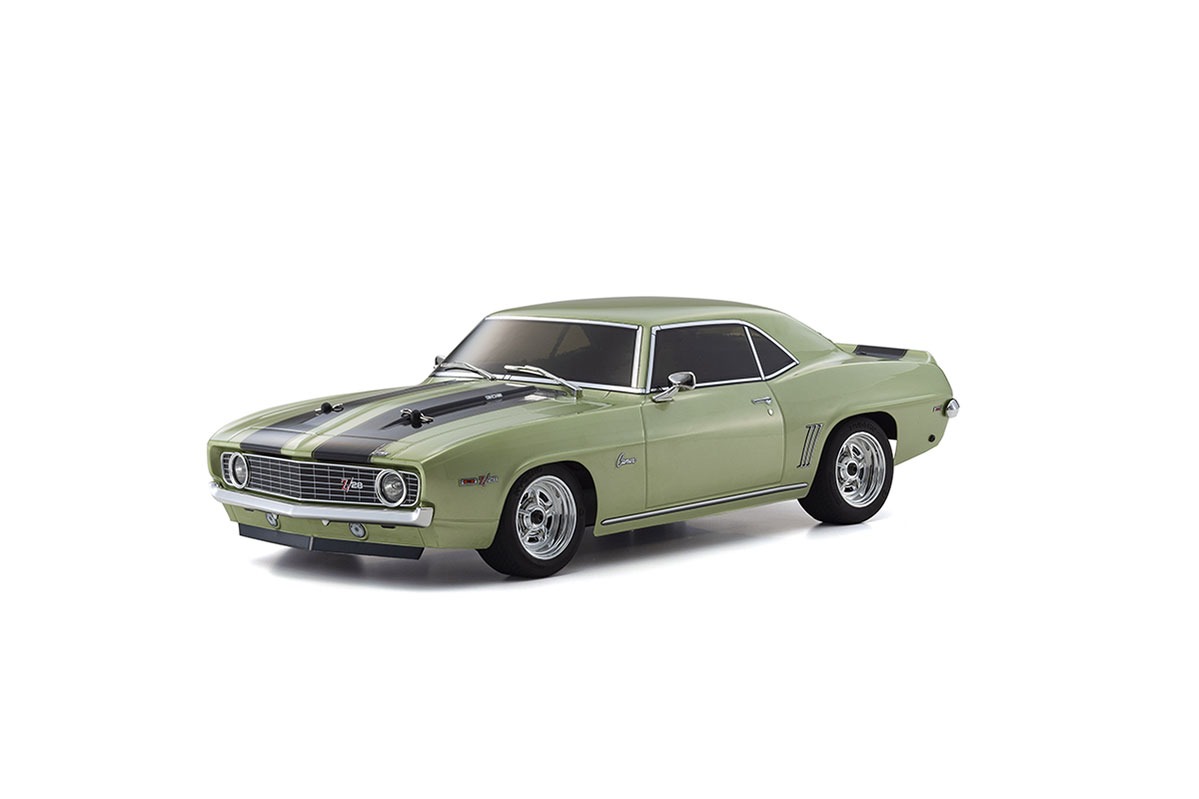

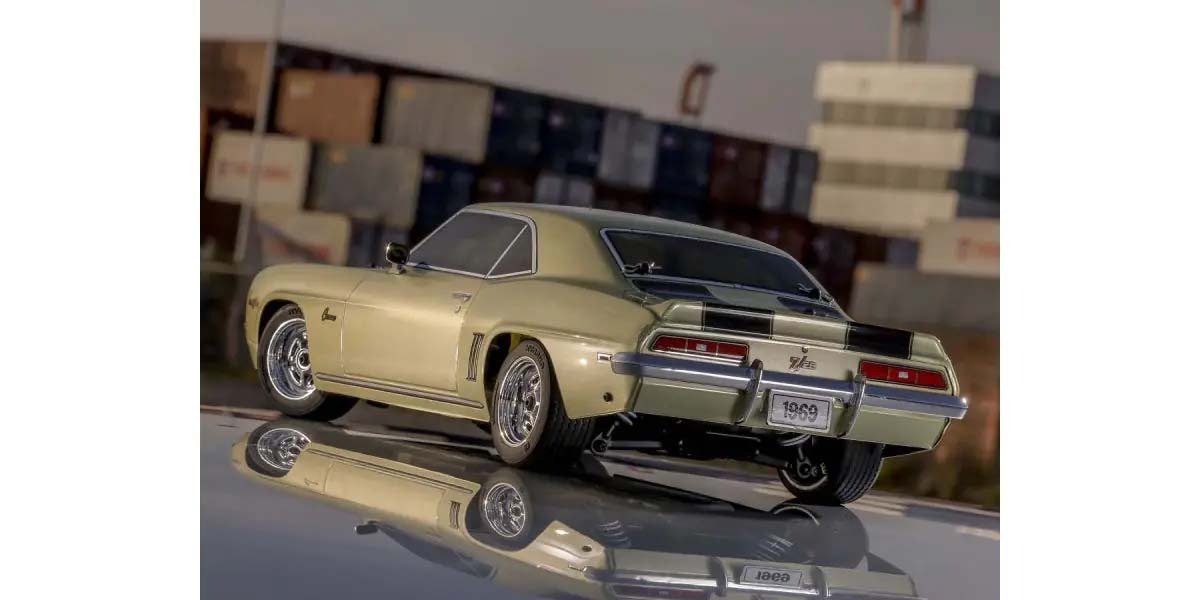

Classic Vintage Touring Car tires and Rostyle-style wheels perfectly complement the Camaro body. Molded brake discs and painted brake calipers add further scale detail, while optional Kyosho LED lighting can be installed in the front and rear light housings for an even more realistic appearance.

Our Recommended Battery and Charger

To make your Kyosho Chevrolet Camaro Z/28 as easy as possible to get ready for driving, we recommend the Absima 4000mAh 7.4V 50C 2S Hardcase LiPo Battery with T-Plug. Its standard-size hardcase format fits the FZ02 battery compartment, while the T-Plug connects directly to the car’s ESC without requiring an additional adapter.

For charging, we recommend the simple Absima LC-2.0 LiPo Charger – 4000034. The battery is connected to the charger through its JST/XH balance connector, making it an easy Plug & Play solution for users who do not need a more advanced programmable charger.

Our recommended setup:

• Absima 4000mAh 7.4V 50C 2S Hardcase LiPo Battery with T-Plug – 4140008
• Absima LC-2.0 LiPo Charger – 4000034

The T-Plug connects the battery to the car, while the balance connector is used for charging. This combination provides a simple and practical starter setup with good battery capacity for general hobby driving.

Kyosho Chevrolet Camaro Z/28 Key Features

• 1:10 scale electric RC car
• Detailed 1969 Chevrolet Camaro Z/28 Ultra Scale body
• Frost Green color
• Fazer Mk2 FZ02 chassis
• Shaft-driven full-time 4WD
• Factory-assembled Readyset / RTR
• Low center of gravity symmetrical chassis
• Oil-filled shock absorbers
• Sealed front and rear gear differentials
• Full ball-bearing drivetrain
• Kyosho G14L 550-size brushed motor
• Waterproof 60A ESC
• 2S LiPo compatible
• Deans / T-Plug battery connector
• Waterproof KS202W steering servo
• Syncro KT-231P+ 2.4 GHz transmitter
• Vintage Touring Car tires
• Rostyle-style wheels
• Molded brake discs and painted brake calipers
• Compatible with 29T–37T pinion gears
• Prepared for optional Kyosho LED lighting

Technical Specifications

• Scale: 1:10
• Drive system: 4WD
• Chassis: Fazer Mk2 FZ02
• Type: On-Road / Touring
• Completion level: Readyset / RTR
• Length: 461 mm
• Width: 195 mm
• Body width: 210 mm
• Height: 138 mm
• Wheelbase: 260 mm
• Front / rear track: 167 / 167 mm
• Tire size: Ø64 × 27.7 mm
• Gear ratio: 6.54:1
• Spur gear: 68T
• Pinion gear: 32T
• Weight: approx. 1650 g
• Motor: Kyosho G14L
• ESC: 60A waterproof brushed ESC
• Transmitter: Syncro KT-231P+
• Battery connector: Deans / T-Plug
• Item code: K.34418T2B
• EAN: 4548565403714

What’s Included

• Kyosho Fazer Mk2 FZ02 factory-assembled chassis
• Factory-painted and finished 1969 Chevrolet Camaro Z/28 Frost Green body
• Kyosho G14L brushed motor
• 60A waterproof ESC
• KS202W steering servo
• Receiver

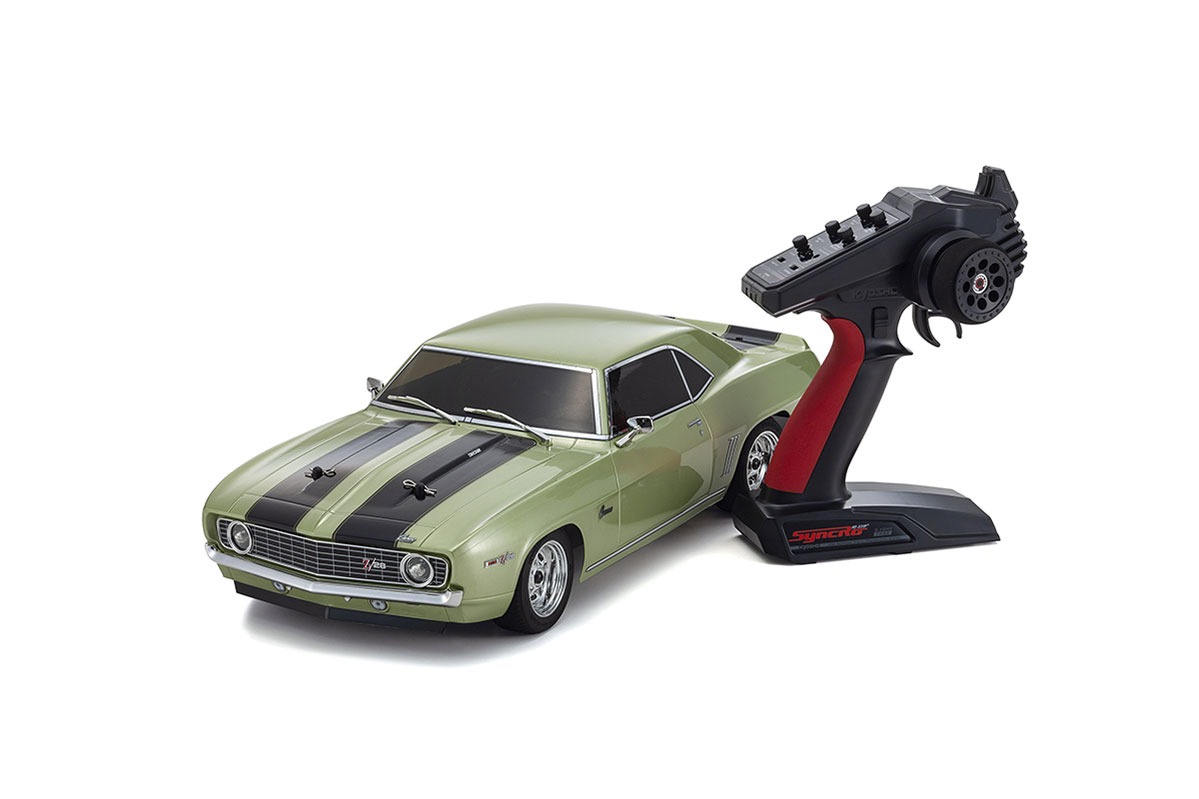

• Syncro KT-231P+ 2.4 GHz transmitter
• Vintage Touring Car wheels and tires
• +5 mm offset wheel hubs
• Hex wrench
• Wheel wrench
• Setup parts

Required for Operation

• Suitable 2S 7.4V LiPo or 7.2V NiMH drive battery
• Compatible battery charger
• 4 × AA batteries for the transmitter

For an easy starter setup, we recommend the Absima 4000mAh 7.4V 2S Hardcase LiPo Battery with T-Plug together with the Absima LC-2.0 LiPo Charger – 4000034.
