Kyosho Mini-Z AWD Toyota Sprinter Trueno AE86 Initial D Project D Final Version Readyset – 32656IDC

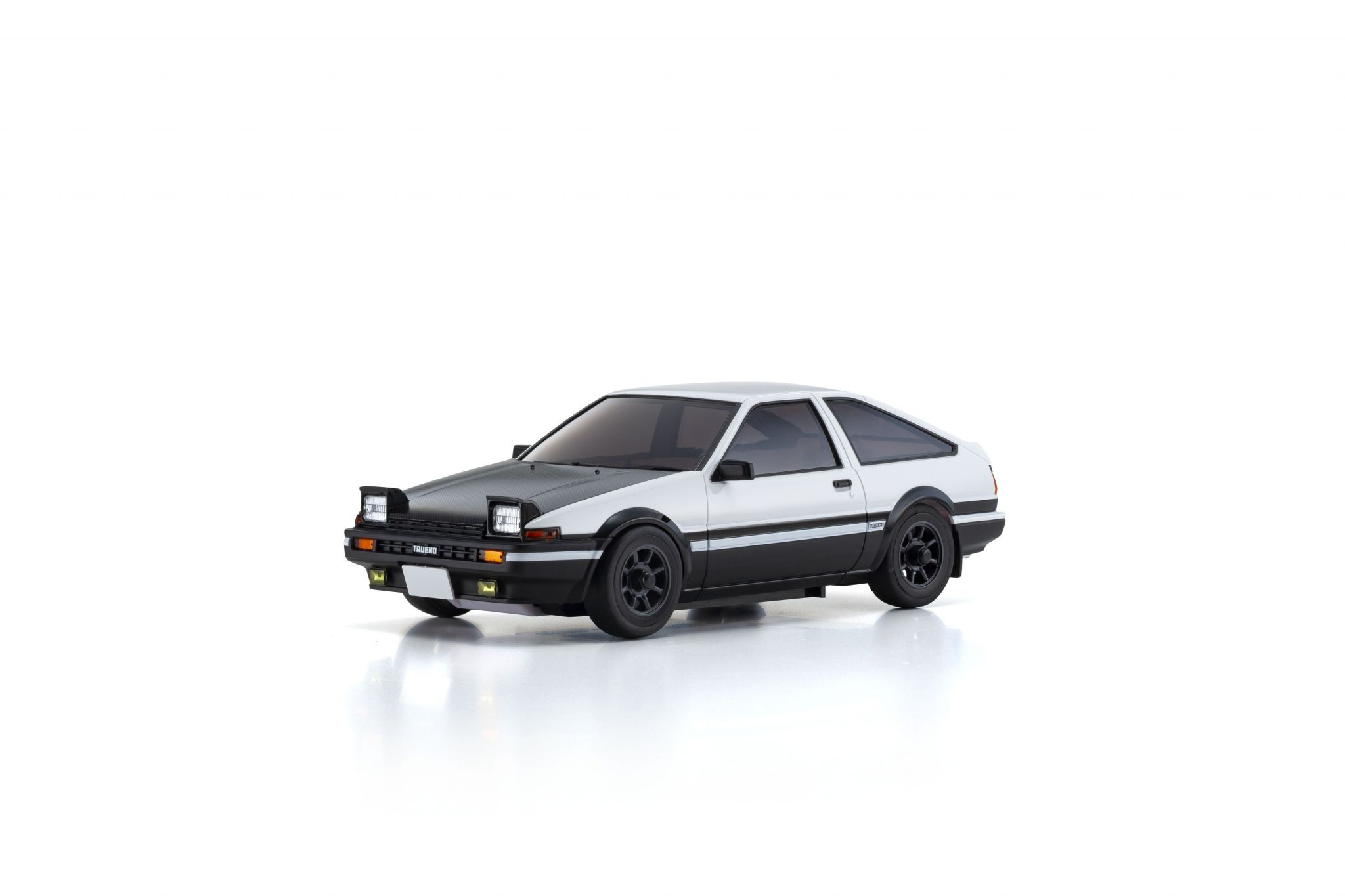

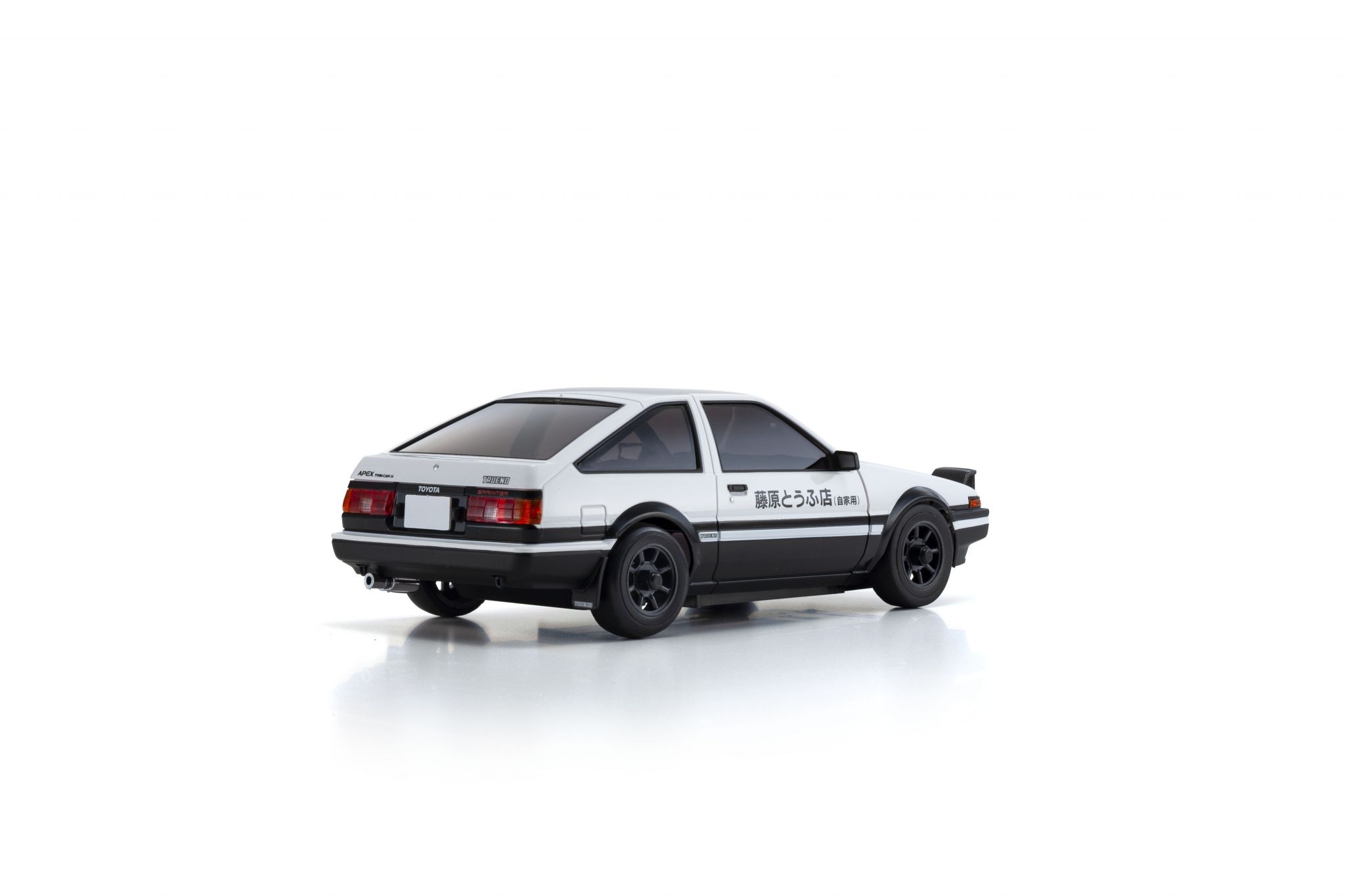

The highly detailed Toyota Sprinter Trueno AE86 body recreates the Project D Final Version seen in the later chapters of Initial D. Its iconic white and black colour scheme, carbon-fibre-style bonnet and authentic details represent the extensively modified final form of Takumi’s famous Hachiroku.

Under the body is Kyosho’s MA-020-N AWD chassis with a shaft-driven four-wheel-drive system. The front VCS variable camber suspension optimises camber movement throughout the suspension stroke, while the rear uses a strut-type suspension. An updated steering control program and 14 ball bearings provide smooth and precise operation.

Drift tyres are fitted as standard, allowing controlled slides straight from the box. The chassis features dedicated mounting space for the optional MZW711 gyro unit, while gyro sensitivity can be adjusted directly on the chassis to fine-tune steering assistance for different driving styles and skill levels.

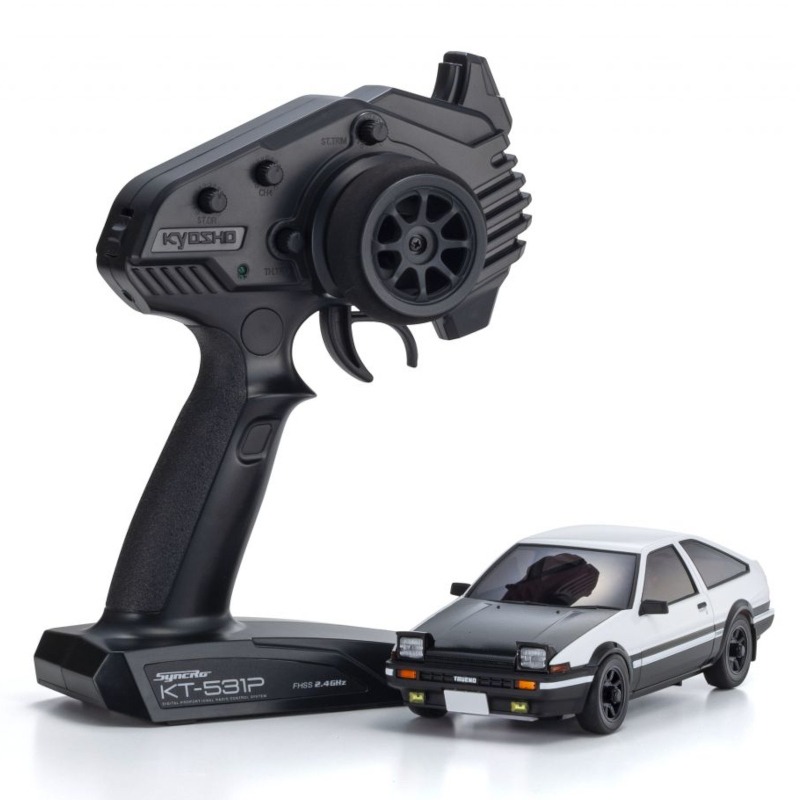

The included Syncro KT-531P 2.4GHz transmitter features steering and throttle trim, steering dual rate and Training Mode. Training Mode limits vehicle speed, making the Mini-Z easier to control while learning. The transmitter can also control the flashing speed of the optional MZW429R LED light unit, which can be installed in the AE86 body.

Pre-painted closed-headlight parts are also included, allowing the appearance of the famous pop-up headlights to be customised.

This model is supplied as a Readyset with the factory-assembled chassis, finished Toyota Sprinter Trueno AE86 Initial D Project D Final Version body and transmitter already included. Simply add the required AAA batteries to start driving.

Explore the complete Kyosho Mini-Z range for RWD, AWD, Buggy and 4×4 models, or browse our Kyosho Mini-Z spare parts for maintenance, repairs and upgrades.

Key Features

• Kyosho Mini-Z AWD Readyset
• Toyota Sprinter Trueno AE86 Initial D Project D Final Version body
• Authentic Initial D styling
• Carbon-fibre-style bonnet
• MA-020-N four-wheel-drive chassis
• Shaft-driven AWD system
• Updated steering control program
• Drift tyres fitted as standard
• VCS variable camber front suspension
• Strut-type rear suspension
• 14 ball bearings
• Compatible with optional MZW711 gyro unit
• Adjustable gyro sensitivity
• Compatible with optional MZW429R LED light unit
• Pre-painted closed-headlight parts included
• Syncro KT-531P 2.4GHz transmitter
• Training Mode for reduced speed
• Factory-finished body and assembled chassis

Technical Data

• Product code: 32656IDC
• JAN/EAN: 4548565509140
• Chassis: MA-020-N AWD
• Length: 165.0 mm
• Width: 68.0 mm
• Height: 53.0 mm
• Weight: approx. 167 g
• Wheelbase: 94.0 mm (L)
• Front track: 58.5 mm
• Rear track: 58.5 mm
• Front wheel offset: Narrow ±0.0 mm
• Rear wheel offset: Narrow ±0.0 mm
• Radio system: Syncro KT-531P 2.4GHz

Included

• Factory-assembled Mini-Z AWD chassis with installed electronics
• Factory-finished Toyota Sprinter Trueno AE86 Initial D Project D Final Version body
• Syncro KT-531P 2.4GHz transmitter
• Pre-painted closed-headlight parts
• Mini pylon
• 15T, 17T, 19T and 21T pinion gears
• 27T, 29T and 31T spur gears
• Spare wheel nut
• Wheel wrench
• Pinion removal tool

Required to Run

• 4 × AAA alkaline batteries or NiMH rechargeable batteries for the car
• 4 × AAA batteries for the transmitter
