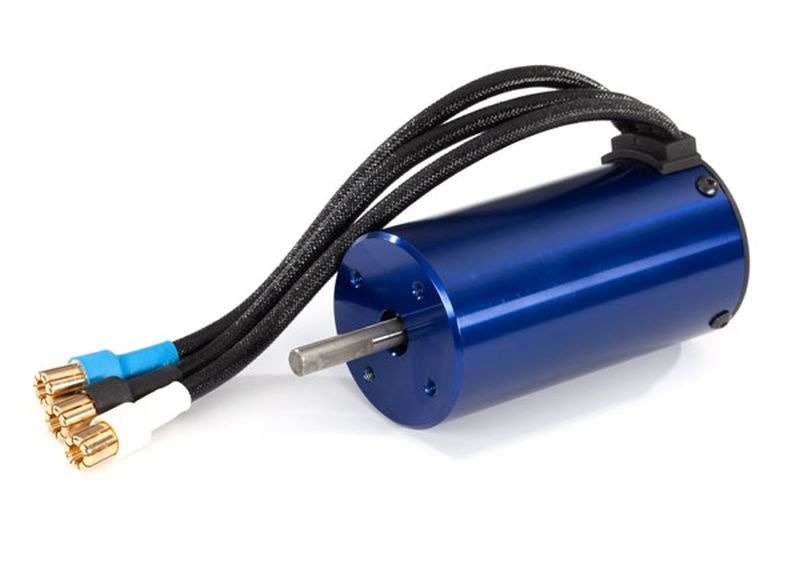

Motor Velineon 540XL Brushless – Traxxas TRX3461

Featuring a sensorless brushless design, the Velineon 540XL offers smooth operation and efficient power delivery under demanding conditions. The motor’s high torque output ensures strong acceleration and dependable performance even in heavier vehicles.

Equipped with 6.5 mm gold-plated bullet connectors, the motor is designed for maximum current transfer and minimal power loss. The Velineon 540XL is the standard replacement motor for the Traxxas Maxx®, Stampede® 4X4, and Jato® 4X4 VXL platforms. It is not intended for marine applications.

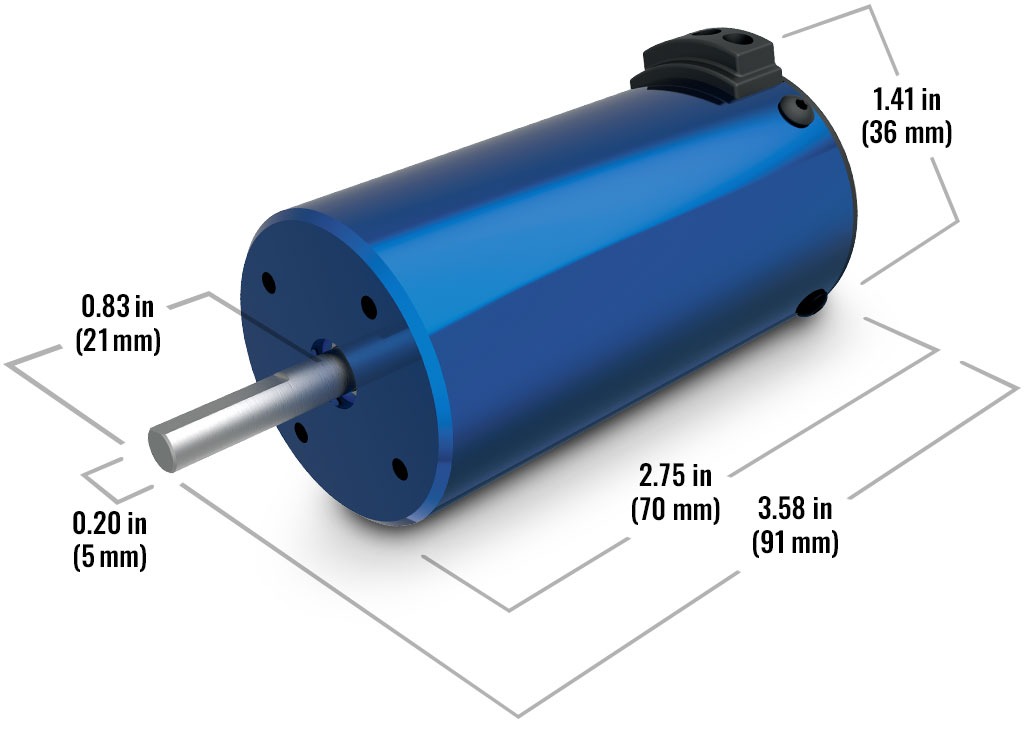

Specifications
• Type: Sensorless Brushless Motor
• Kv Rating: 2400Kv
• Diameter: 36 mm
• Length: 91 mm
• Shaft Diameter: 5 mm
• Weight: 317 g
• Connector Type: 6.5 mm gold-plated bullet connectors

Features
• Massive torque with brushless efficiency
• Sensorless brushless design
• 6.5 mm gold-plated connectors for maximum current flow
• Durable construction for high-performance applications
• Standard replacement for Maxx®, Stampede® 4X4, and Jato® 4X4 VXL
• Not intended for marine models
