Adjustable Ride Height Gauge V2 30-45mm – T-Work’s

This adjustable ride height gauge allows racers to fine-tune chassis clearance according to track surface, traction level, and driving style. Fine measurement scales and a 1 mm locking slot system provide highly accurate and repeatable adjustments, helping maintain stable handling and optimal suspension performance.

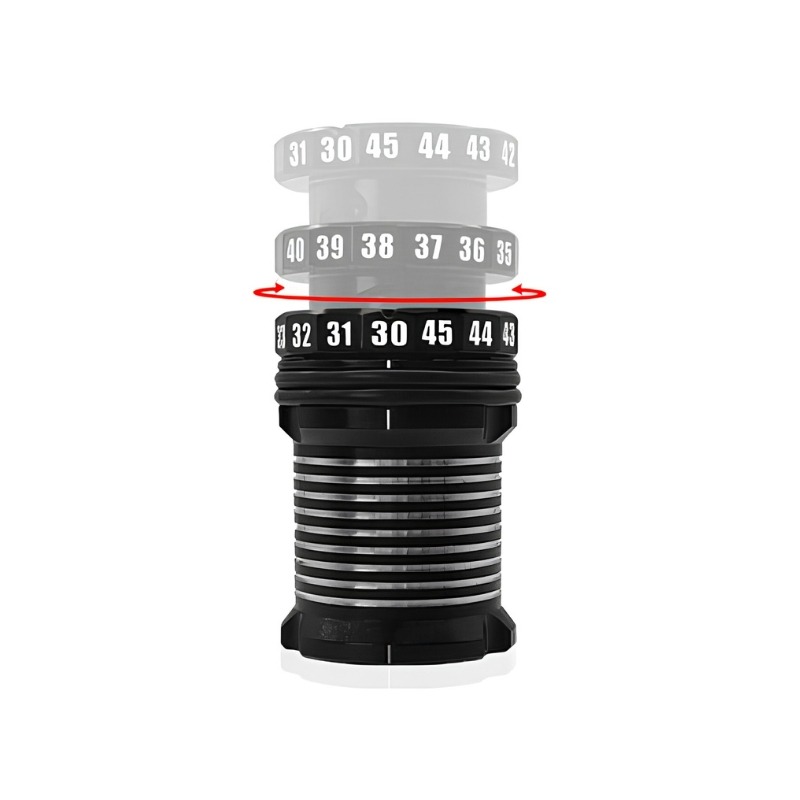

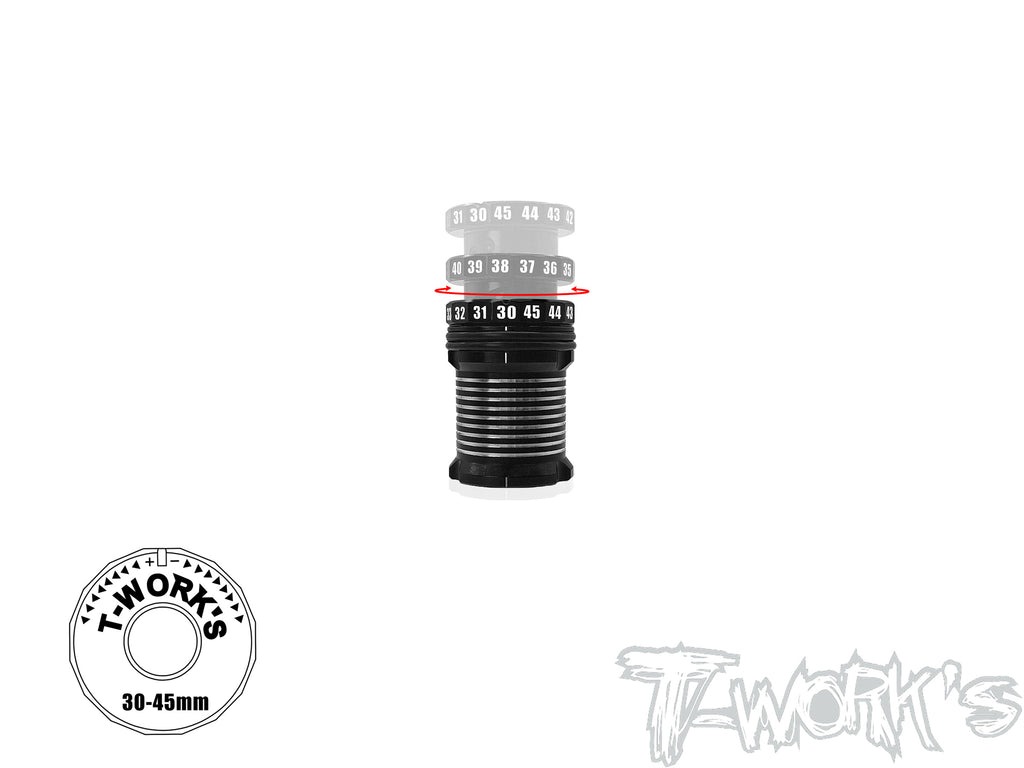

The adjustment system uses a simple rotating mechanism. Turning the shock adjustment ring clockwise increases ride height, while counterclockwise rotation lowers the chassis. Quick and easy to use both at the track and on the workbench.

Key Features

• Adjustable RC ride height setup gauge
• CNC-machined aluminum construction
• Durable black anodized finish
• Precision scales with 1 mm locking increments
• Fast and easy rotating adjustment system
• Helps achieve precise and stable suspension setup
• Suitable for different track conditions and setups
• Professional tool for racers and hobbyists

How to Use

Adjust the gauge to the desired height and place it under the flat section of the chassis. If necessary, adjust the suspension preload until the vehicle matches the selected ride height.

Technical Specifications

• Model: TT-116 V2 Adjustable Ride Height Gauge
• Material: CNC-machined aluminum alloy
• Finish: Black anodized
• Adjustment Increment: 1 mm
• Available Height Range:
  • 20…30 mm (TT-116-A)
  • 14…20 mm (TT-116-B)
  • 30…45 mm (TT-116-C)
• Application: RC vehicle ride height measurement and setup
