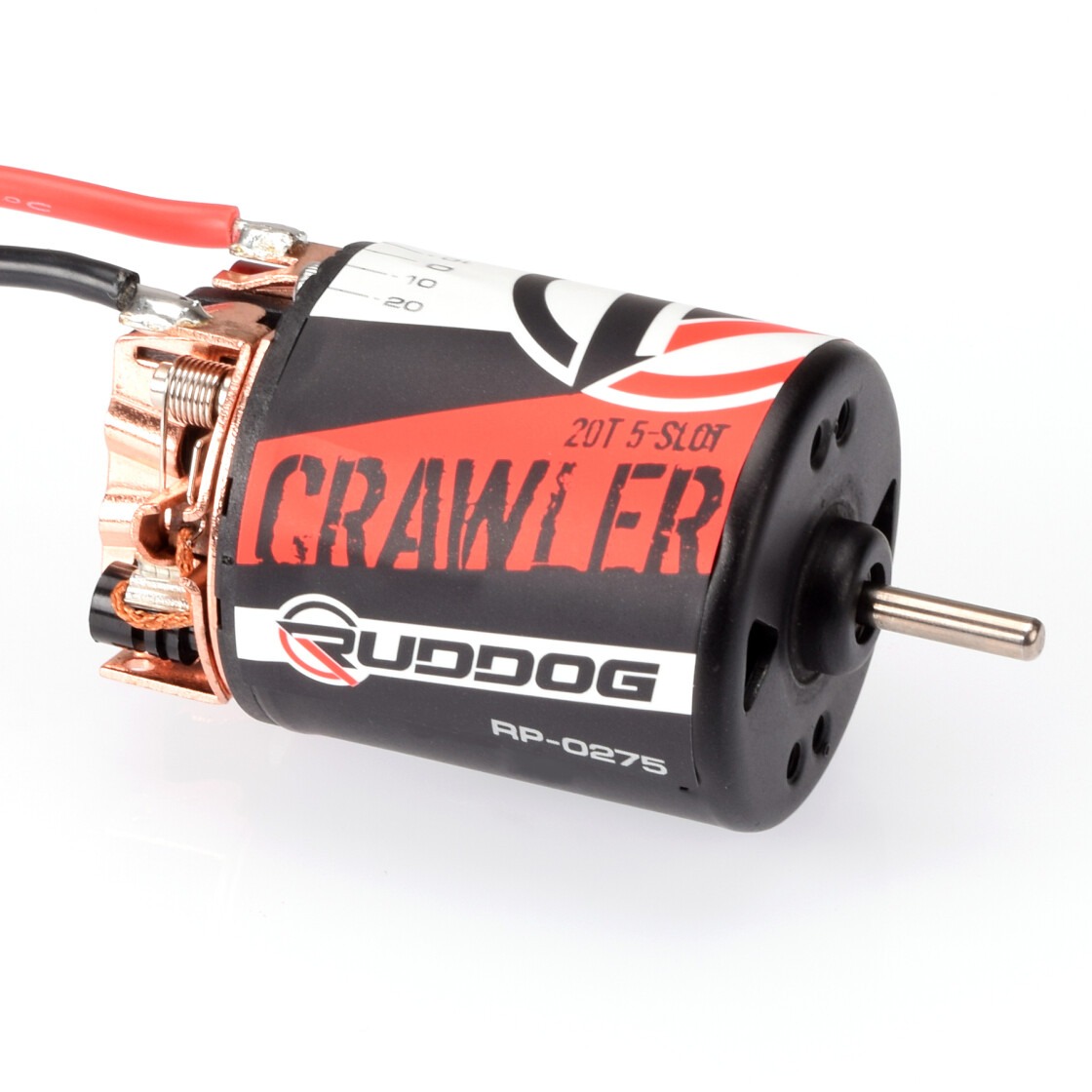

Ruddog 20T 5-Slot 540 1:10 Brushed Motor for Crawler – RP-0275

Compared to the 13T and 16T versions, the 20T winding offers increased torque and reduced wheel speed, making it an excellent choice for technical crawling, rock sections, and heavier scale builds. The smooth power characteristics allow drivers to maintain precise control even in the most demanding terrain.

Dual ball bearings ensure smooth operation and long-term durability, while replaceable brushes and springs make maintenance straightforward. Cooling fins improve heat dissipation under load, and adjustable timing allows the motor rotation direction to be changed for vehicles with unique drivetrain layouts.

Specifications
• Type: Brushed Motor
• Size: 540
• Turns: 20T
• Stator: 5-Slot
• Voltage Range: 2–3S LiPo or 6–9 cell NiMH
• RPM: 11,700 rpm @ 7.4V
• Dimensions: 35.75 × 53 mm (+4 mm front bearing section)
• Weight: 165 g

Features
• 5-slot design for exceptionally smooth power delivery
• Excellent low-speed throttle control
• Dual ball bearings
• Replaceable brushes and springs
• Fully rebuildable construction
• Adjustable timing
• Cooling fins for improved heat dissipation
• Optimized for crawler and scale applications
