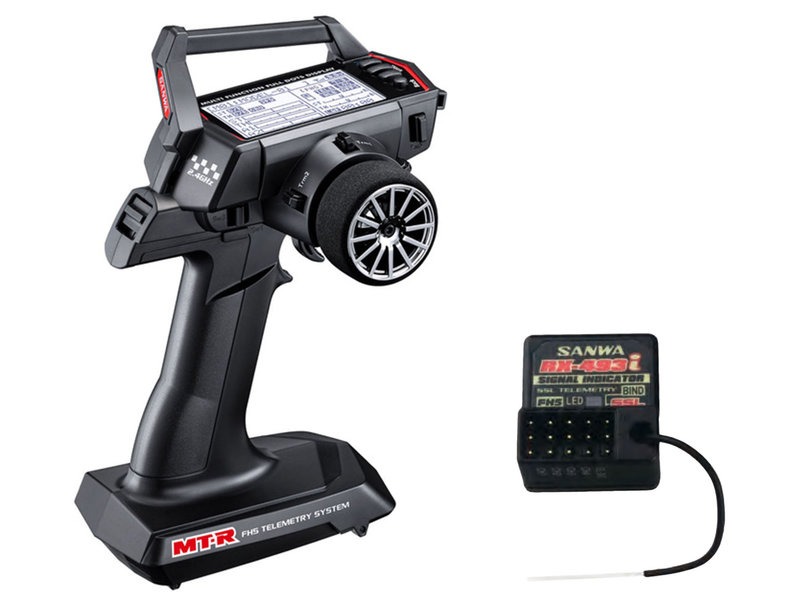

Sanwa MT-R Radio + RX-493i Receiver

The MT-R offers telemetry support, a large backlit LCD display, a fully adjustable trigger and a wide range of setup functions for precise vehicle tuning. The transmitter stores up to 20 models internally, with memory expandable to as many as 250 models using a Micro SD card.

Receiver Compatibility

The MT-R is compatible only with the following Sanwa receivers:

• RX-491
• RX-492
• RX-493
• RX-493i

Features

• 4-channel 2.4 GHz radio system
• Fast FH5 communication system
• Sanwa RX493i receiver included
• Real-time radio signal strength display
• Telemetry support
• Simultaneous display of up to 3 telemetry data points
• Temperature display
• CSV output for LOG data
• CODE 10 compatible with model naming support
• 20-model internal memory
• Up to 250 model memories with Micro SD card
• Large LCD display with adjustable contrast
• LED backlight
• Quick Setup Wizard
• Customizable menu
• Micro SD card support
• Clock
• Detachable carrying handle
• Built-in antenna
• Fully adjustable throttle trigger
• Adjustable steering wheel and trigger tension
• 70/30 or 50/50 throttle trigger position
• Dual Rate
• End Point Adjustment
• ABS braking
• Adjustable servo speed
• Exponential adjustment
• Trim and Sub-Trim
• Servo reversing
• AUX1 and AUX2 functions
• Fail Safe
• Power/battery Fail Safe
• Timer functions: Lap / Interval / Countdown
• Servo response modes: NOR / SHR / SSR
• Free assignment of switches, levers and buttons
• Key beep
• Low battery alarm with adjustable volume
• Powered by 4 × AAA batteries

Included

• SANWA MT-R transmitter
• SANWA RX493i receiver
