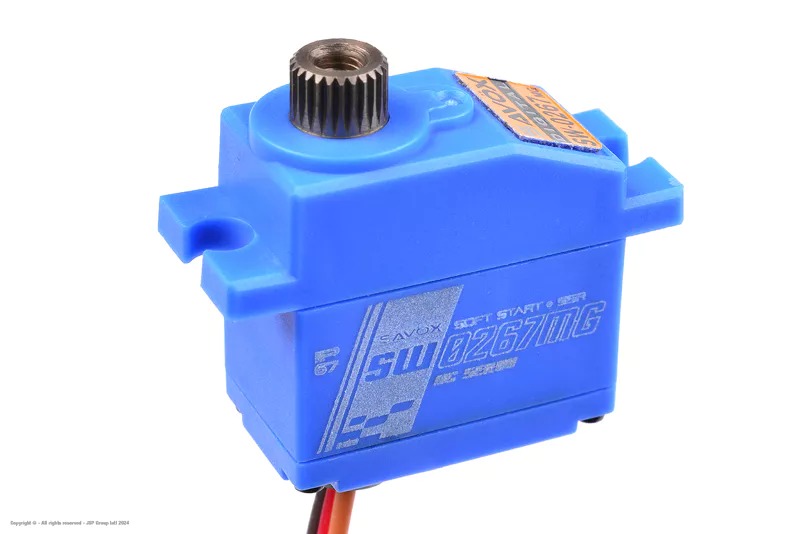

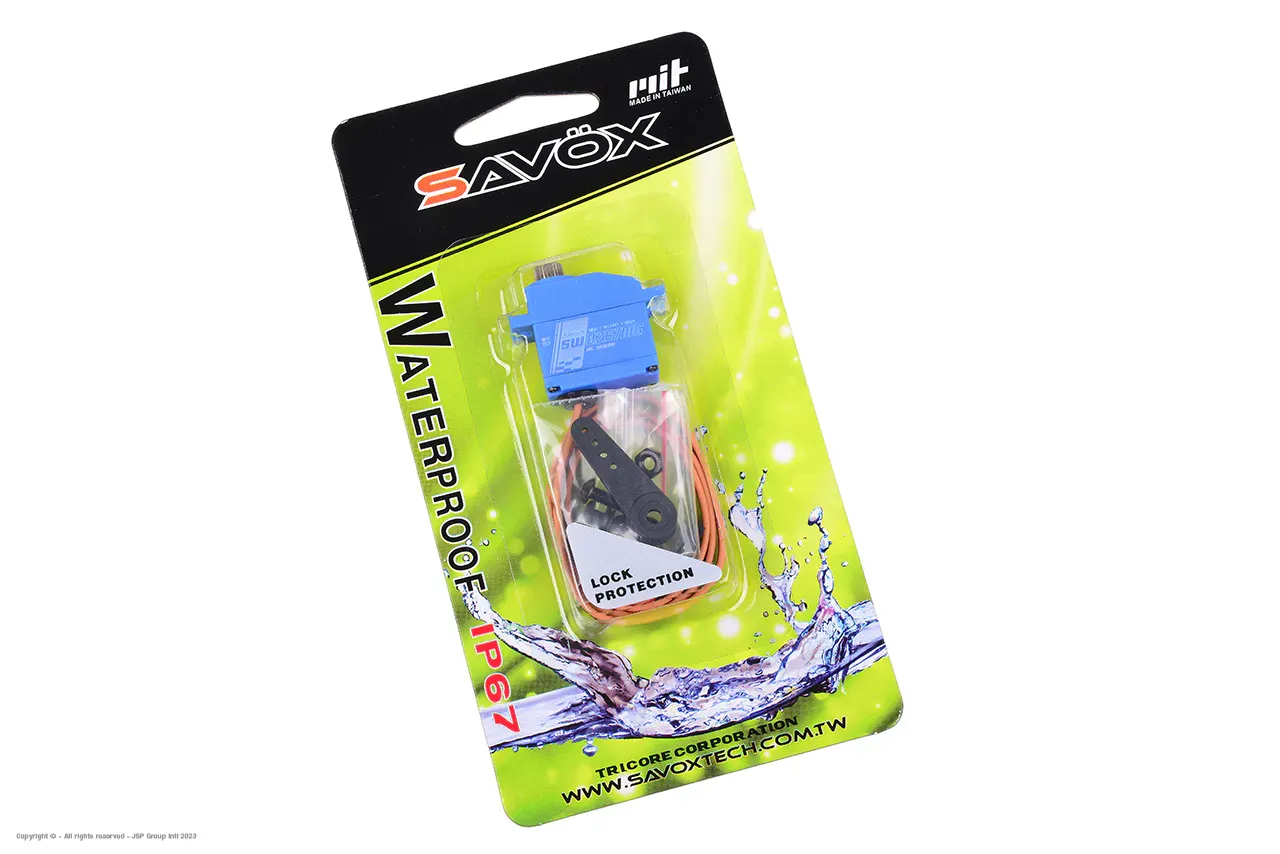

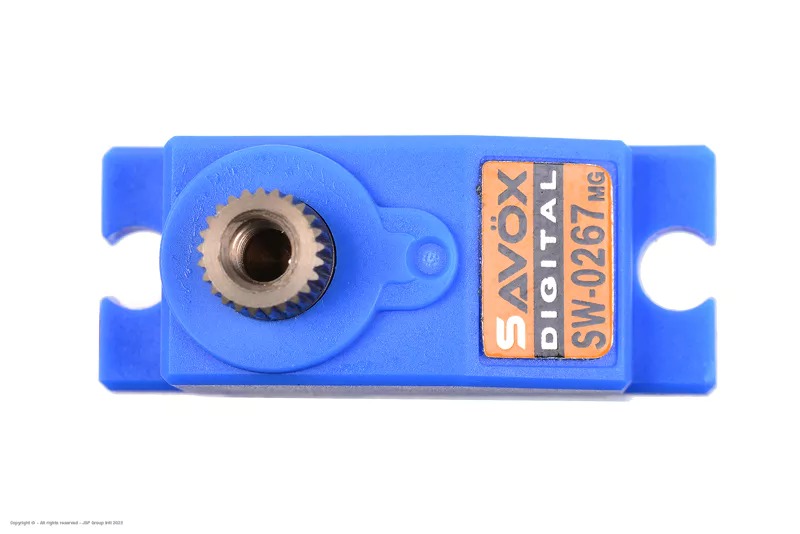

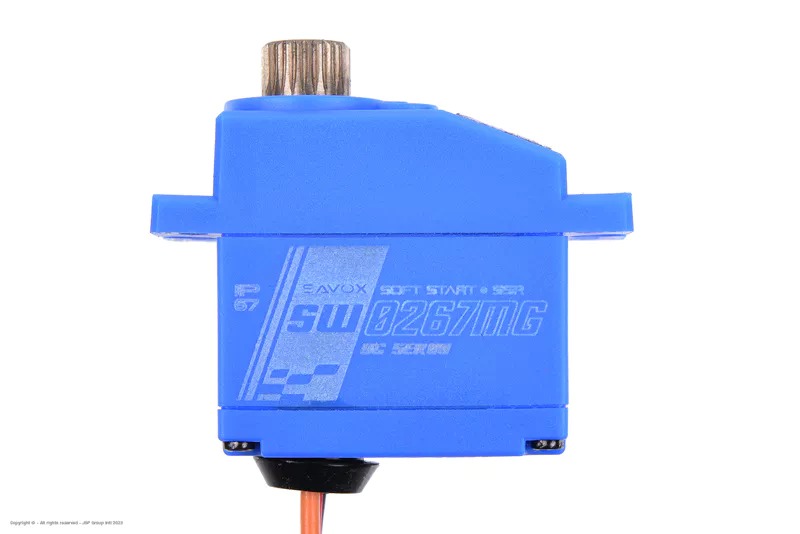

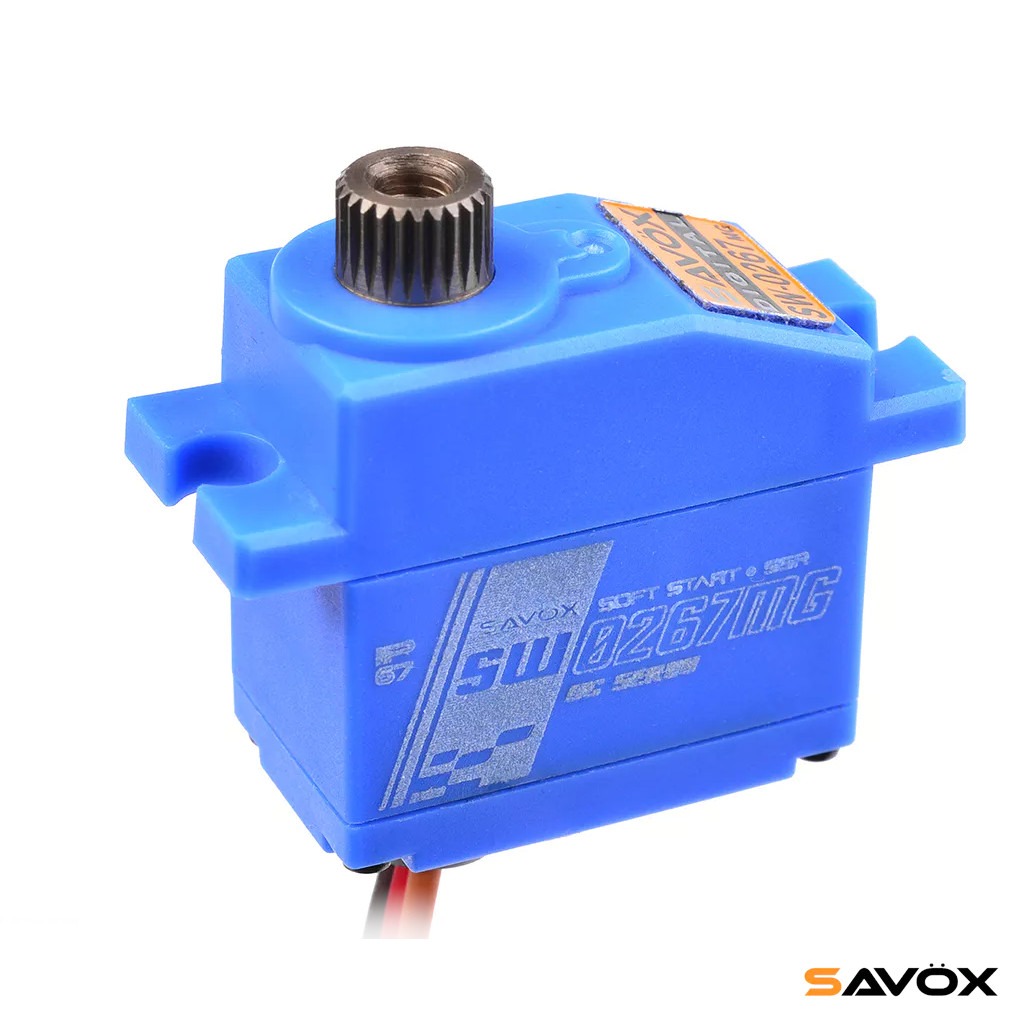

Savöx SW-0267MG (6.0kg/0.13s/6.0v) Digital WP DC Micro servo
-
Brand:
Savöx
The Savöx SW-0267MG is an ultra-compact Blue Line IP67 waterproof micro servo that delivers impressive performance for its size. With up to 6.0 kg-cm torque and a lightweight 14 g design, it is an excellent upgrade for SCX24, FCX24, TRX-4M, and other mini crawlers. Metal gears and waterproof construction ensure reliable performance in demanding environments.
Only 1 left in stock
Description
The Savöx SW-0267MG is one of the smallest servos in the Blue Line range, yet it delivers performance beyond what is typically expected from a micro servo. Its metal gears and digital control system provide precise steering and strong holding power even in demanding terrain.
The IP67 waterproof rating protects the servo against water, mud, and dust, making it ideal for mini crawlers and small RC vehicles that regularly encounter harsh outdoor conditions. The lightweight composite case helps keep overall vehicle weight low while maintaining durability.
With dimensions of only 22.6 × 12.6 × 23.5 mm, the SW-0267MG fits applications where a standard servo simply will not fit.
Key Features
- Blue Line IP67 waterproof micro servo
- Ultra-compact design
- Heavy-duty metal gears
- Digital control system
- Lightweight composite case
- Ball-bearing supported output shaft
- Sanwa SSR compatible
- 21T output spline
- Extended 450 mm wire
Specifications
- Servo Type: Digital Servo
- Line: Blue Line
- Servo Size: Micro
- Motor Type: DC
- Gear Material: Heavy-Duty Metal
- Case Material: Composite
- Protection: IP67 Waterproof
- Bearings: 1 Ball Bearing
- Operating Voltage: 4.8–6.0V
- Speed @ 4.8V: 0.16 sec / 60°
- Speed @ 6.0V: 0.135 sec / 60°
- Torque @ 4.8V: 5.0 kg-cm
- Torque @ 6.0V: 6.0 kg-cm
- Dimensions: 22.6 × 12.6 × 23.5 mm
- Weight: 14 g
- Wire Length: 450 mm
- Wire Gauge: 26 AWG
- Connector: JR
- PCB: 10-bit
- Output Spline: 21T (Ø4.8 mm)
- Dead Band: 3–5 μs
- Frequency Range: 50–360 Hz
- Operating Temperature: -10°C to +50°C
Recommended Applications
- Axial SCX24
- FMS FCX24
- Traxxas TRX-4M
- Mini Crawlers
- Mini Trail Trucks
- Small RC Boats
- Compact RC Projects
- Robotics Applications
- Space-constrained builds
- %
Traxxas E-Revo VXL 4×4 Brushless 1:16 Racing Truck RTR – Blue
SKU: TRX71076-8-BLUEXOriginal price was: 359,00 €.339,00 €Current price is: 339,00 €.In stock (1)Delivery within Estonia 2-3 working days, other European countries 10 days. - %

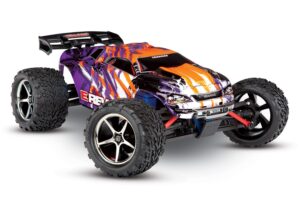

Traxxas E-Revo VXL 4×4 Brushless 1:16 Racing Truck RTR – Purple
