Description

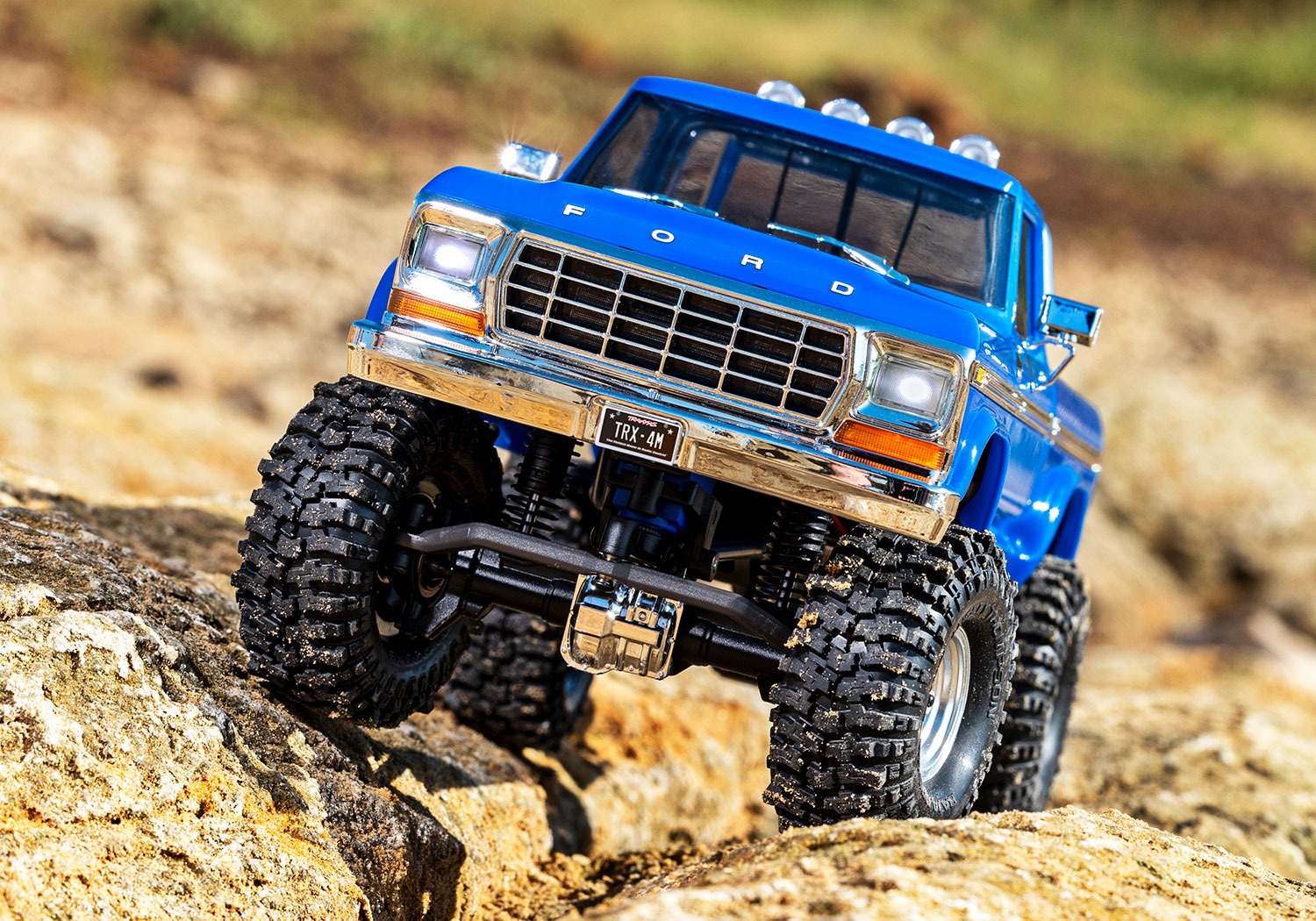

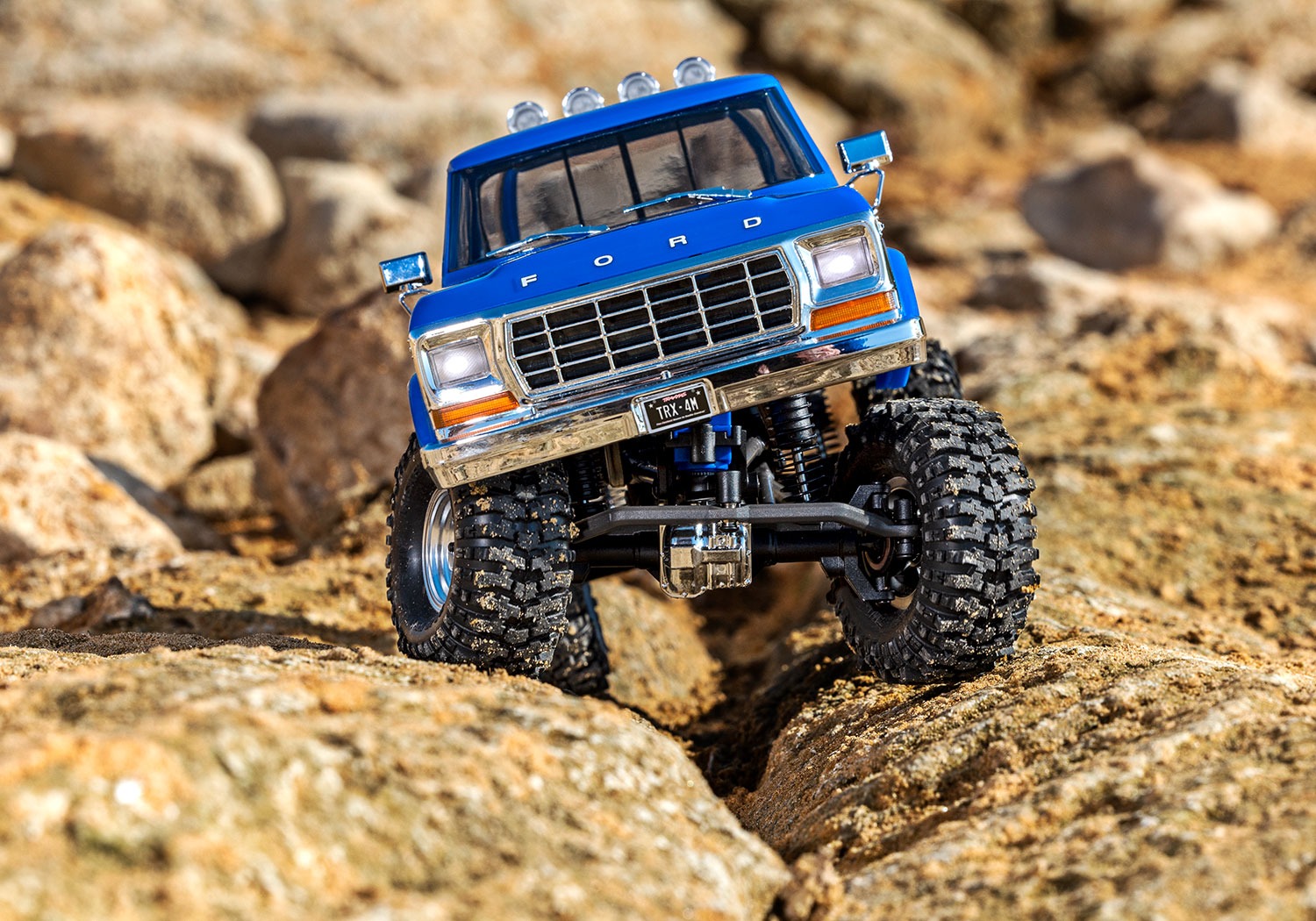

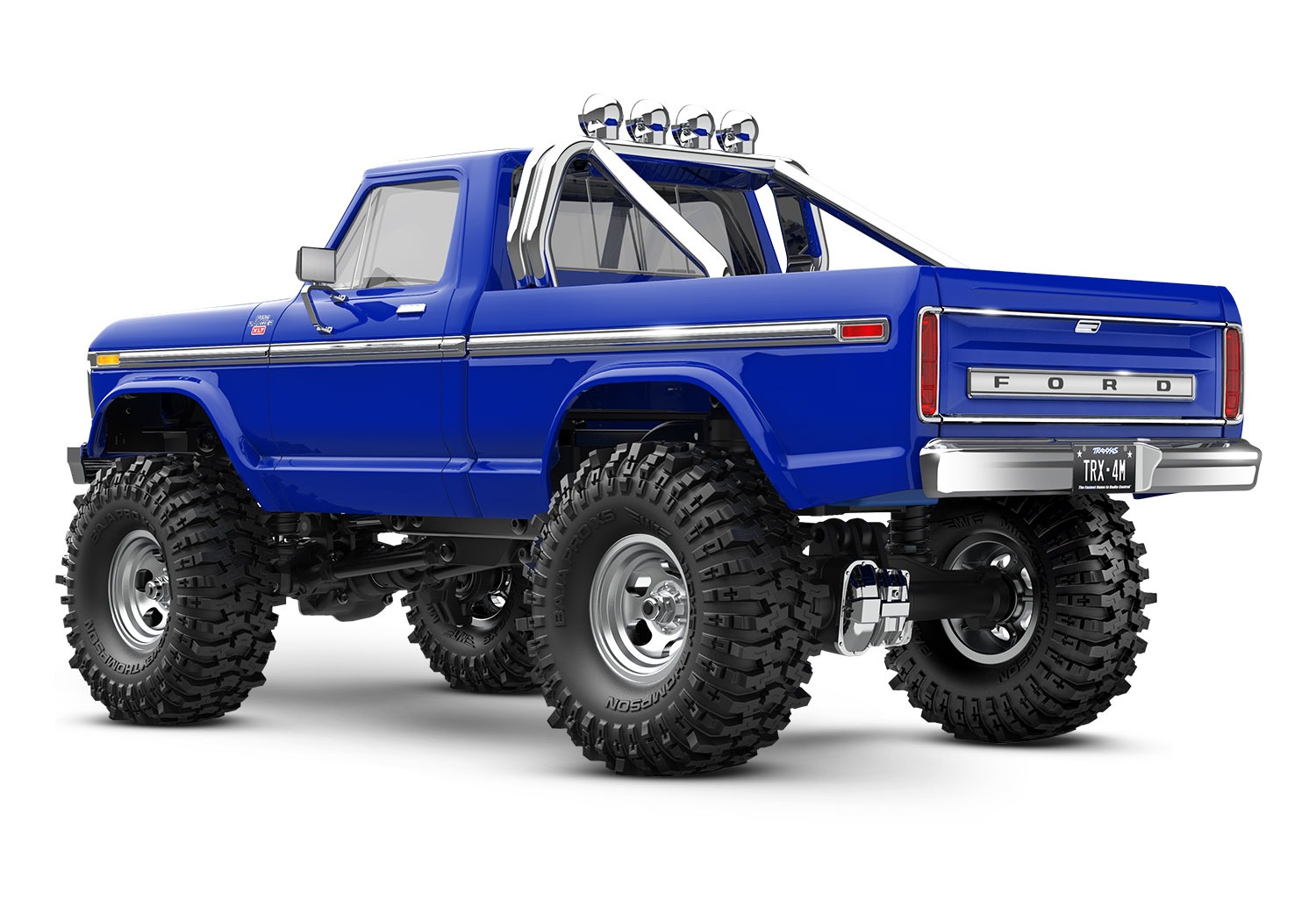

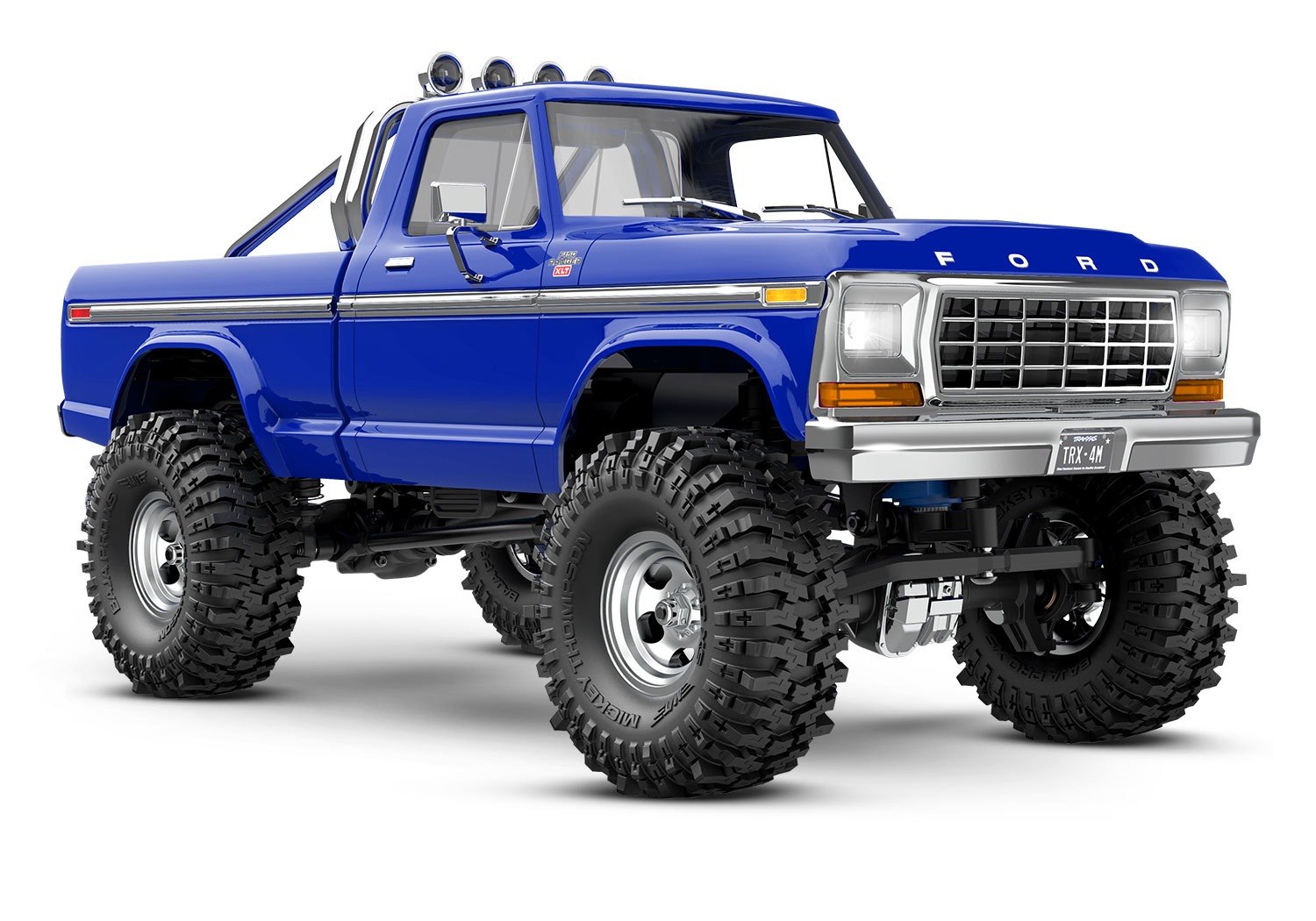

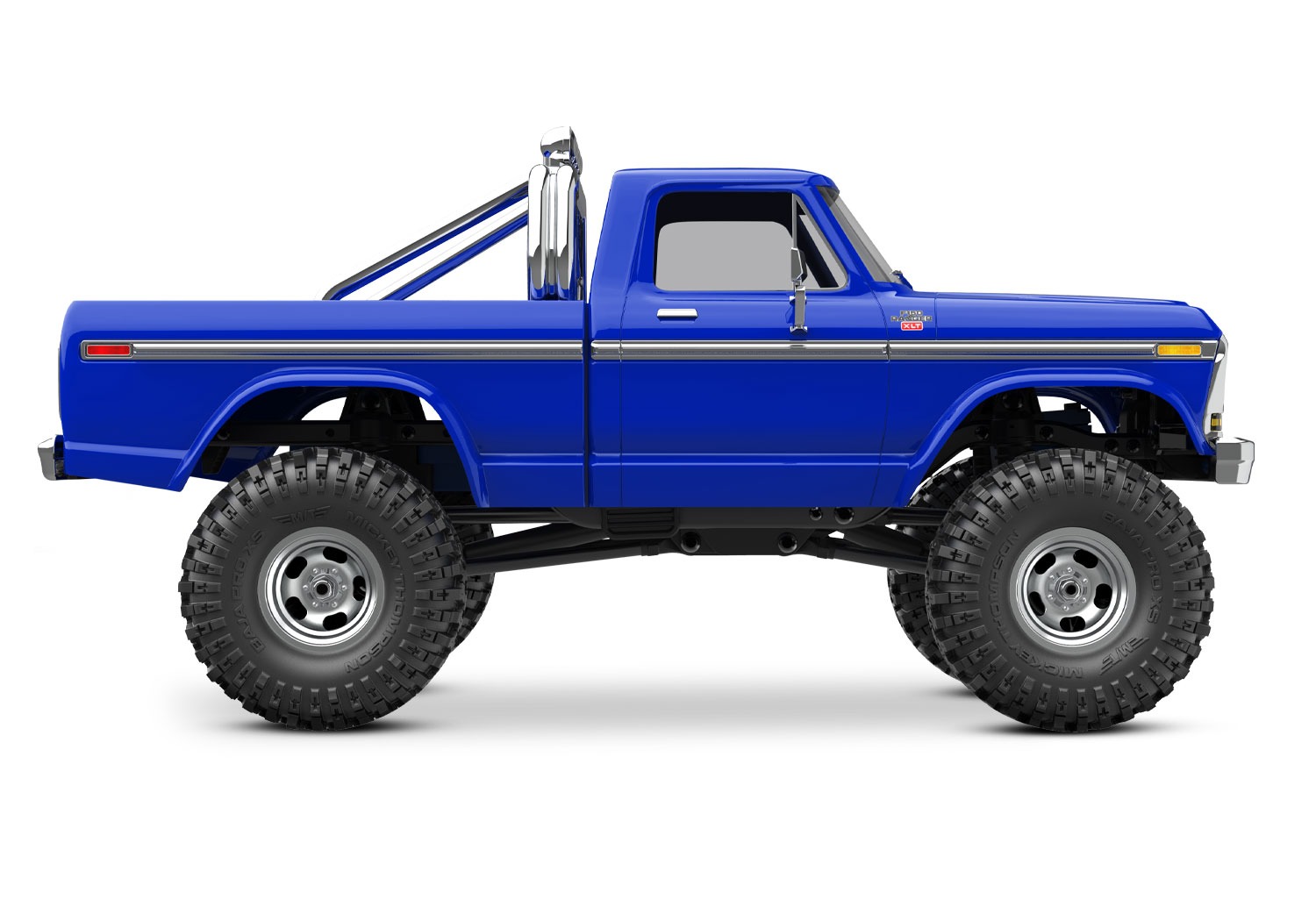

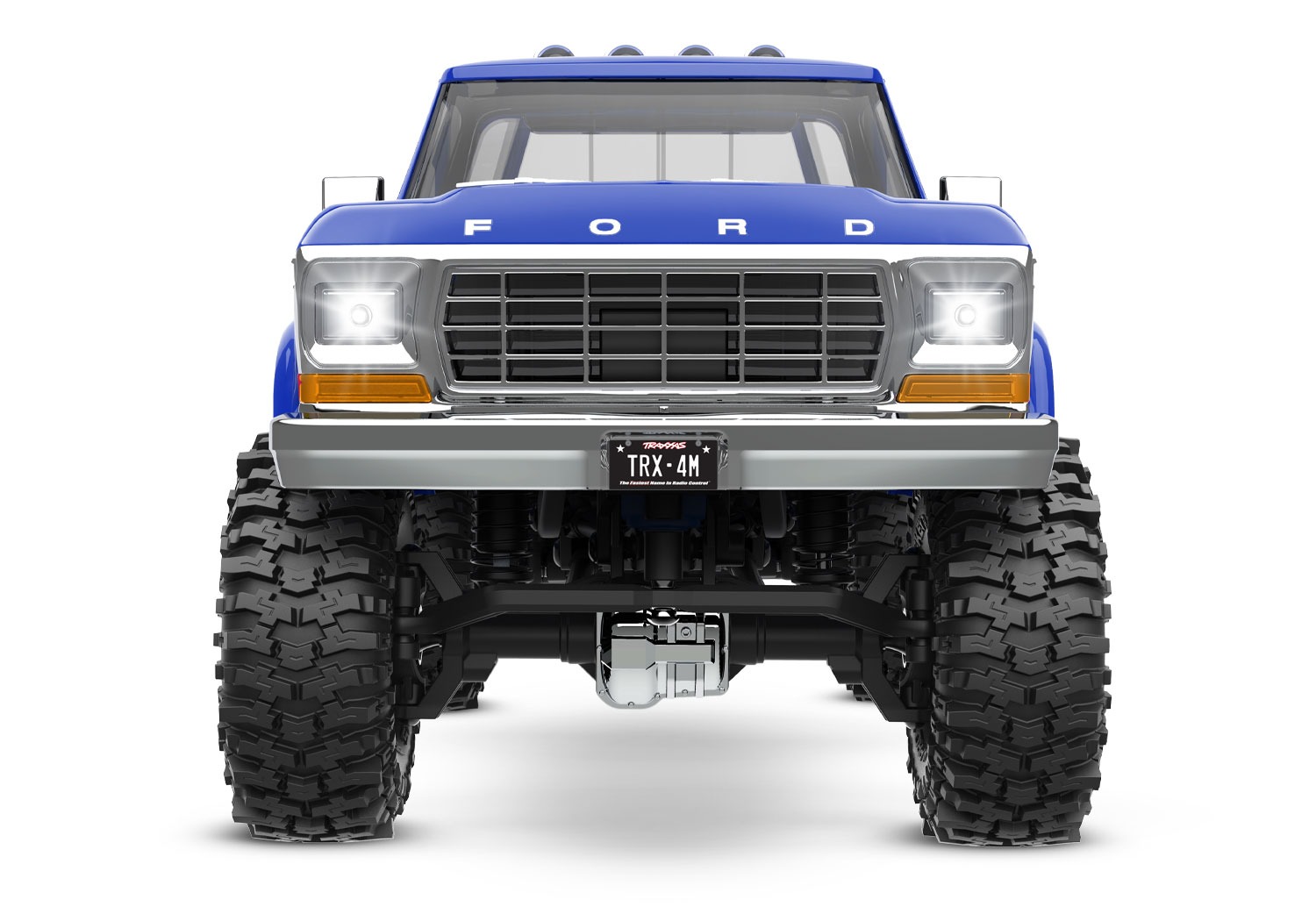

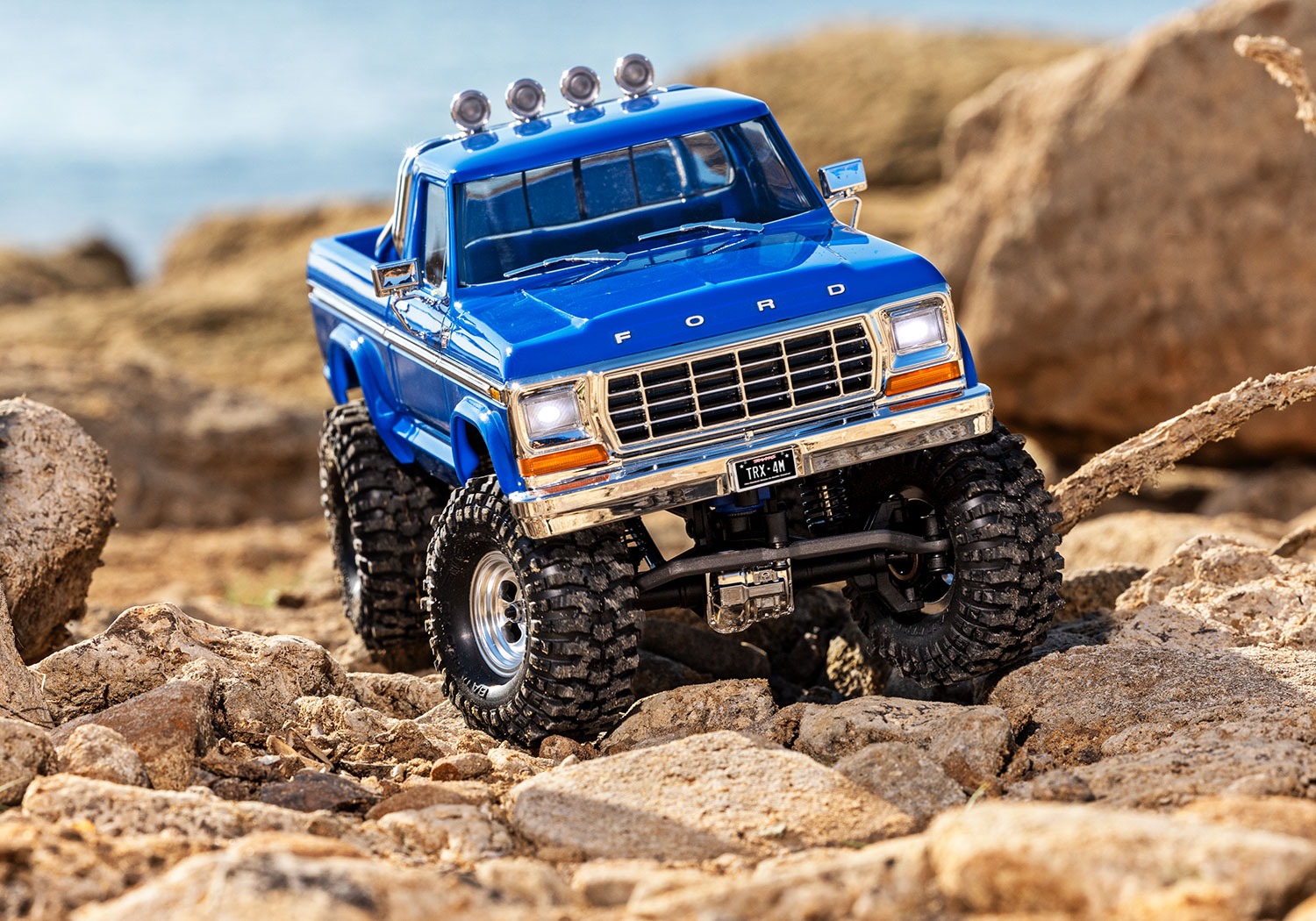

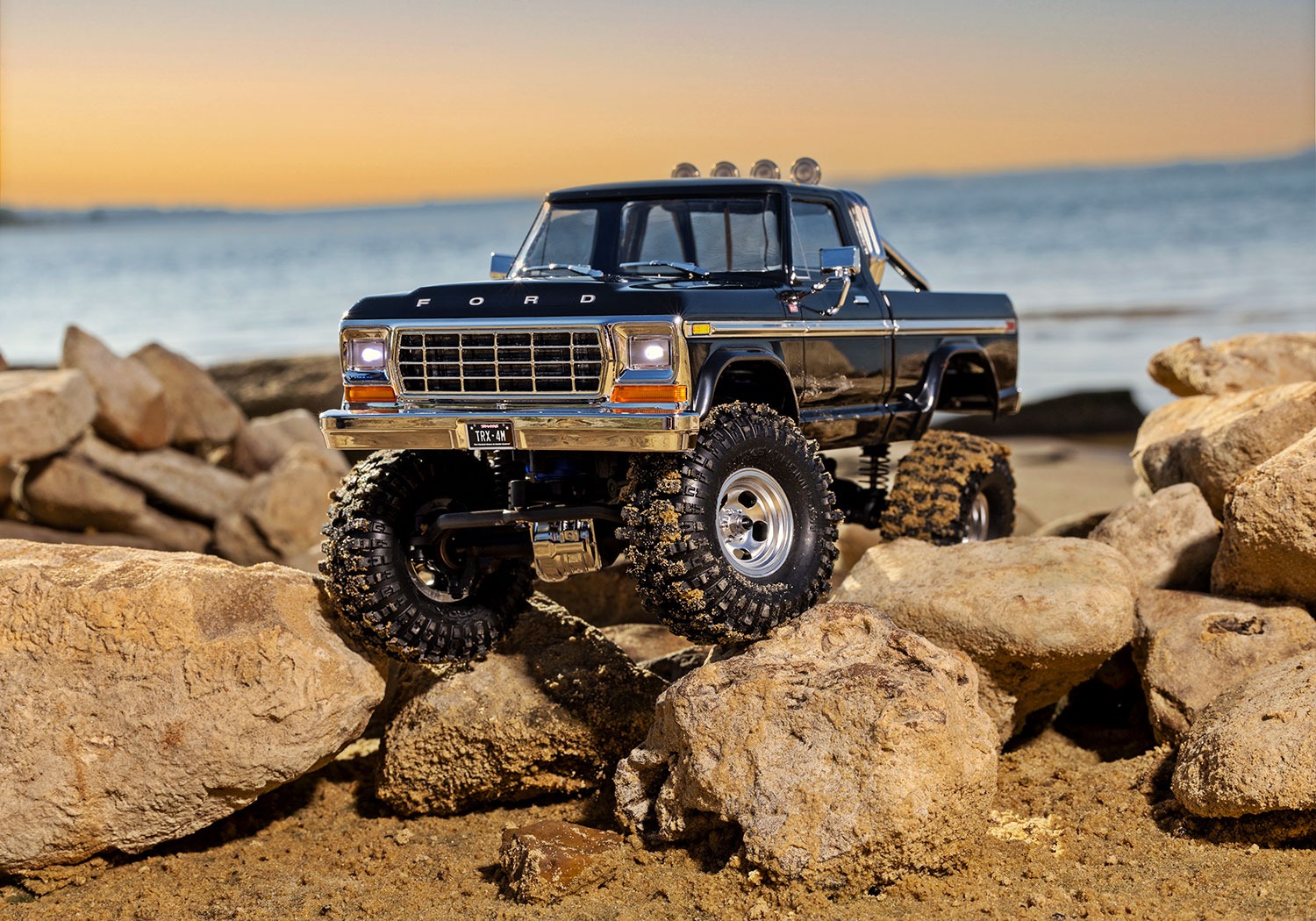

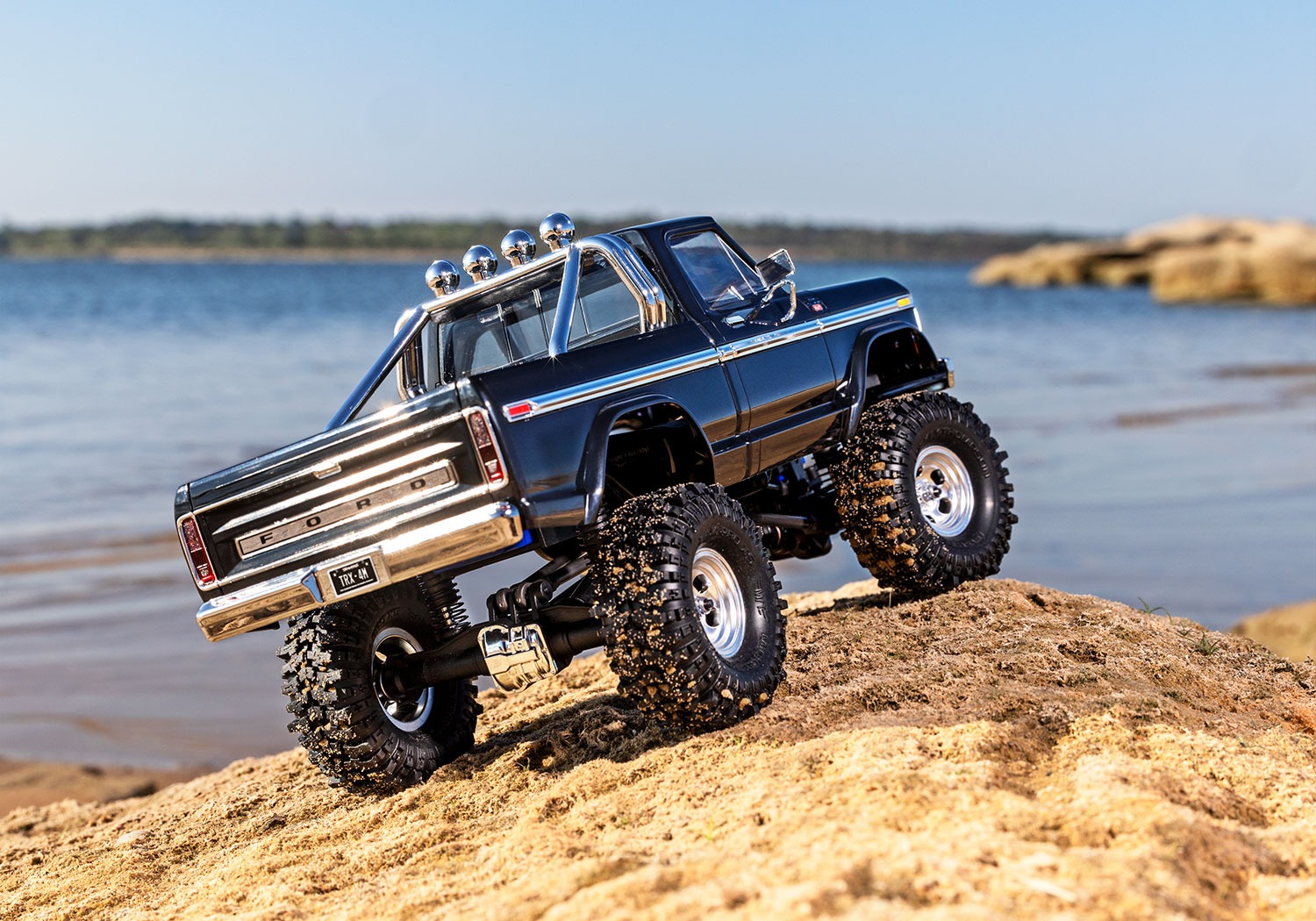

Traxxas TRX-4M HT Ford F-150 RTR Mini crawler with battery and charger!
The Traxxas TRX-4M Ford F-150 High Trail Edition takes small-scale off-roading to a whole new level. Compared to the regular TRX-4M model, the High Trail Edition offers over 35% more ground clearance for improved off-road capability. Larger Mickey Thompson® Baja Pro™ XS tires and a longer wheelbase give this model a true raised-box look and unbeatable traction - whether it's for indoor adventures or real outdoor adventures.
Key Features:

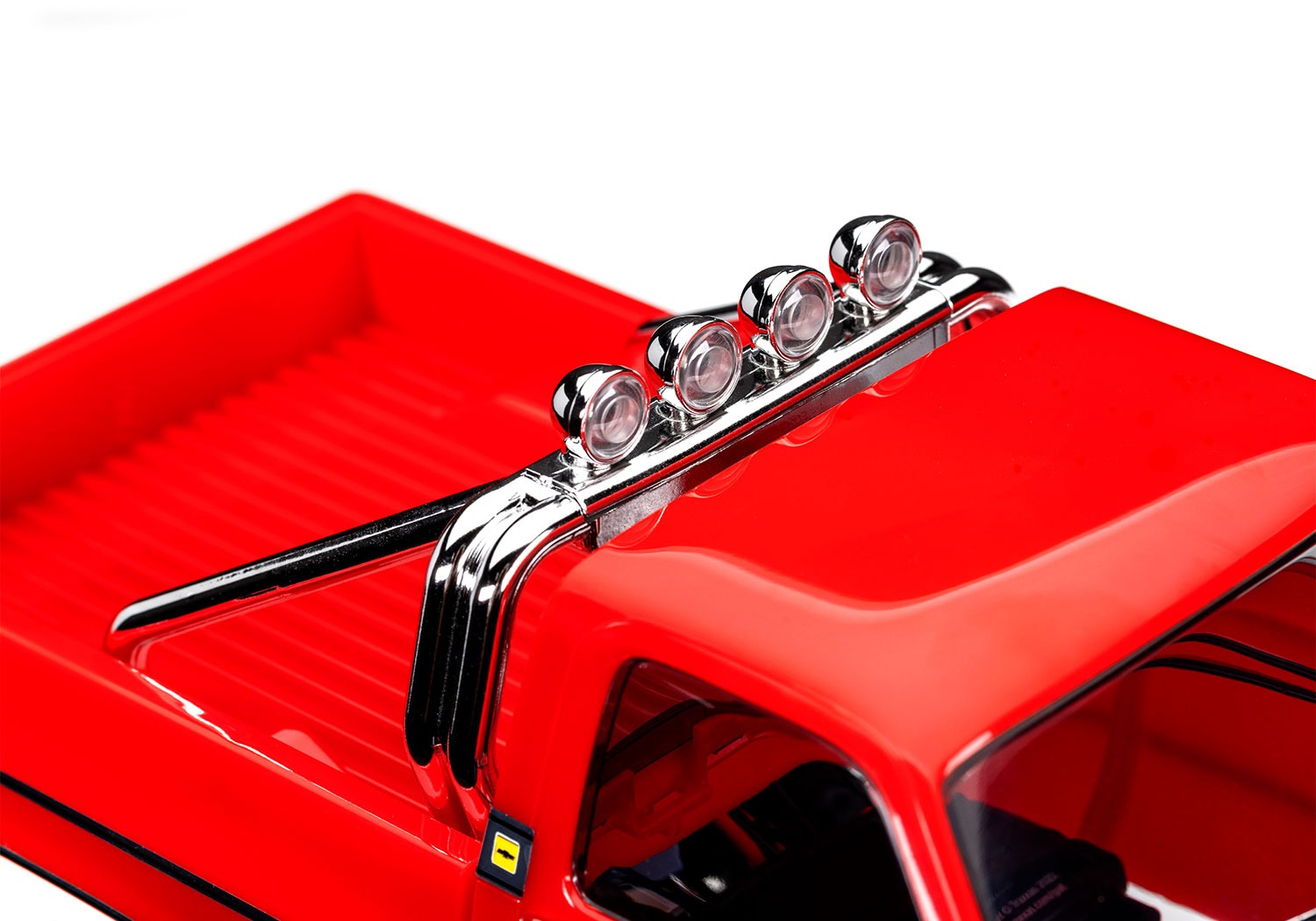

- Highly detailed licensed ABS hard body with clip-free mounting
- Factory-installed Long Arm Lift Kit
- Higher ground clearance and longer wheelbase
- Waterproof ECM-2.5 control module with Titan® 180 (87T) motor
- Oil-filled GTM shock absorbers

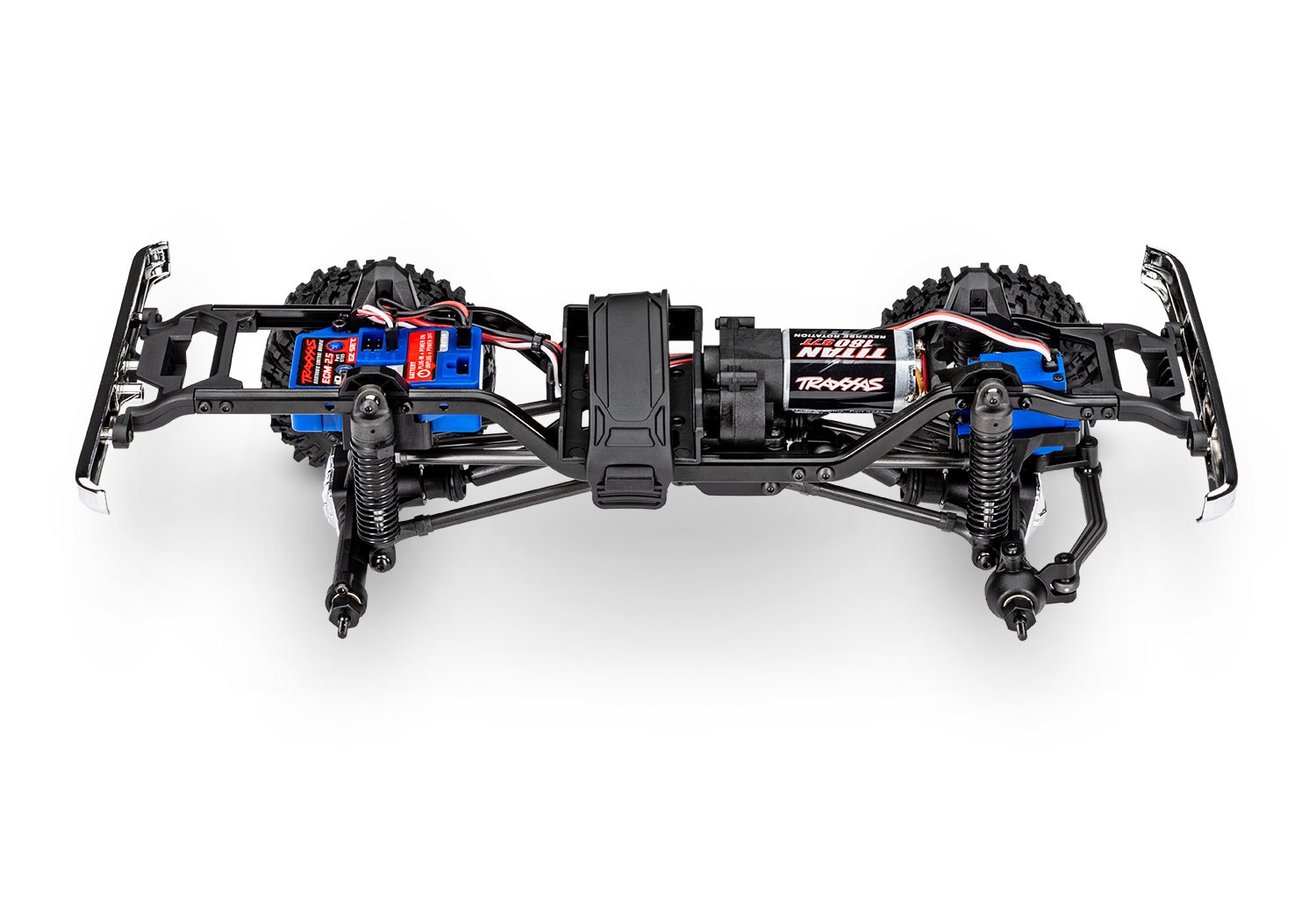

- Strong steel ladder frame with 4WD transmission
- Full-scale TQ™ 2.4 GHz radio system

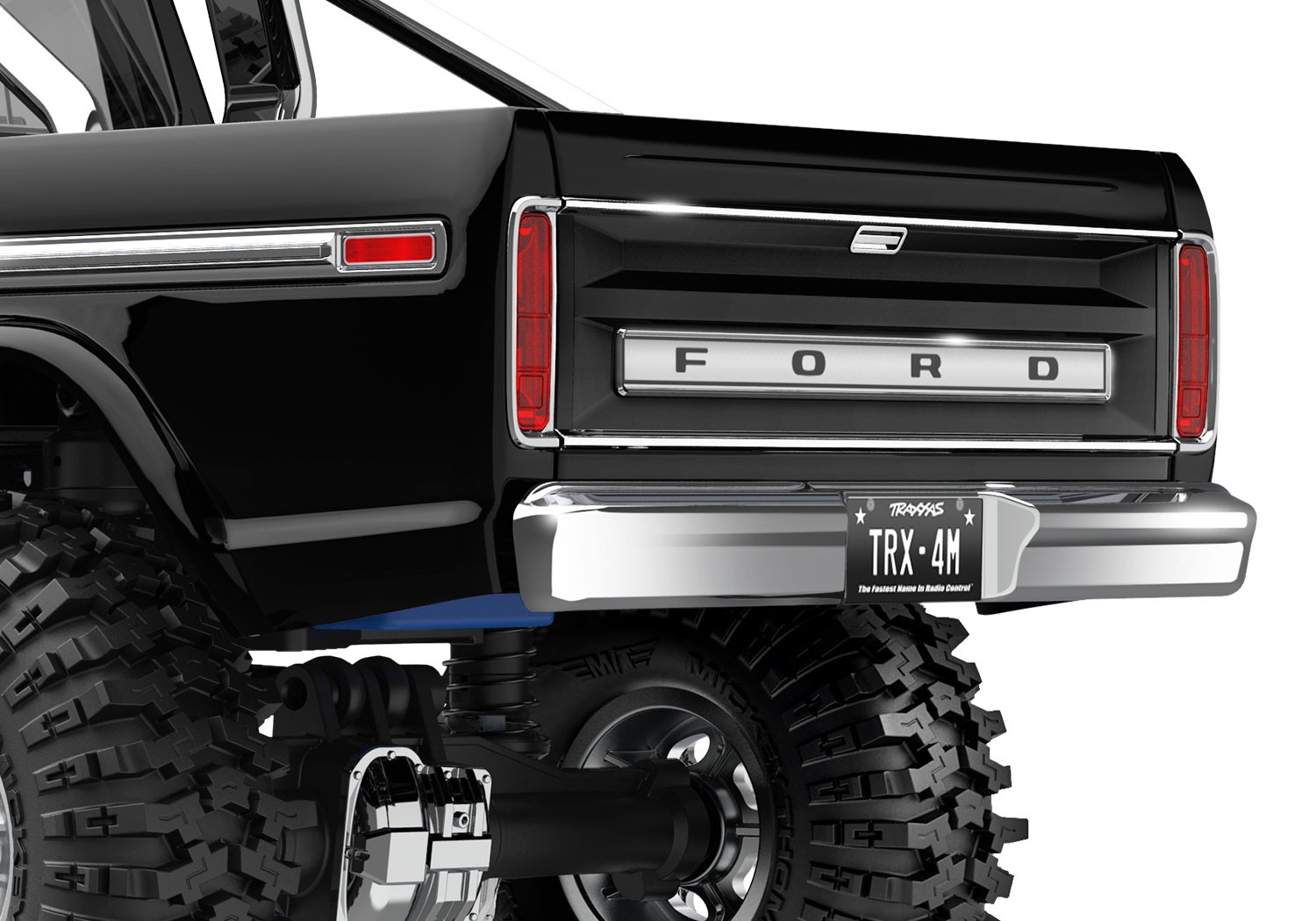

- Detailed ABS body with clip-free mounting

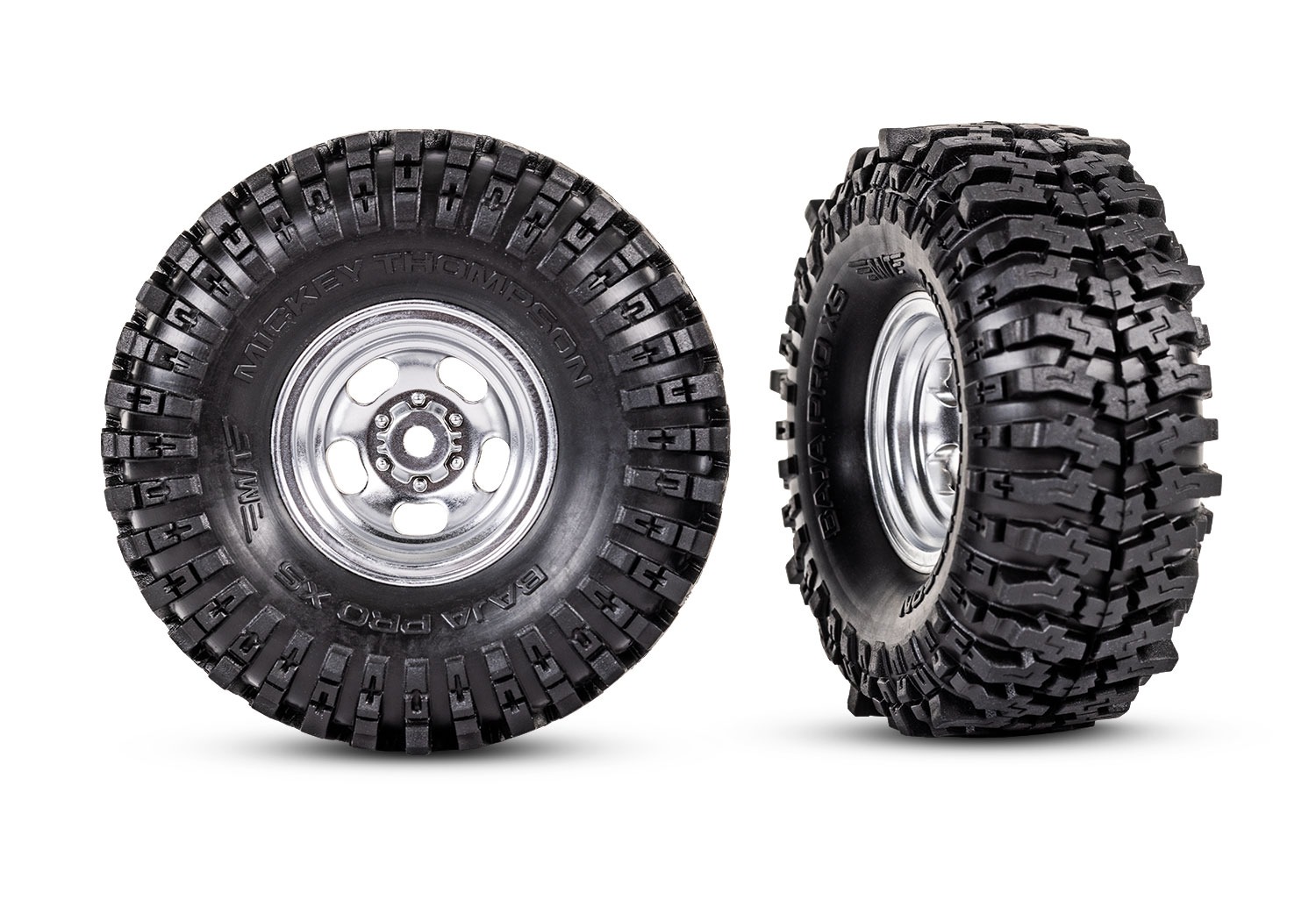

- New 2.4-inch Mickey Thompson tires
Specifications:
- Length: 269 mm
- Front axle width: 127 mm
- Rear axle width: 127 mm
- Ground clearance: 40 mm
- Weight (with battery): 468 g
- Height: 127 mm
- Wheelbase: 162 mm
- Approach angle: 62°
- Breakover angle: 51.5°
- Departure angle: 52°
- Shock absorber length (front/rear): 51 mm
- Hex: 7 mm

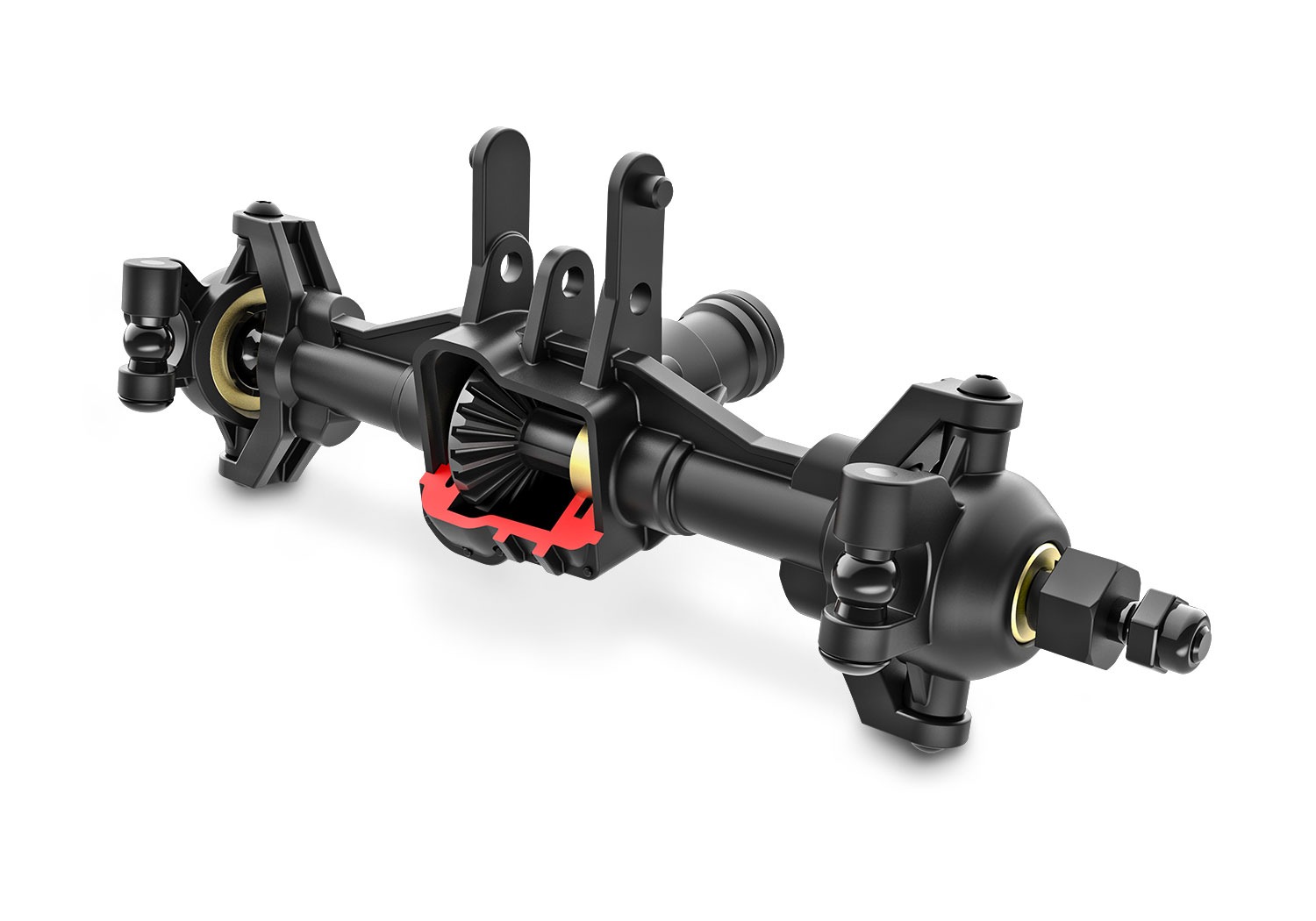

- Differential: fully locked; gear ratio 2:1
- Wheels: 25 x 13 mm (1.0″ x 0.49″)
- Tires: 62 x 26 mm (2.4″ x 1.0″)

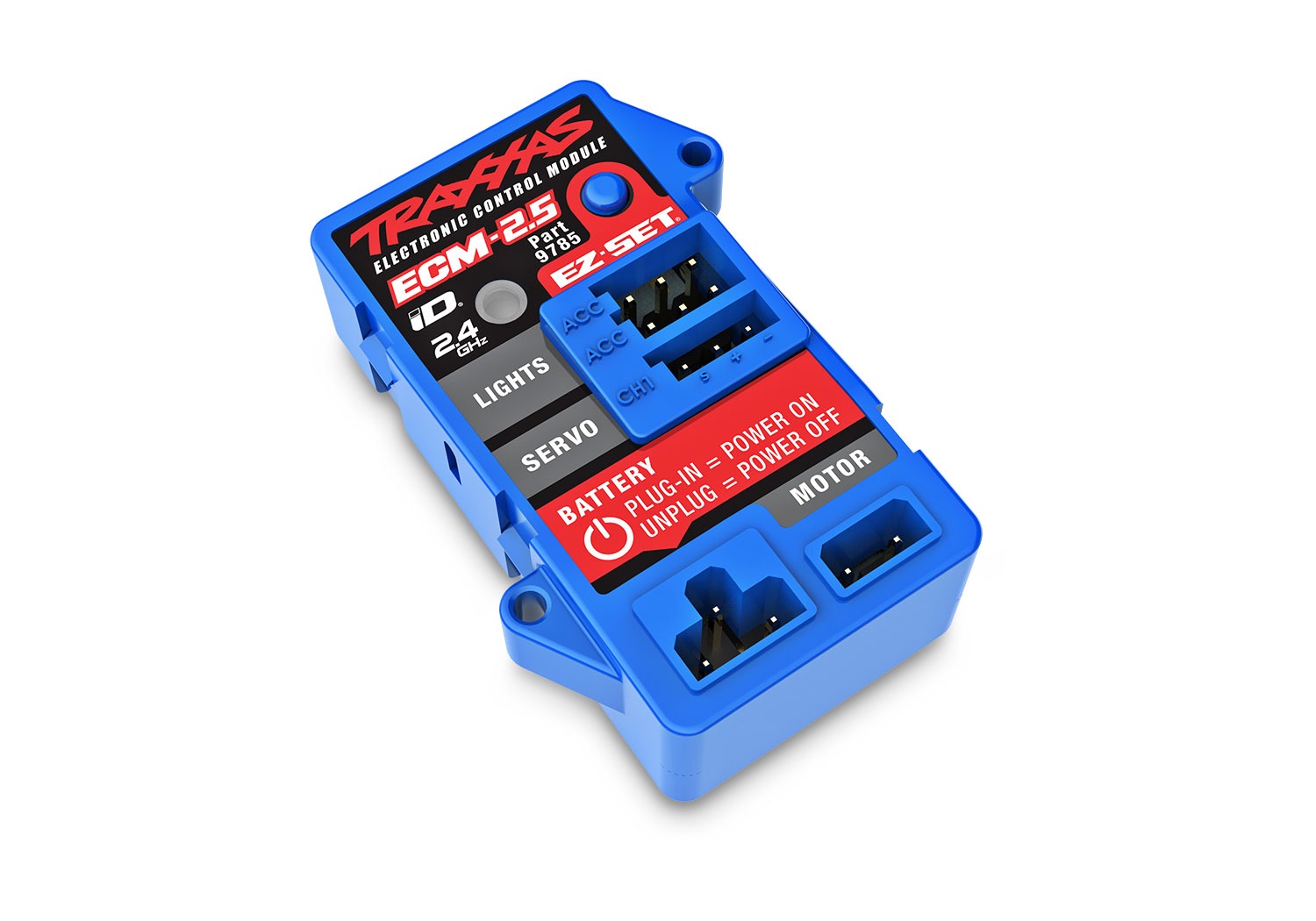

- Controller: ECM-2.5™

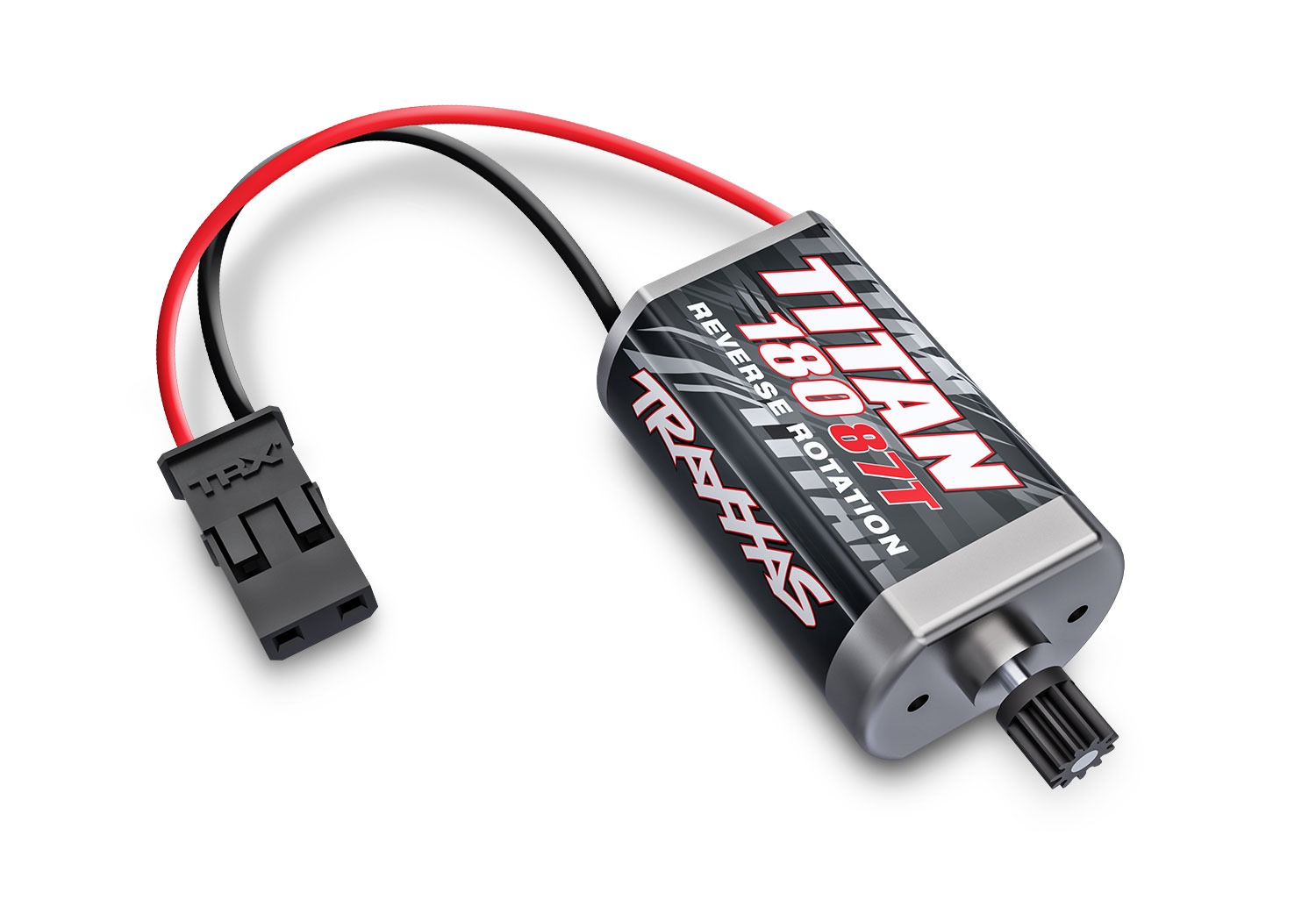

- Motor: Titan® 180 87T brushed

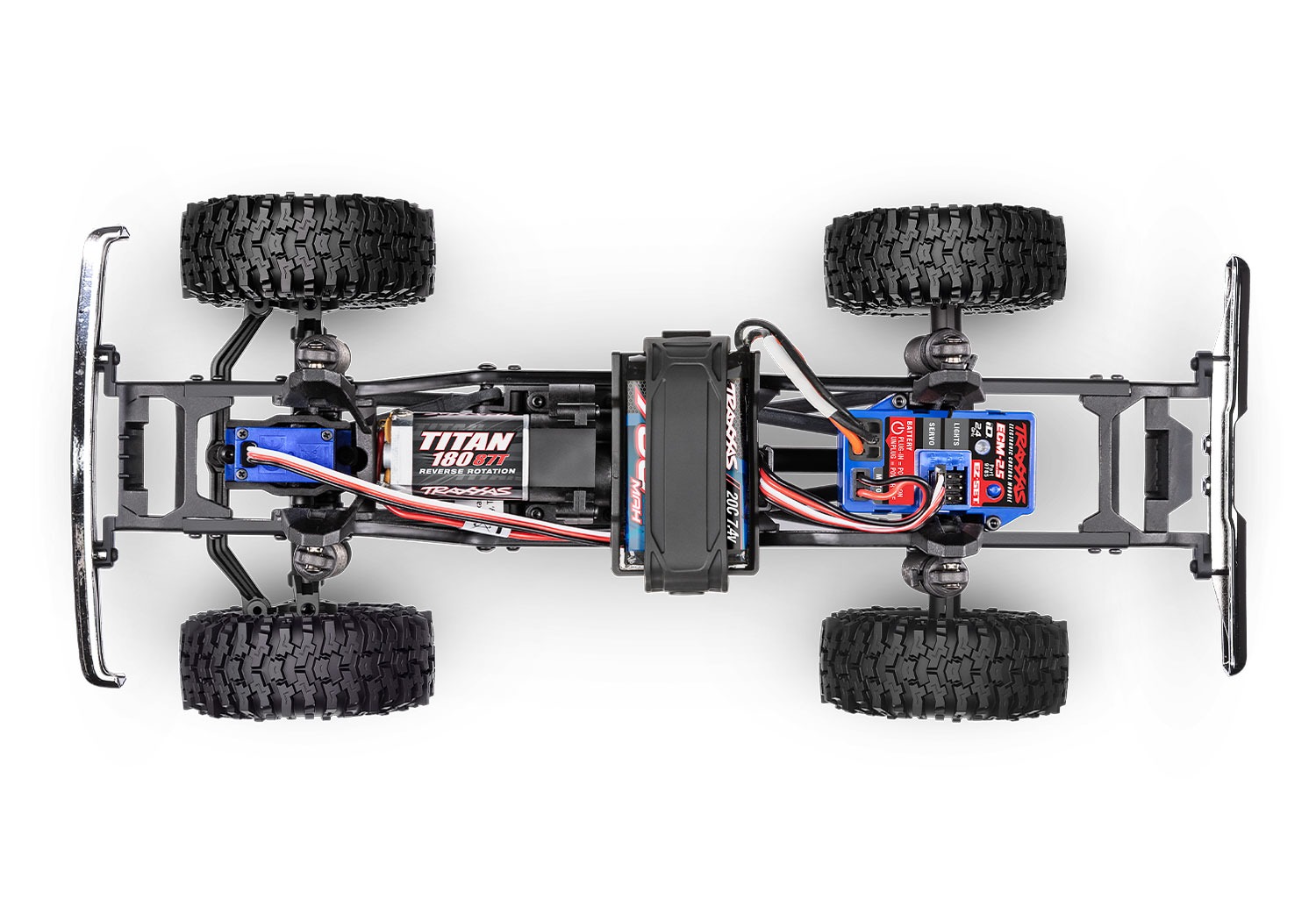

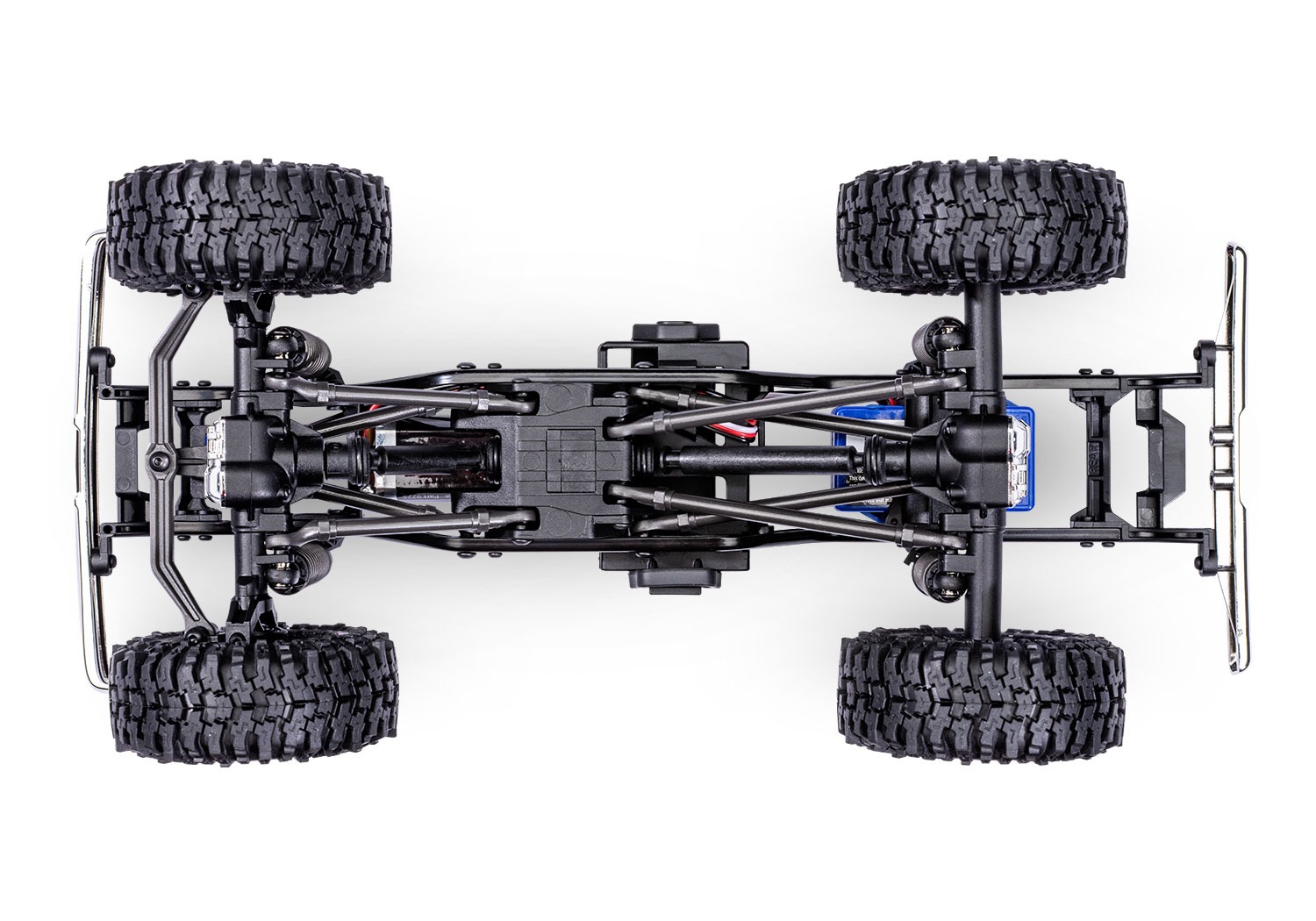

- Chassis: Steel ladder with nylon crossbars
- Braking system: Electronic “Hill Hold”
- Drive scheme: Cardan 4WD
- Steering system: Axle-mounted servo
- Radio system: TQ™ 2.4 GHz (2-channel)

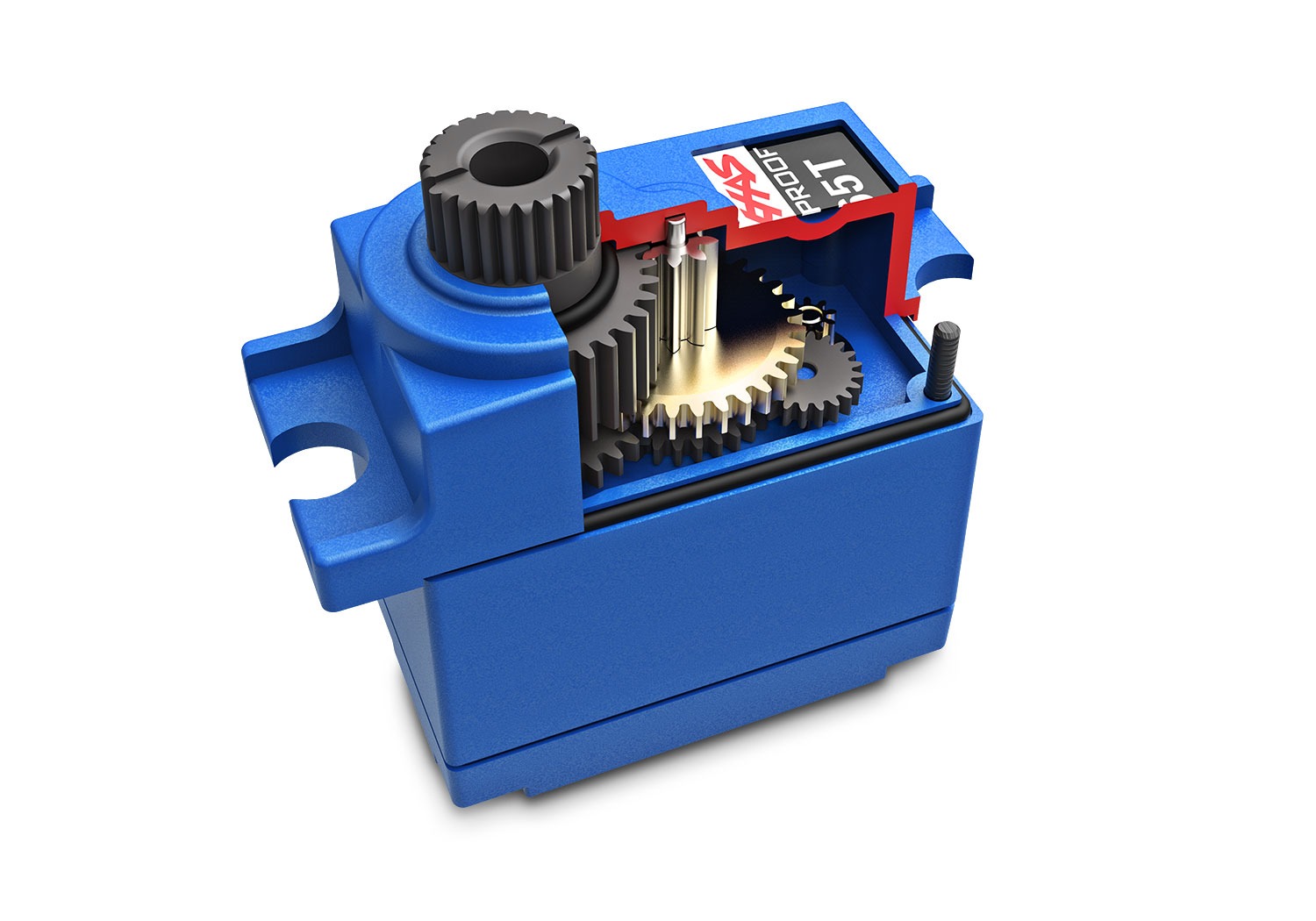

- Servo: 2065T Heavy Duty, waterproof
- Skill level: 1 (beginner)

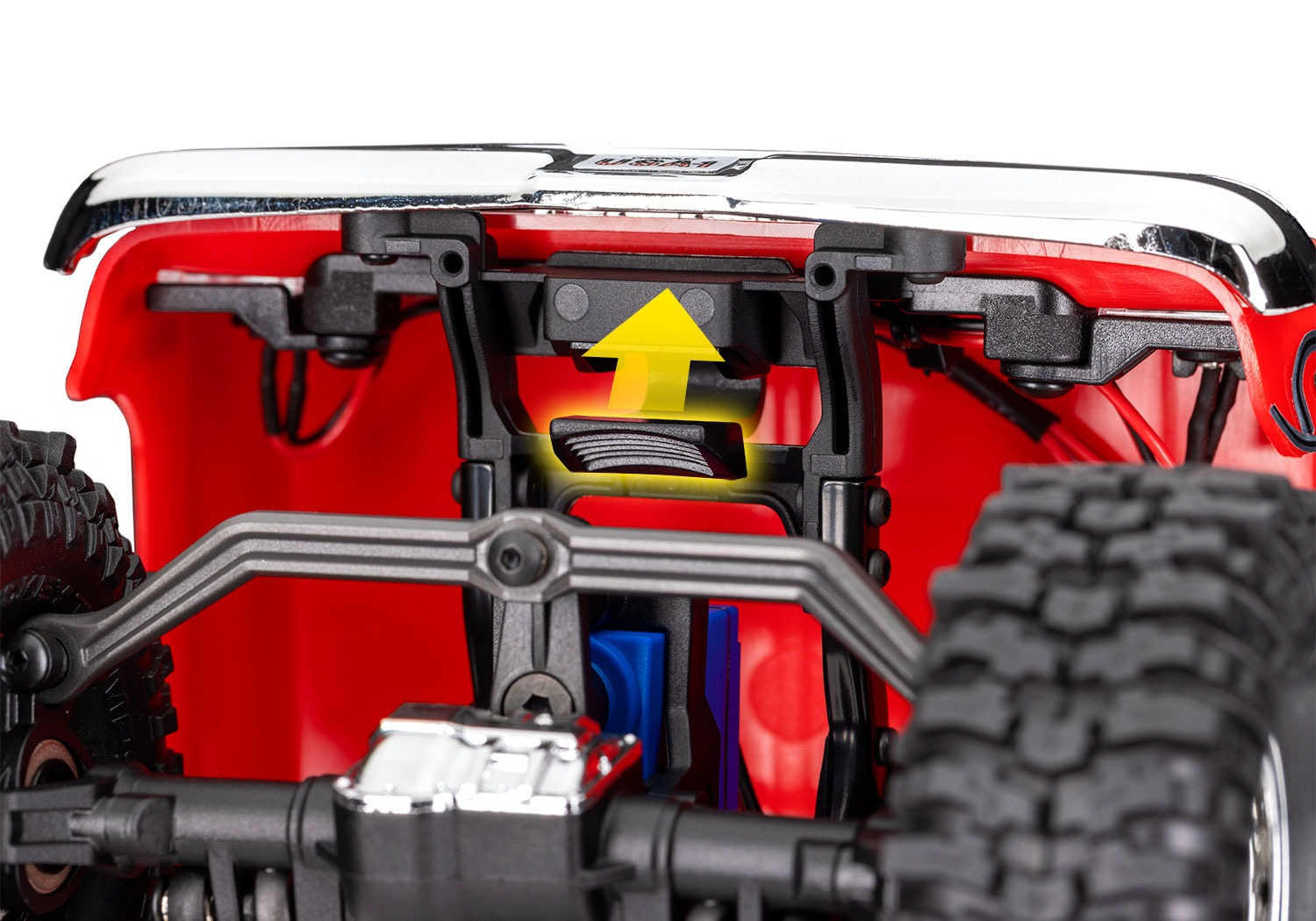

- Battery compartment (L/W): 51 mm × 31 mm
Includes in the box:
- Fully assembled TRX-4M High Trail Edition off-road vehicle
- Painted and finished ABS body
- Traxxas TQ™ 2.4 GHz transmitter

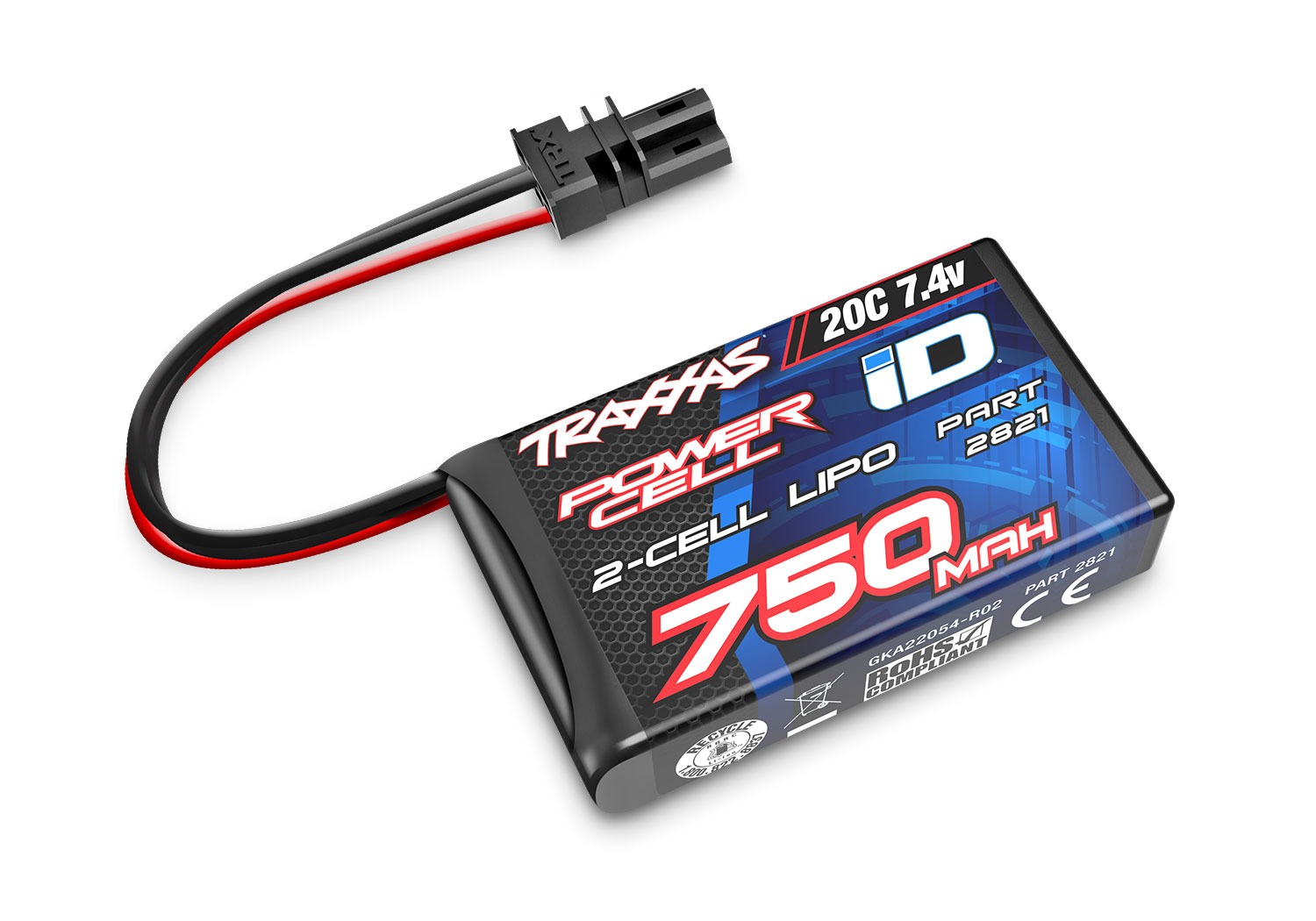

- 7.4V 750 mAh 2S LiPo battery

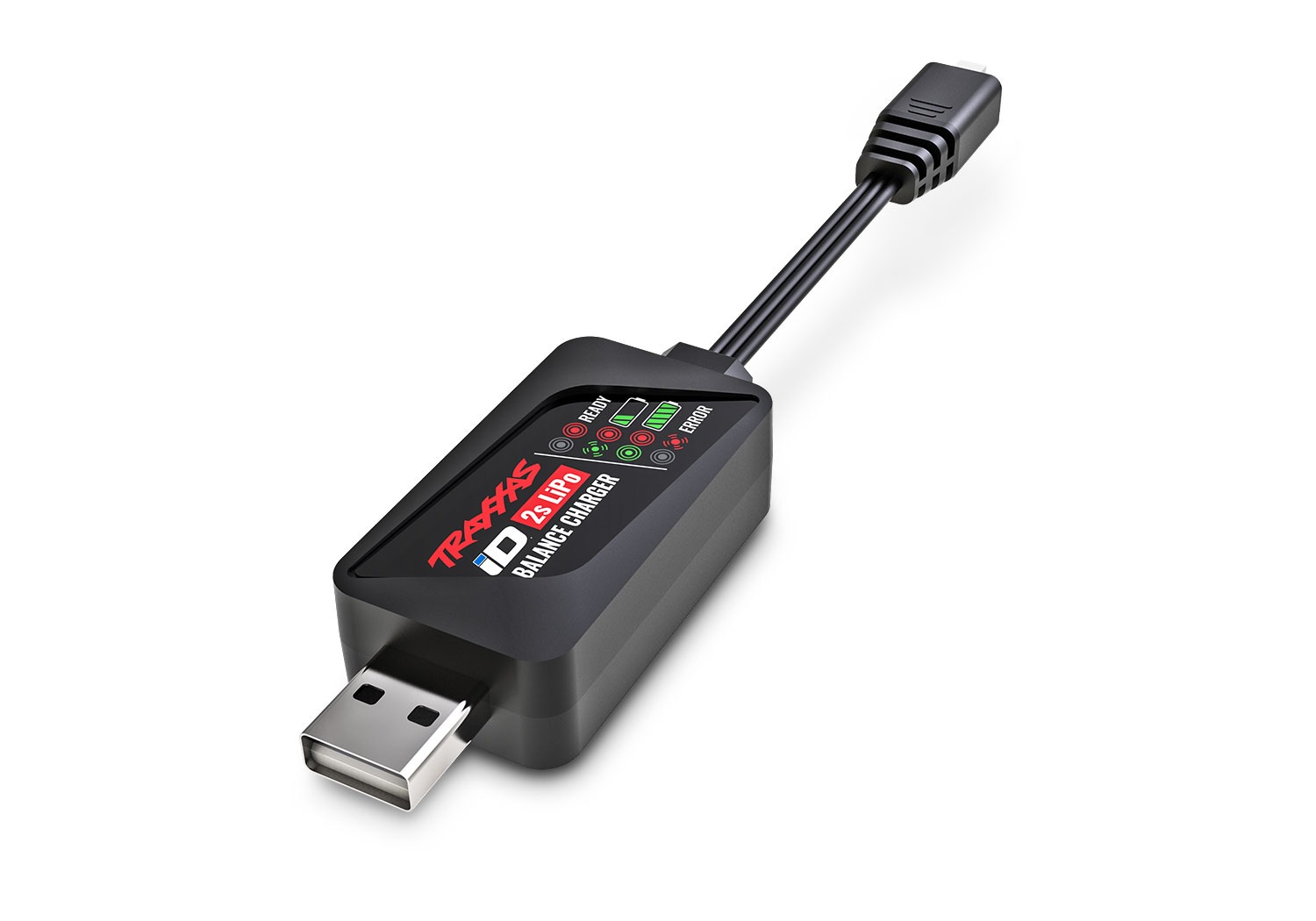

- 2A USB fast charger with iD® interface
- Manual (ENG)
- Basic tools
Additional items needed for driving:
- AA Batteries for remote control 4 pcs
