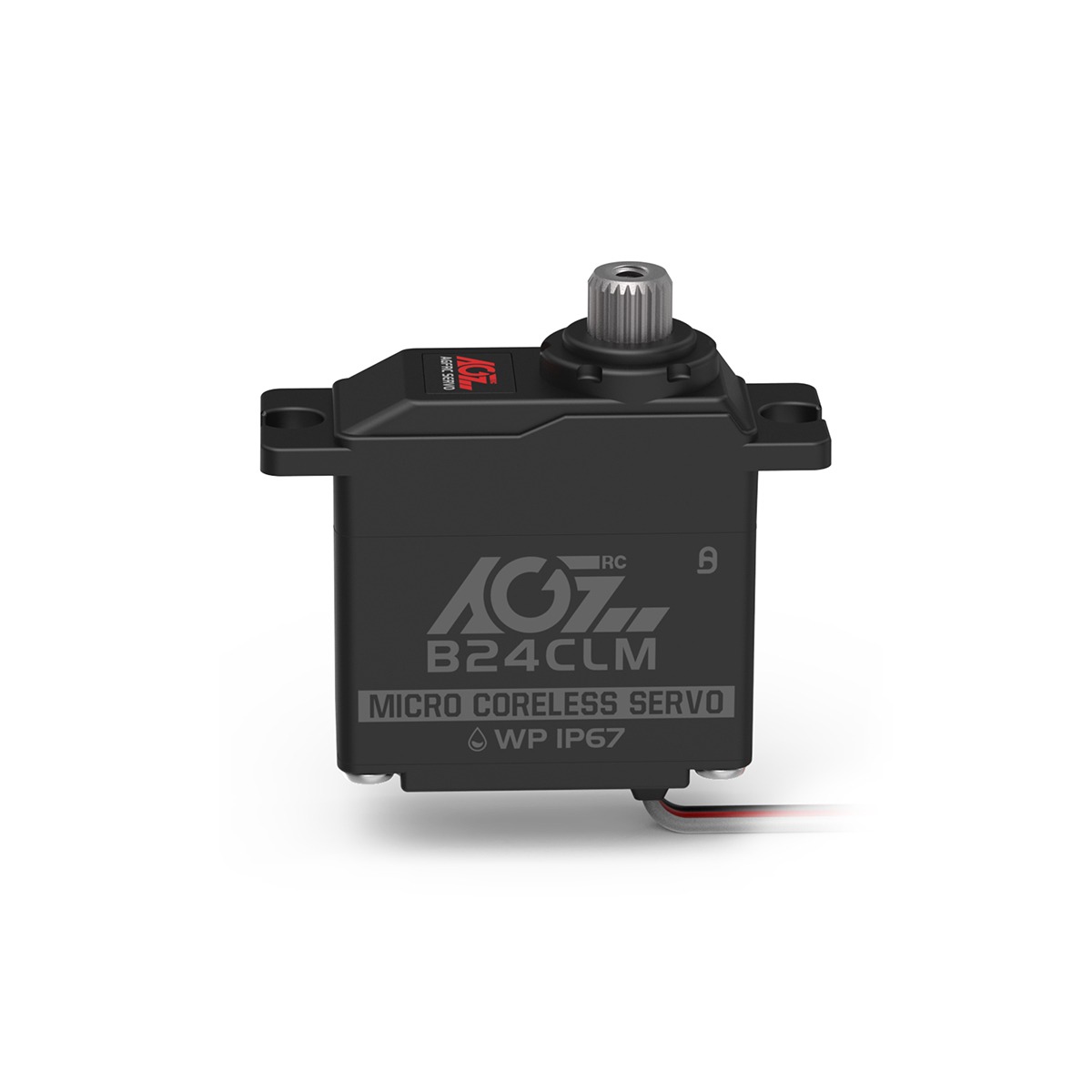

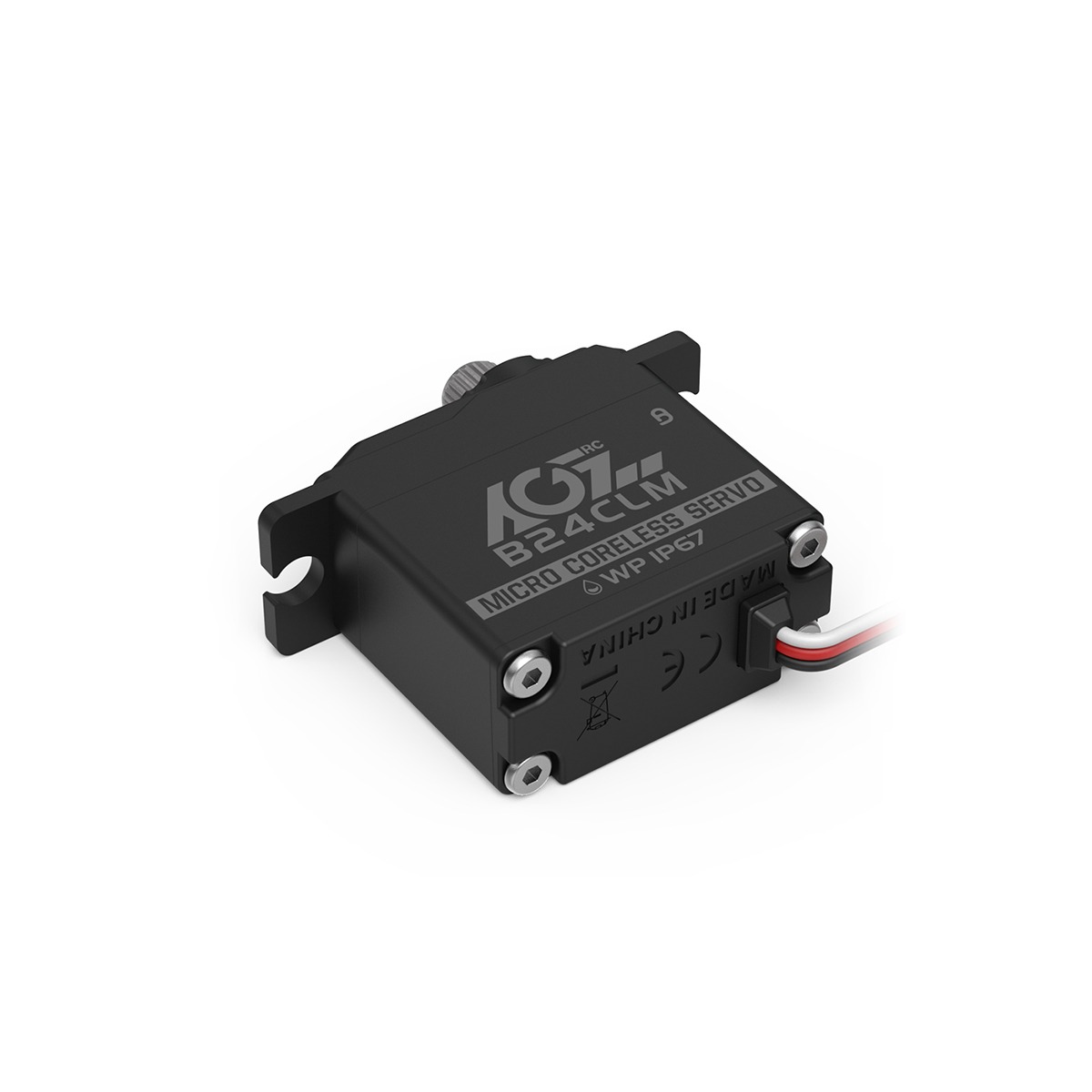

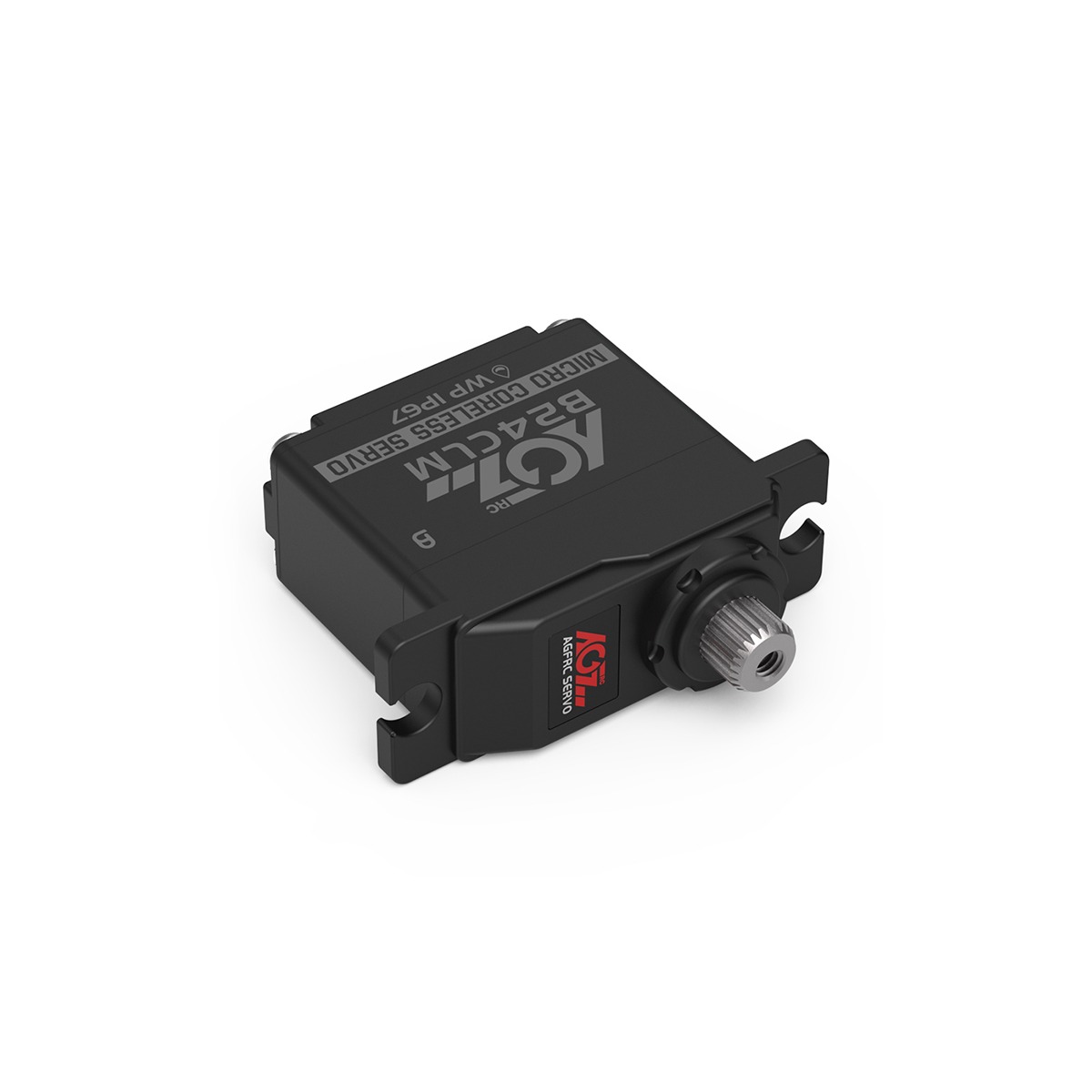

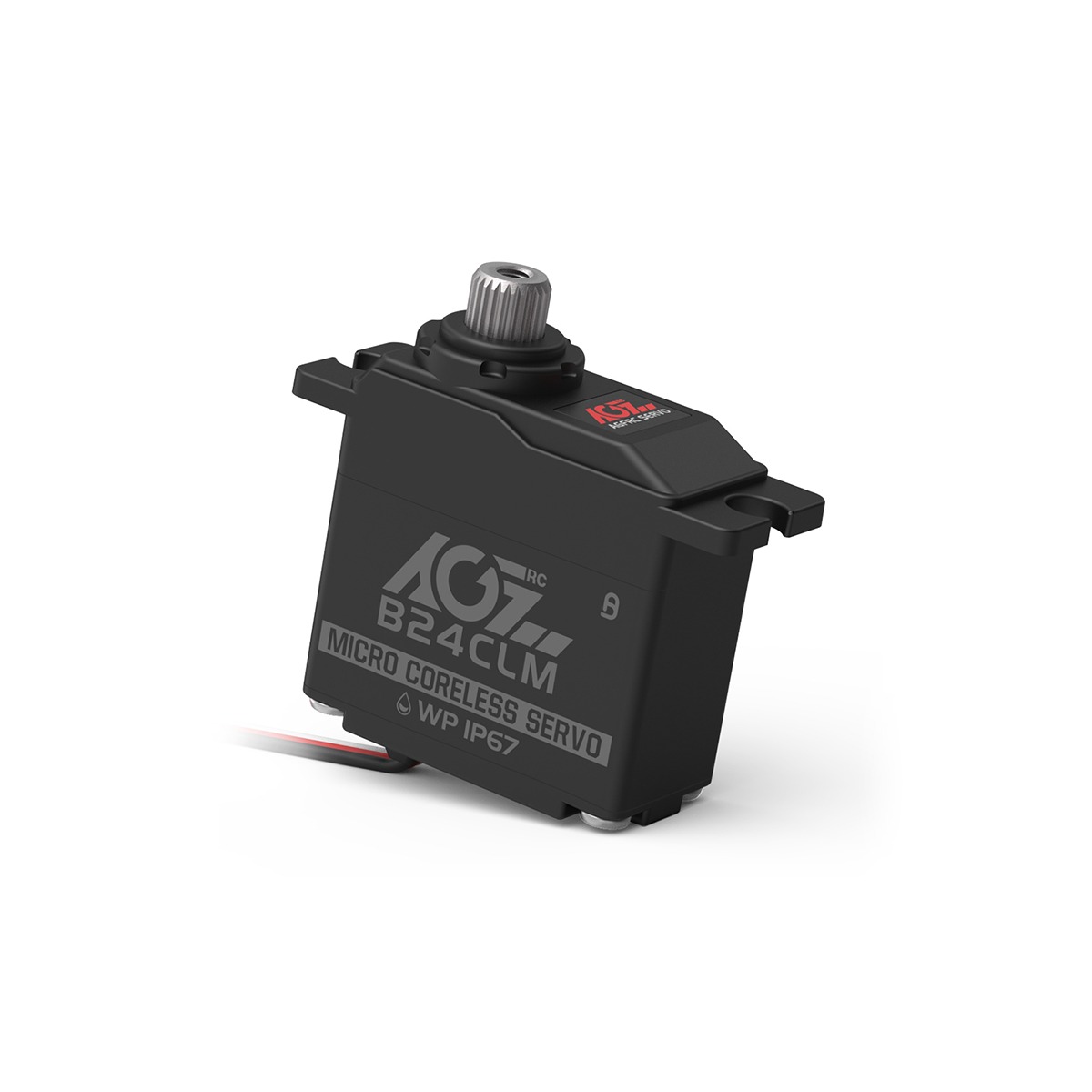

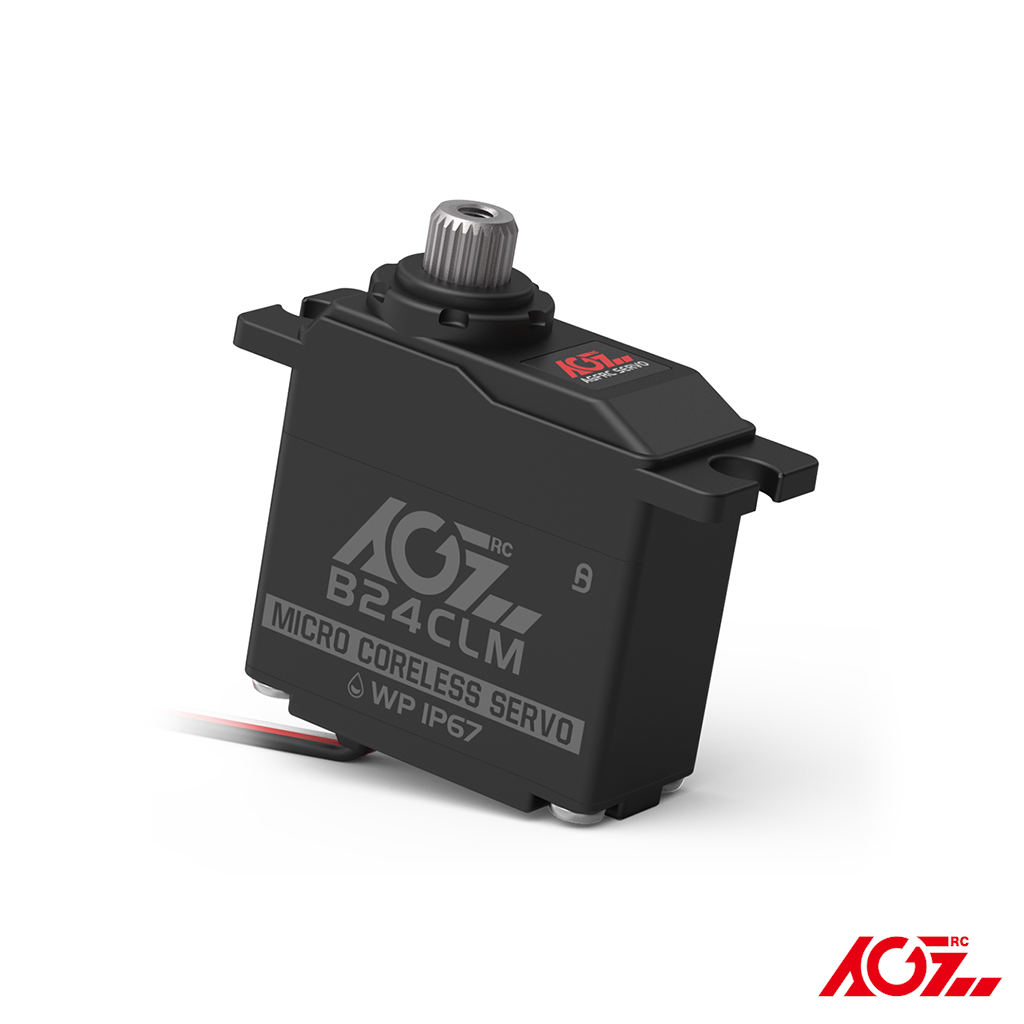

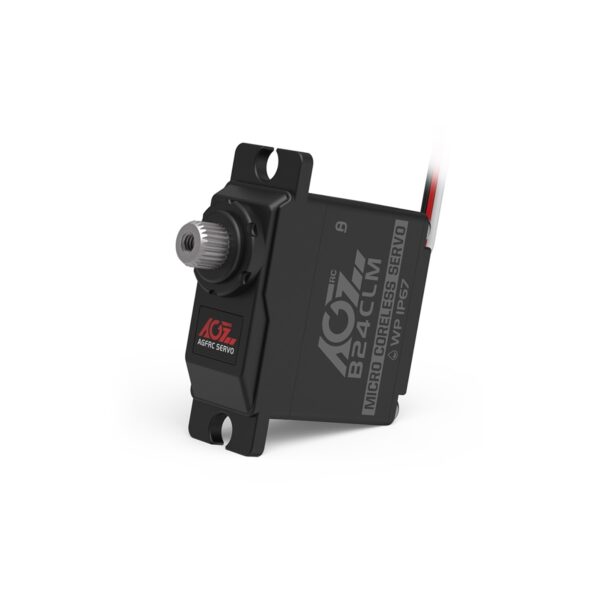

AGFRC B24CLM (6kg/0.085s/8.4v) High Speed Coreless Mini Servo

Powered by a high-efficiency coreless motor, the B24CLM provides smoother operation, faster response, and improved efficiency compared to conventional DC motor servos. Titanium gears and triple ball bearings ensure excellent durability and reliability even under demanding conditions.

Its IP67 waterproof design allows operation in rain, snow, mud, and wet environments, making it a great upgrade for mini crawlers and small off-road vehicles.

Key Features

• Lightweight HV mini servo
• Up to 6 kg-cm torque
• Fast 0.085 sec / 60°
• High-performance coreless motor
• Durable titanium gears
• IP67 waterproof protection
• Programmable parameters
• Compact mini size
• Triple ball bearings
• HV compatible up to 8.4V

Ideal Applications

• Traxxas 1/16 E-Revo
• Traxxas 1/16 Slash 4X4
• Traxxas Mini E-Revo VXL
• Mini Crawlers
• FMS FCX18
• FMS FCX24
• Axial SCX24 (upgraded builds)
• 1/16 and 1/18 RC Cars
• RC Boats
• Airplanes
• Helicopters
• Robotics Projects

Why Choose the AGFRC B24CLM?

• Compact and lightweight design
• Smooth and efficient coreless motor
• Durable titanium gear train
• Waterproof for all-weather operation
• Fully programmable settings
• Perfect for 1/16 and 1/18 scale vehicles
• Fast response for precise control
• Excellent power-to-weight ratio

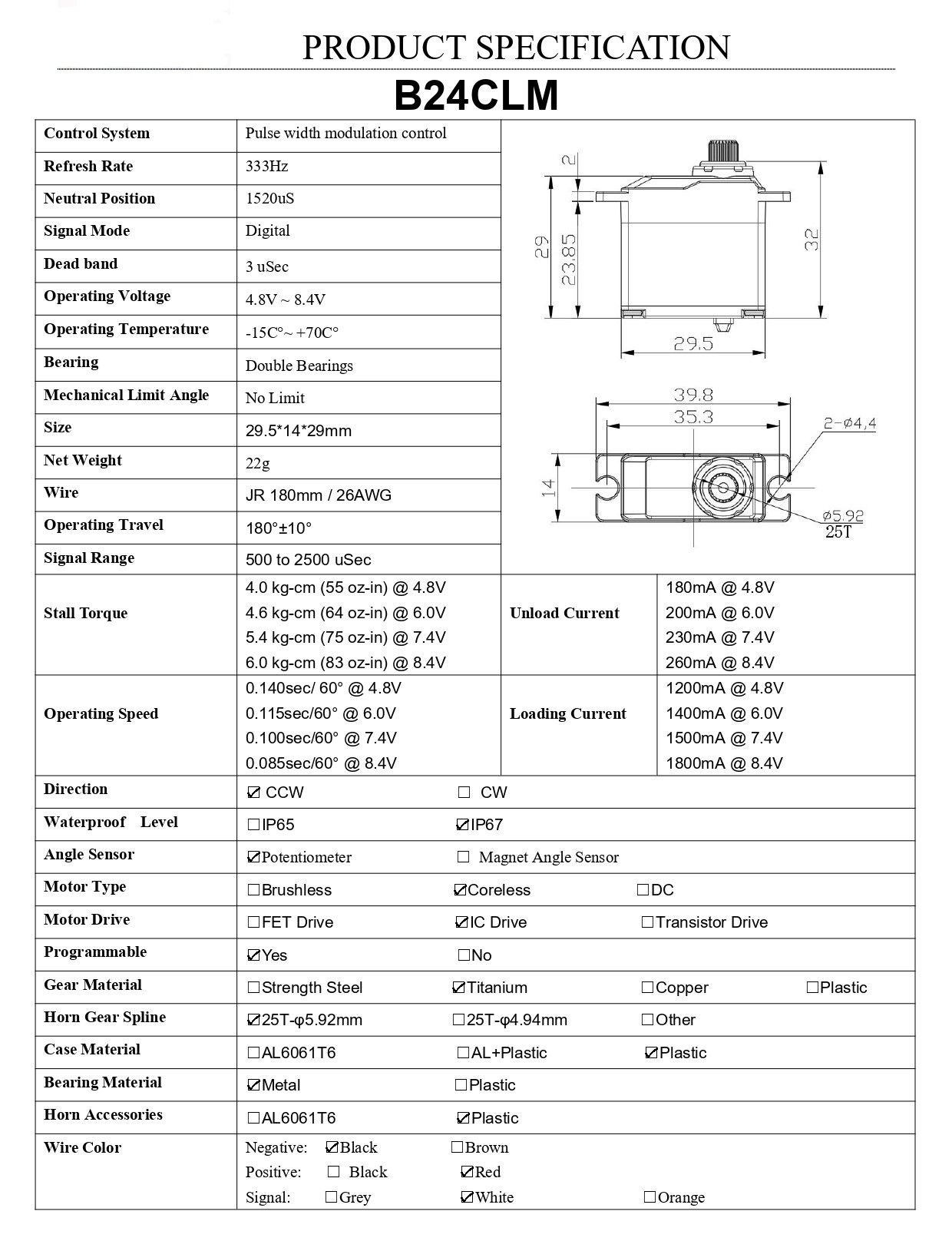

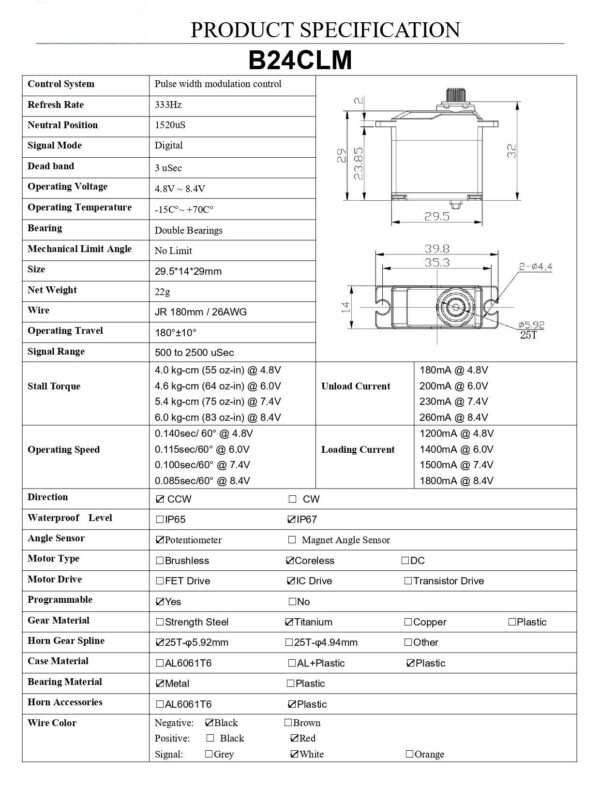

Specifications

• Operating Voltage: 4.8V – 8.4V
• Torque @ 4.8V: 4.0 kg-cm
• Torque @ 6.0V: 4.6 kg-cm
• Torque @ 7.4V: 5.4 kg-cm
• Torque @ 8.4V: 6.0 kg-cm
• Speed @ 4.8V: 0.140 sec / 60°
• Speed @ 6.0V: 0.115 sec / 60°
• Speed @ 7.4V: 0.100 sec / 60°
• Speed @ 8.4V: 0.085 sec / 60°
• Motor Type: Coreless
• Gear Material: Titanium
• Sensor Type: Potentiometer
• Bearings: 3 Ball Bearings
• Waterproof Rating: IP67

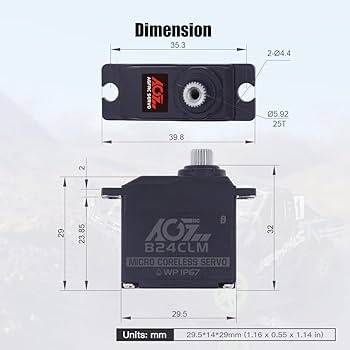

• Dimensions: 29 × 14 × 29 mm
• Weight: 22 g
• Output Spline: 25T

Package Includes

• 1 × AGFRC B24CLM Servo
• 4 × 25T Plastic Servo Horns
• 2 × M2 × 12 mm Screws
• 1 × M3 × 6 mm Screw
• 2 × Rubber Grommets
• 2 × Copper Sleeves
• 1 × AGFRC Logo Sticker
