SRT DL5015 (0.13s/15.0kg/6.0V) LV Digital Waterproof Servo

The servo features titanium and aluminum metal gears that provide smooth operation and long-lasting durability. An aluminum center case section improves structural rigidity and heat dissipation, while premium NMB ball bearings ensure precise steering performance.

Delivering up to 15 kg-cm of torque at 6.0V, the DL5015 provides ample steering power for most 1/10 scale crawler and trail applications.

Key Features

• Waterproof digital servo
• Ideal for 1/10 on-road and off-road vehicles

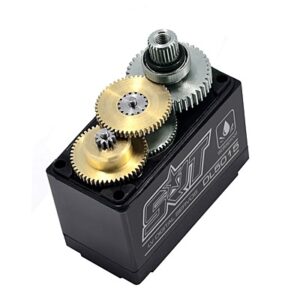

• Titanium and aluminum gear train
• Aluminum center case section
• Dual NMB ball bearings
• Durable semi-metal construction
• 25T output spline
• Precise digital control
• Suitable for crawlers and trail trucks

Specifications

• Servo Type: Digital Servo
• Motor Type: DC
• Gear Material: Titanium & Aluminum
• Case Type: Semi-Metal
• Bearings: Dual NMB Ball Bearings
• Waterproof: Yes
• Output Spline: 25T
• Operating Voltage: 4.8–6.0V
• Control System: Pulse Width Control
• Working Frequency: 1520μs / 330Hz
• Speed @ 4.8V: 0.15 sec / 60°
• Speed @ 6.0V: 0.13 sec / 60°
• Torque @ 4.8V: 12.0 kg-cm
• Torque @ 6.0V: 15.0 kg-cm
• Dimensions: 40.7 × 20.5 × 39.5 mm
• Weight: 62 g
• Wire Length: 300 mm
• Operating Temperature: -10°C to +60°C

Recommended Applications

• 1/10 Crawlers
• Trail Trucks
• Scale Crawlers
• 1/10 Off-Road Vehicles
• 1/10 On-Road Vehicles
• General RC Applications
