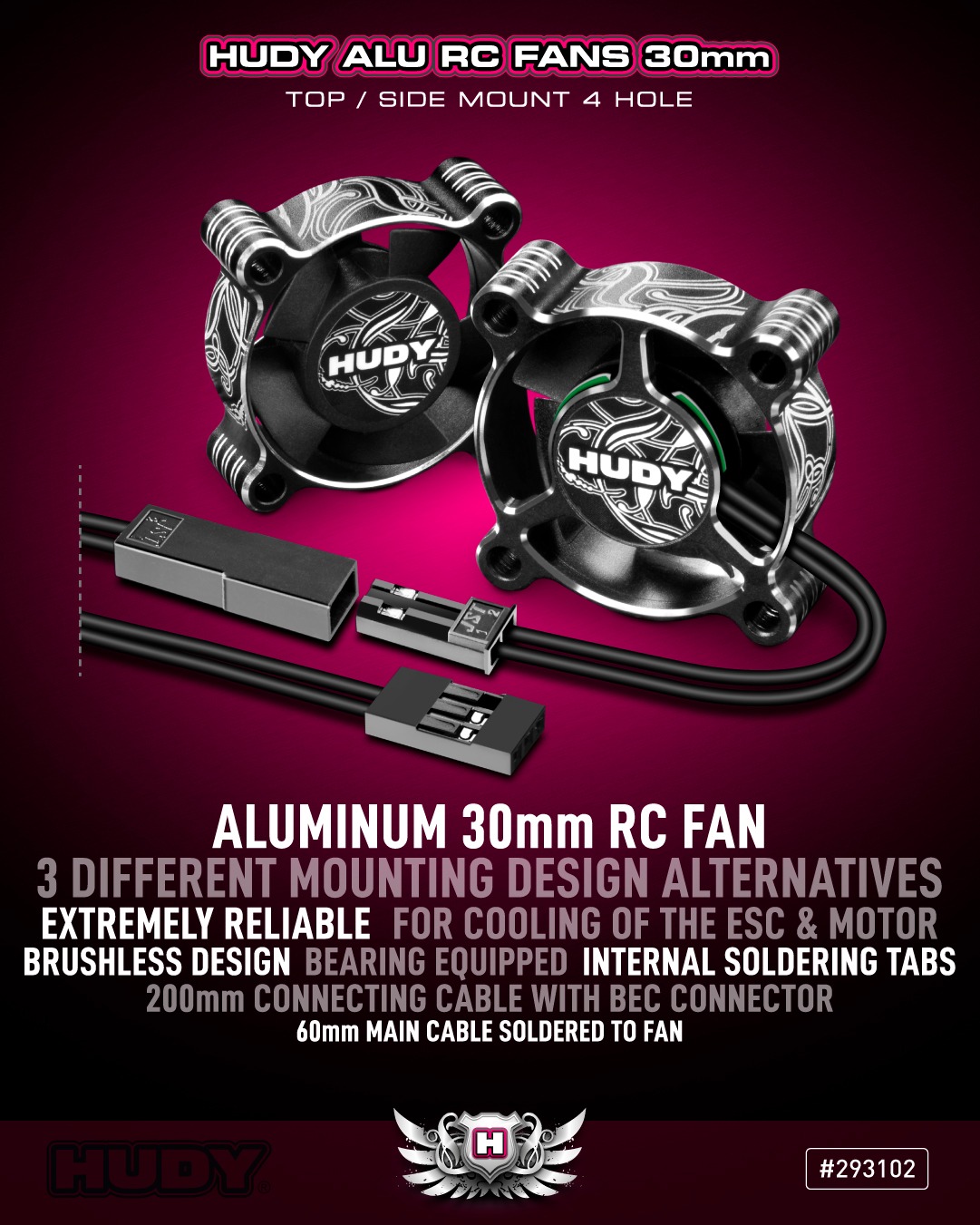

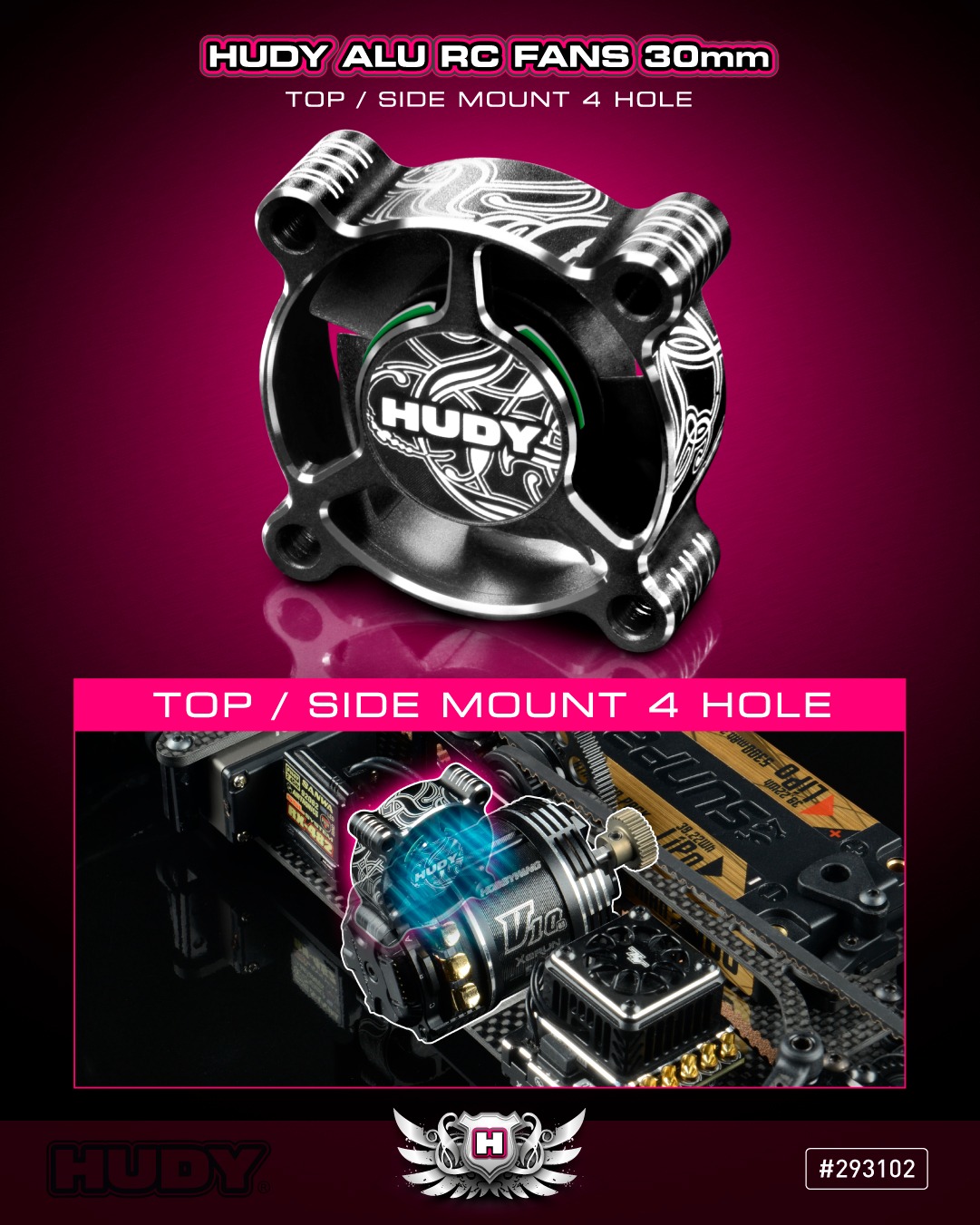

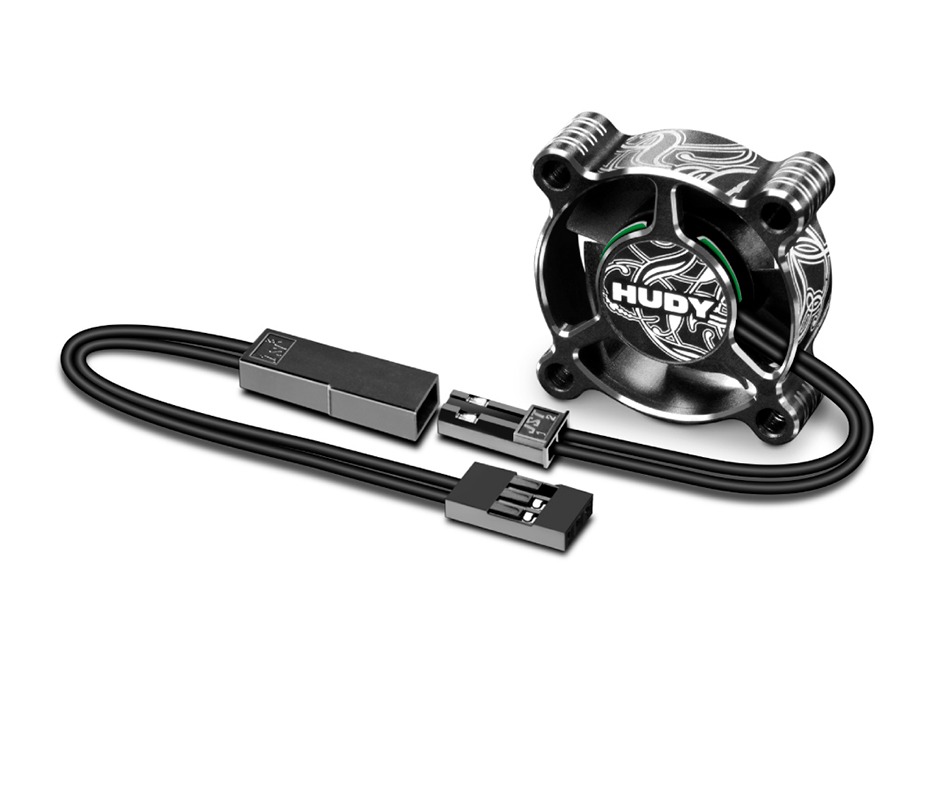

HUDY Alu RC Fan 30mm – Top/Side Mount 4 Hole

The fan offers three different mounting options, allowing flexible installation on a wide variety of RC vehicles. Its bearing-supported brushless construction ensures quiet operation, long lifespan, and stable cooling performance. Included is a 200 mm connection cable with BEC connector, while the 60 mm main cable is factory-soldered directly to the fan.

Operating within a 6.0V–8.4V voltage range, the HUDY 30mm Alu Fan is an excellent choice for cooling electronics in both 1/10 and 1/8 scale RC race vehicles.

Main Features

• Durable 30 mm aluminum housing fan
• 3 different mounting options
• Designed for ESC and motor cooling
• Reliable brushless design
• High-quality bearing-supported construction
• Internal soldering tabs
• Includes 200 mm cable with BEC connector
• 60 mm main cable factory soldered to fan
• Extremely reliable operation
• Ideal for racing and hobby RC applications

Technical Specifications

• Size: 30x30x10 mm
• Weight: 13 g
• Operating Voltage: 6.0V – 8.4V
• Design: Brushless
• Bearings: Yes
• Connection Cable: 200 mm with BEC connector
• Main Cable: 60 mm

Important Notice

• Positive (+) wire is identified with white stripes
• The fan does not include polarity protection
• Incorrect polarity connection may damage the fan
• Always verify polarity before connecting or soldering
• Use at customer’s own risk
