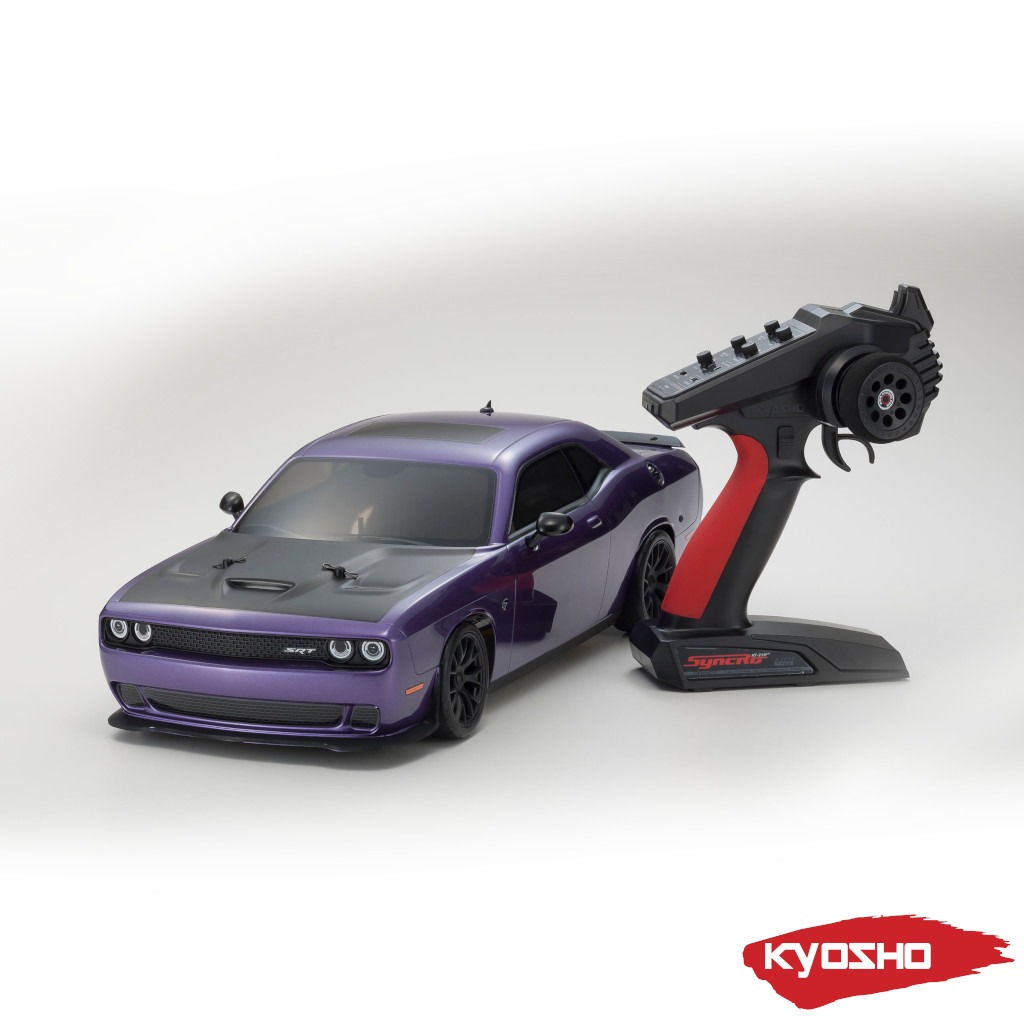

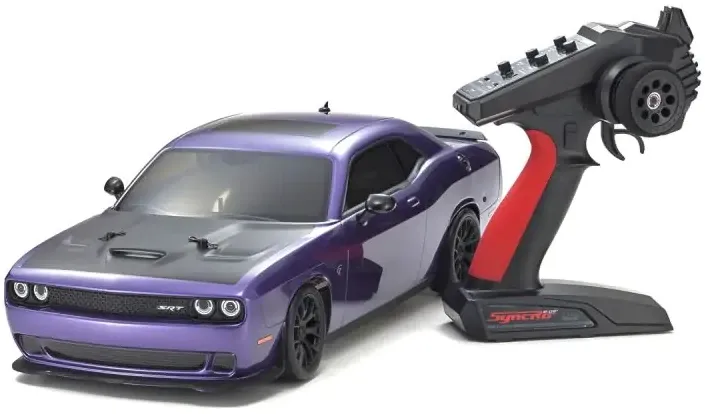

Kyosho Fazer FZ02-L – Dodge Challenger SRT 2015 Purple – 1:10 RTR

Description

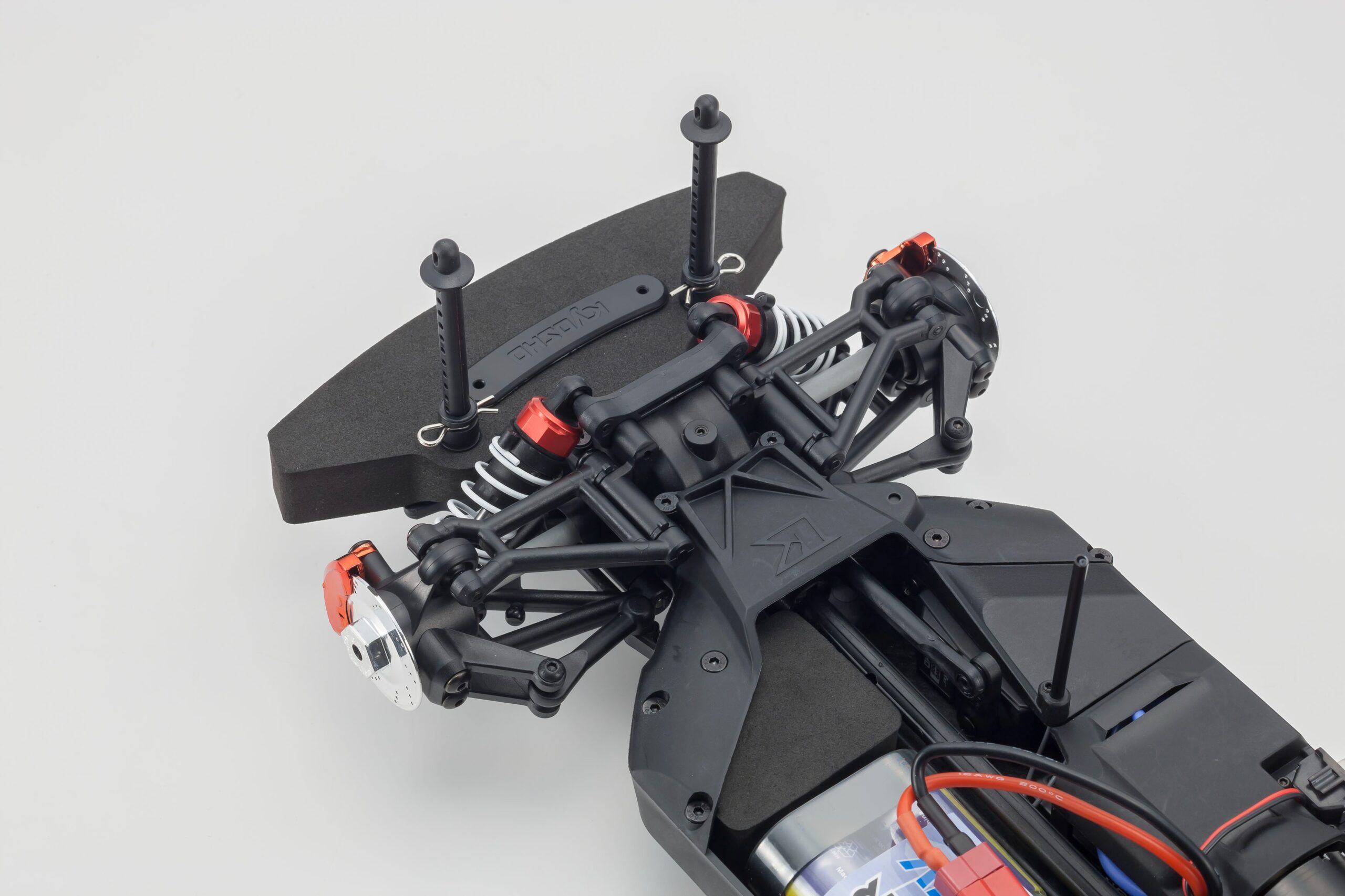

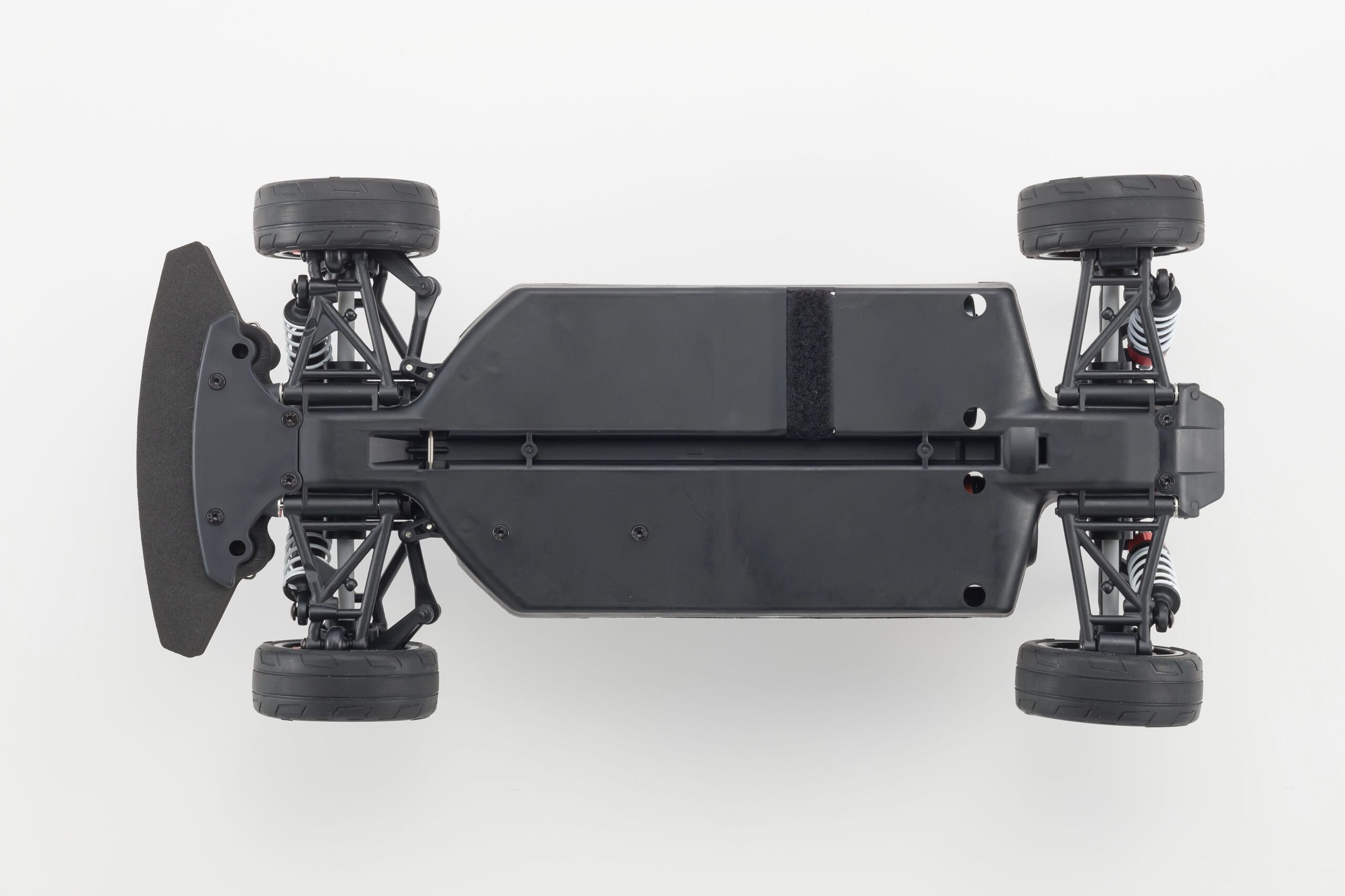

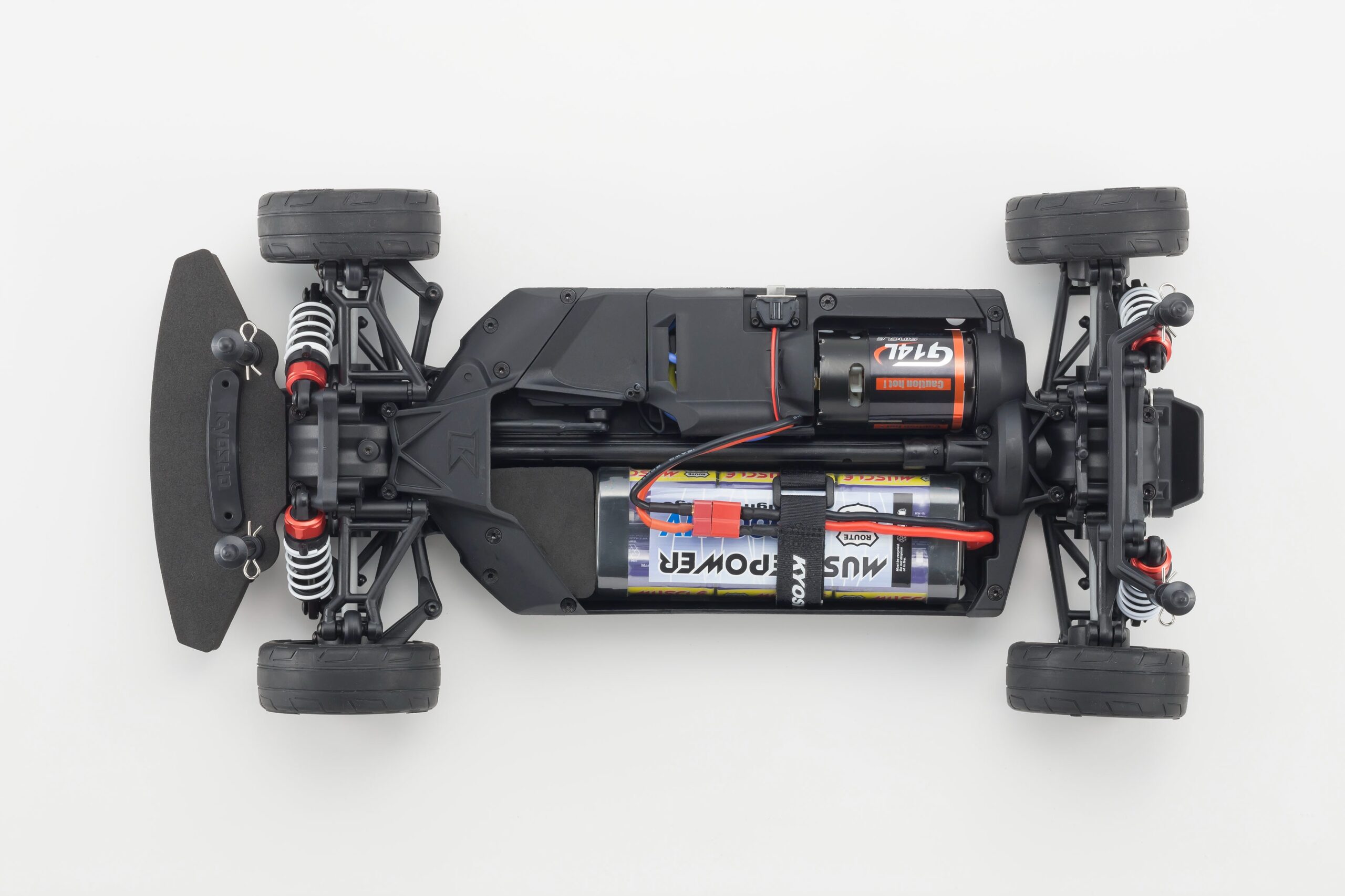

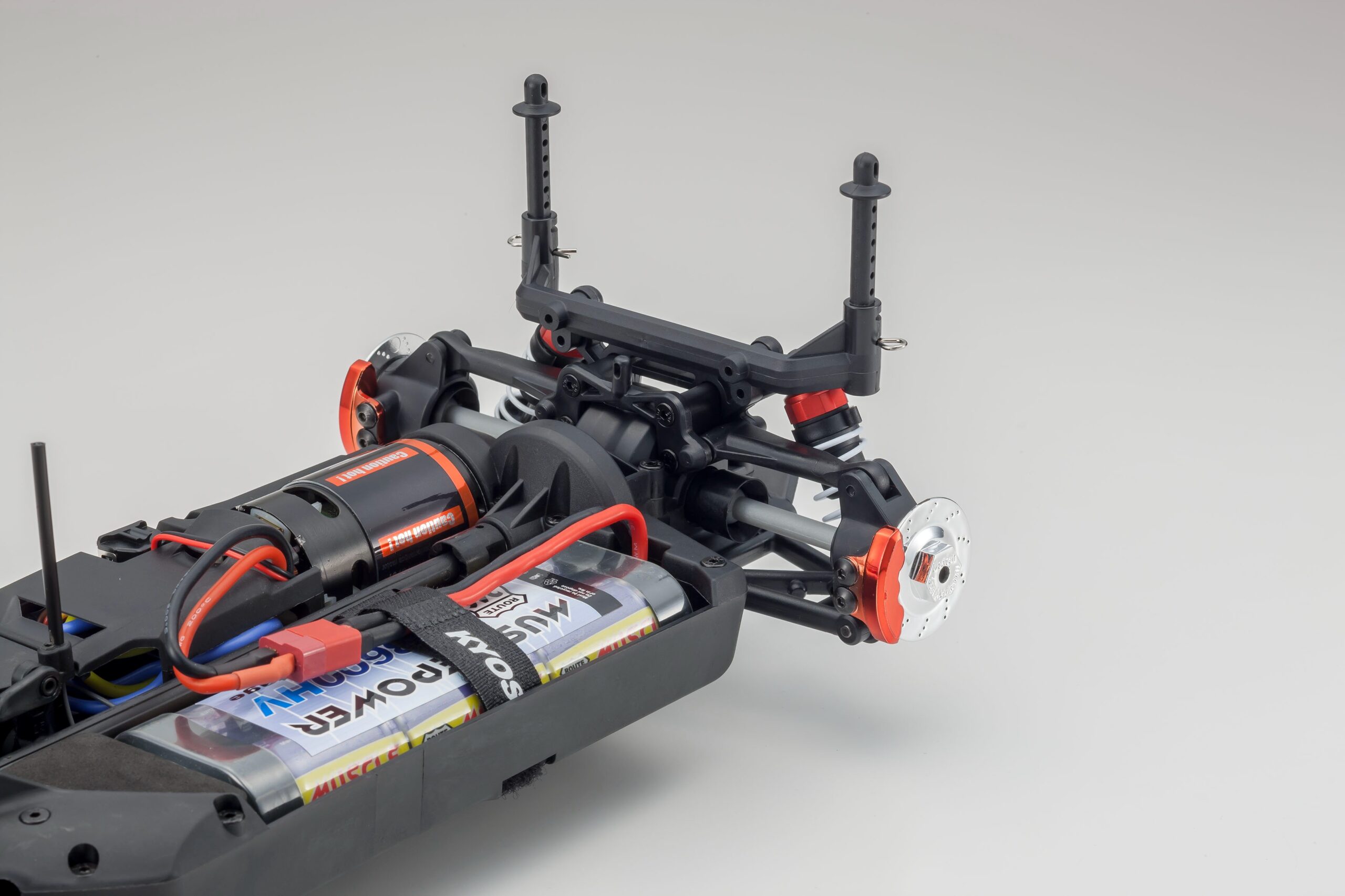

Experience true American muscle with the Dodge Challenger SRT Hellcat, featuring a highly detailed body combined with the proven Kyosho FAZER FZ02 chassis. This 1/10 scale electric 4WD touring car delivers excellent handling, durability, and realistic styling, making it ideal for both beginners and experienced RC enthusiasts. The fully assembled Readyset lets you hit the road quickly and enjoy powerful performance right out of the box.

Key features

• Readyset – fully assembled and ready to run

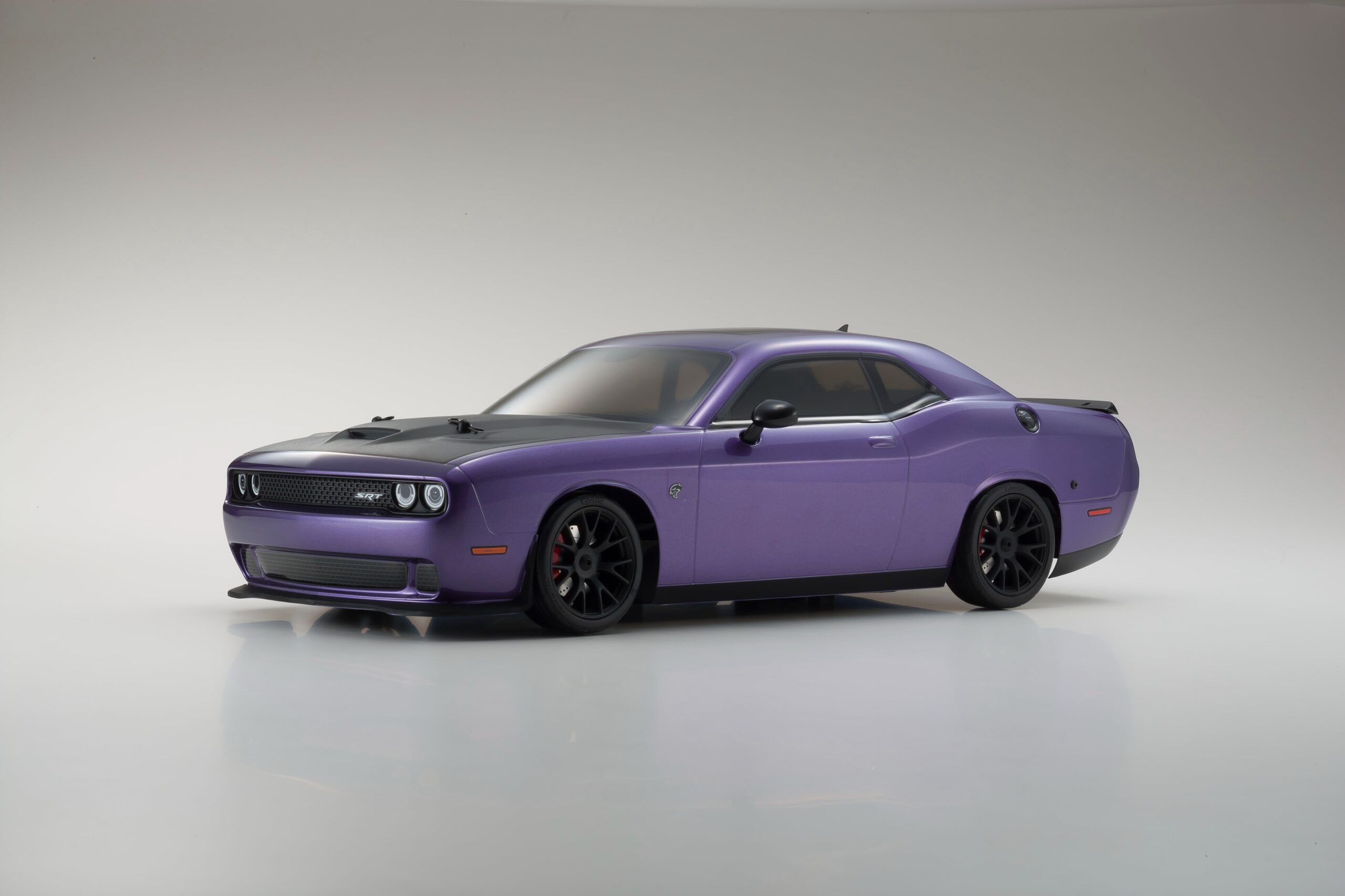

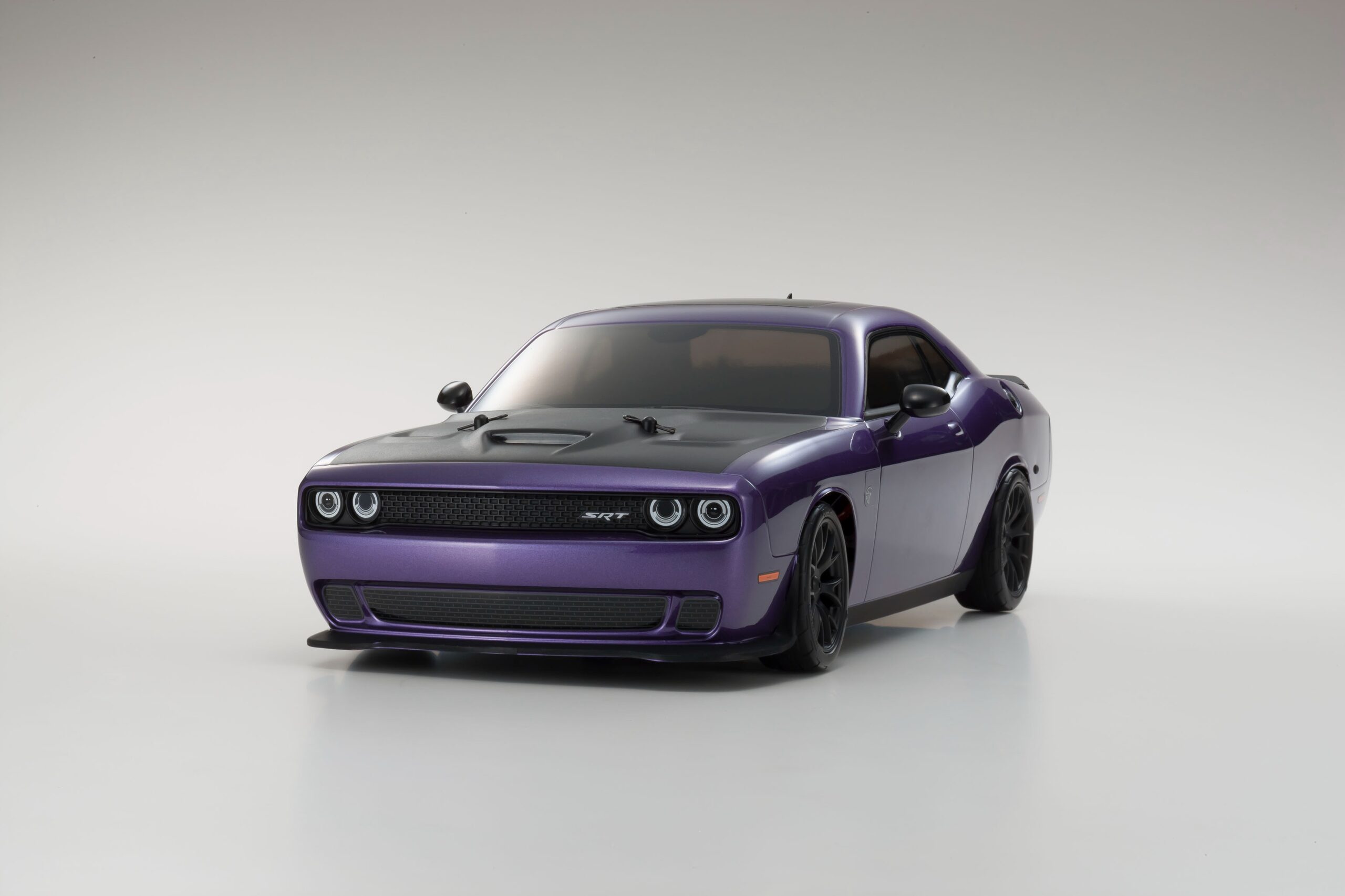

• Highly detailed Dodge Challenger SRT Hellcat body
• Shaft-driven full-time 4WD system
• Oil shocks – smooth and precise suspension
• Full ball bearings – efficient drivetrain
• KS202W waterproof steering servo
• Sealed differential and transmission – reliable in dusty conditions
• Easy maintenance – fewer parts and hex screws
• Semi-slick tires – excellent grip on asphalt
• Adjustable gear ratio (29T–37T pinion)

Technical Specifications

• Length: 486 mm
• Width (with body): 190 mm (200 mm)
• Height: 144 mm
• Wheelbase: 274 mm
• Tread (F/R): Front 174 mm / Rear 174 mm
• Tires (F/R): φ66 × 25 mm / φ66 × 25 mm
• Gear Ratio: 6.5 : 1
• Weight: approx. 1650 g
• R/C System: Syncro KT-231P+
• Motor: G14L

What’s in the Box

• Fully assembled chassis with pre-installed R/C system
• Factory-finished and assembled body
• Syncro KT-231P+ transmitter
• Hex wrench
• Spanner
• Setup adjustment parts

Required for Operation (Not Included)

• 4 × AA batteries for transmitter
• Battery for chassis (recommended: 7.2V Ni-MH battery)
• Battery charger
• Tools

Recommendations & Upgrades

Upgrade your model for maximum performance and realism:

While the technical specifications recommend a Ni-MH battery, the ESC and motor are also compatible with a 2S LiPo battery, offering increased power and longer run time.

Recommended upgrades:

• Absima 4000mAh LiPo 2S battery (T-Plug connector) – more power and longer runtime
• When using LiPo batteries, always monitor motor temperature for safe operation

Enhance realism and durability with additional accessories:

• LED light kit (e.g. Kyosho 97054-4HR) – improved scale realism and visibility
• Fazer FZ02 spare & upgrade parts – increased durability and performance

See also: (recommendations)

• Absima 2S Battery 4000mAh
• Absima 2…3S Lipo Battery Charger
• LED Lights Kyosho 97054-4HR (Led Lighting 5mm 400mm 2 Halogen Clear 2 Red)
• LED Lights Kyosho 97054-4H (Led Lighting 5mm 400mm Halogen Clear (4))
• LED Lights Kyosho 97054-4R-C (Led Lighting 5mm 400mm Red (4))
