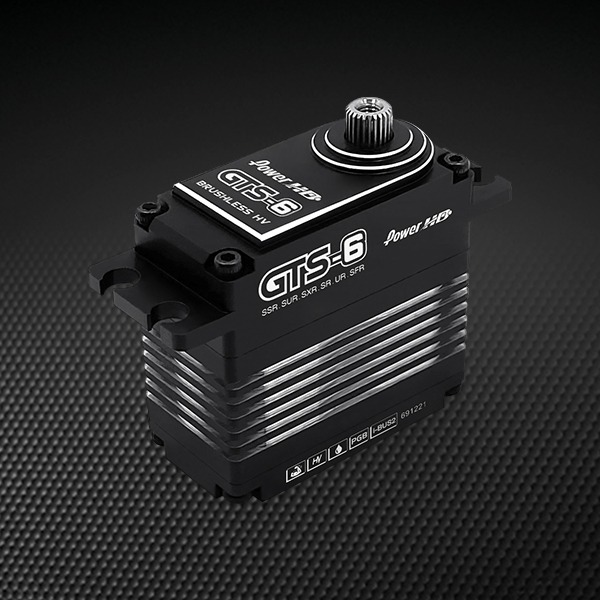

Power HD GTS-6 Servo (60kg/0,07s/8,4V) HV Brushless

Developed specifically for 1/8 Buggy, 1/8 Truggy, and 1/8 GT racing, the GTS-6 combines massive torque with outstanding speed, making it an ideal steering servo for competition vehicles running on high-grip tracks and rough off-road surfaces. The full aluminum housing improves heat dissipation, while dual ball bearings provide smooth and precise operation throughout the servo’s lifespan.

The GTS-6 is also compatible with FlySky i-BUS2 telemetry systems and the Power HD PG-CB63 programming box, allowing users to adjust servo parameters, monitor performance data, and fine-tune settings for maximum track performance. It additionally supports high-speed modes found in FlySky, Futaba, and Sanwa radio systems.

Key Features

• High-voltage digital brushless servo
• Up to 60 kg-cm torque @ 8.4V
• Ultra-fast 0.07 sec/60° speed
• Powerful four-pole brushless motor
• CNC-machined aluminum case

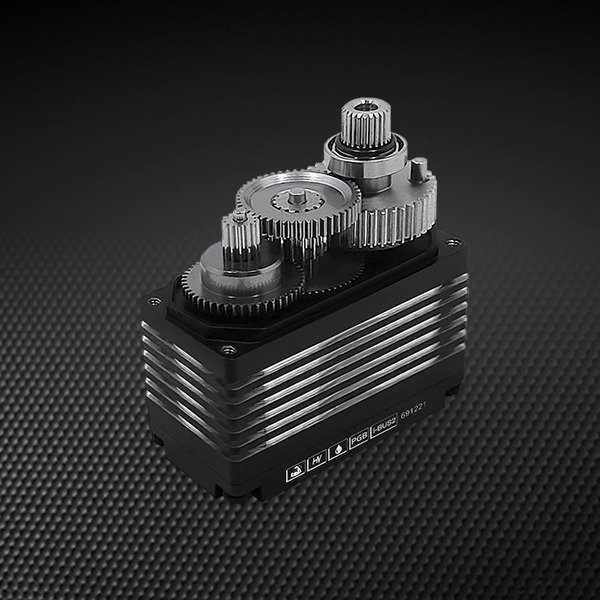

• 7075 aluminum and steel gears
• Dual ball bearings
• FlySky i-BUS2 compatible
• Programmable with Power HD PG-CB63
• Supports high-speed radio modes
• Designed for 1/8 competition vehicles

Recommended Applications

• 1/8 Nitro Buggy
• 1/8 Electric Buggy
• 1/8 Truggy
• 1/8 GT Racing
• Heavy-duty 1/10 racing vehicles
• High-performance crawler steering applications

Specifications

• Torque @ 6.0V: 48.0 kg-cm
• Torque @ 7.4V: 56.0 kg-cm
• Torque @ 8.4V: 60.0 kg-cm
• Speed @ 6.0V: 0.10 sec/60°
• Speed @ 7.4V: 0.08 sec/60°
• Speed @ 8.4V: 0.07 sec/60°
• Operating Voltage: 6.0–8.4V DC
• Motor Type: Brushless
• Gear Type: 7075 Aluminum + Steel
• Bearings: Dual Ball Bearings
• Max Current: 7.5A
• Working Frequency: 1520μs / 50–1666Hz
• Dimensions: 40.0 × 20.0 × 38.3 mm
• Weight: 78 g
• Operating Temperature: -10°C to +60°C
